Theft Deterrent Module Replacement

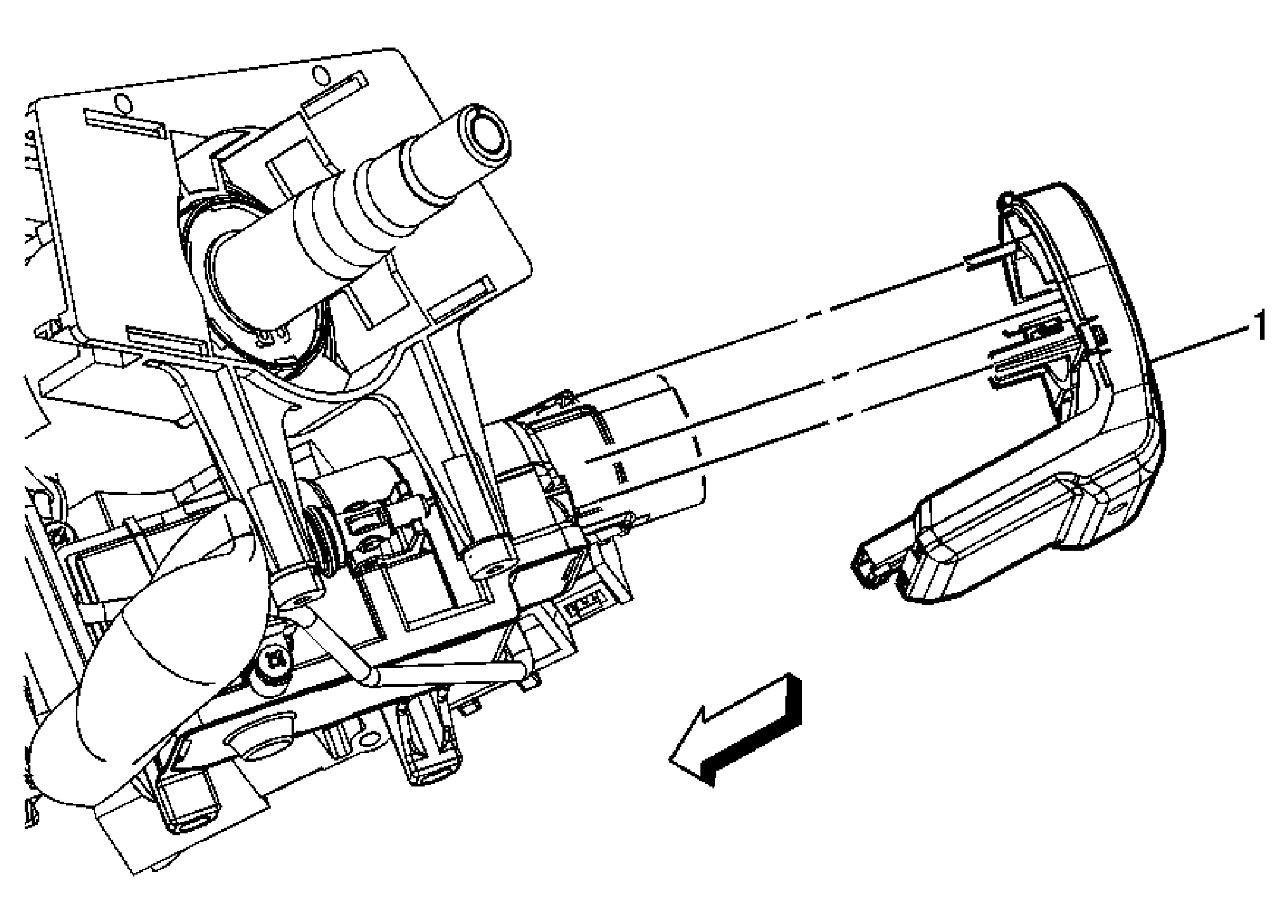

Fig 1: View Of Theft Deterrent Module
GM1716546Courtesy of GENERAL MOTORS CORP.
Theft Deterrent Module Replacement

Callout Component Name

Preliminary Procedure

  1. Disable the SIR. Refer to SIR Disabling and Enabling .
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  3. Remove ignition lock cylinder.
1 Module Assembly, Theft Deterrent
Procedure:
  1. Disconnect electrical connectors.
  2. Program the theft deterrent control module after replacement. Refer to Control Module References .
