Power Outlet Component Views

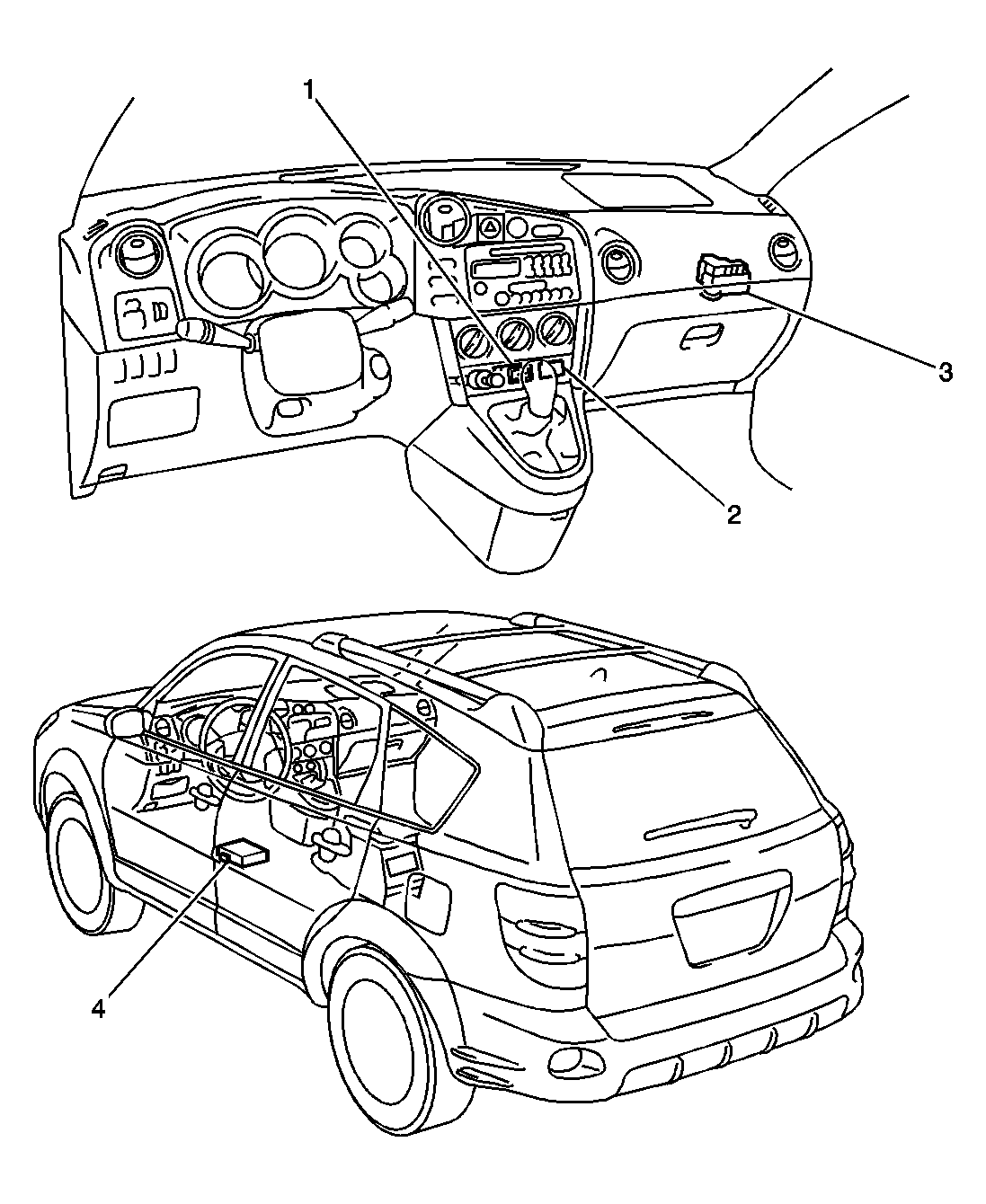

Fig 1: AC/DC Accessory Power Receptacle Component Views
GM847071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Receptacle Switch
2 Accessory Power Receptacle
3 Accessory Power Receptacle Relay
4 Accessory AC/DC Power Control Module
