Accessory AC/DC Power Control Module
Accessory AC/DC Power Control Module Connector & Terminal Parts Information

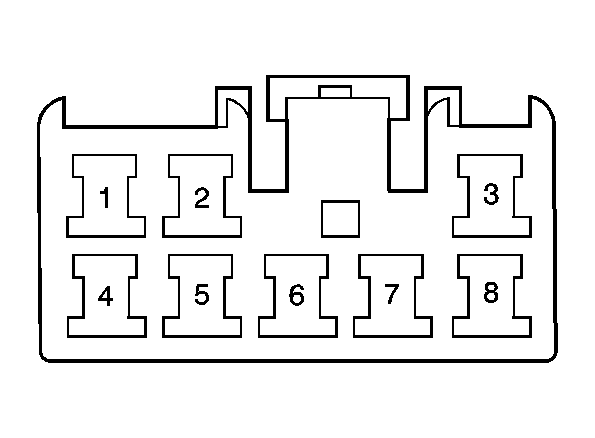

Connector Part Information
|
Accessory AC/DC Power Control Module Terminal Identification
| Pin | Wire Color | Function |
|---|---|---|
| 1 | GN | Supply Voltage |
| 2 | - | Not Used |
| 3 | GN/BK | Power Receptacle Supply Voltage |
| 4 | WH/BK | Ground |
| 5-6 | - | Not Used |
| 7 | GN/WH | Power Receptacle Ground |
| 8 | - | Not Used |
