Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

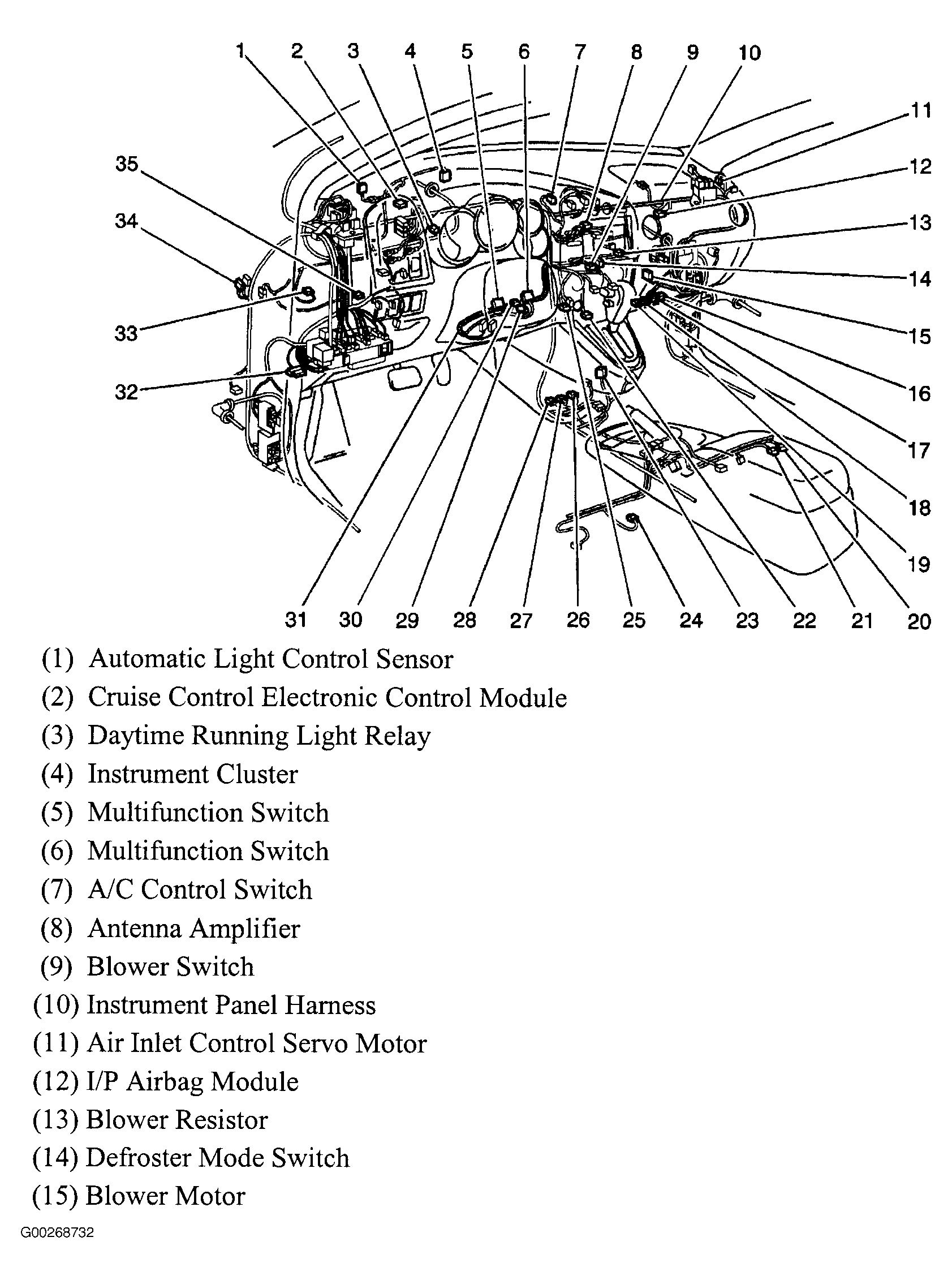

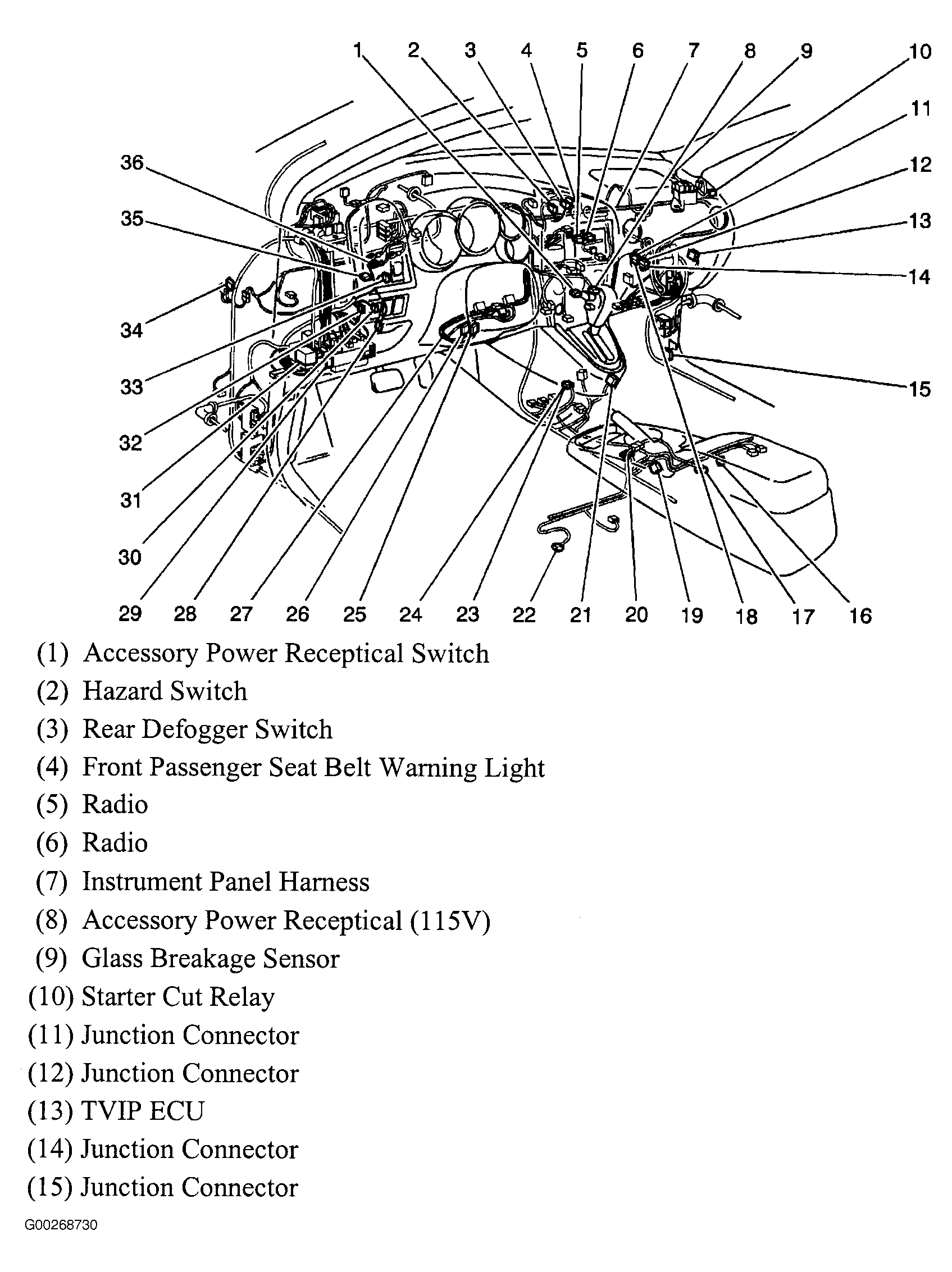

Fig 1: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

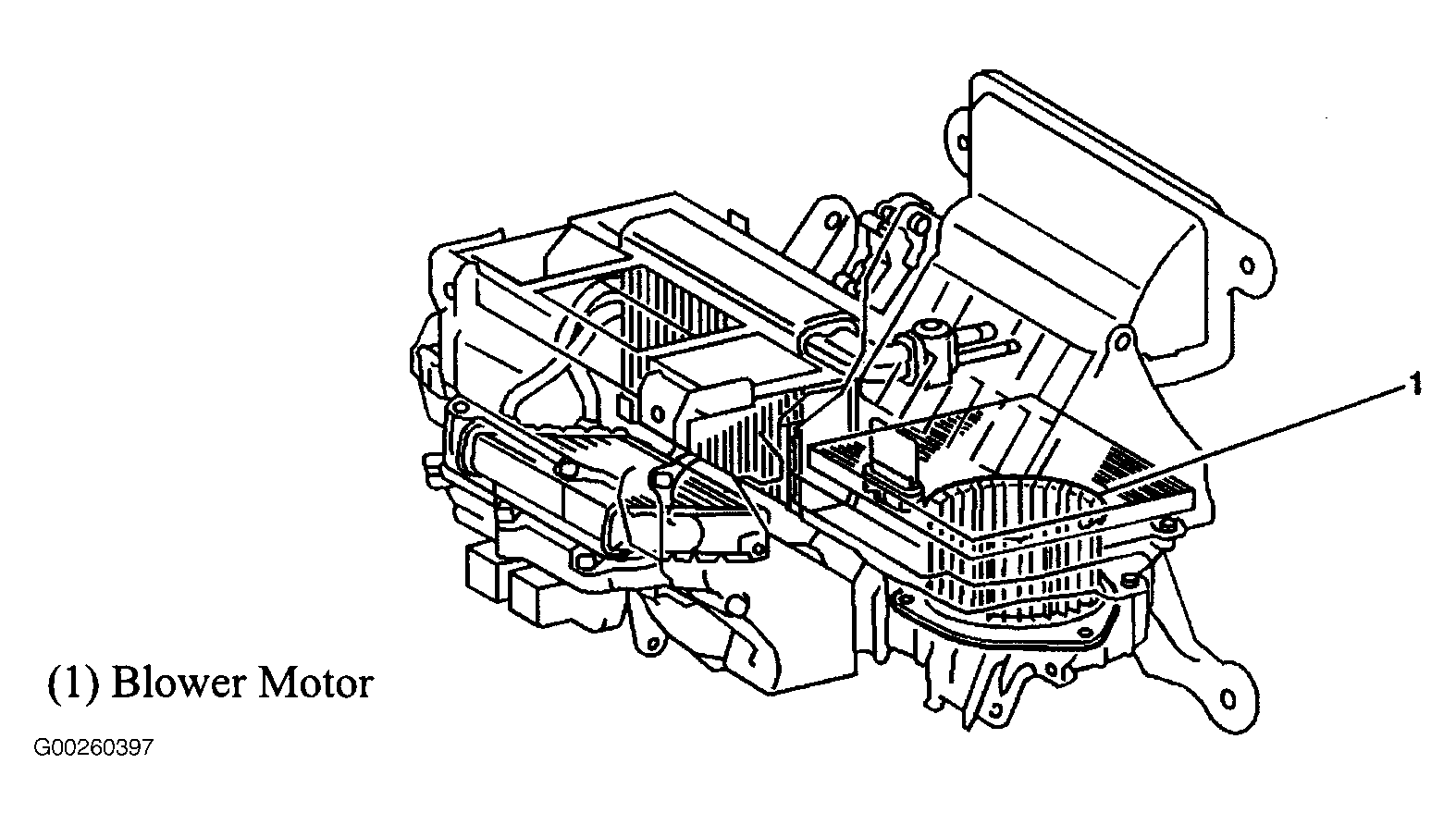

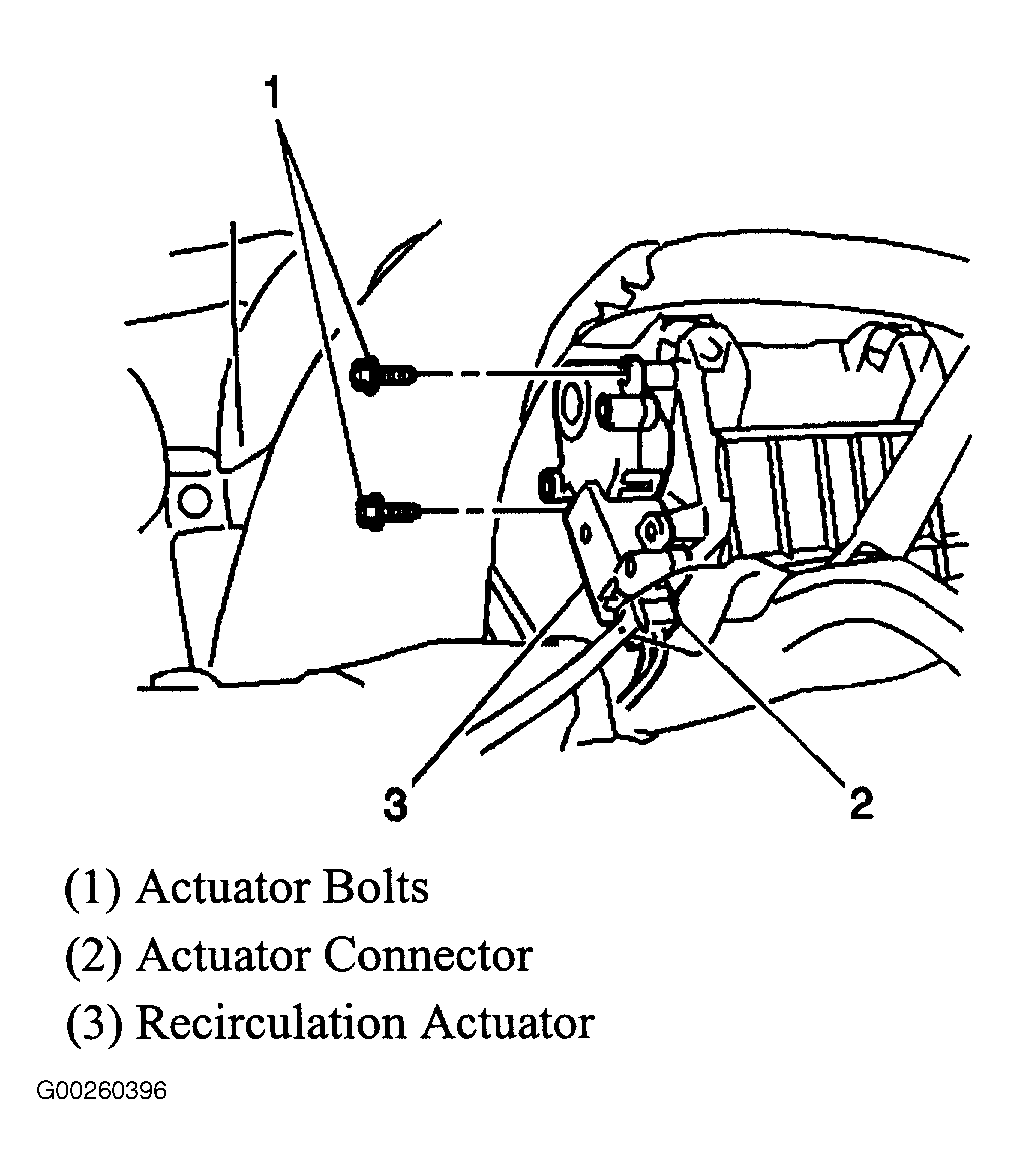

Fig 2: Right Side Of HVAC
Courtesy of GENERAL MOTORS CORP.

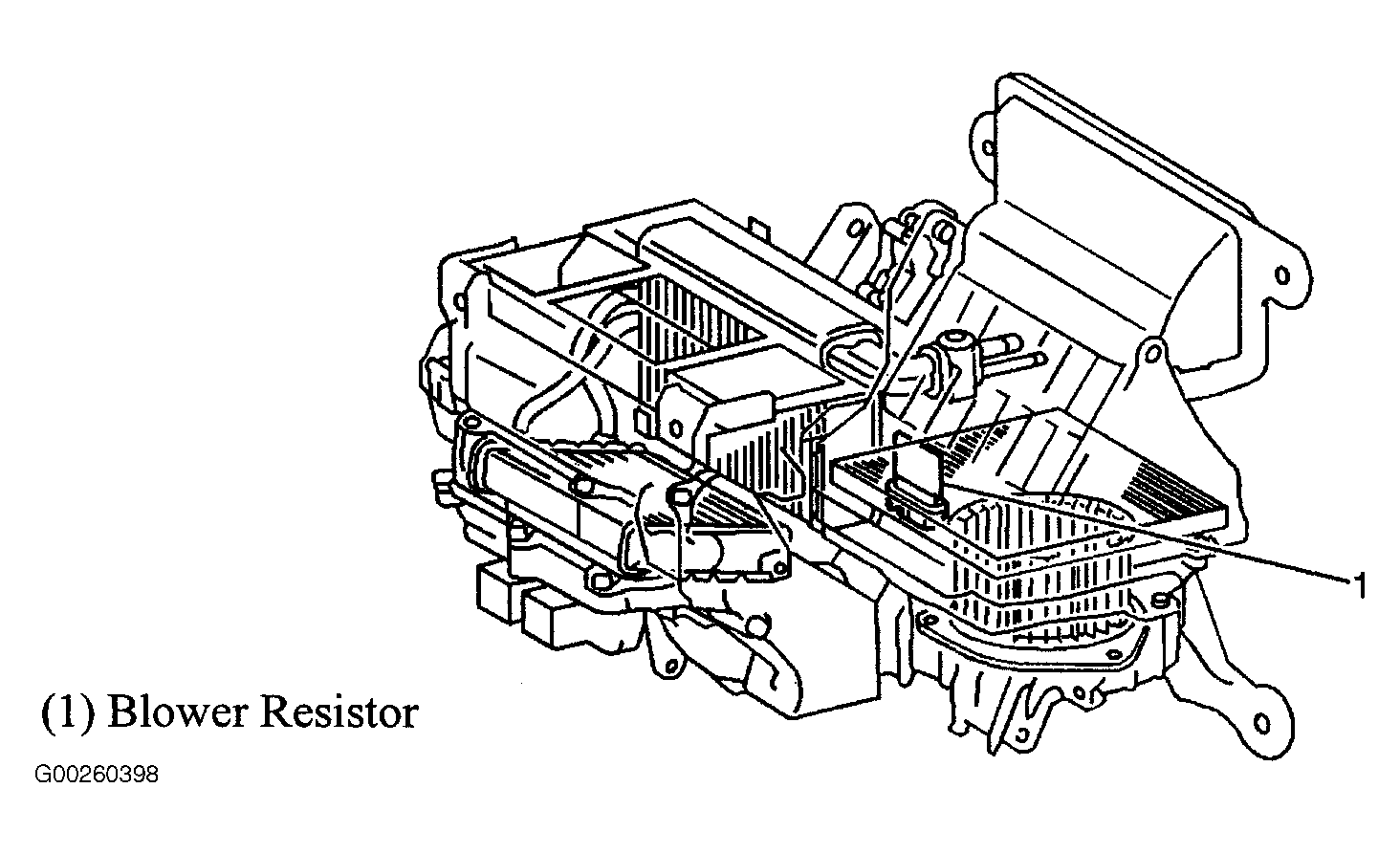

Fig 3: Right Side Of HVAC
Courtesy of GENERAL MOTORS CORP.

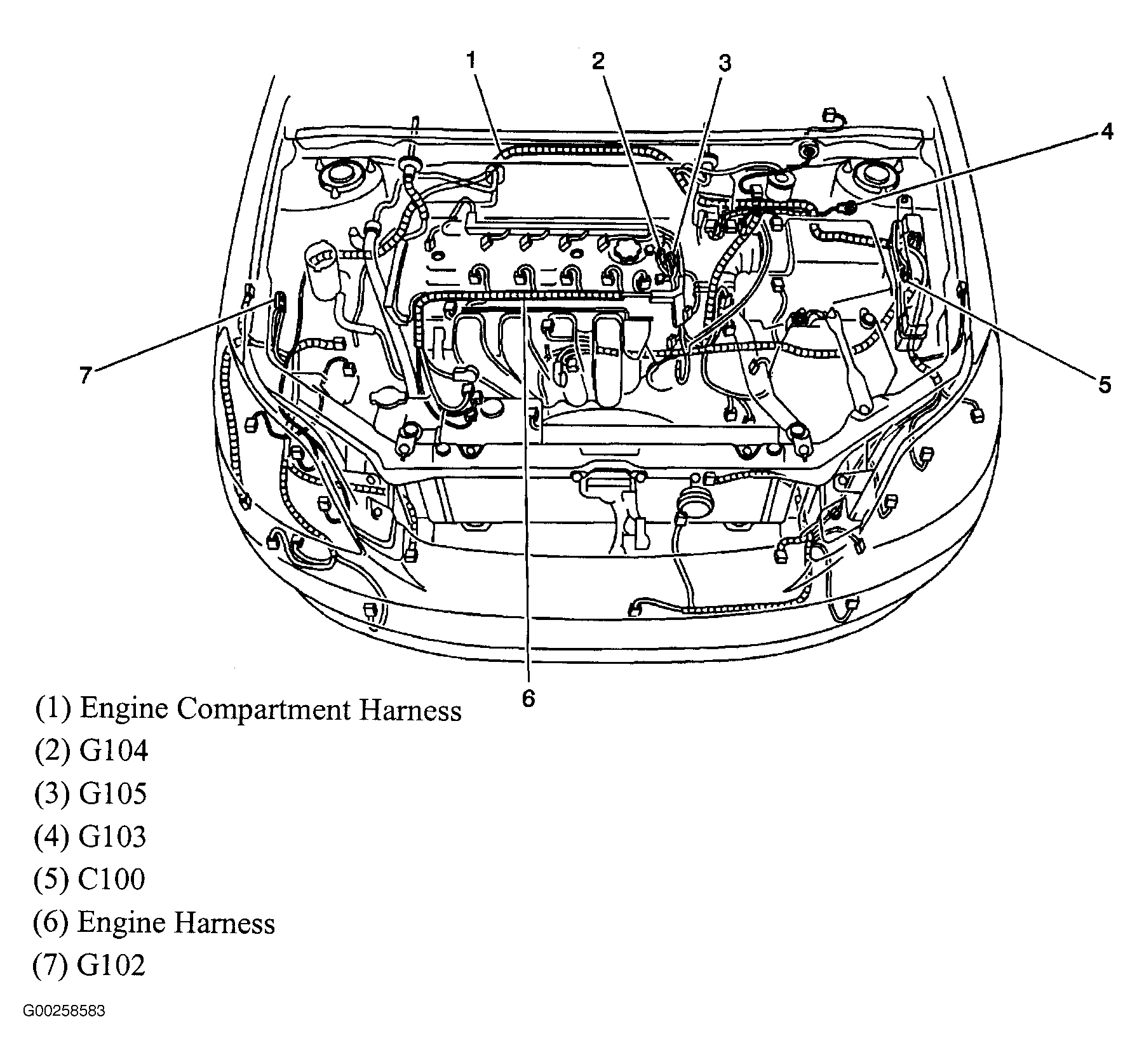

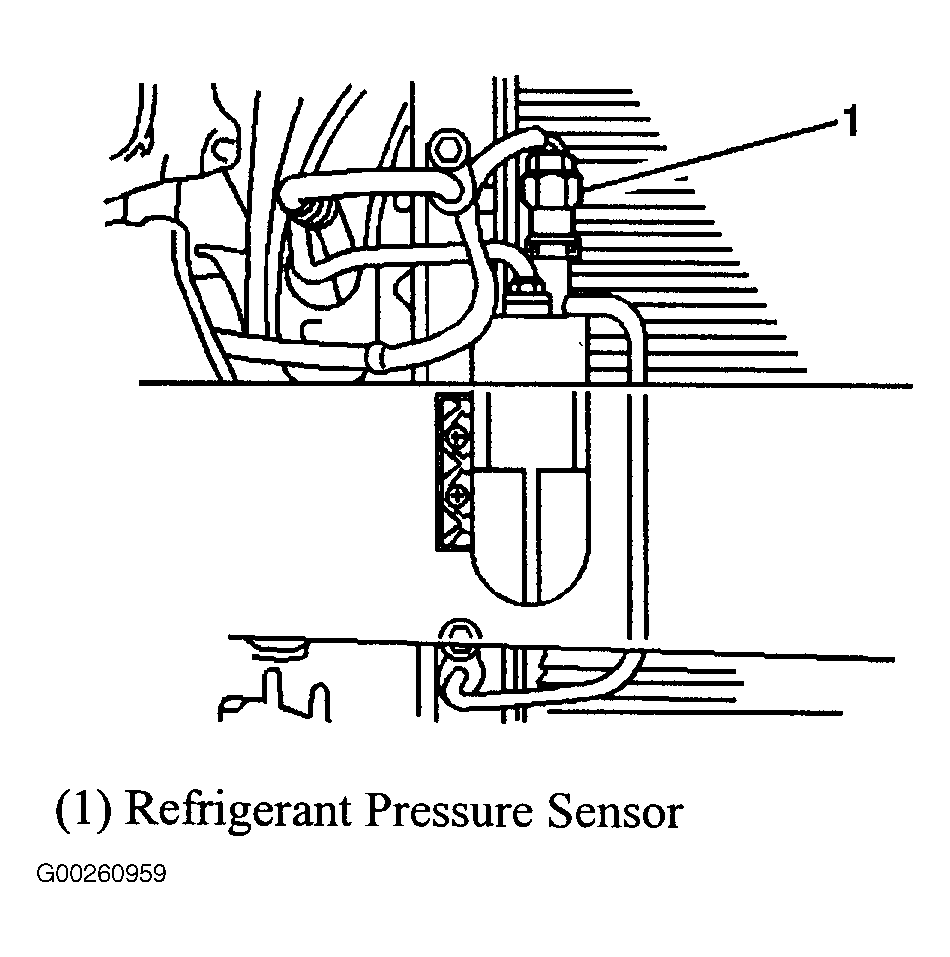

Fig 4: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

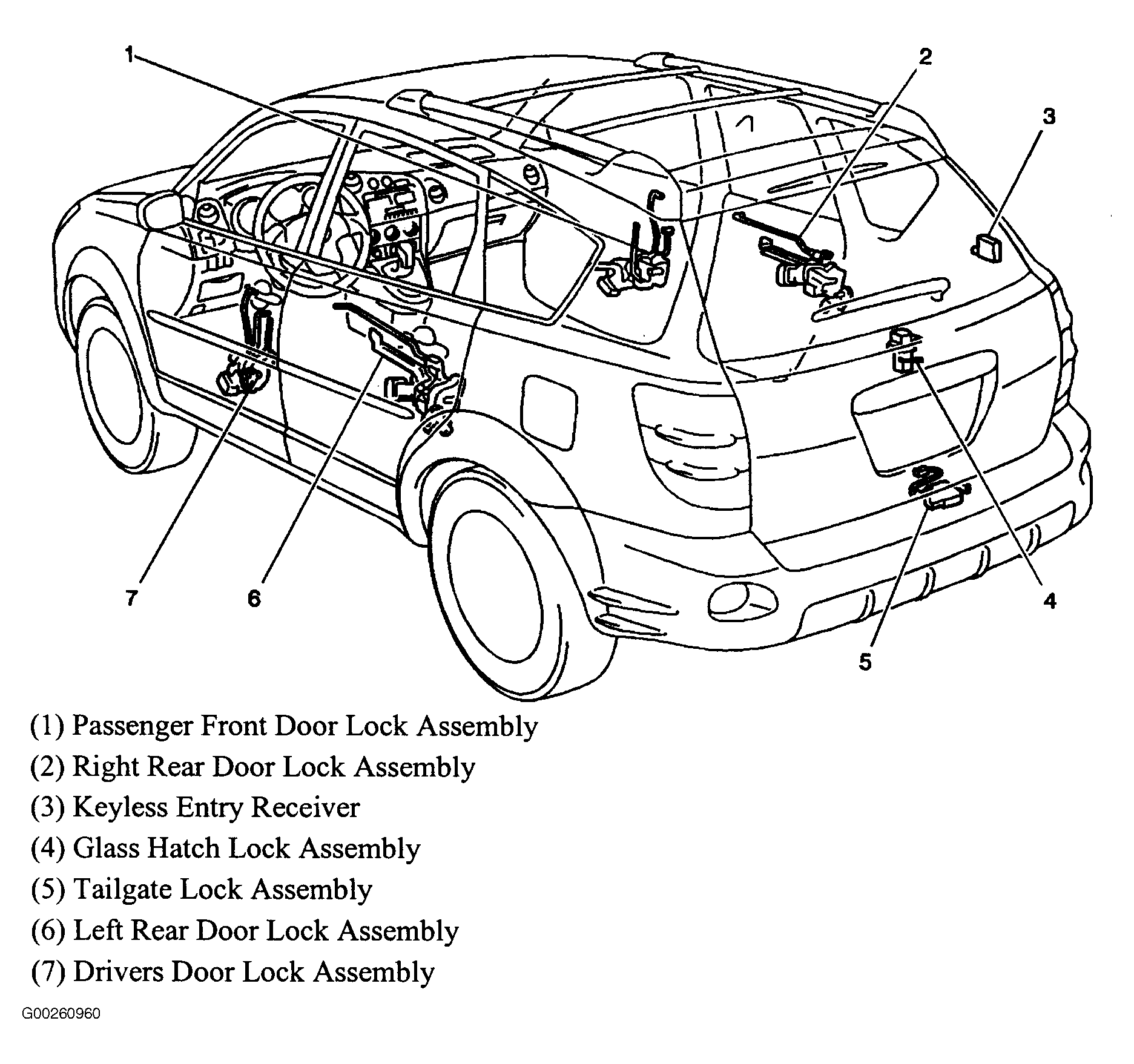

Fig 5: Keyless Entry Component Locations
Courtesy of GENERAL MOTORS CORP.
Fig 6: Theft Deterrent System Component Locations
Courtesy of GENERAL MOTORS CORP.
Fig 7: Top Of Manual Transaxle
Courtesy of GENERAL MOTORS CORP.
Fig 8: Top Center Of Manual Transaxle
Courtesy of GENERAL MOTORS CORP.

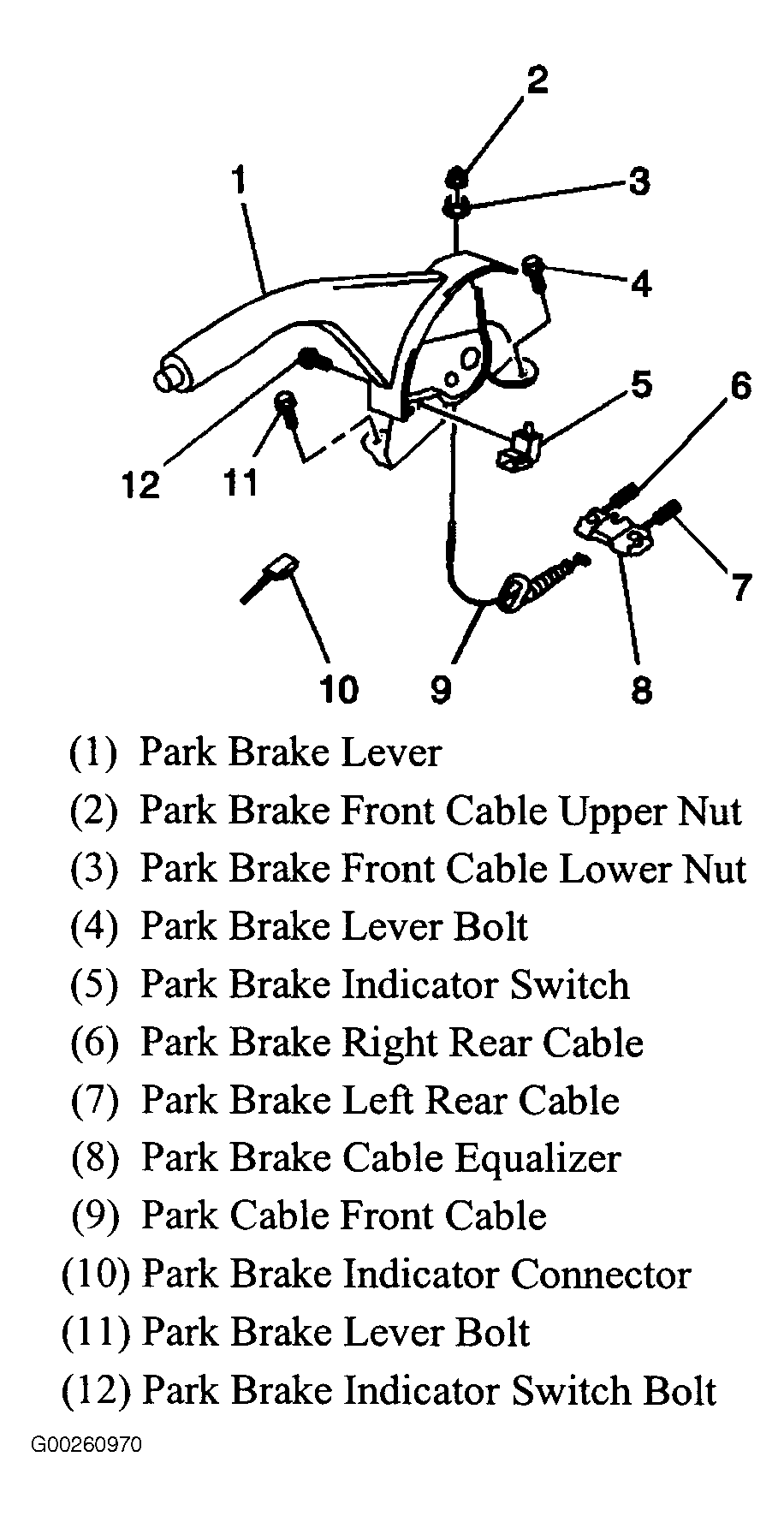

Fig 9: Under Parking Brake Lever

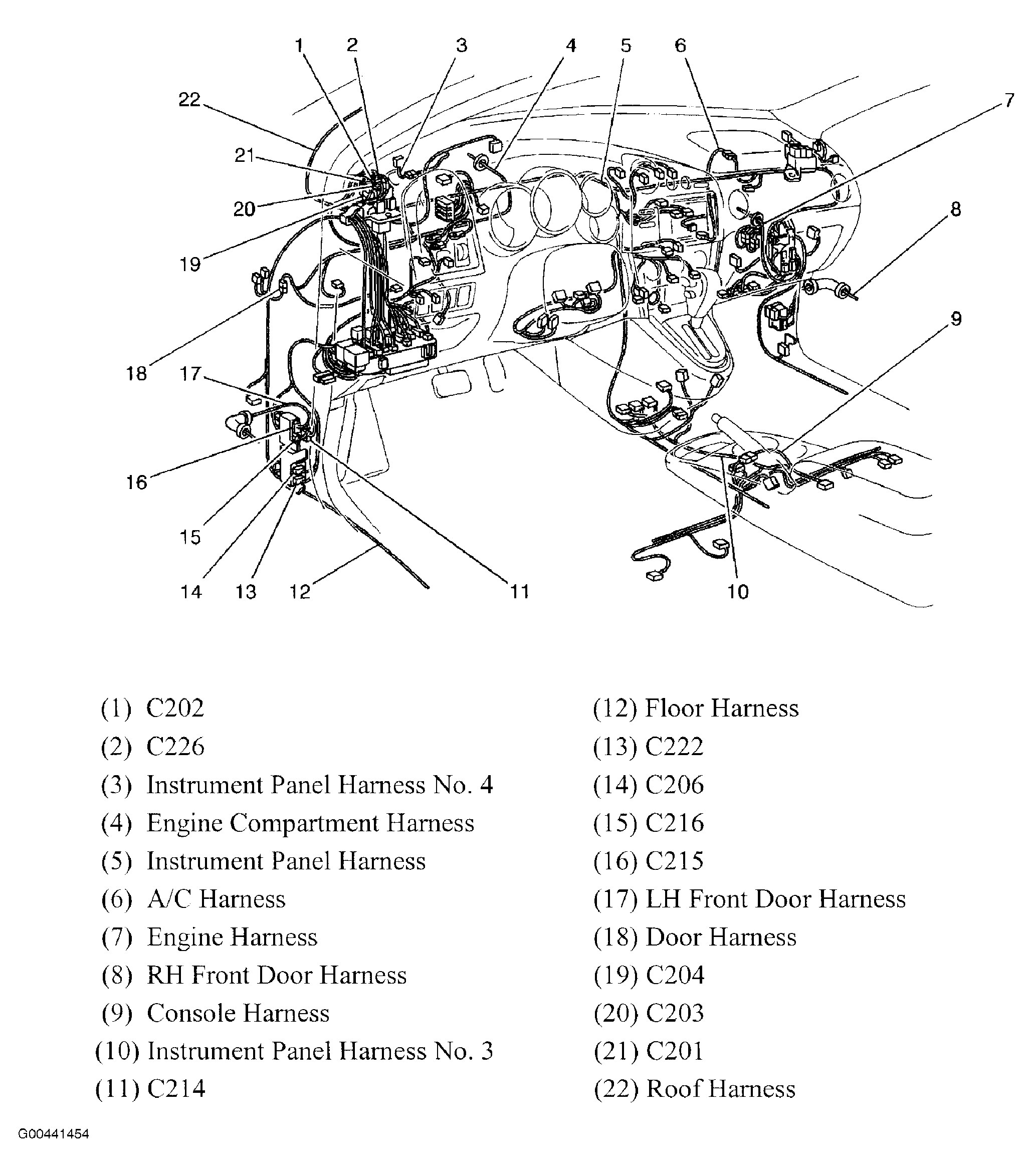

Courtesy of GENERAL MOTORS CORP.

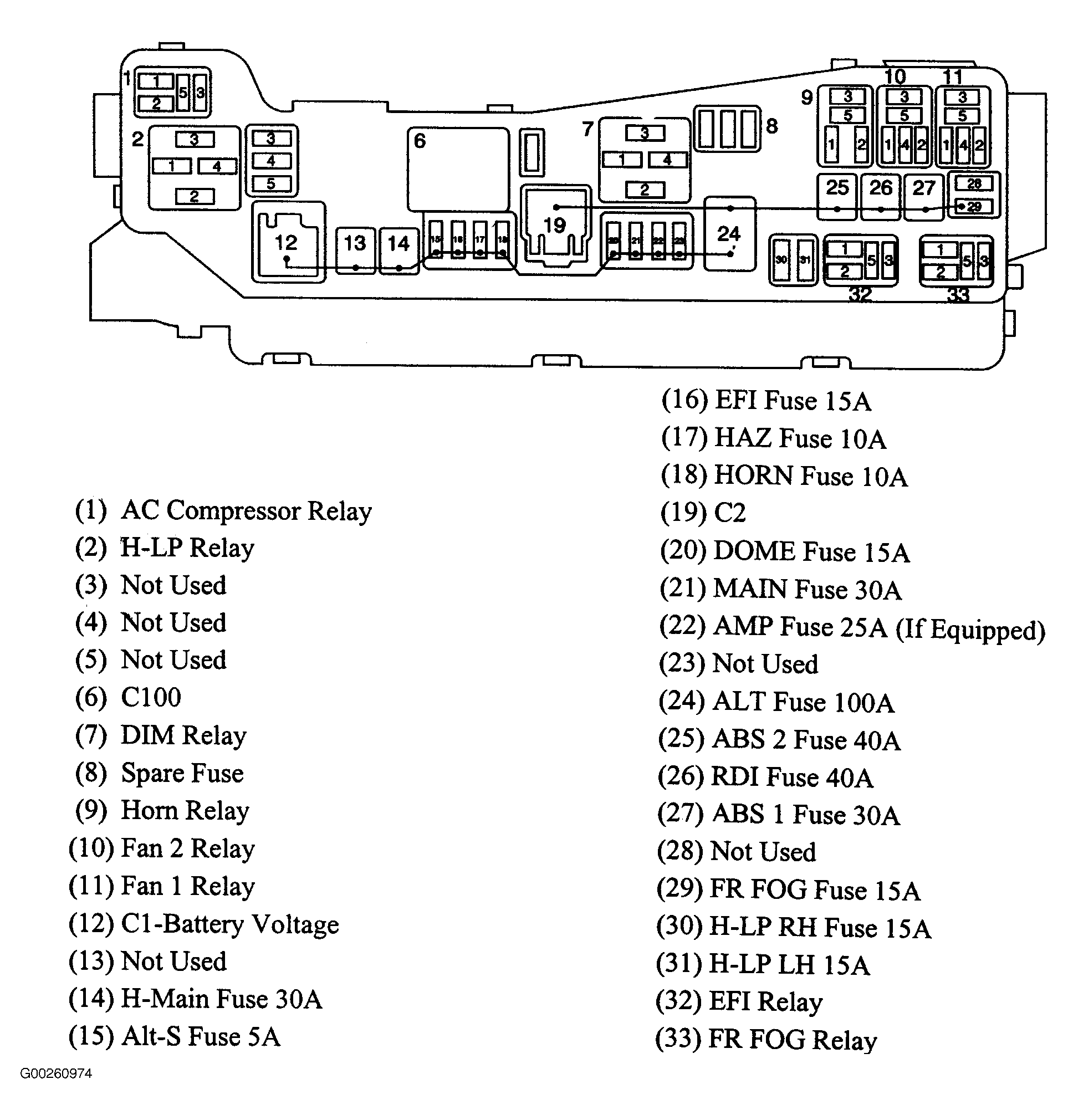

Fig 10: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 11: Bottom Of Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 12: Top Of Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

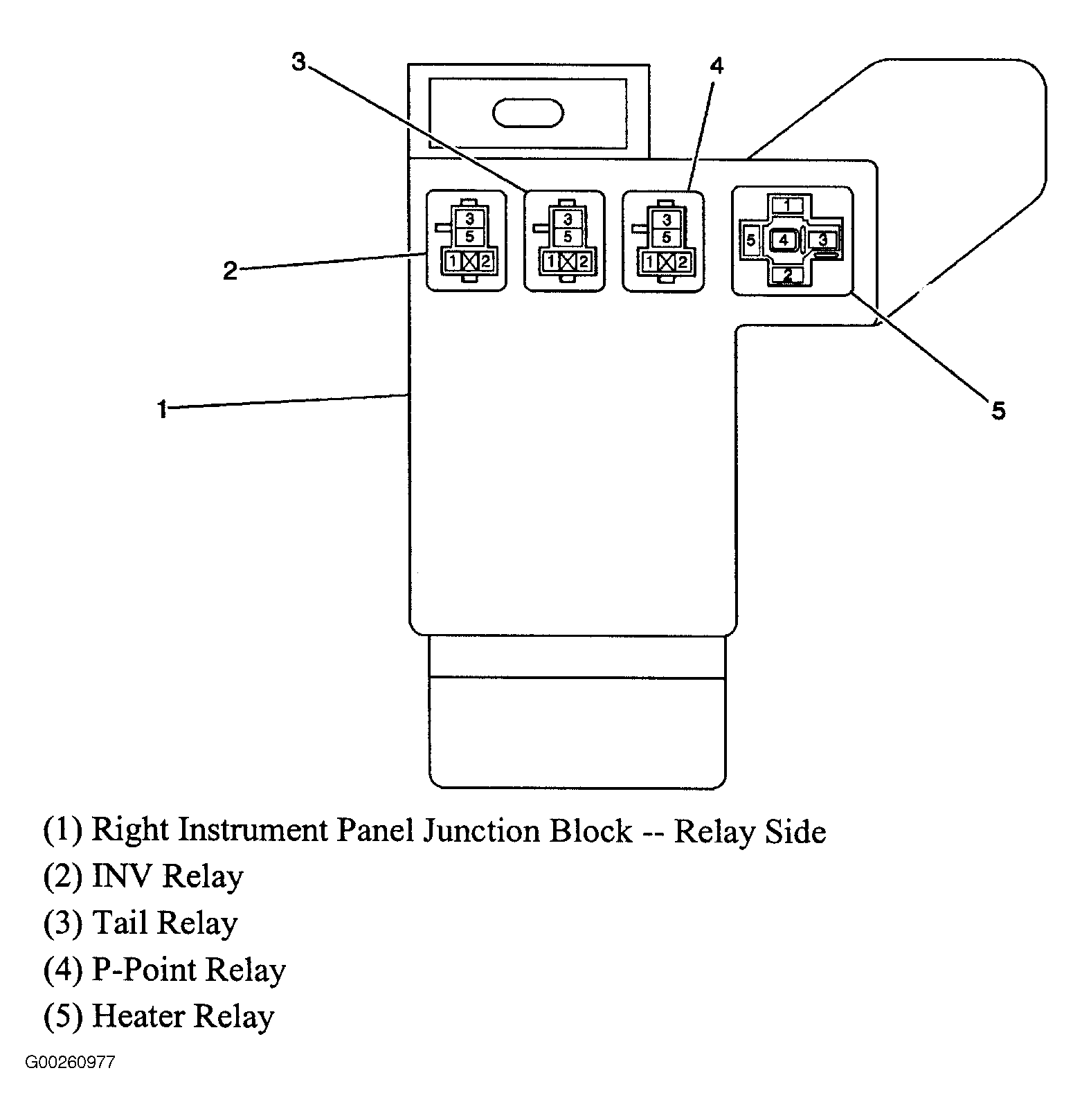

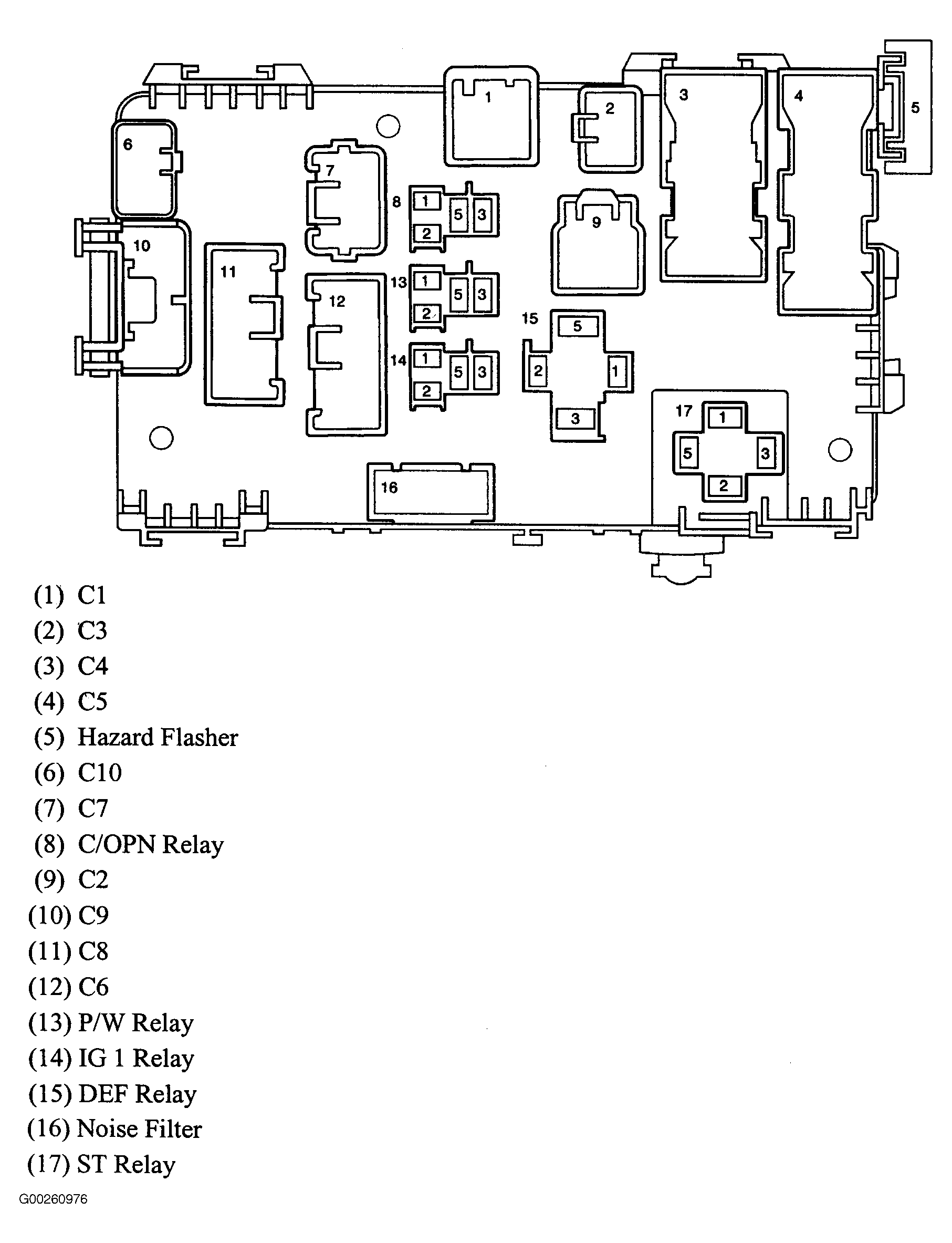

Fig 13: Right Instrument Panel Junction Block
Courtesy of GENERAL MOTORS CORP.

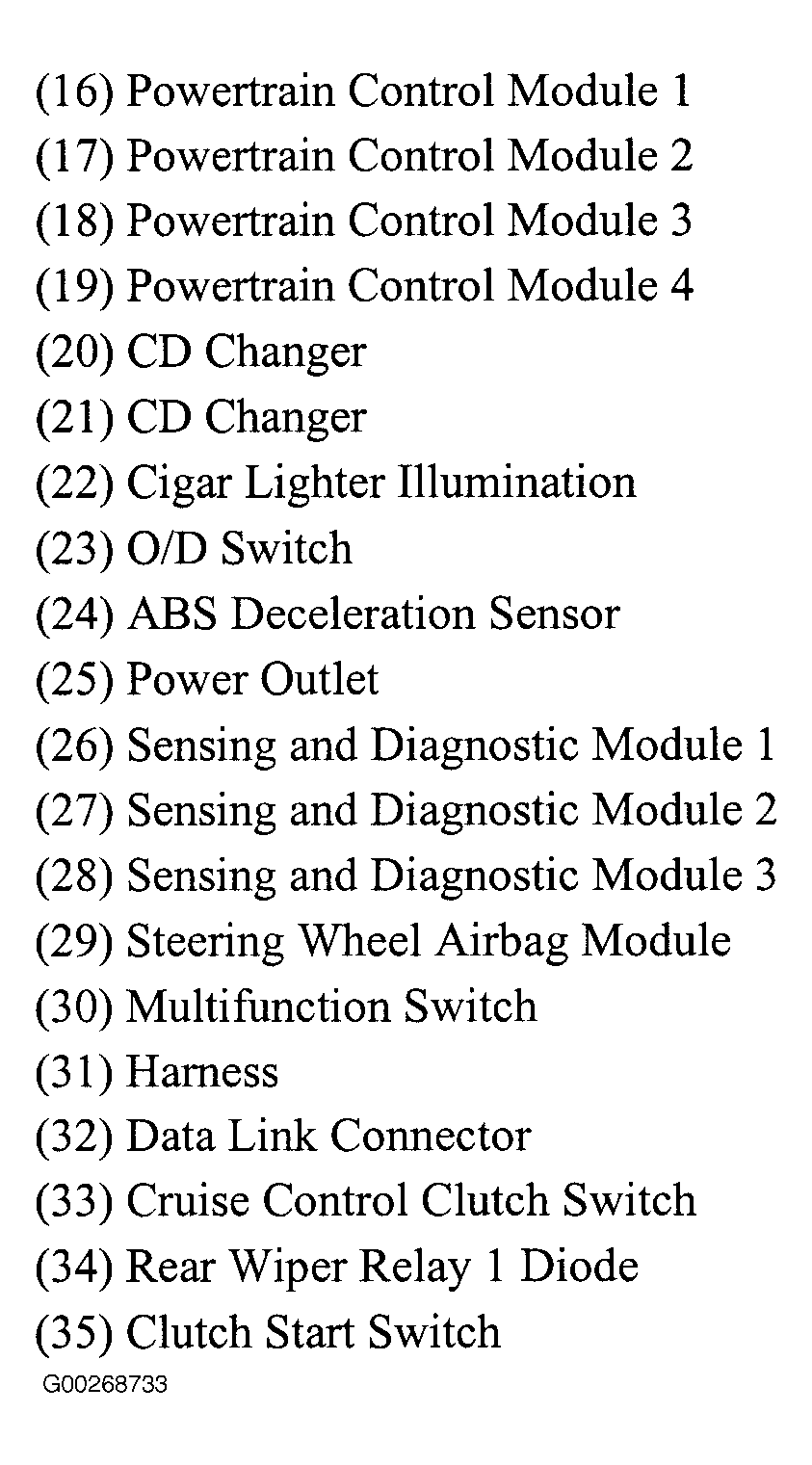

Fig 14: Dash & Under Driver Seat
Courtesy of GENERAL MOTORS CORP.

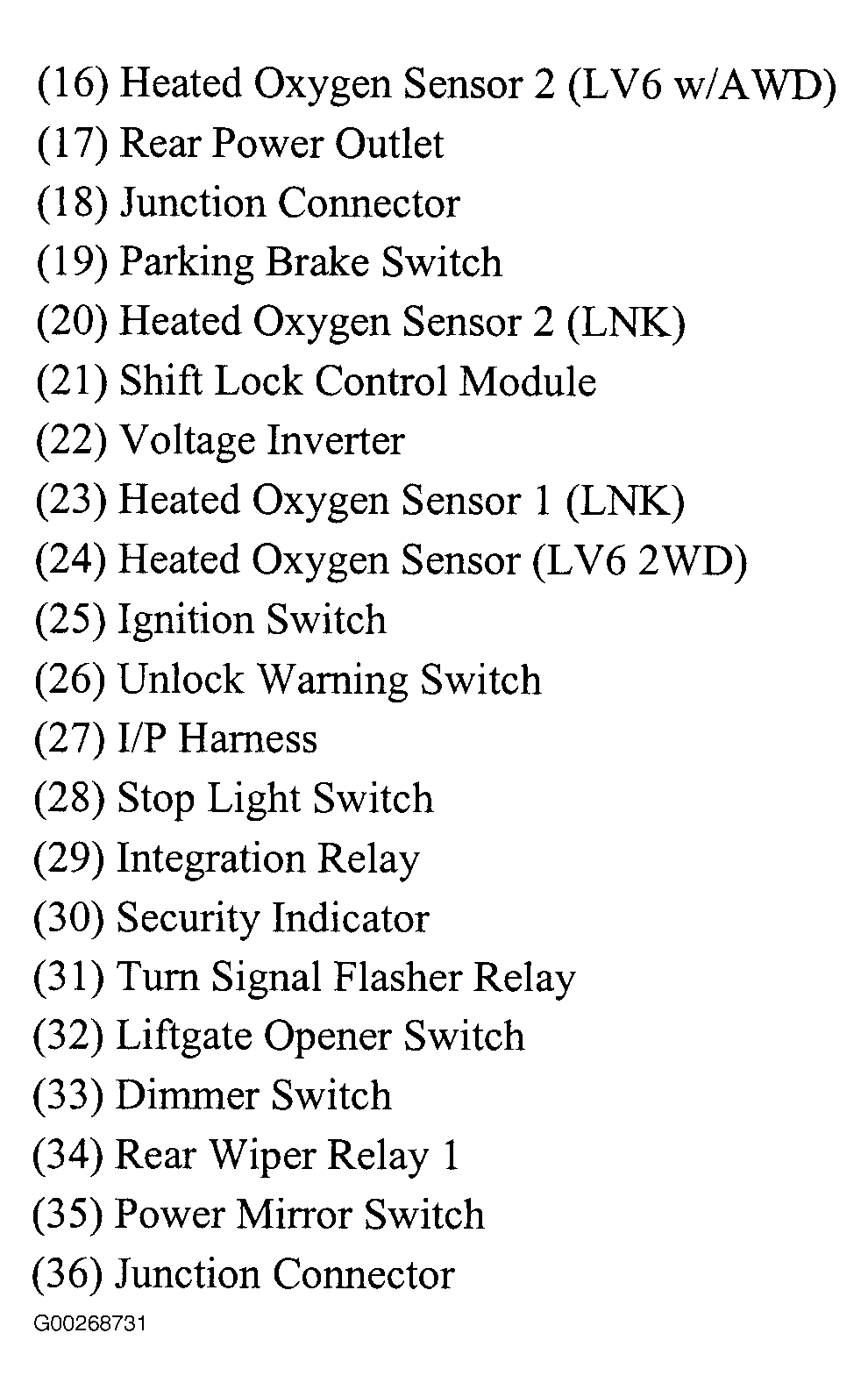

Fig 15: Dash
Courtesy of GENERAL MOTORS CORP.

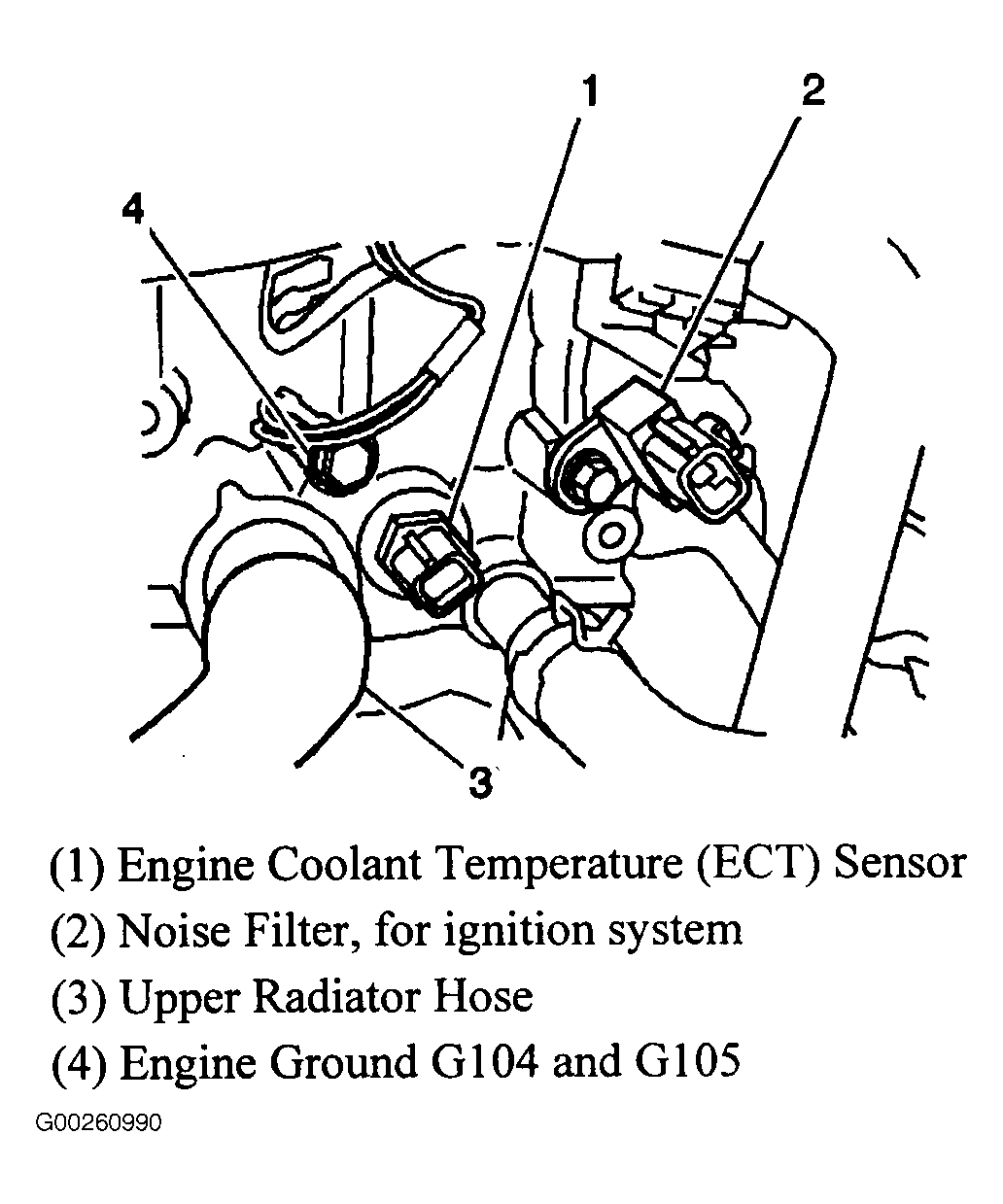

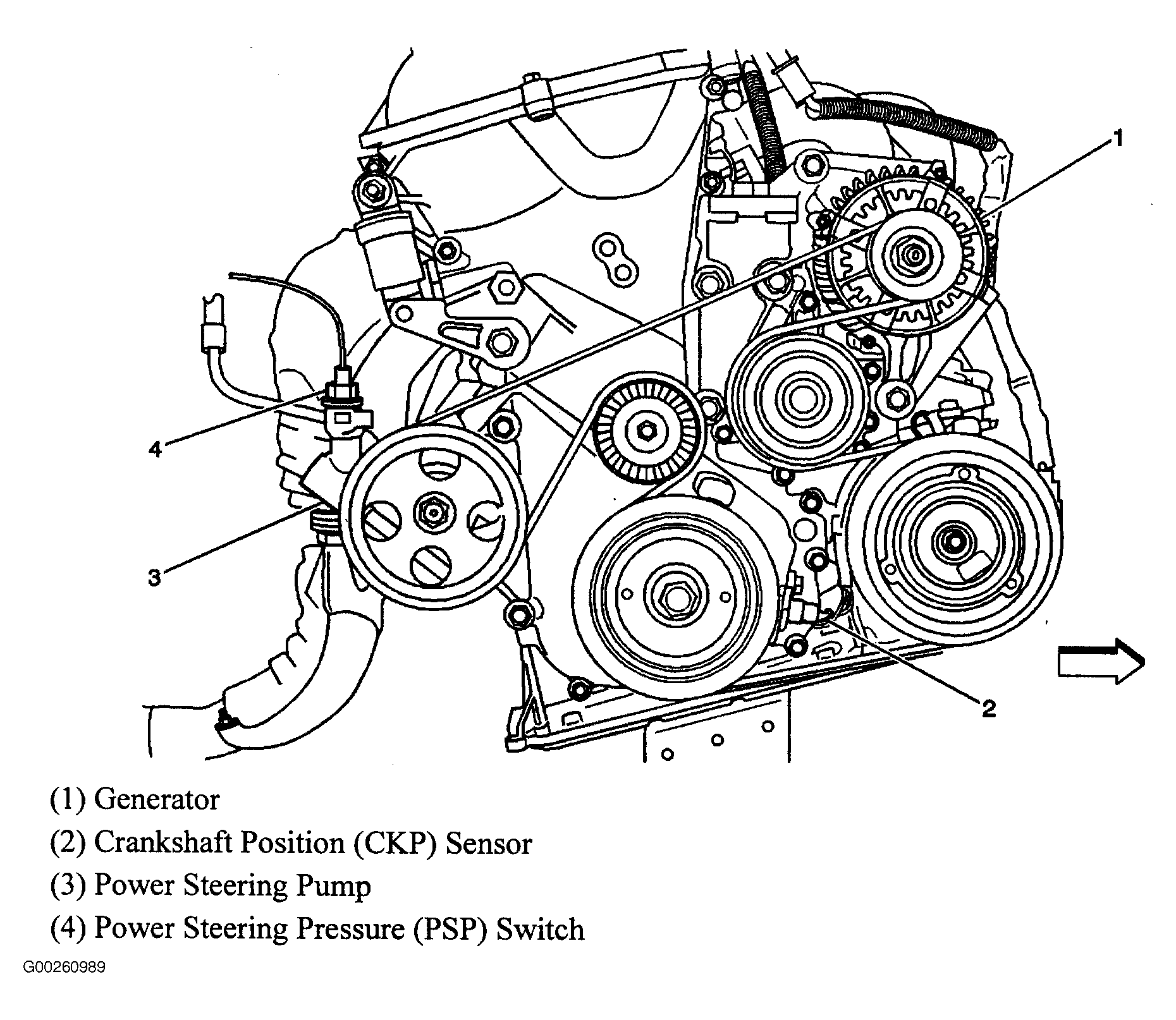

Fig 16: Front Of Engine
Courtesy of GENERAL MOTORS CORP.

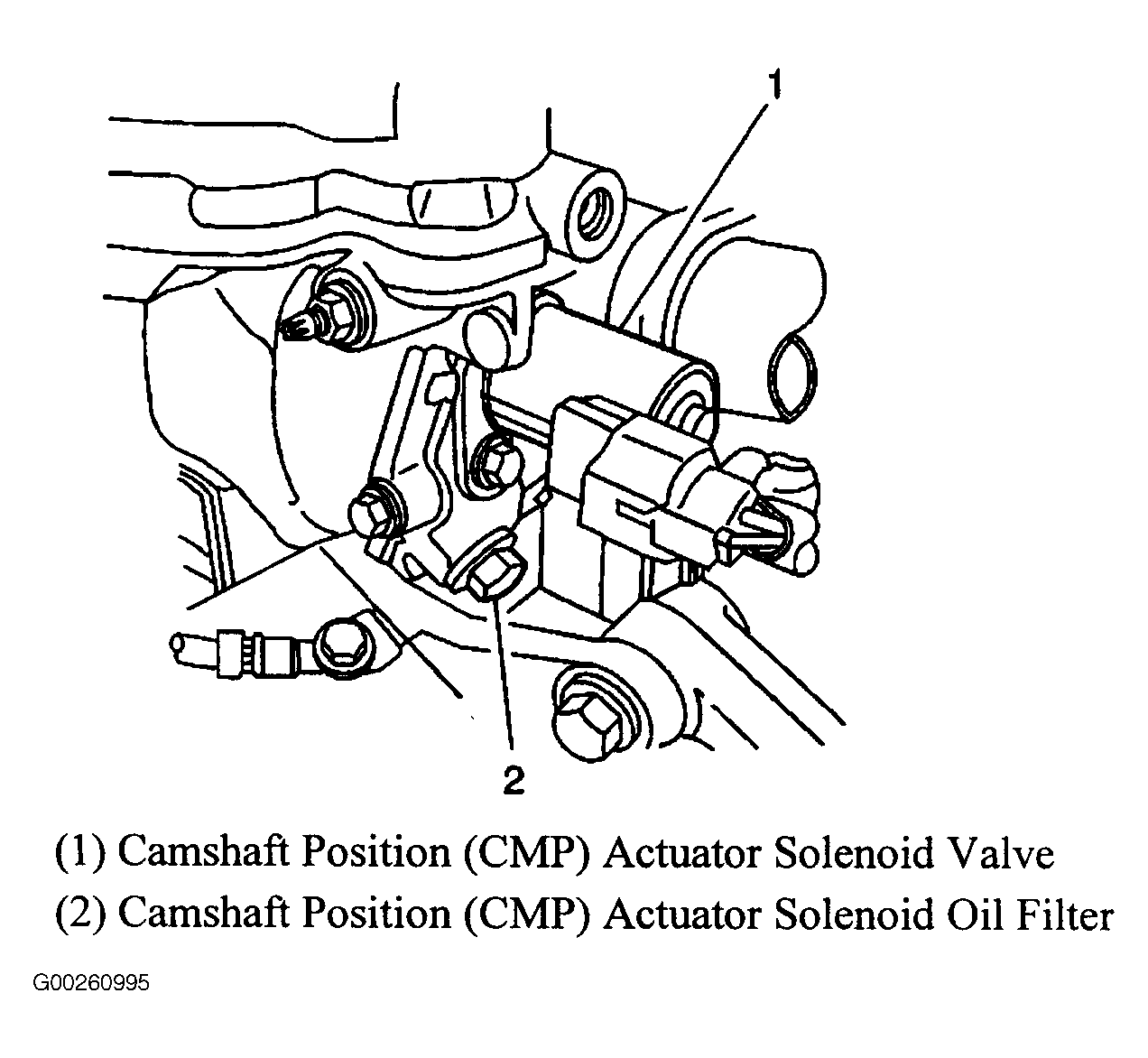

Fig 17: Left Side Of Cylinder Head (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Front Of Engine (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.

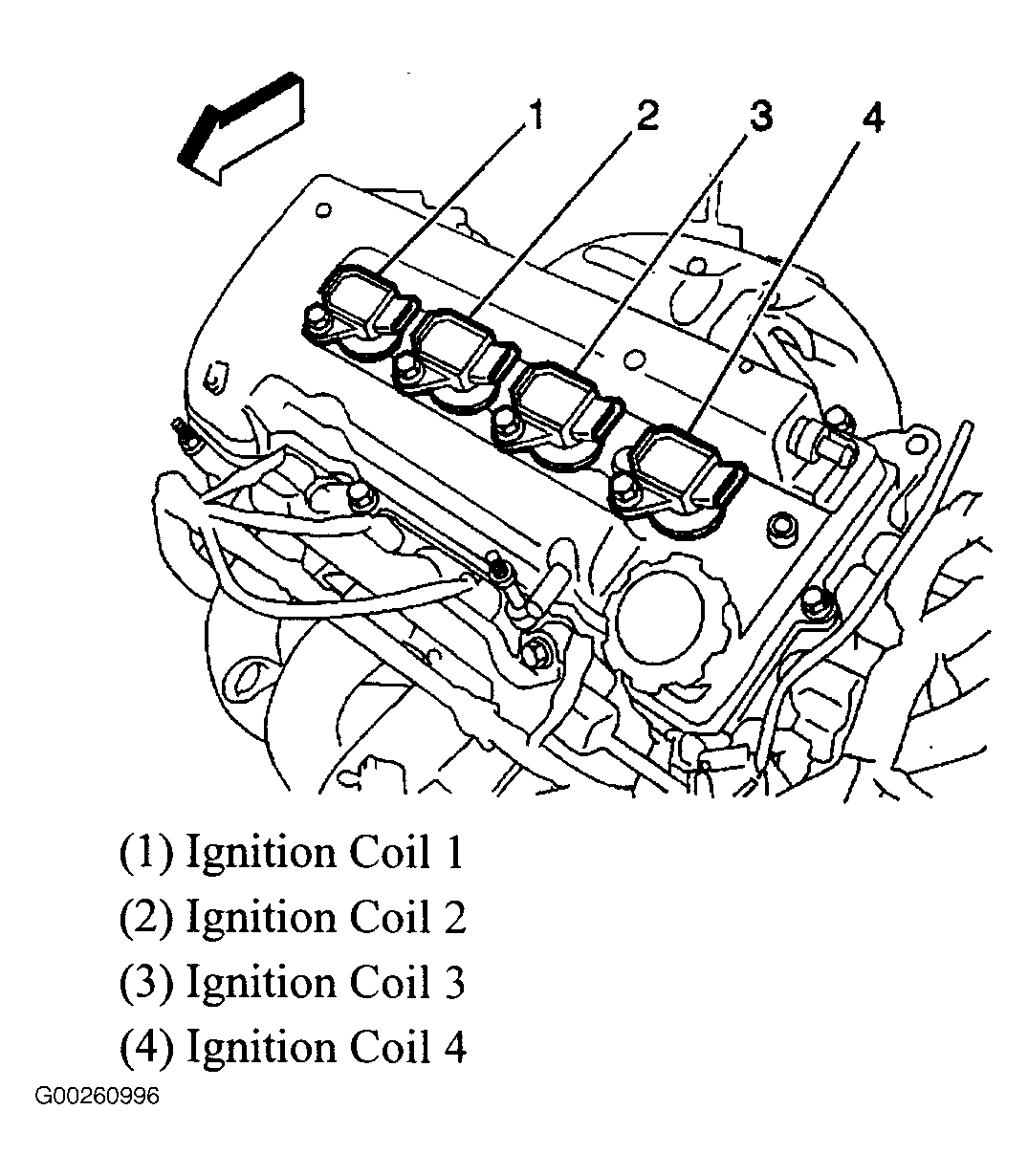

Fig 19: Top Of Engine (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Engine Compartment Grounds
Courtesy of GENERAL MOTORS CORP.

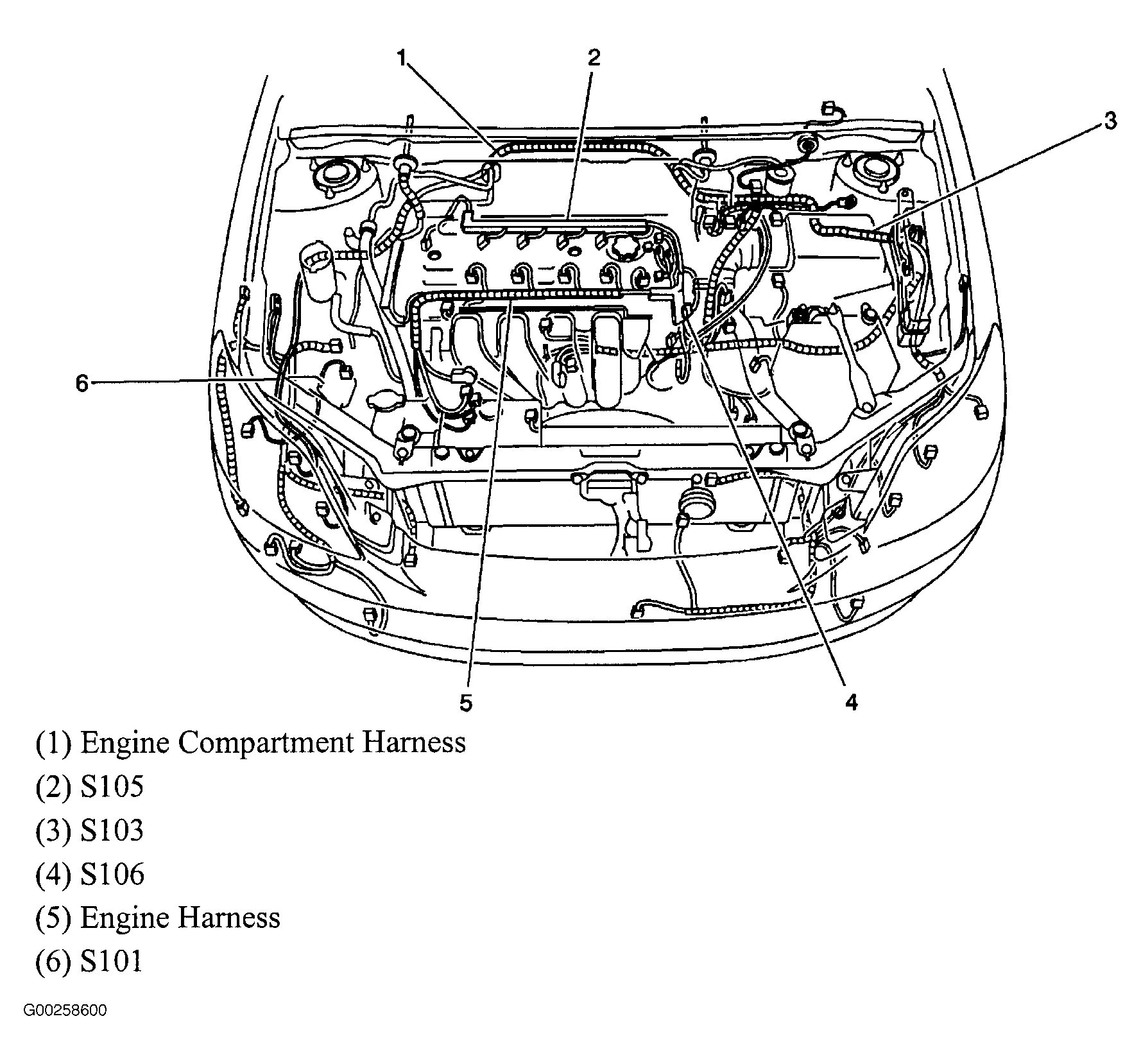

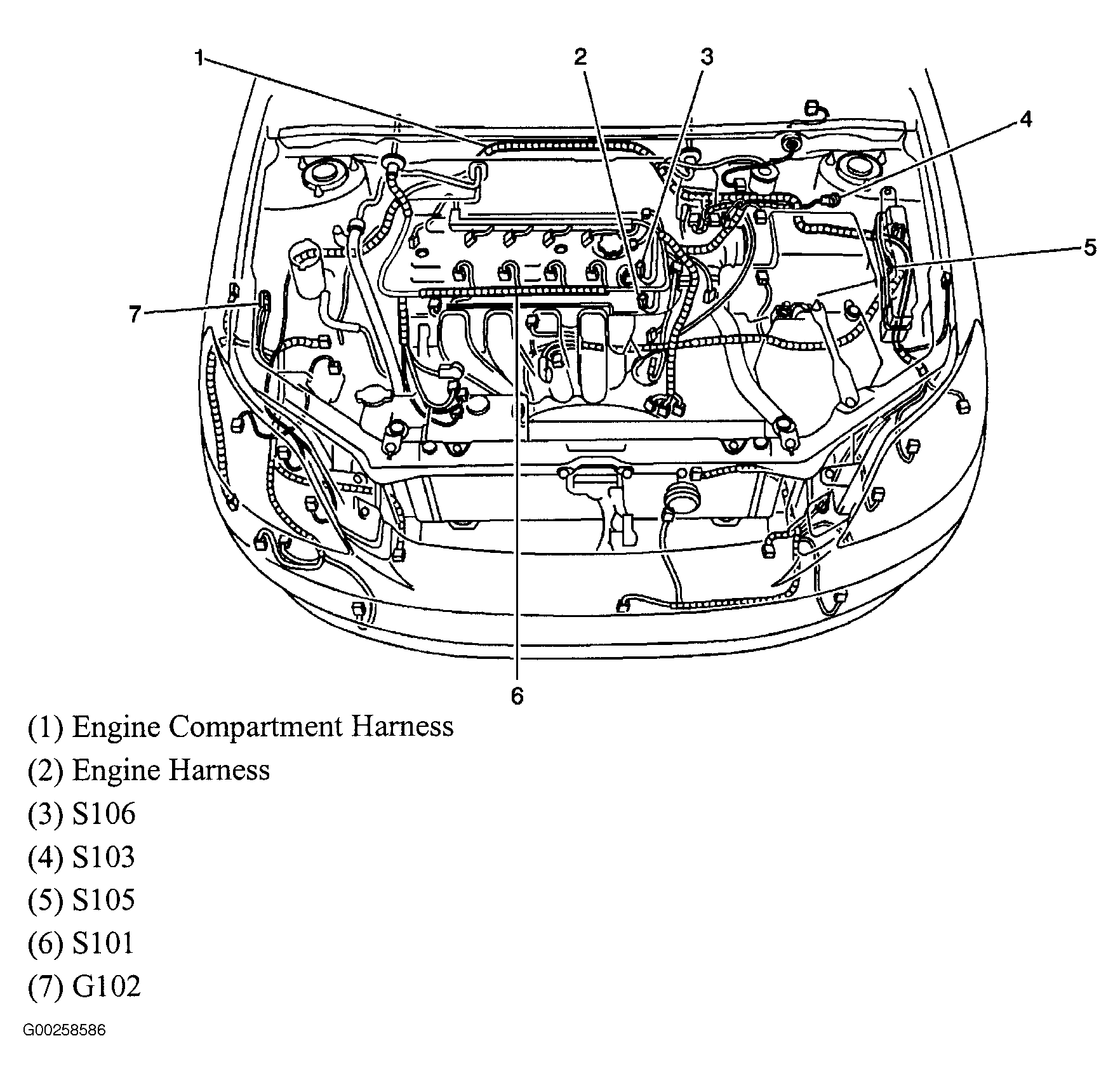

Fig 21: Engine Compartment Splices
Courtesy of GENERAL MOTORS CORP.

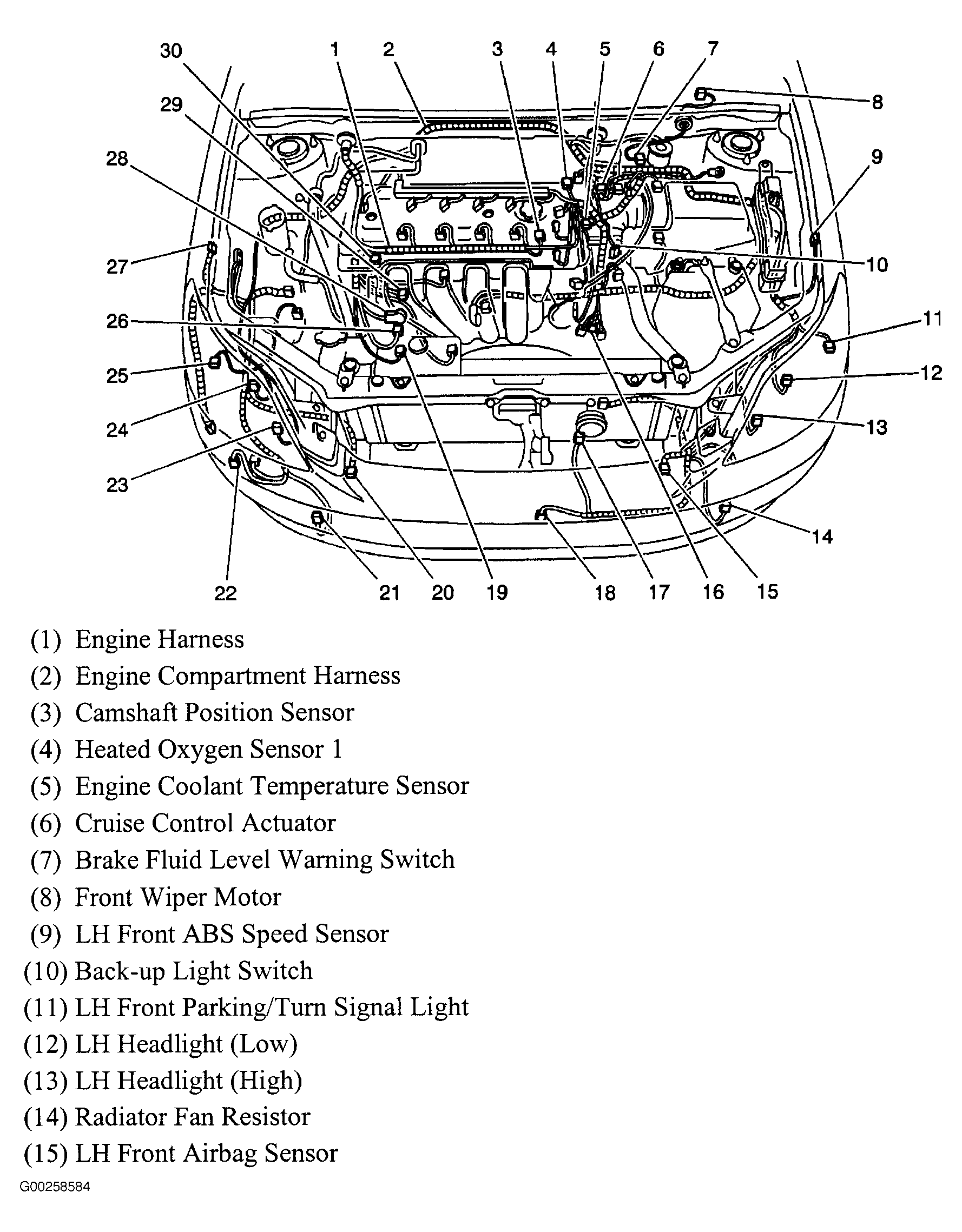

Fig 22: Engine Compartment (1.8L LV6) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

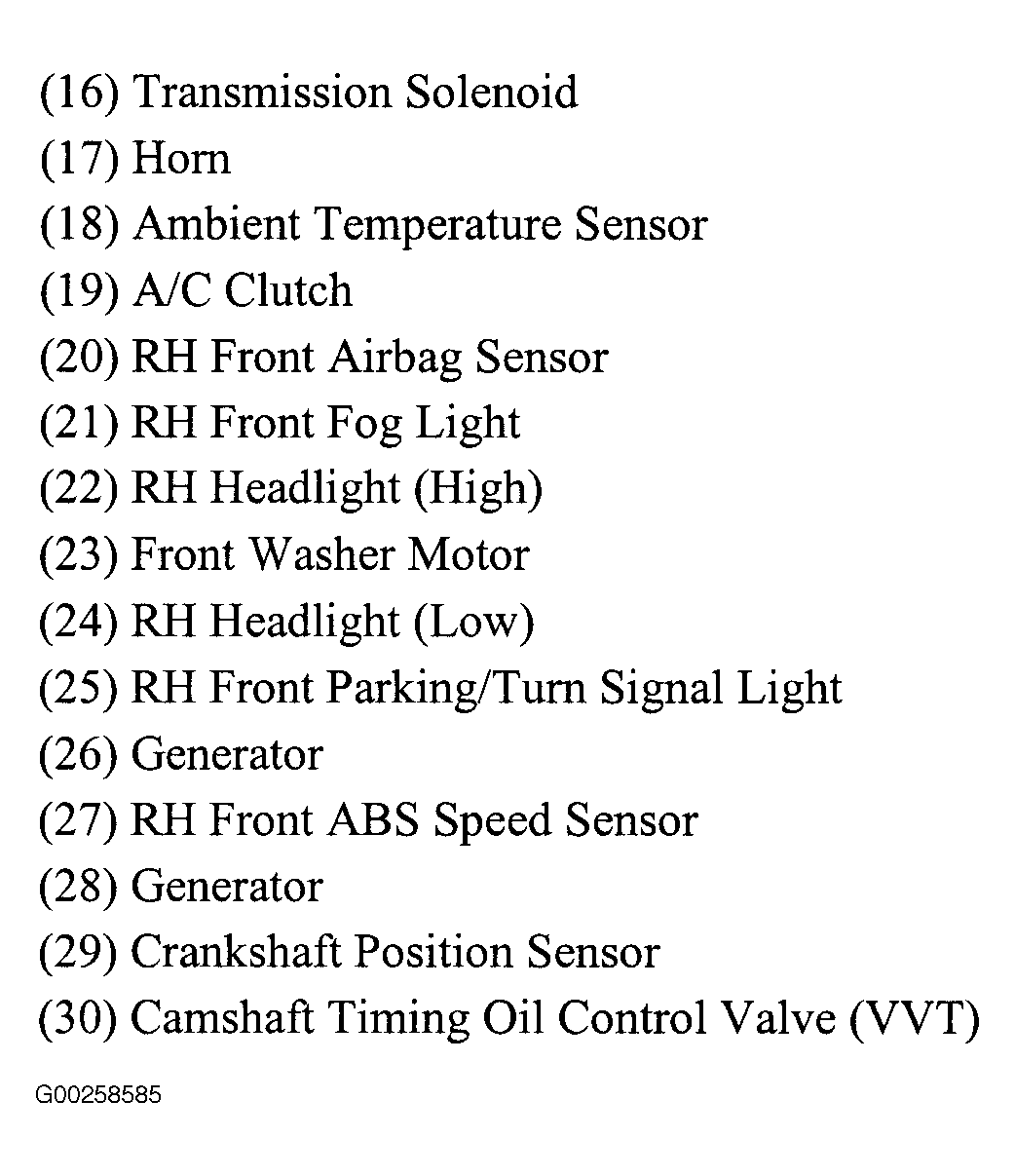

Fig 23: Engine Compartment (1.8L LV6) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

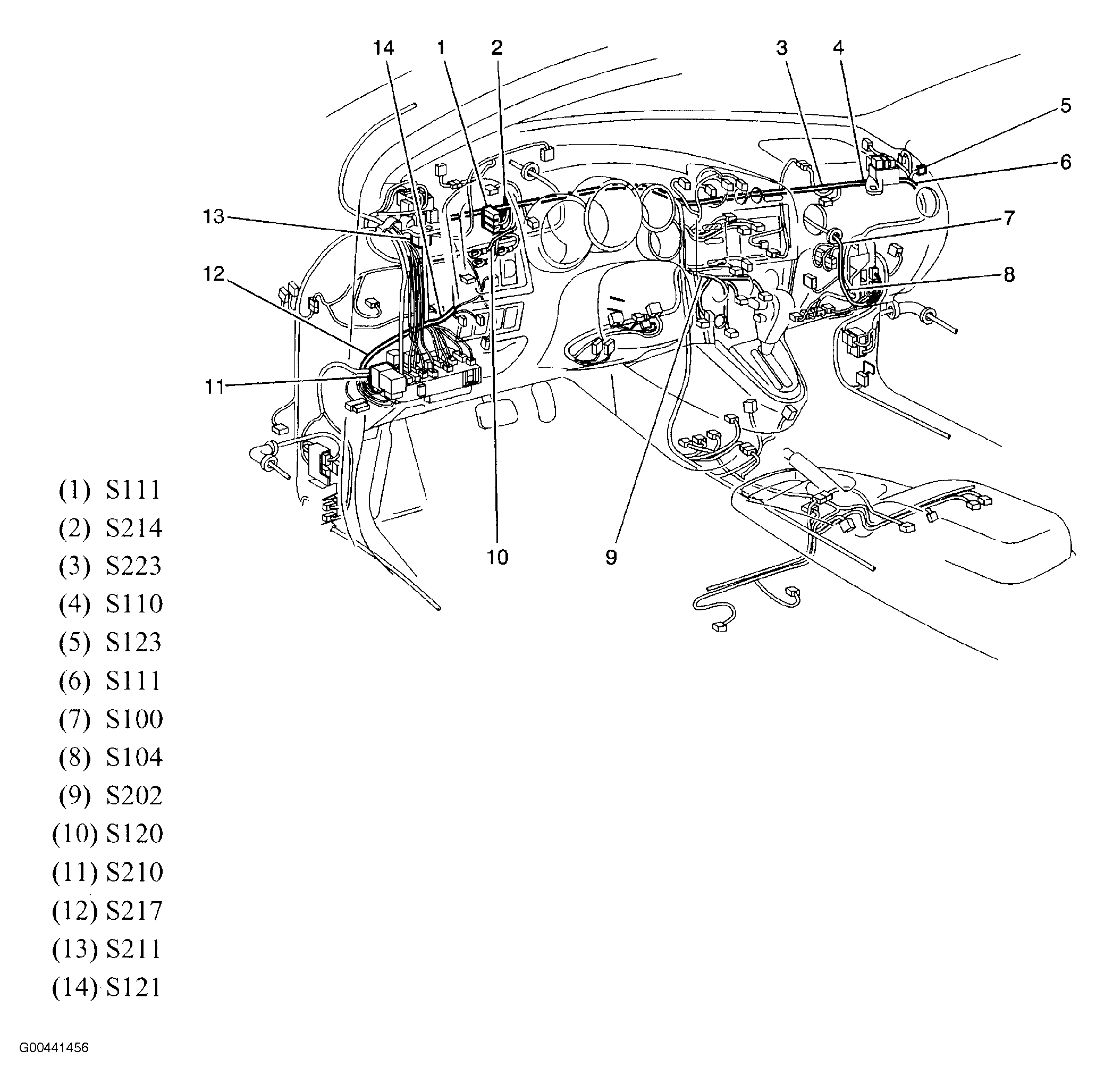

Fig 24: Engine Compartment (1.8L LV6)
Courtesy of GENERAL MOTORS CORP.

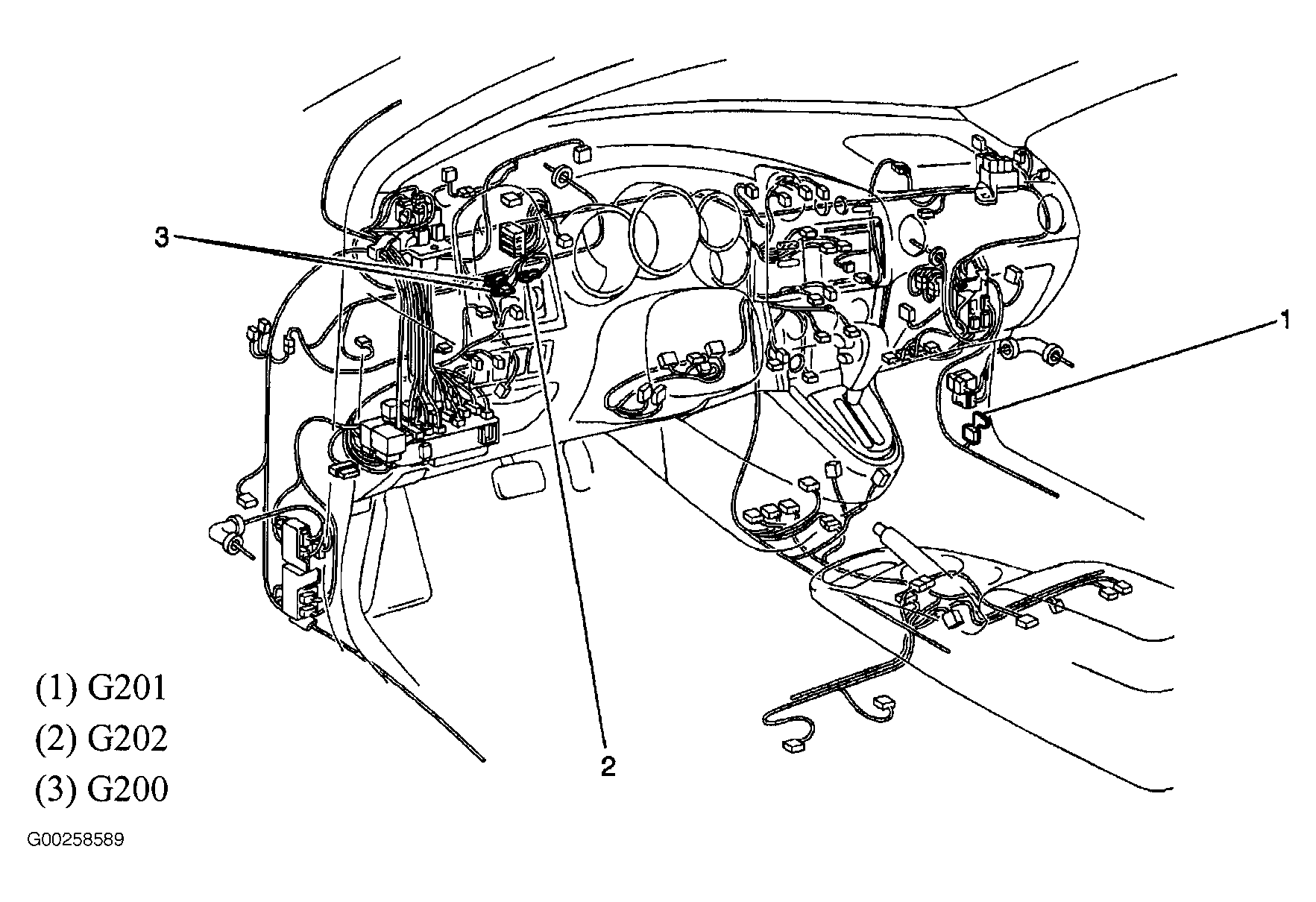

Fig 25: Dash & Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

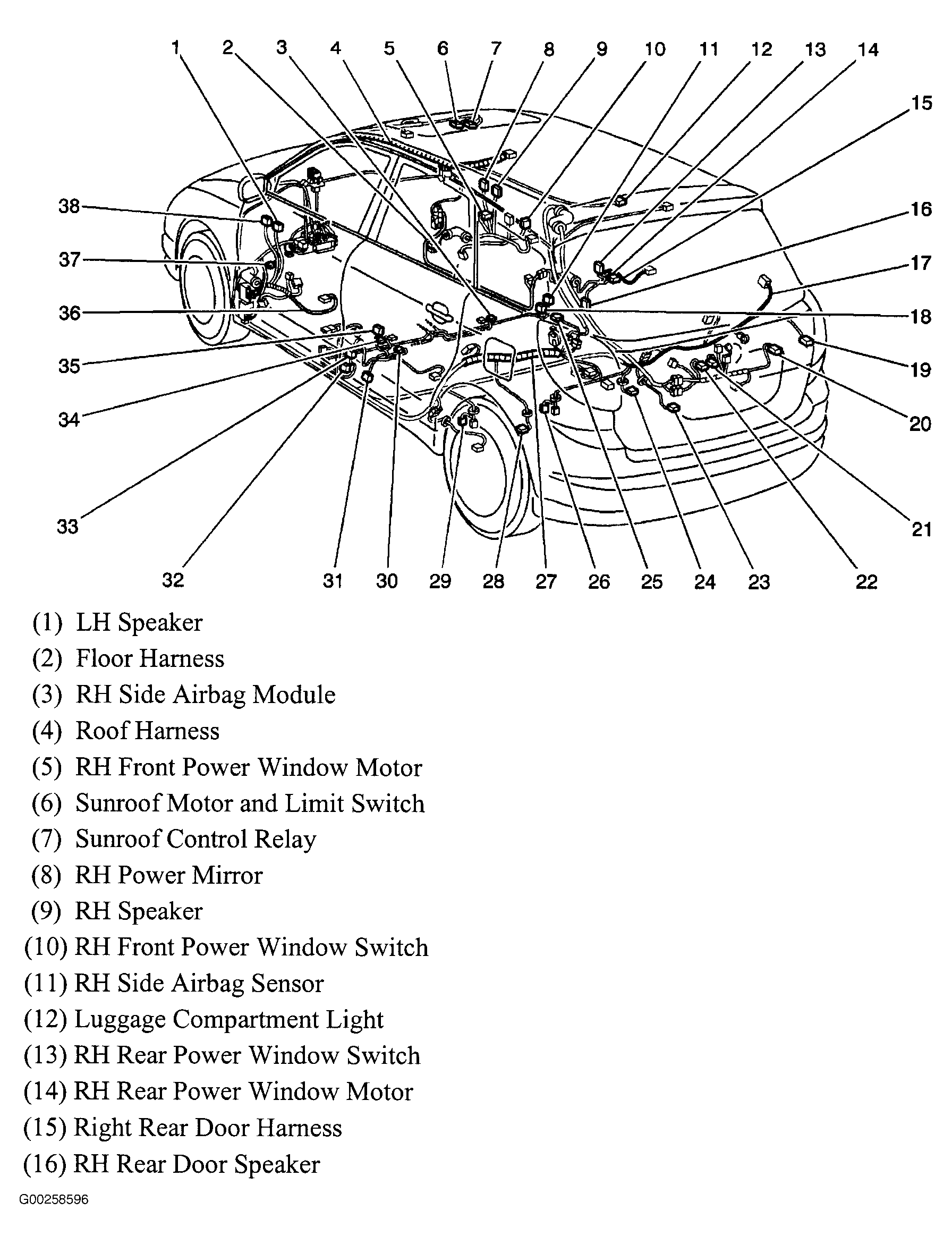

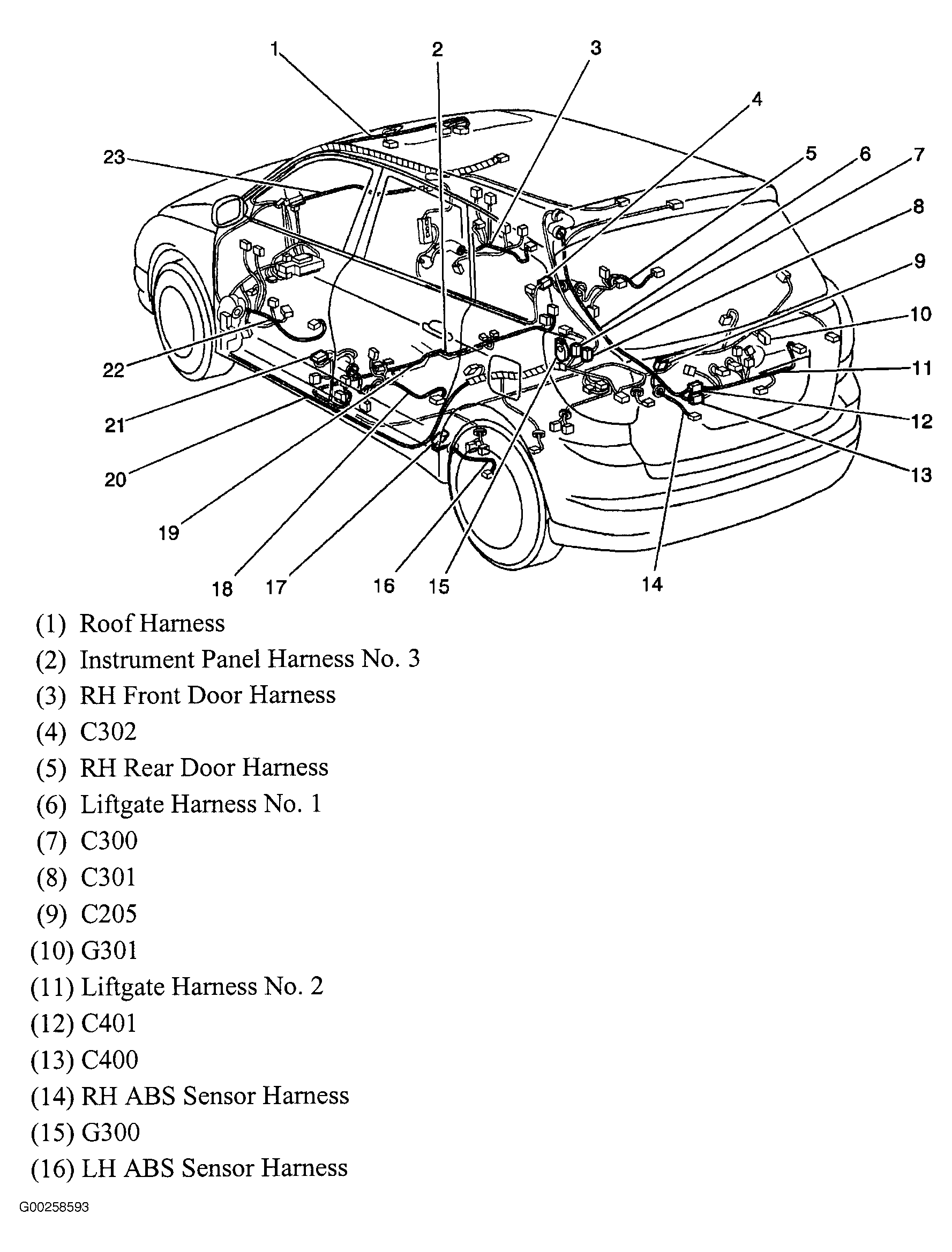

Fig 26: Body Connector & Ground Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

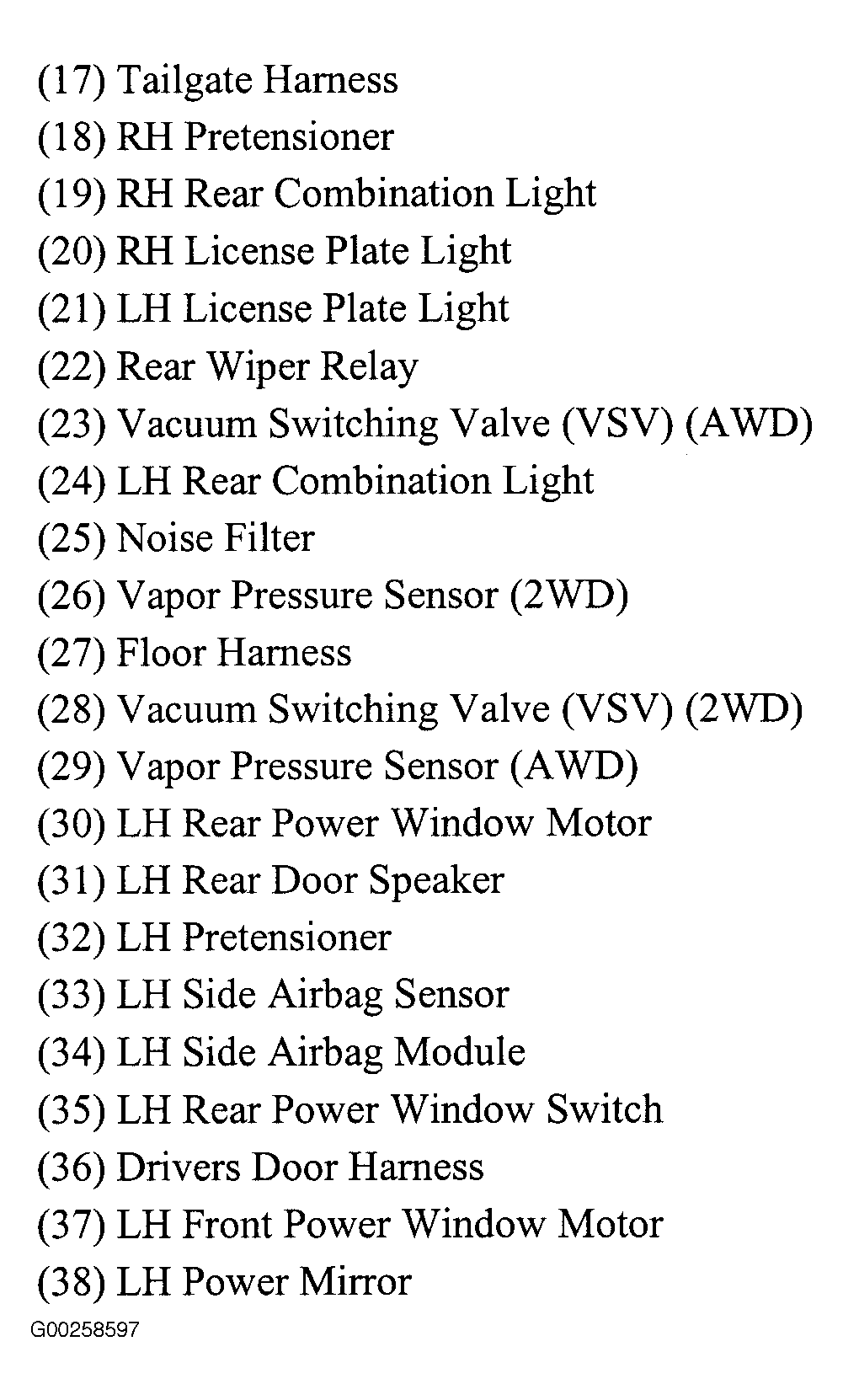

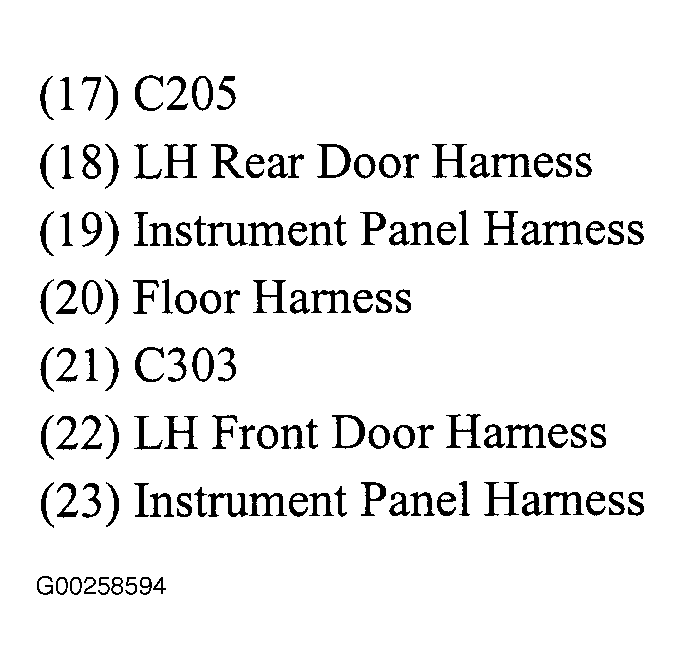

Fig 27: Body Connector & Ground Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

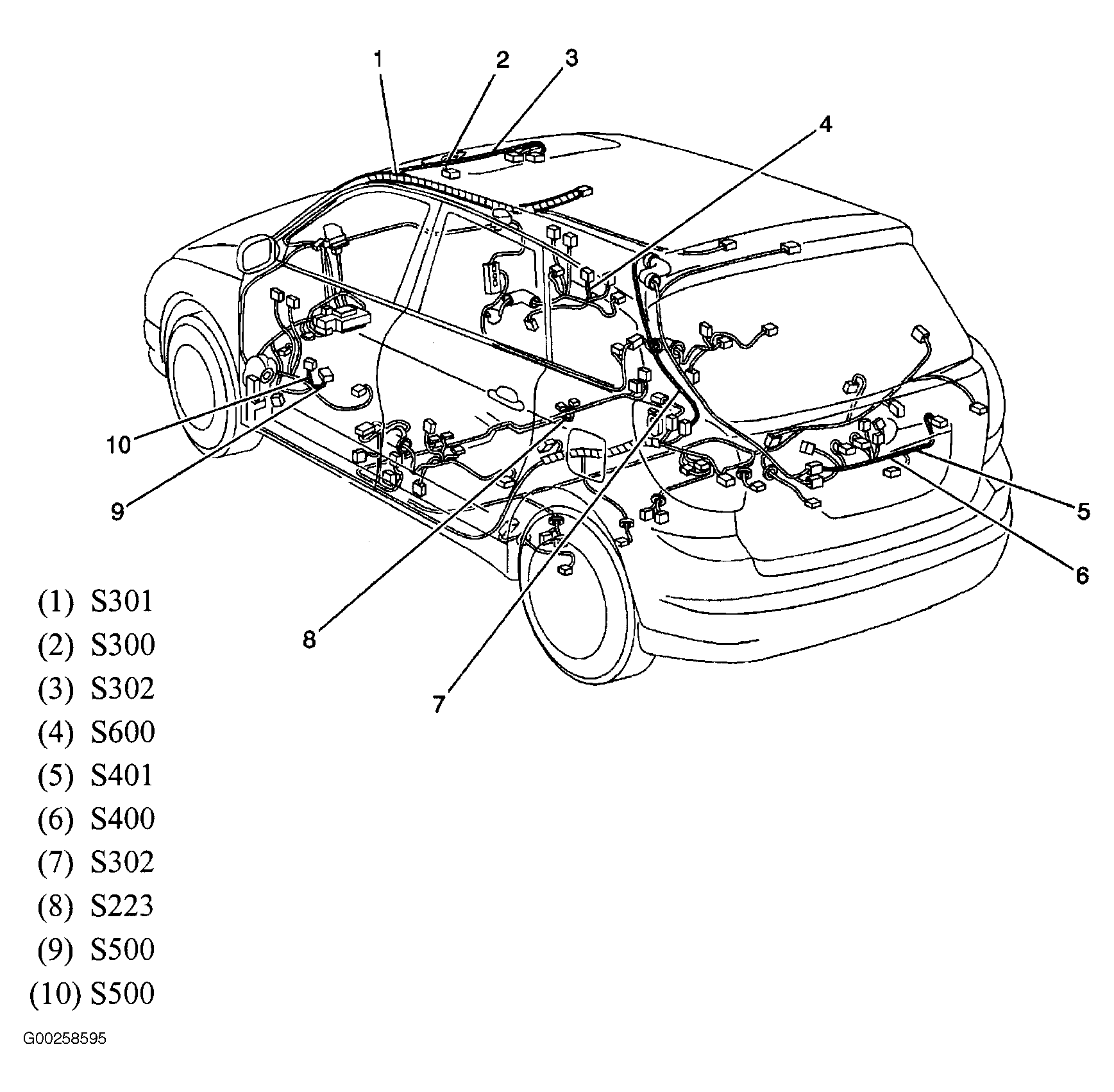

Fig 28: Body Harness Splice Locations
Courtesy of GENERAL MOTORS CORP.

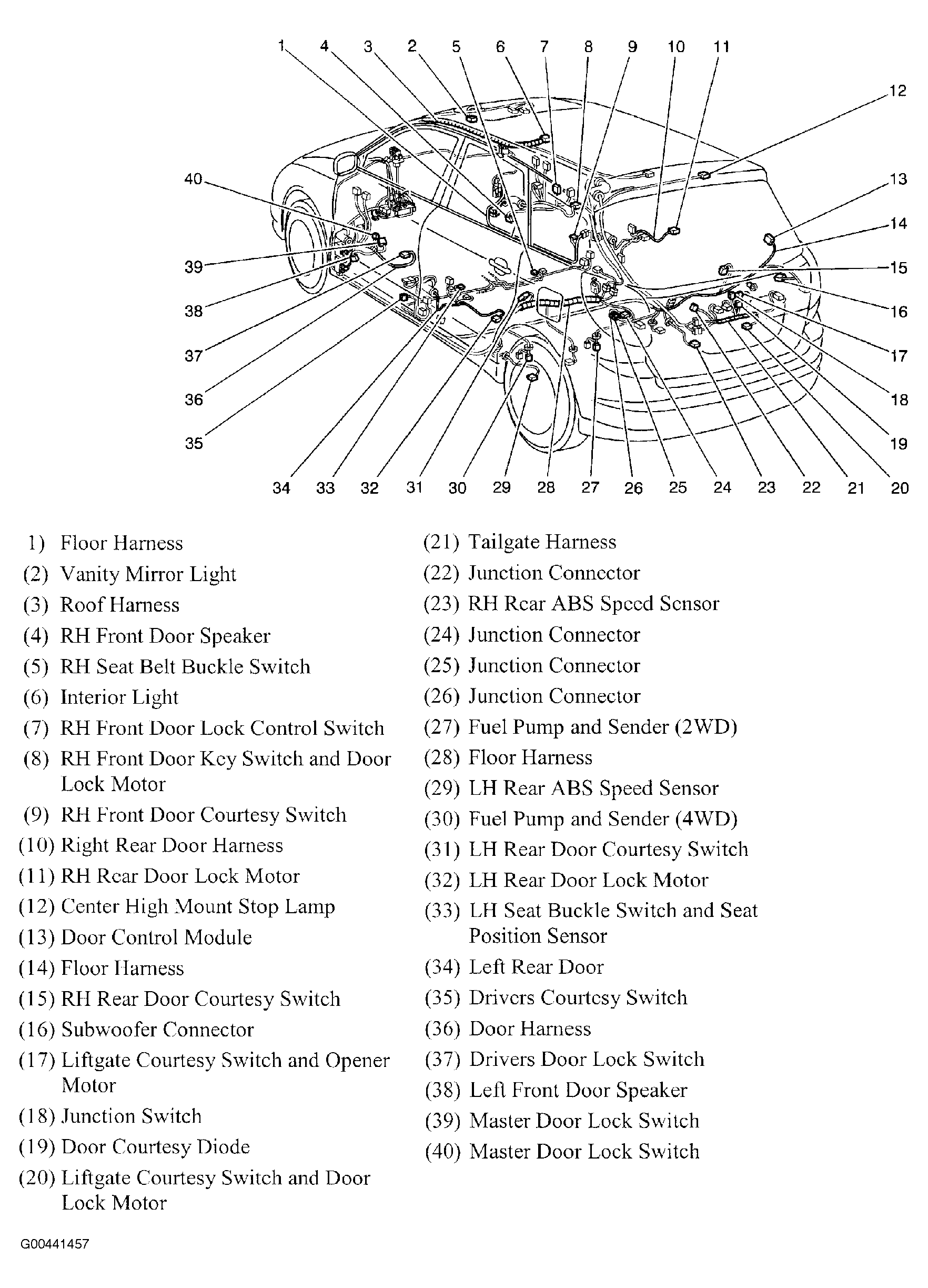

Fig 29: Body Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Body Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Dash Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Dash Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Dash Connector Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Dash Connector Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

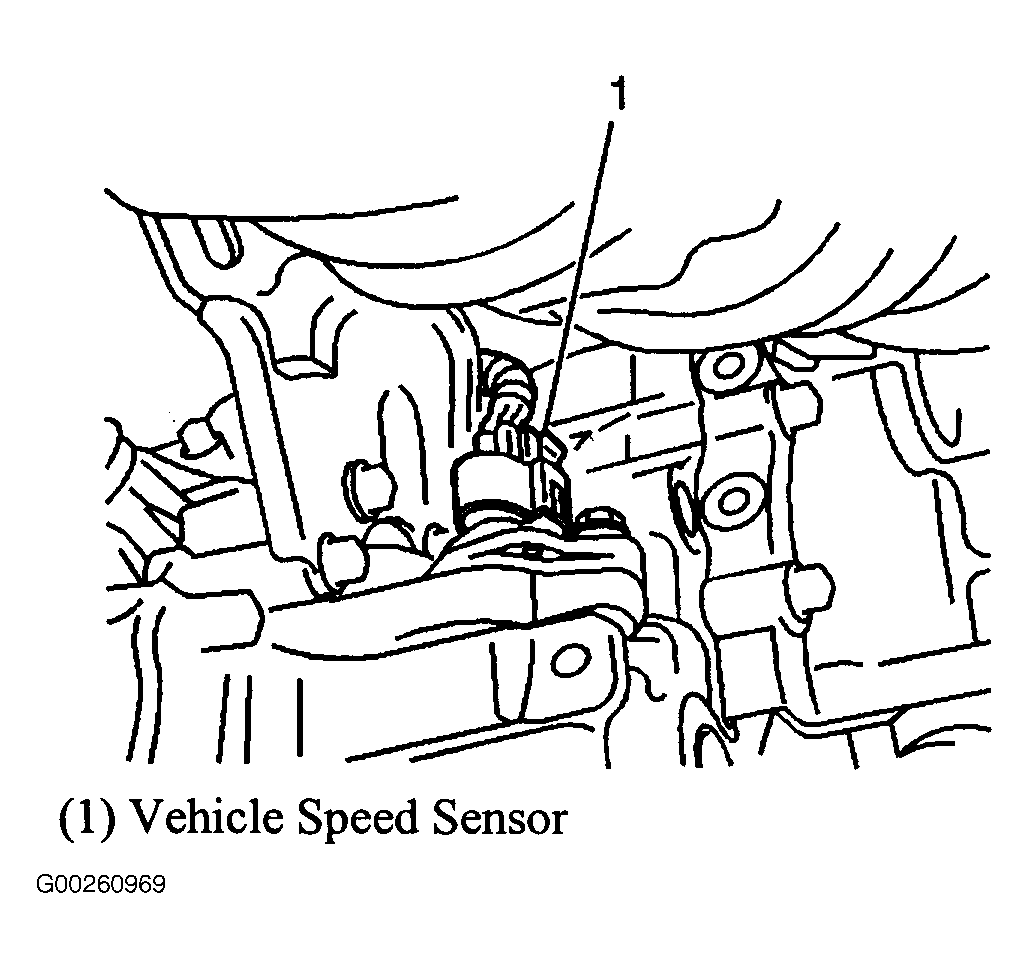

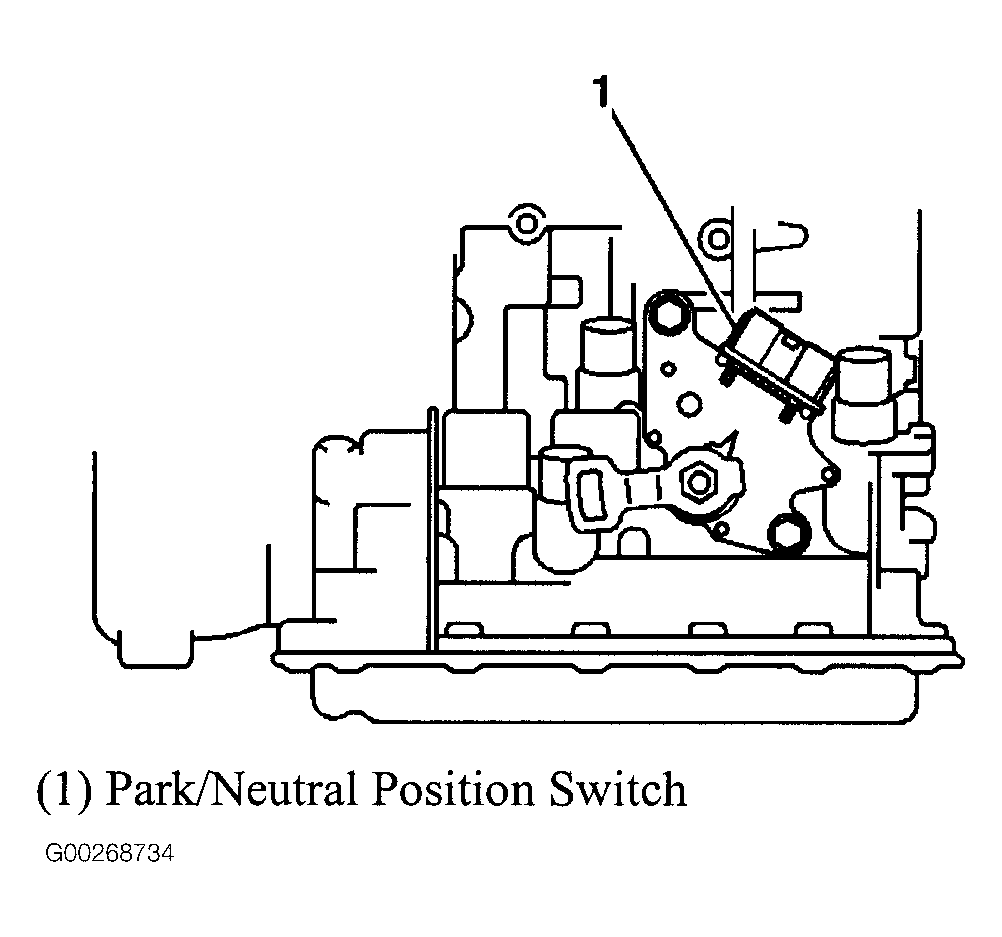

Fig 35: Side Of Automatic Transmission (MU4)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Automatic Transmission (MU4)
Courtesy of GENERAL MOTORS CORP.
Fig 37: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 38: Vehicle Communication Interface Module
Courtesy of GENERAL MOTORS CORP.

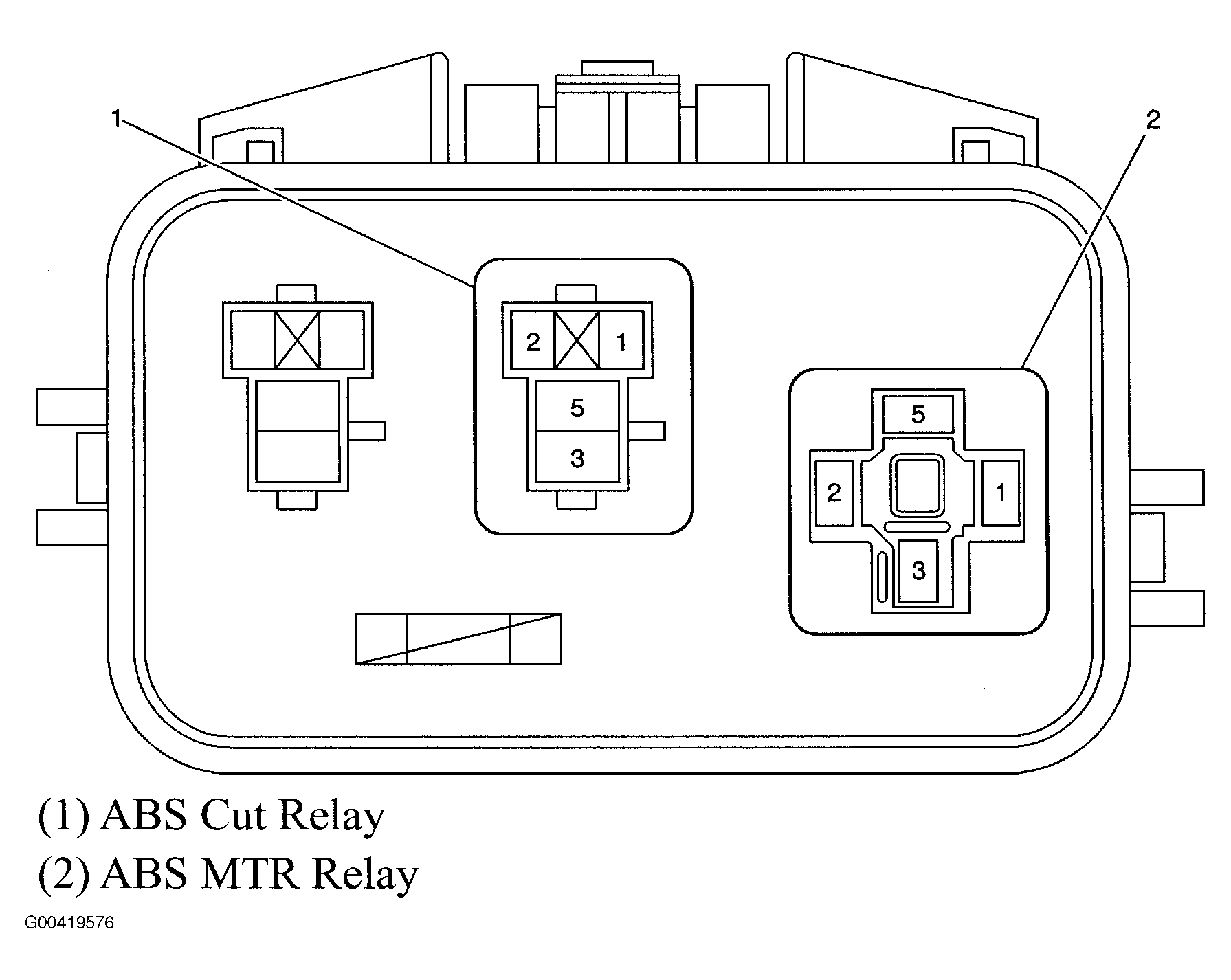

Fig 39: ABS Relay Block
Courtesy of GENERAL MOTORS CORP.

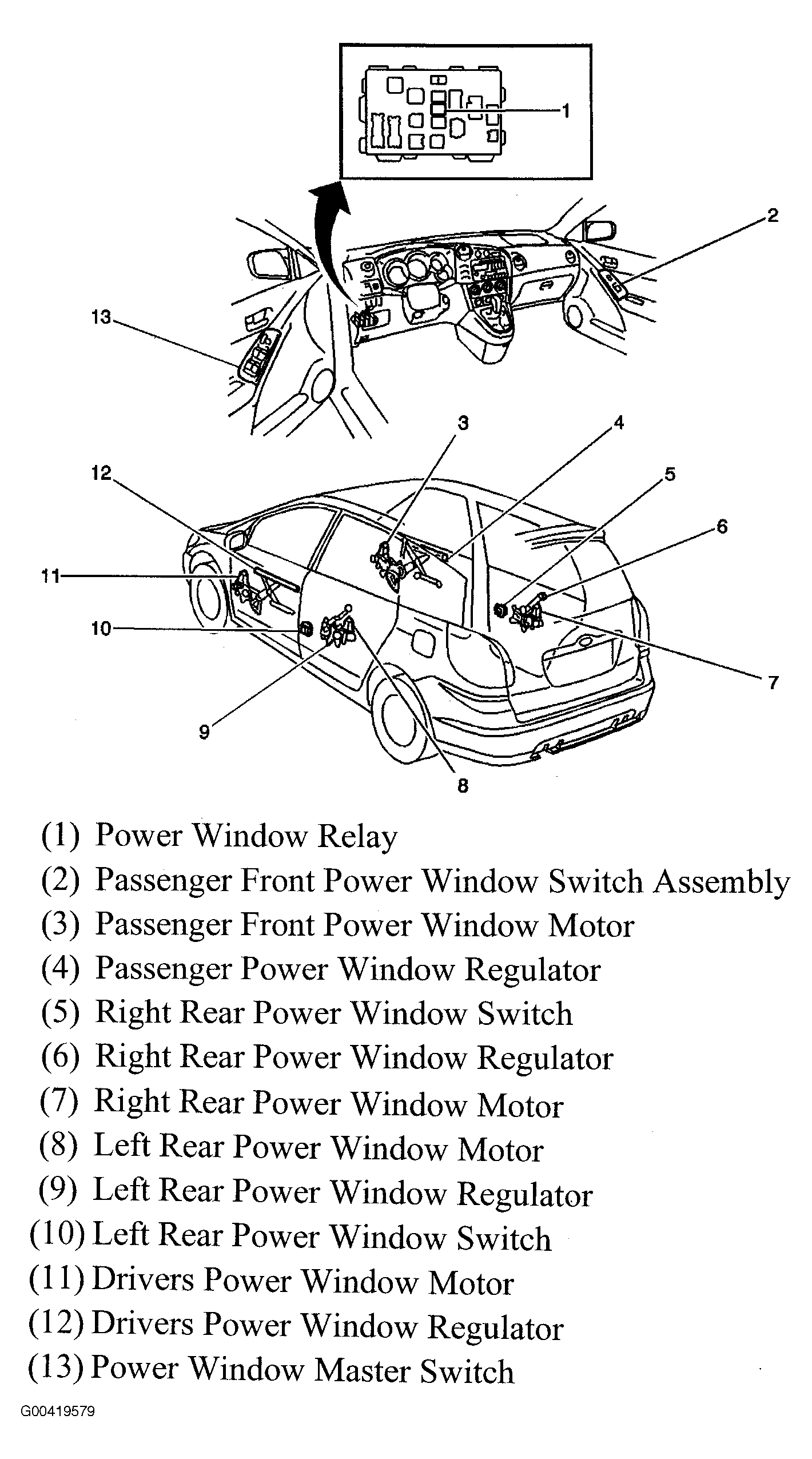

Fig 40: Power Window Components
Courtesy of GENERAL MOTORS CORP.

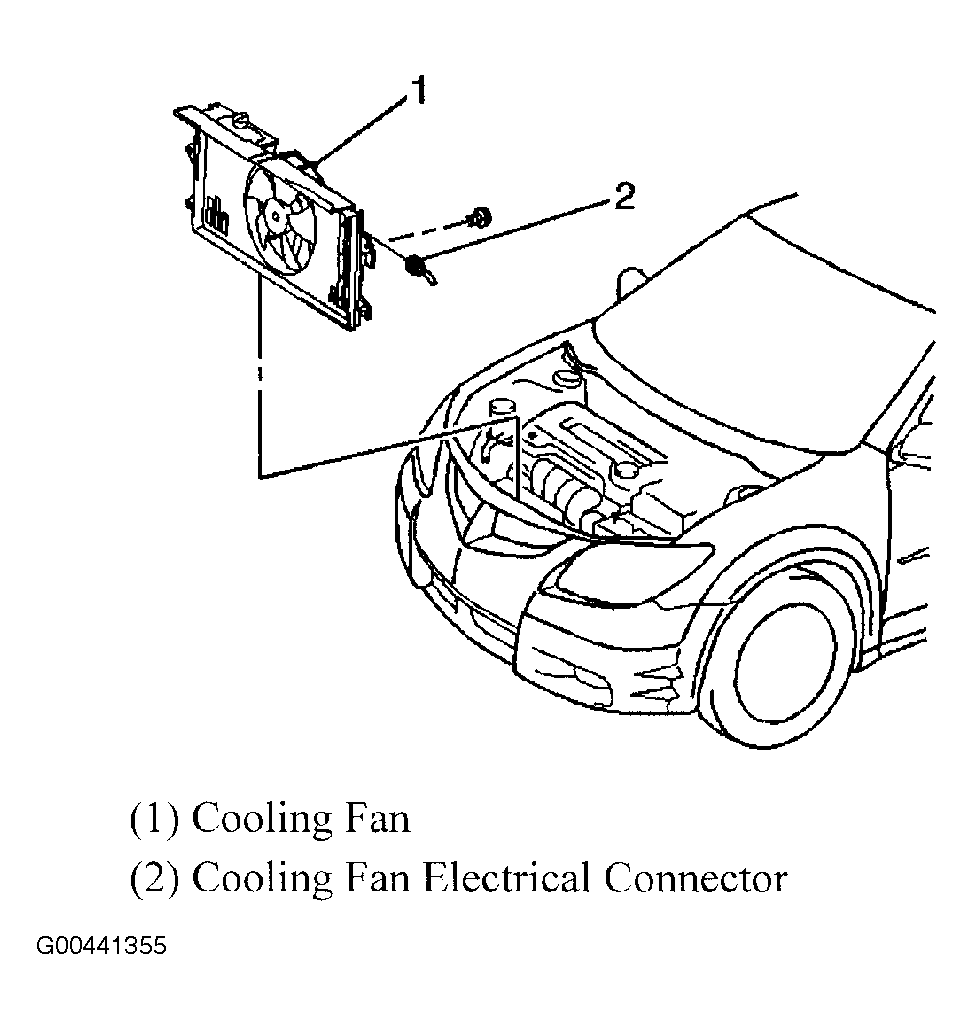

Fig 41: Radiator Fan
Courtesy of GENERAL MOTORS CORP.

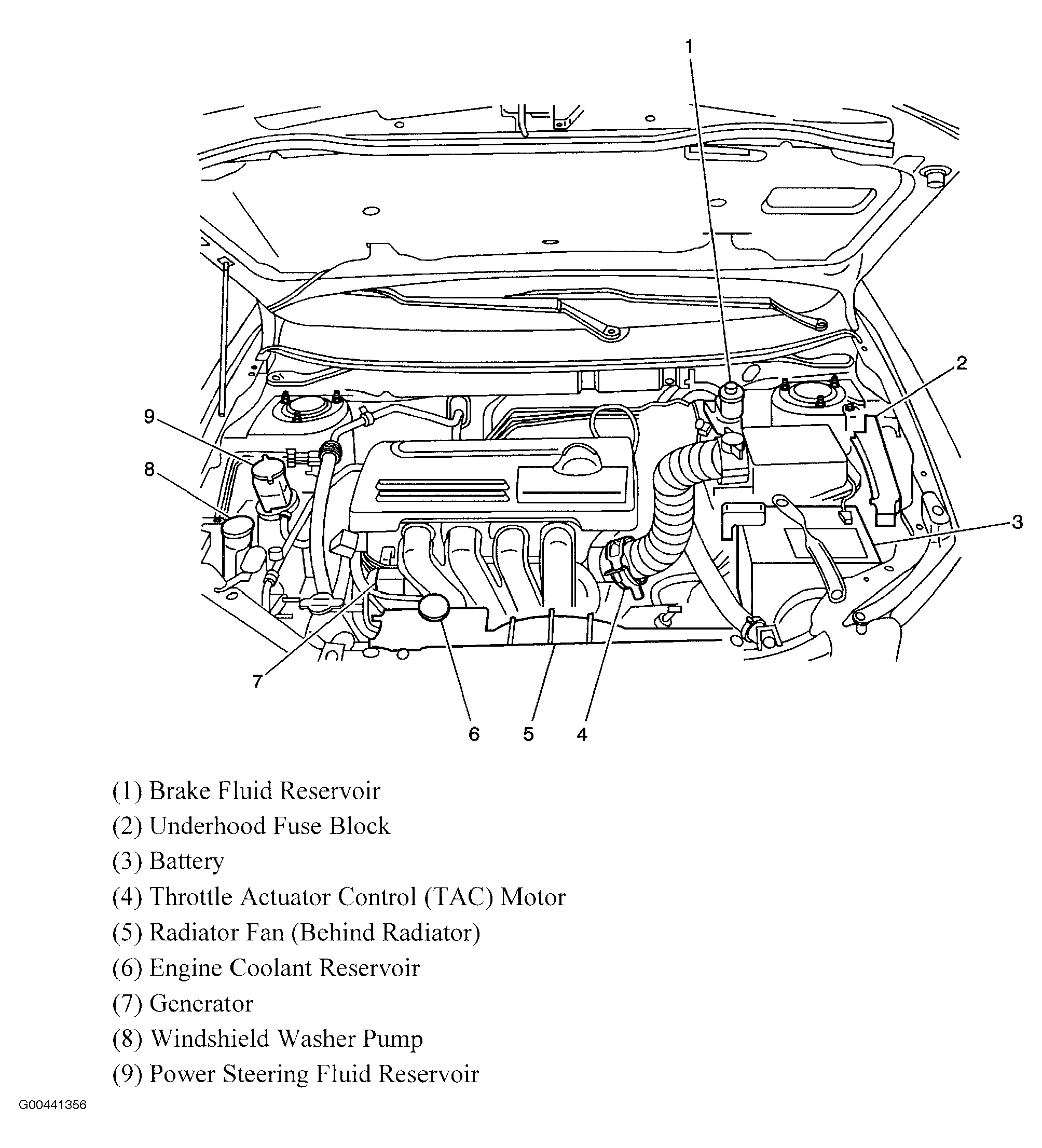

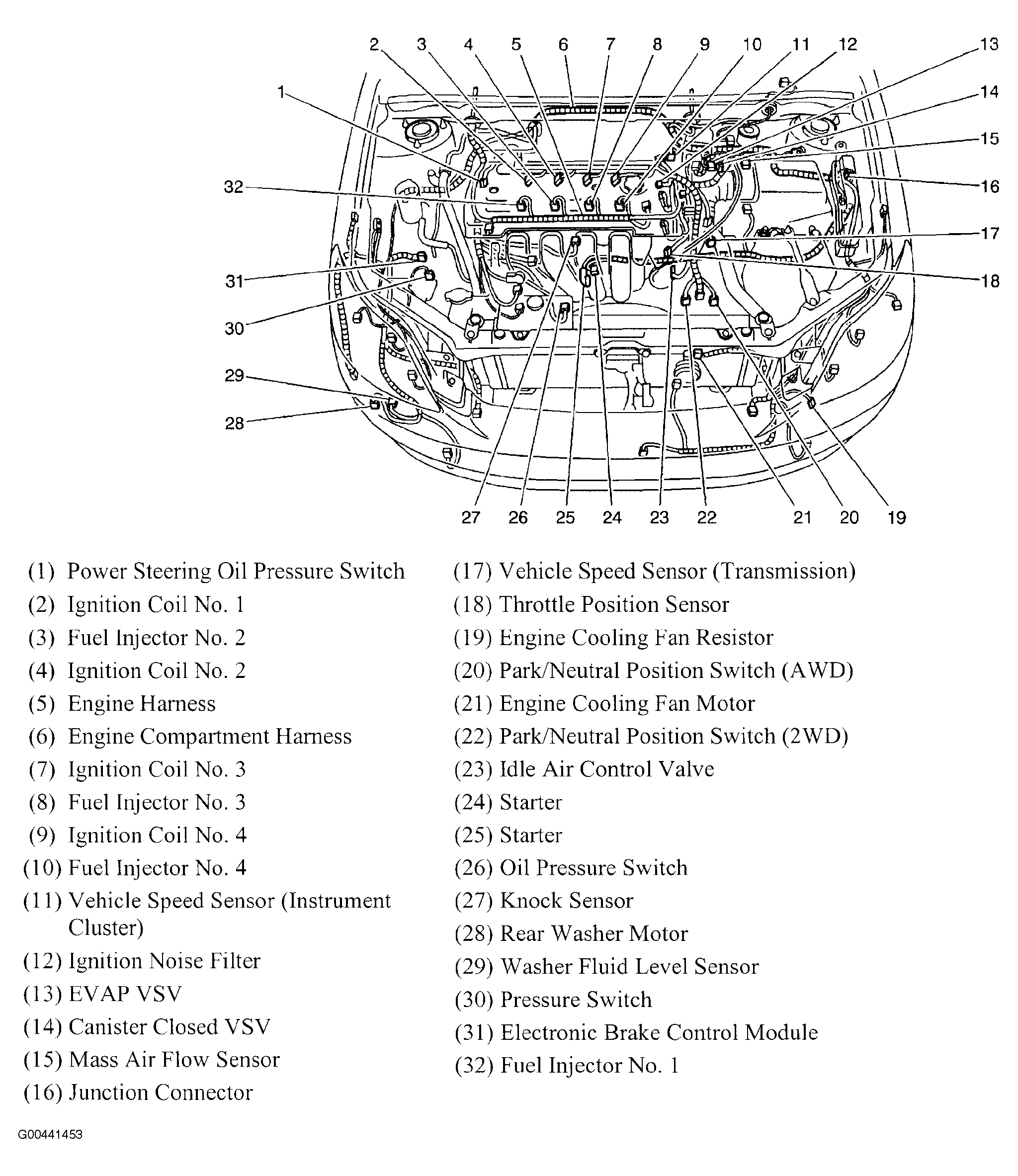

Fig 42: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

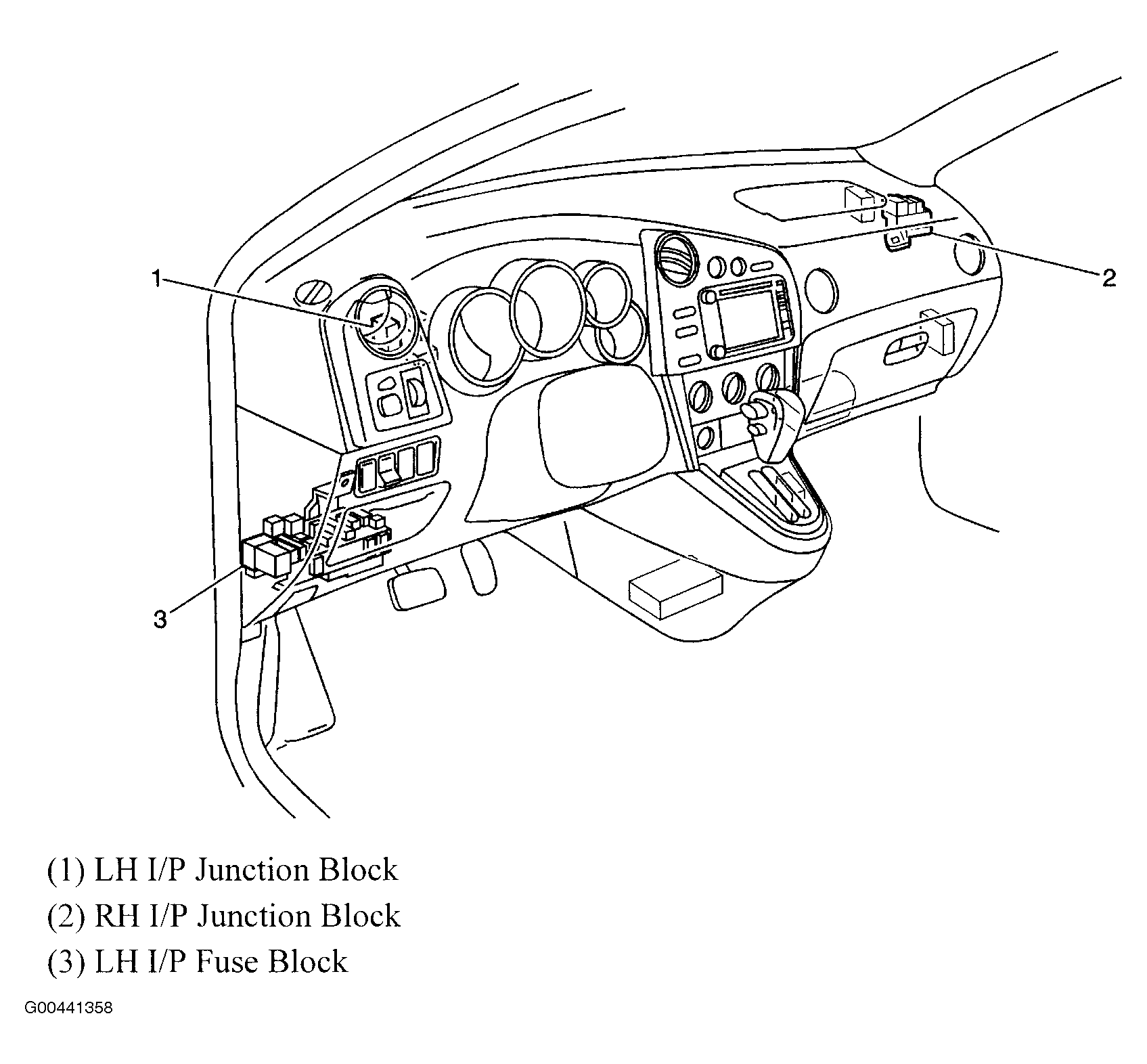

Fig 43: Dash Fuse/Junction Blocks
Courtesy of GENERAL MOTORS CORP.

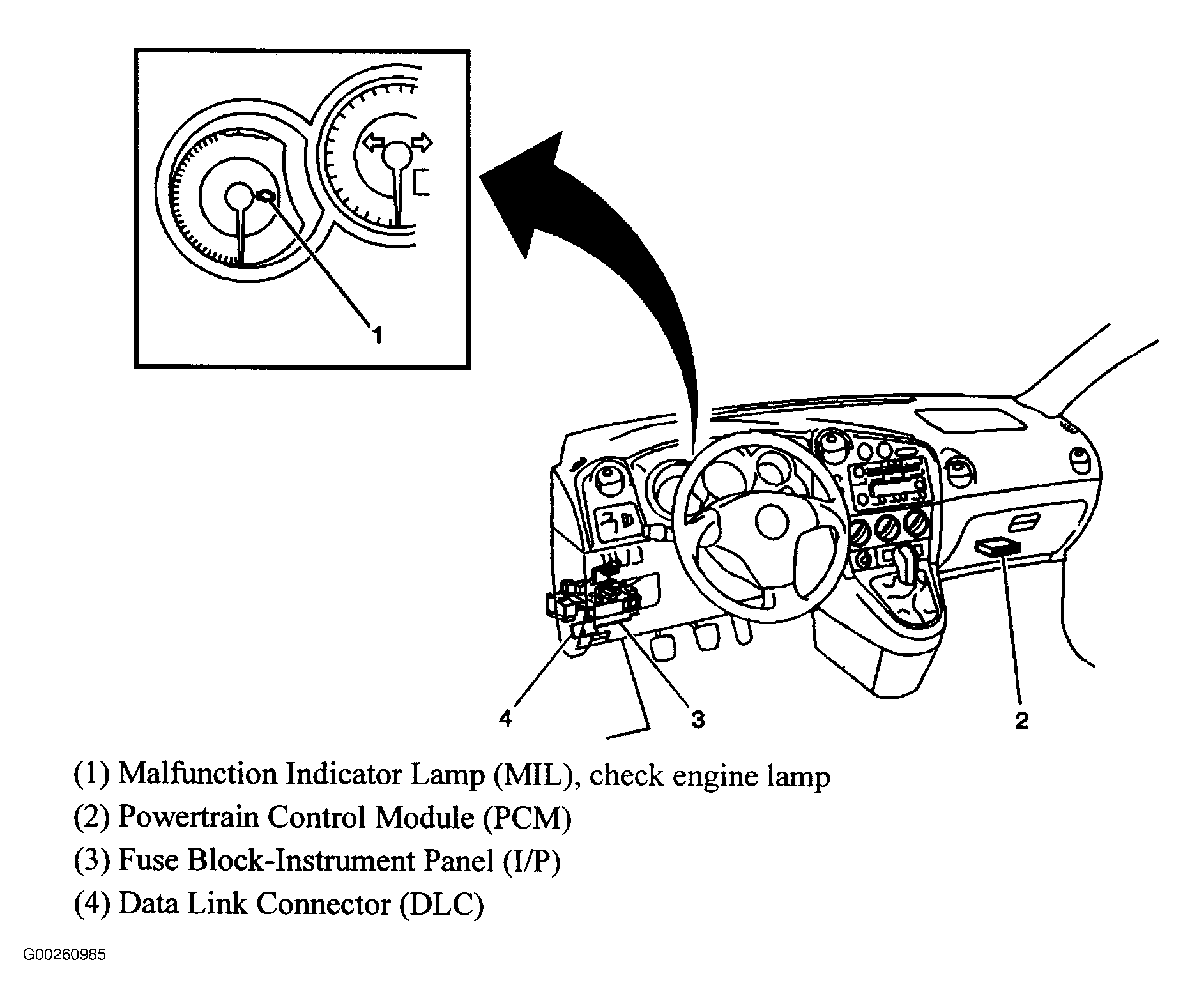

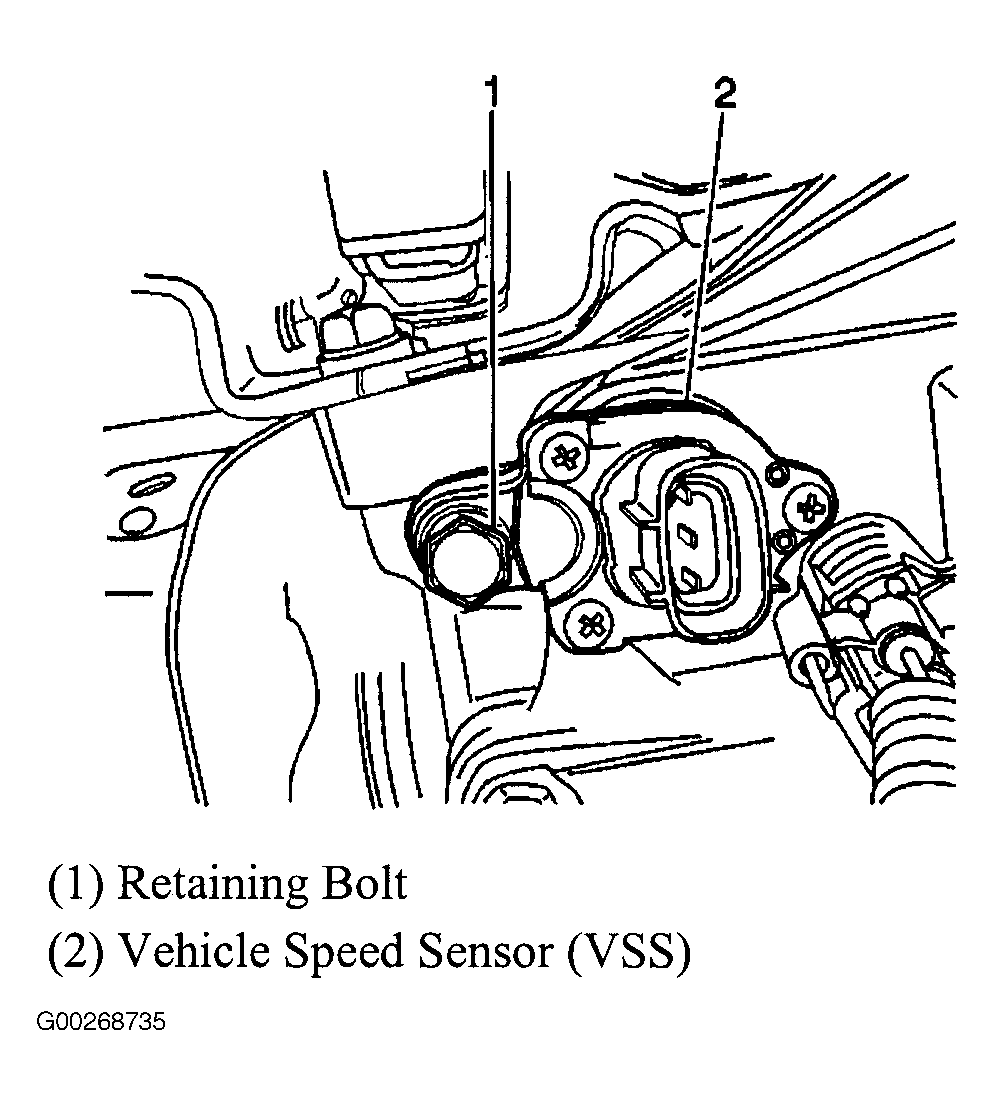

Fig 44: Sensors
Courtesy of GENERAL MOTORS CORP.

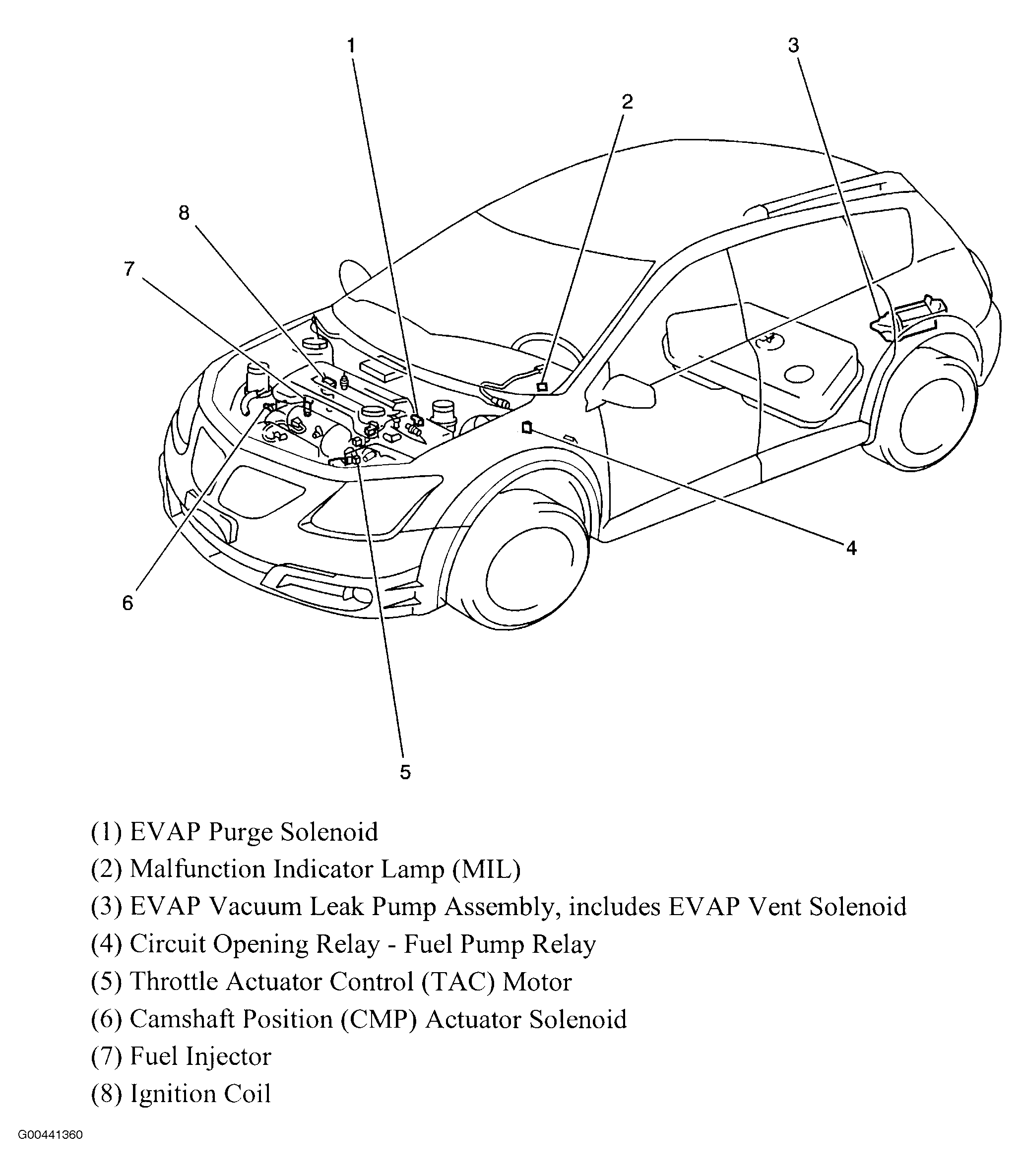

Fig 45: PCM Controlled Devices
Courtesy of GENERAL MOTORS CORP.

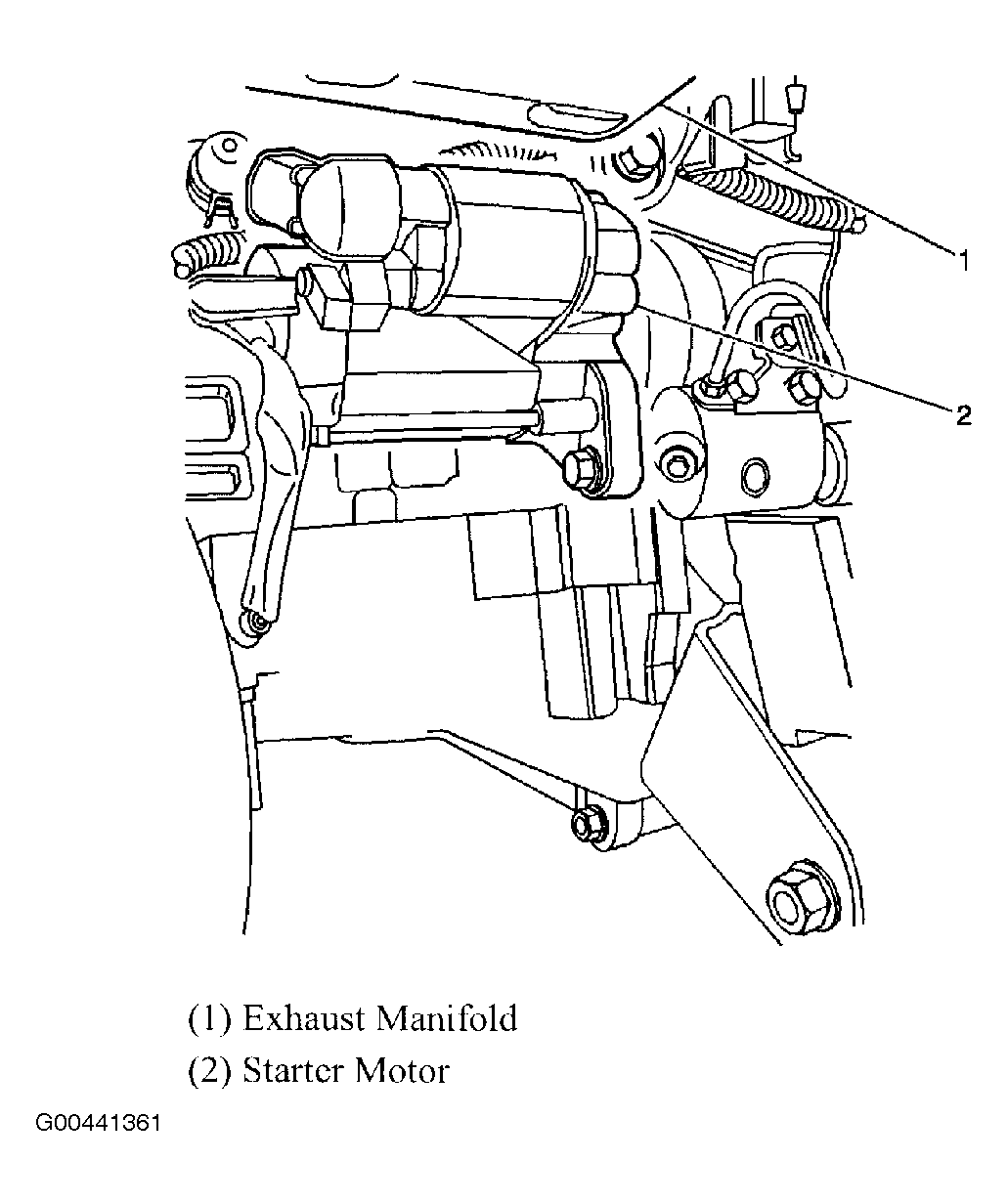

Fig 46: Starter
Courtesy of GENERAL MOTORS CORP.

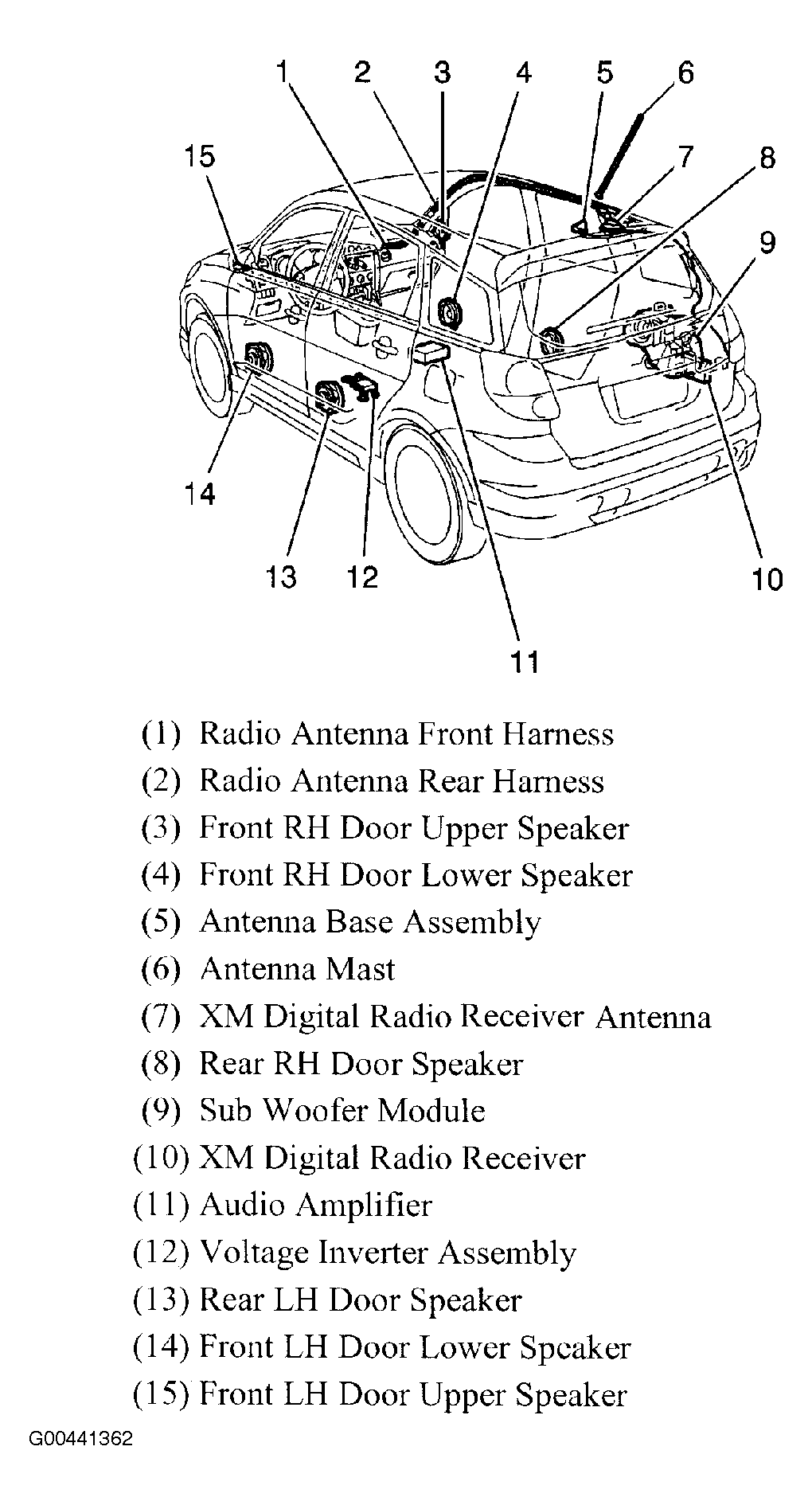

Fig 47: Entertainment Components
Courtesy of GENERAL MOTORS CORP.

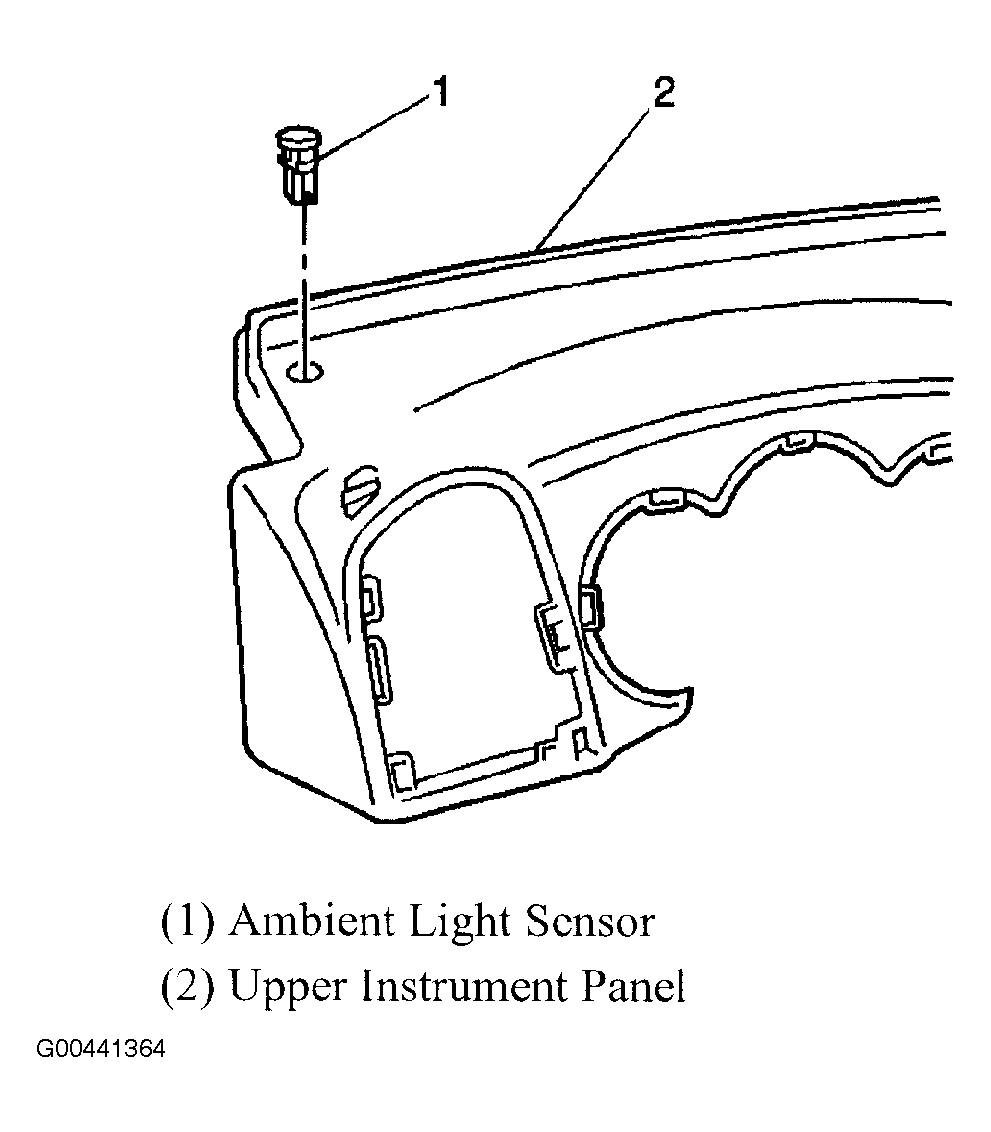

Fig 48: Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 49: DRL Components
Courtesy of GENERAL MOTORS CORP.

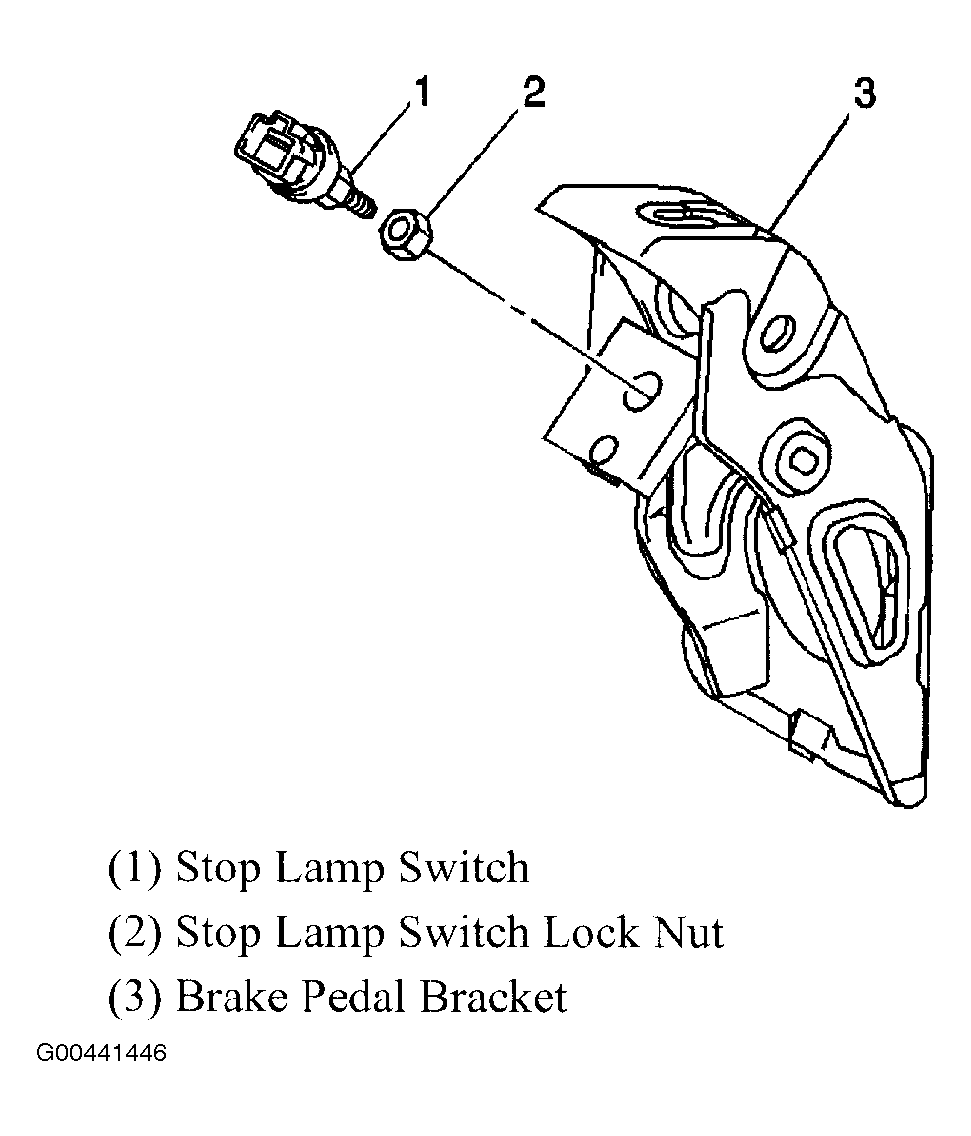

Fig 50: Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.

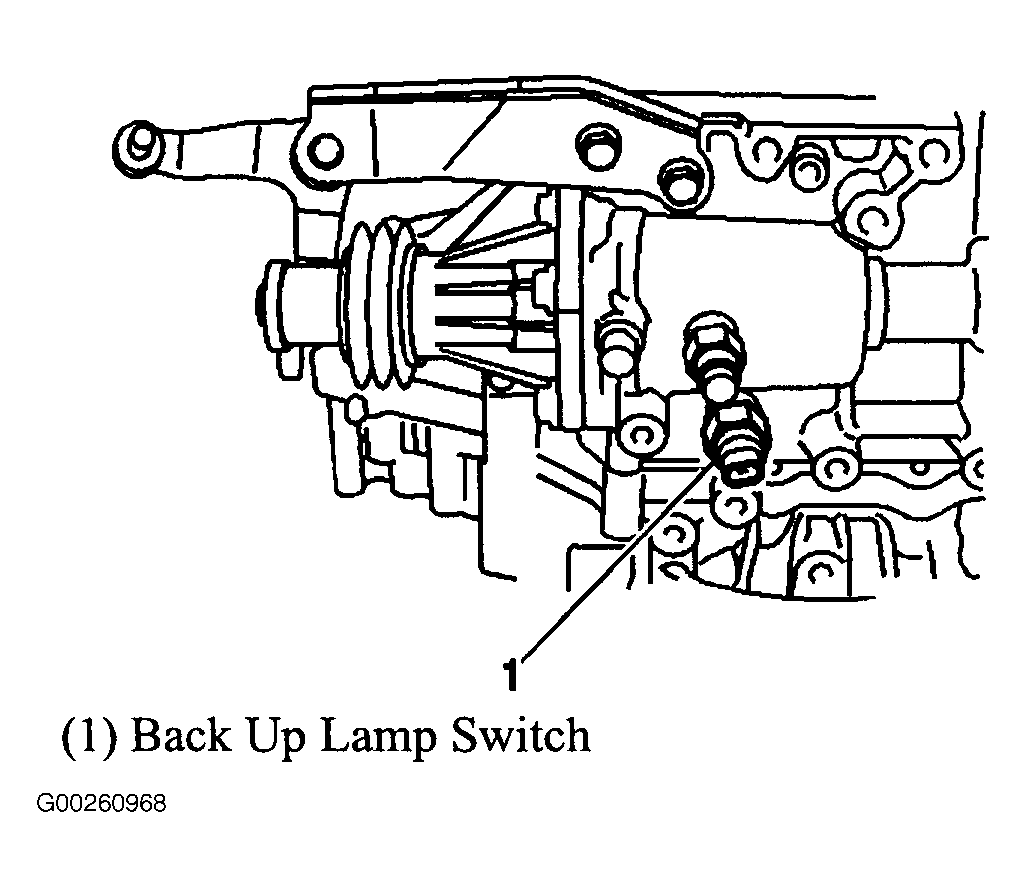

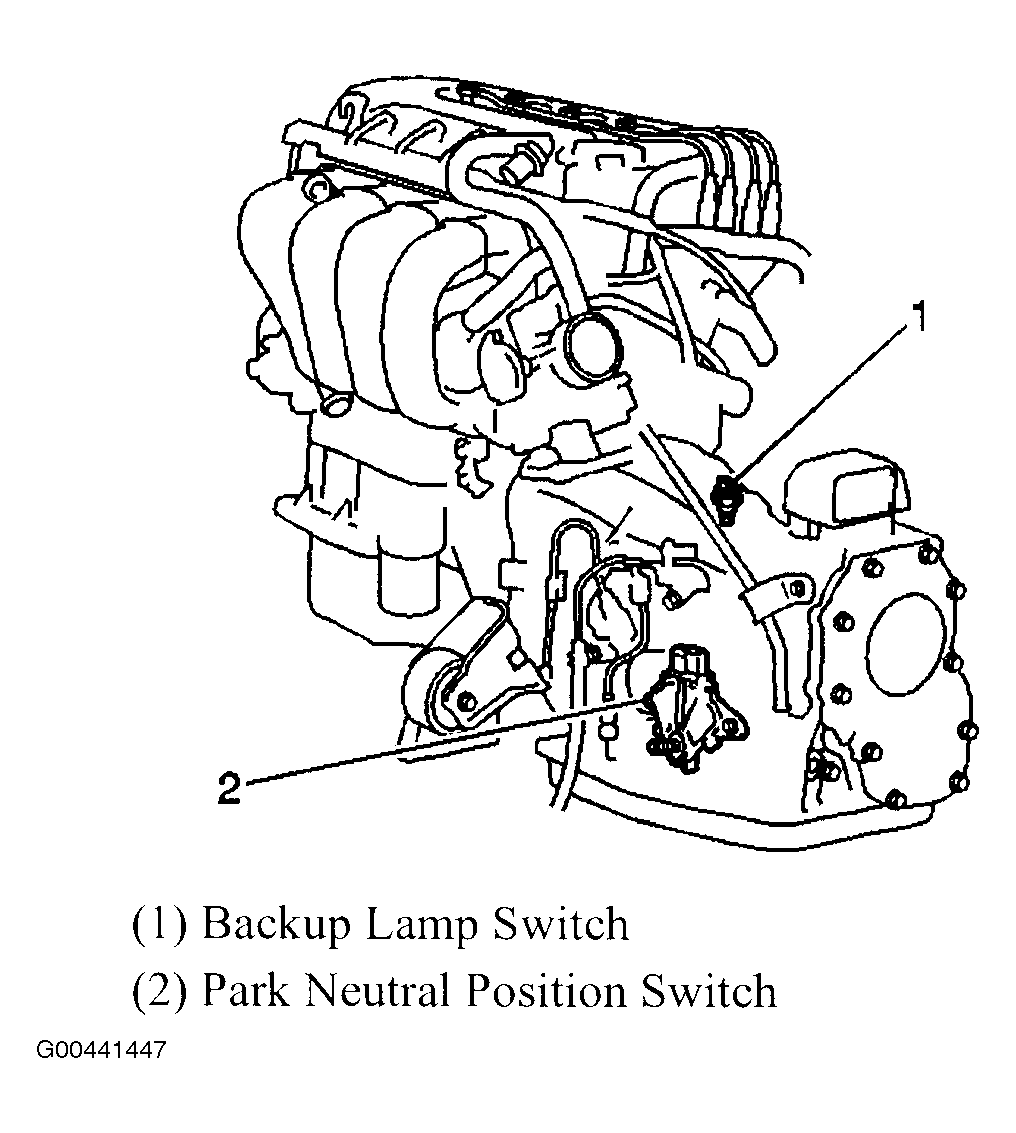

Fig 51: Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.

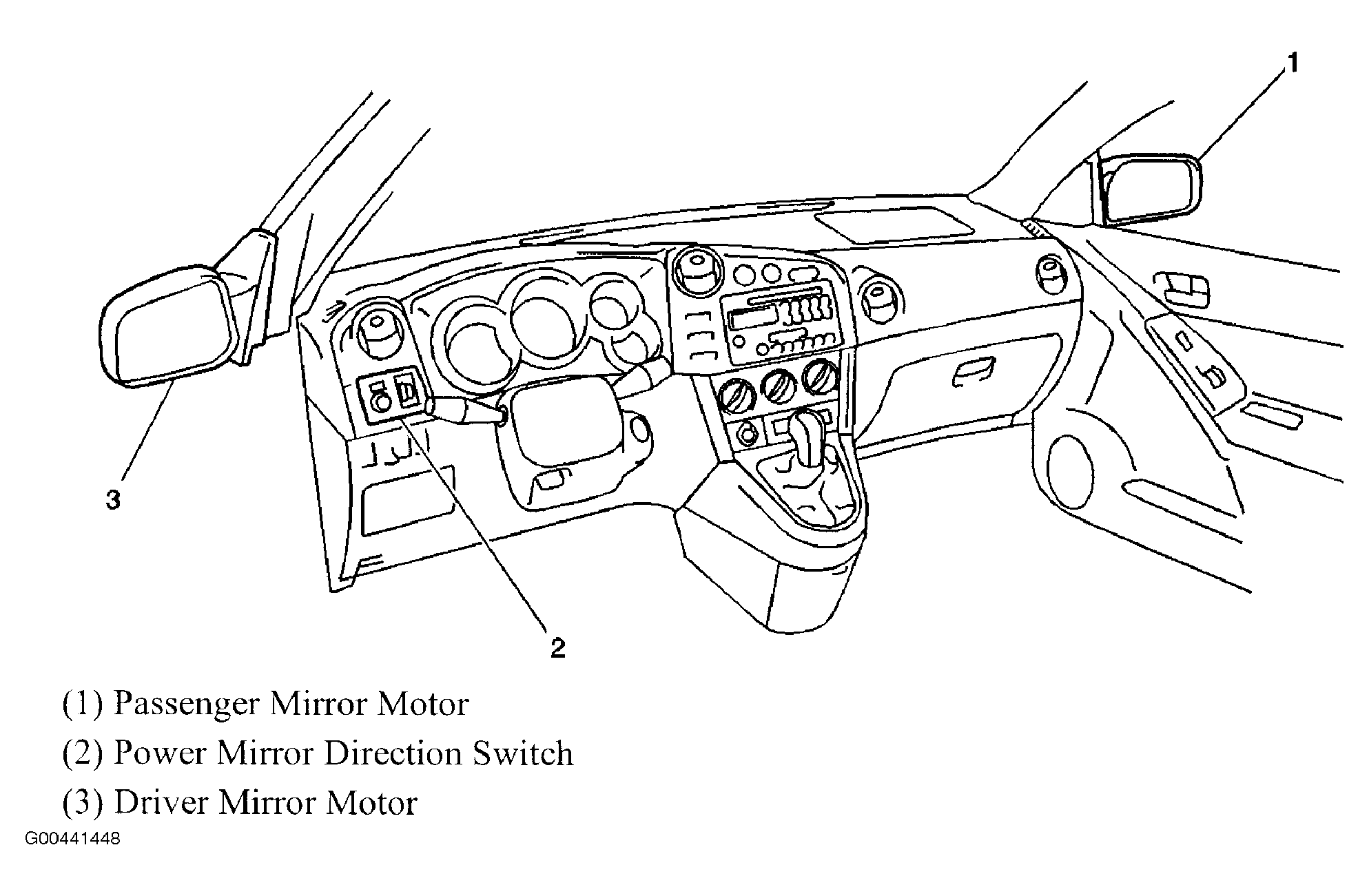

Fig 52: Mirrors
Courtesy of GENERAL MOTORS CORP.
Fig 53: Inflatable Restraint Components
Courtesy of GENERAL MOTORS CORP.
Fig 54: Shift Lock Control
Courtesy of GENERAL MOTORS CORP.

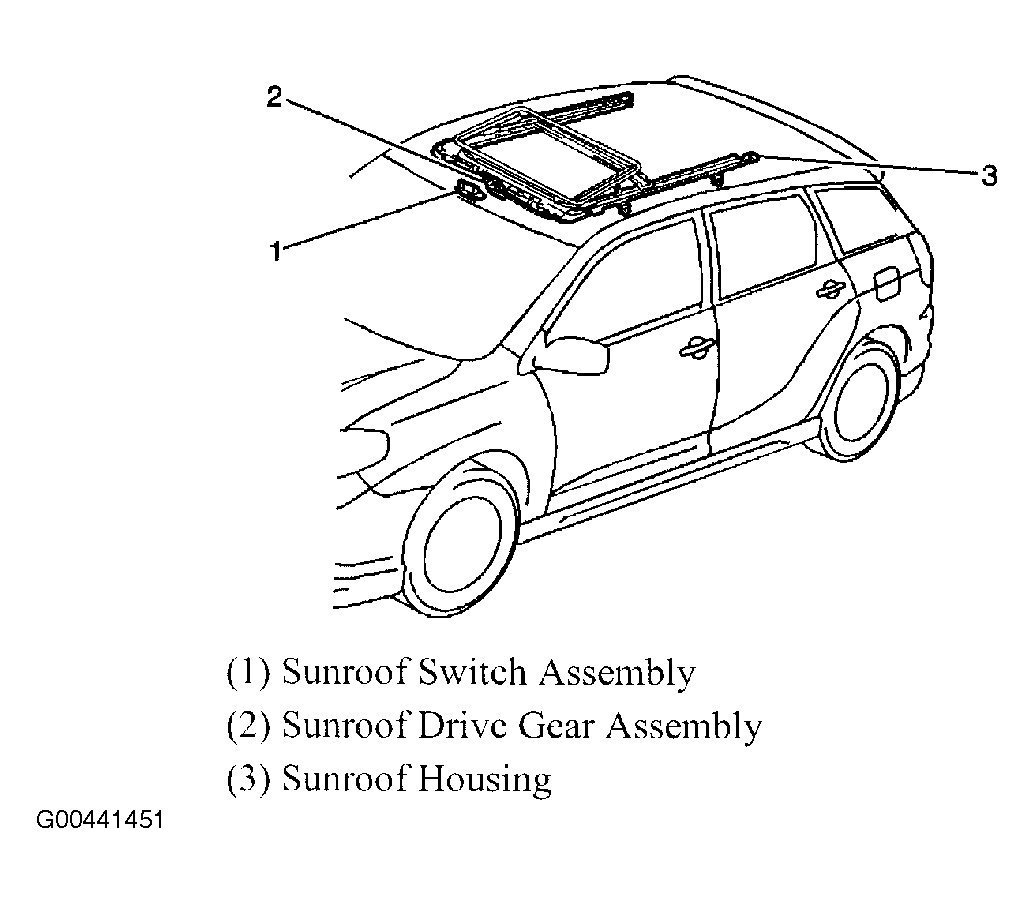

Fig 55: Sun Roof Components
Courtesy of GENERAL MOTORS CORP.

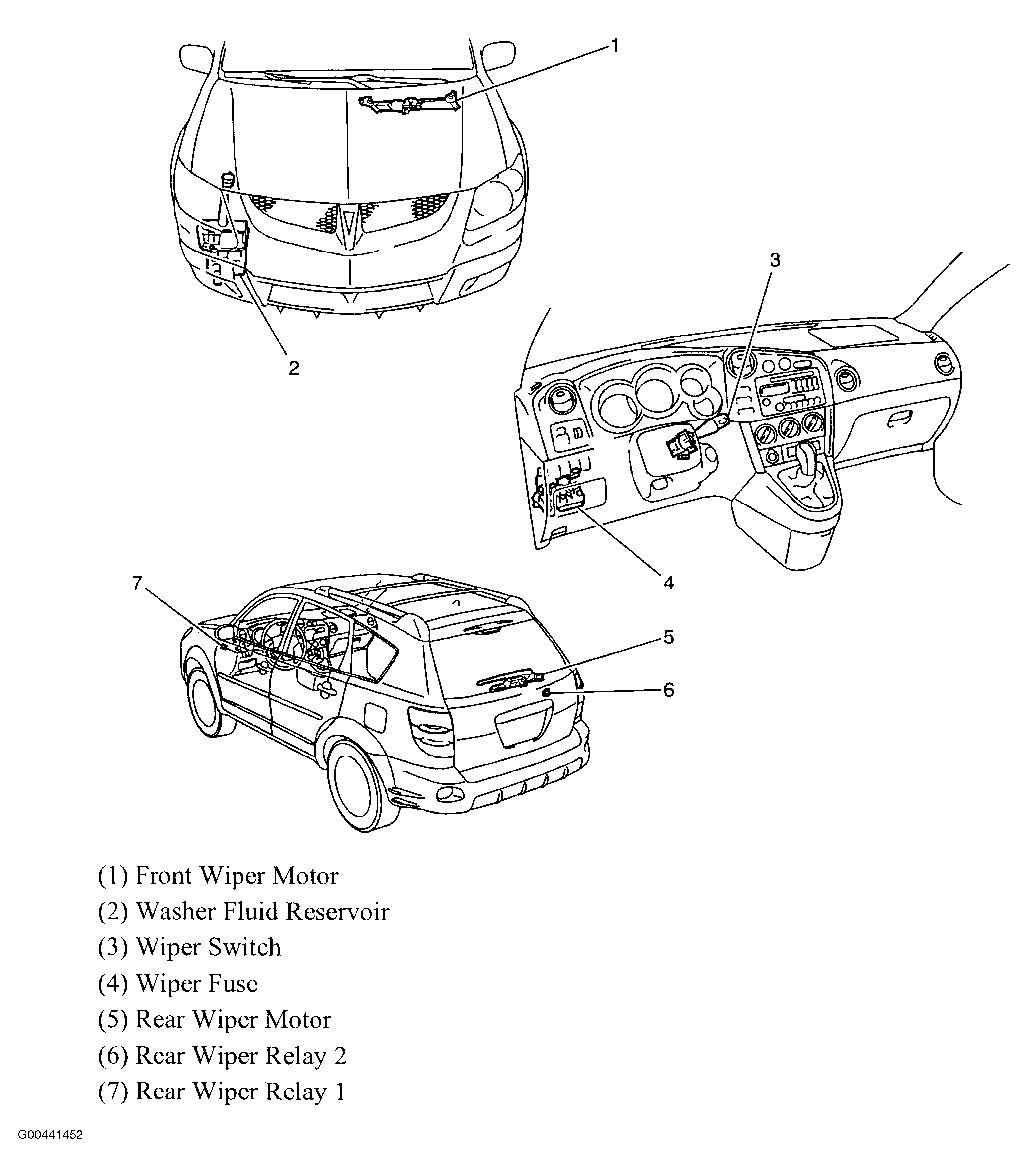

Fig 56: Wiper/Washer
Courtesy of GENERAL MOTORS CORP.
Fig 57: Engine Harness
Courtesy of GENERAL MOTORS CORP.

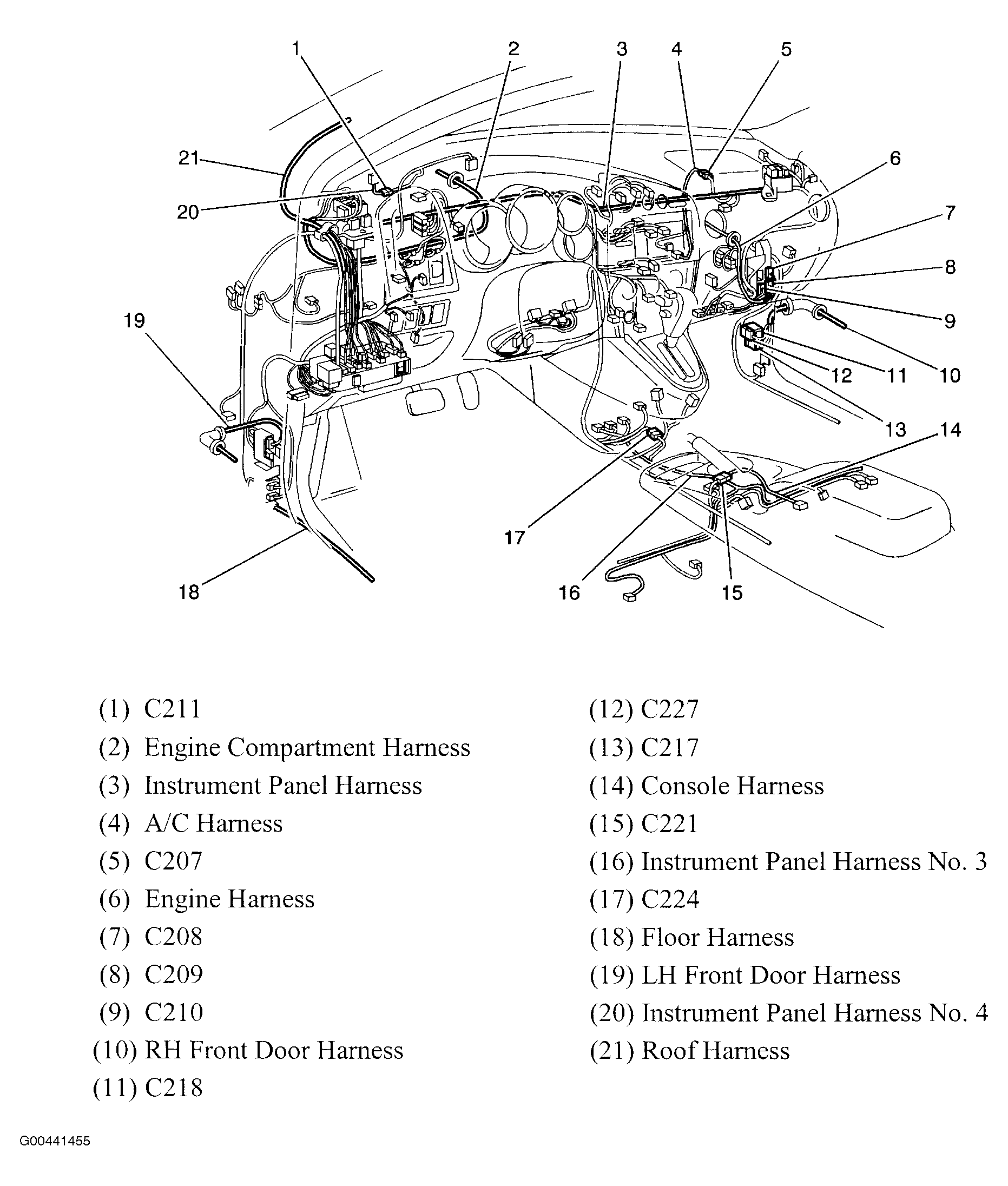

Fig 58: Dash Harness No. 1
Courtesy of GENERAL MOTORS CORP.
Fig 59: Dash Harness No. 2
Courtesy of GENERAL MOTORS CORP.
Fig 60: Dash Splices
Courtesy of GENERAL MOTORS CORP.
Fig 61: Compartment Harness
Courtesy of GENERAL MOTORS CORP.
Fig 62: Cruise Control Components
Courtesy of GENERAL MOTORS CORP.
