Home >> Pontiac >> 2008 >> Solstice Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Immobilizer System >> Repair Instructions >> Theft Deterrent Module Replacement

Theft Deterrent Module Replacement

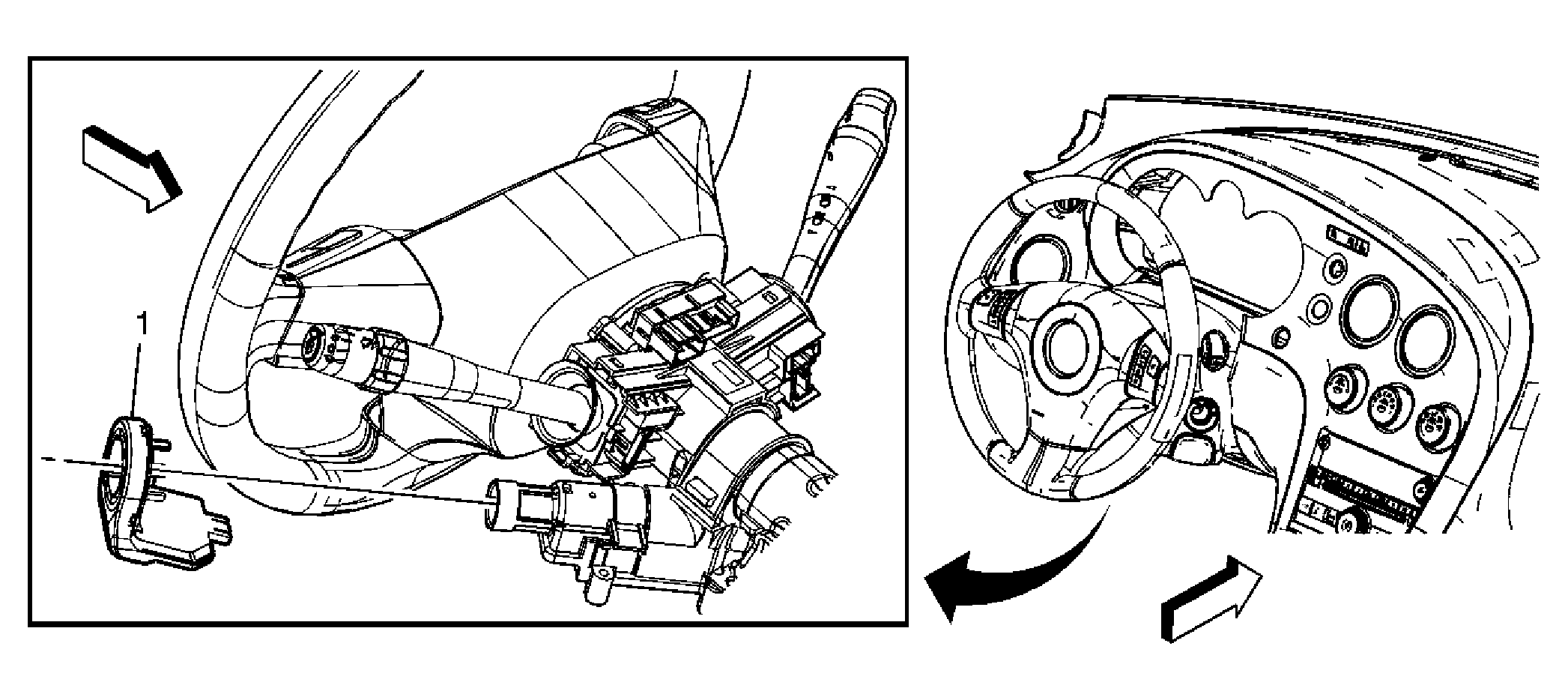

Fig 1: Locating Theft Deterrent Control Module
GM1581909Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement .
  2. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1 Theft Deterrent Module Assembly
Tip:
  1. Disconnect the electrical connector.
  2. Program the theft deterrent control module after replacement. Refer to Control Module References .
