Installation Procedure

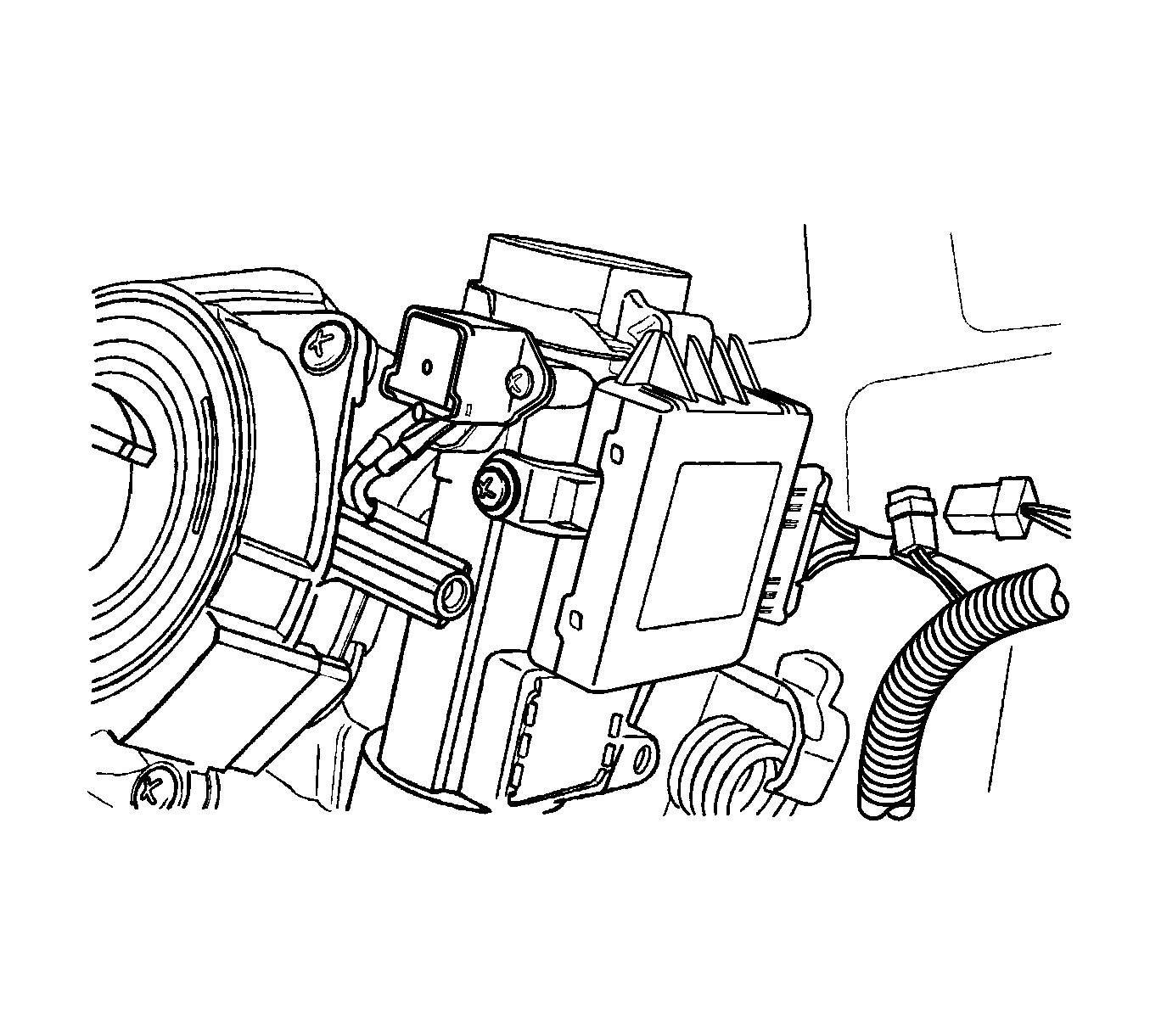

    Fig 1: View of Electrical Connector From Immobilizer Control Unit
    GM1252101Courtesy of GENERAL MOTORS CORP.
  1. Install the immobilizer control unit.
  2. Connect the electrical connector to the immobilizer control unit.

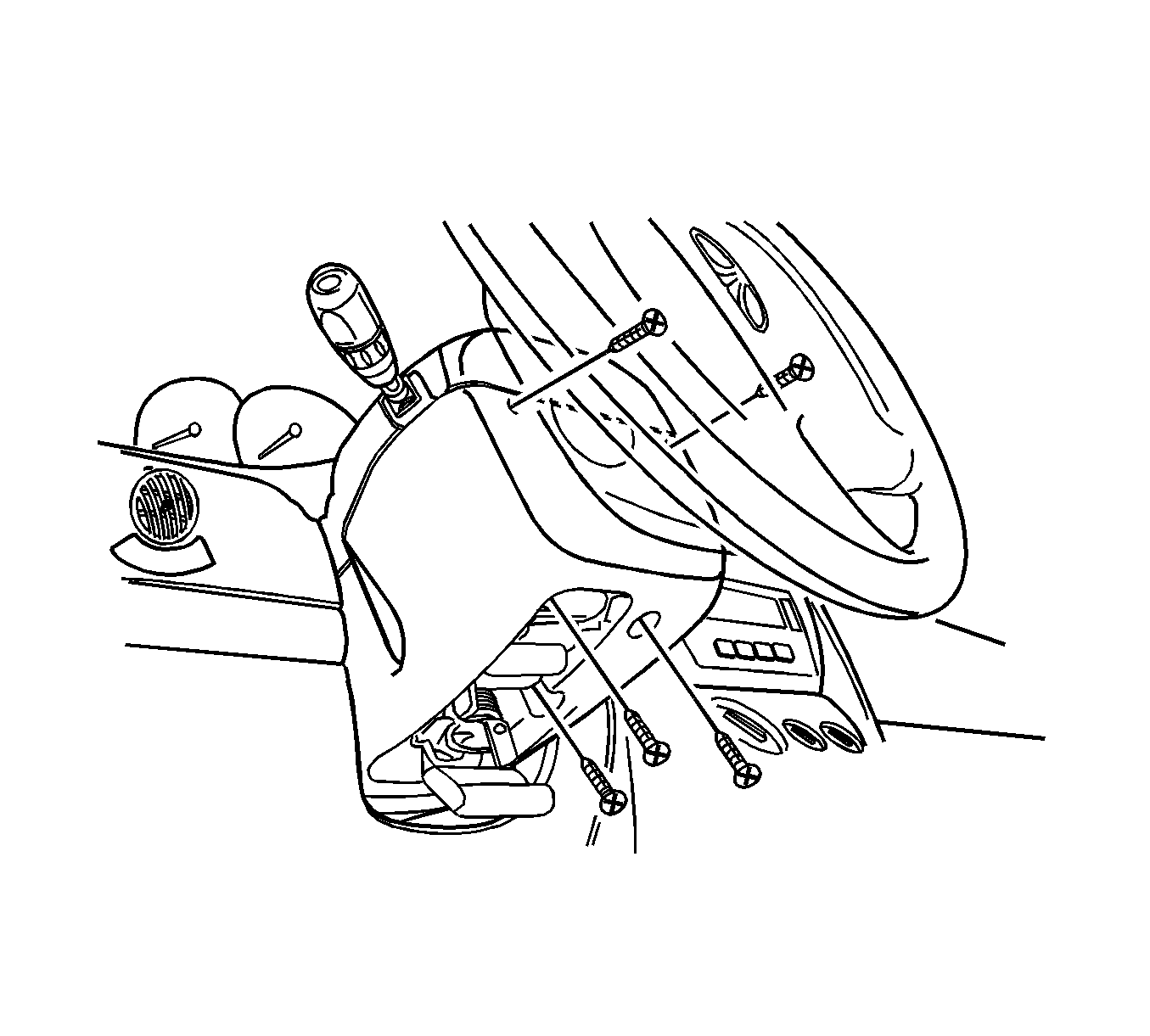

    3. Fig 2: View of Instrumental Panel Lower Cover
    GM1248378Courtesy of GENERAL MOTORS CORP.
    NOTE: After replacing the immobilizer, the keys must be re-authorized using the key coding procedure. Refer to Programming Theft Deterrent System Components .
  3. Install the upper and the lower steering column cover panels.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the lower steering column cover panel screws and tighten to 3 N.m (27 lb in).
  5. Turn the steering wheel in order to access the upper steering column panel screw holes. Install the upper steering column cover panel screws and tighten to 3 N.m (27 lb in).
  6. Connect the negative battery.
