Installation Procedure

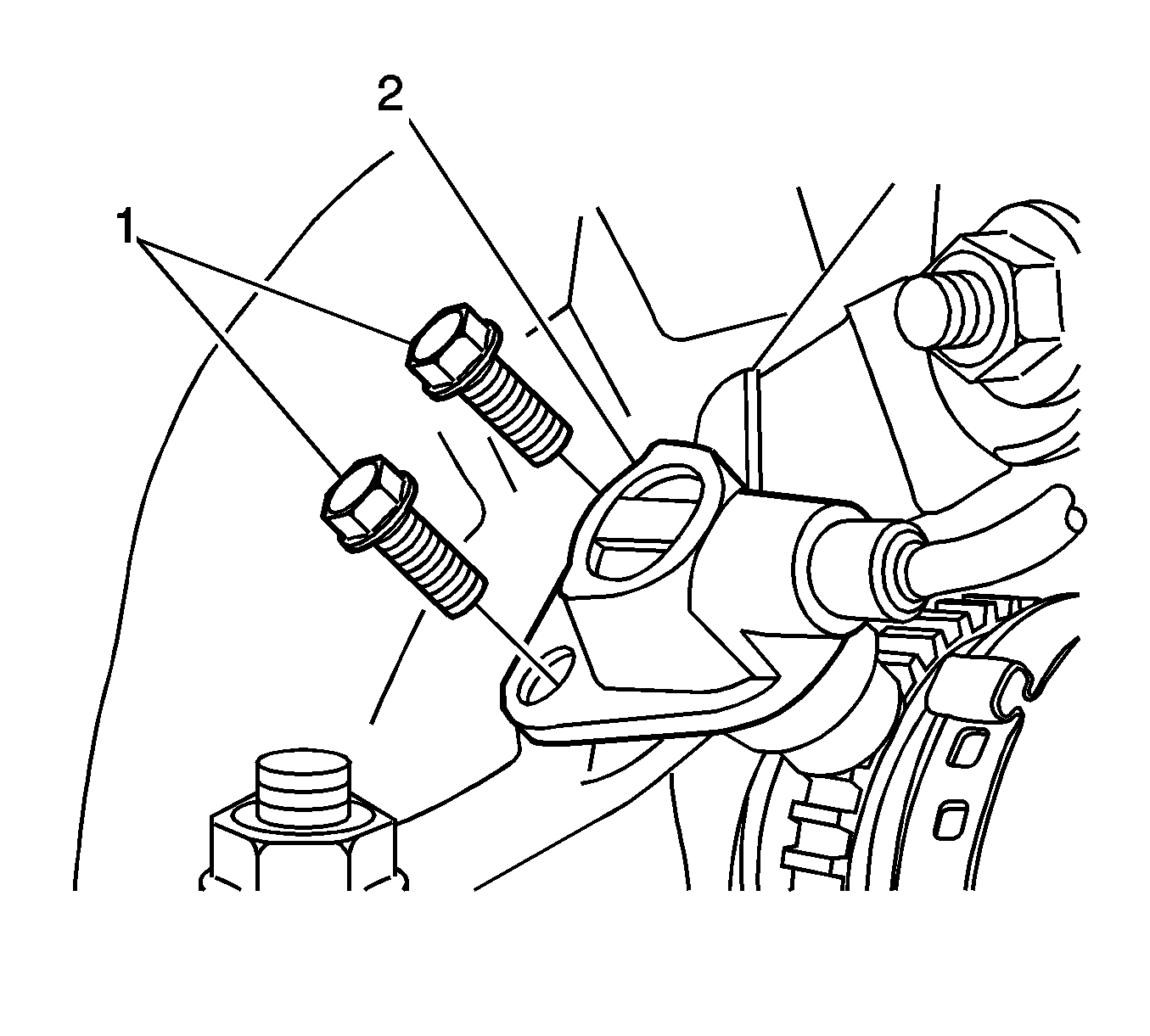

    Fig 1: Bolts Holding Front Wheel Speed Sensor To Steering Knuckle
    GM1618012Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the front wheel speed sensor (2) to the steering knuckle. Secure it with the bolts (1) and tighten to 8 N.m (71 lb in).
  2. Install the wheel. Refer to Tire and Wheel Removal and Installation .
  3. Lower the vehicle.

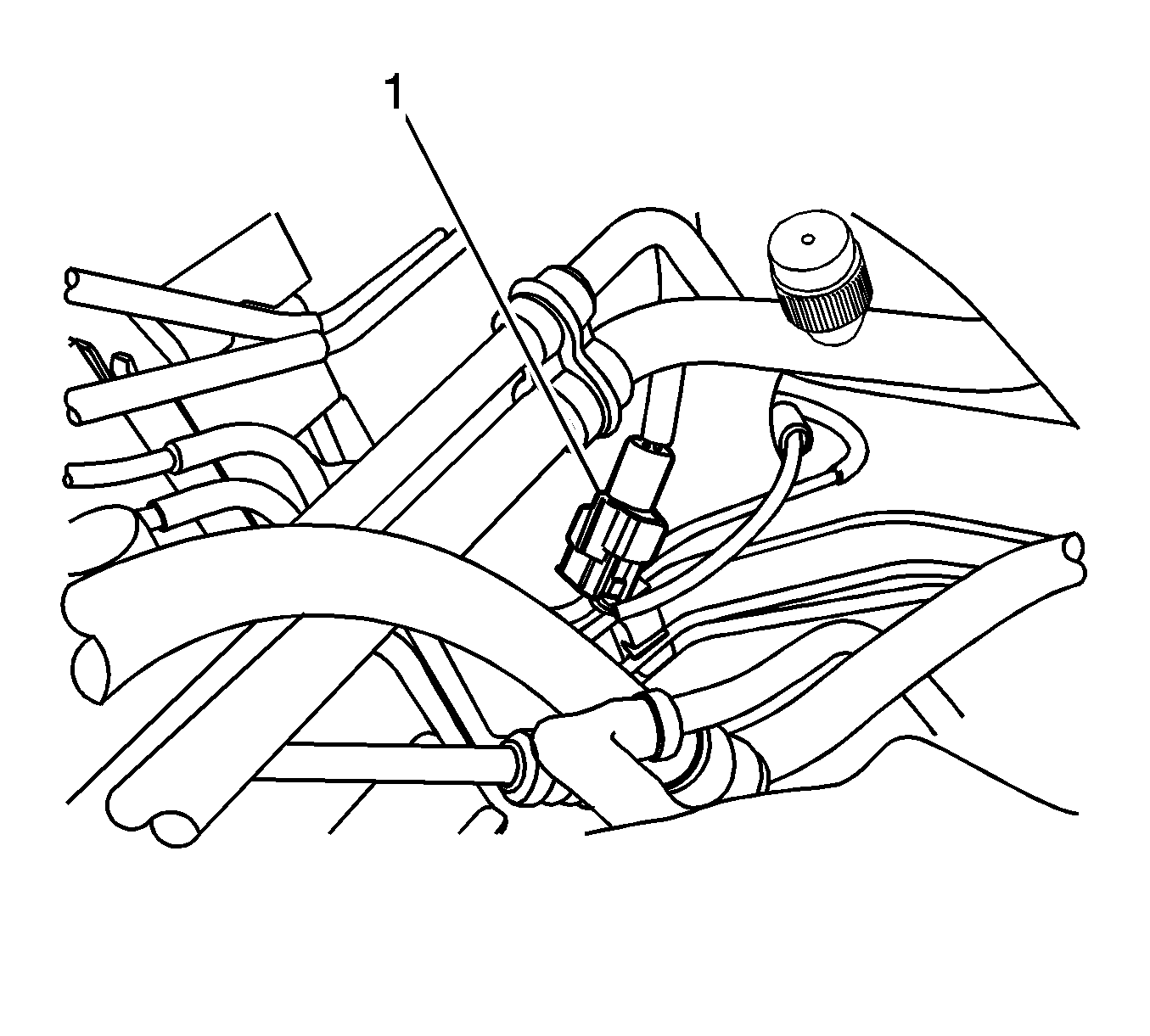

    4. Fig 2: Front Wheel Speed Sensor Electrical
    GM1618010Courtesy of GENERAL MOTORS CORP.
  4. Connect the front wheel speed sensor electrical connector (1).
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
