Installation Procedure

    Fig 1: Identifying Air Cleaner Element
    GM1949745Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner element (1) to the air cleaner assembly.

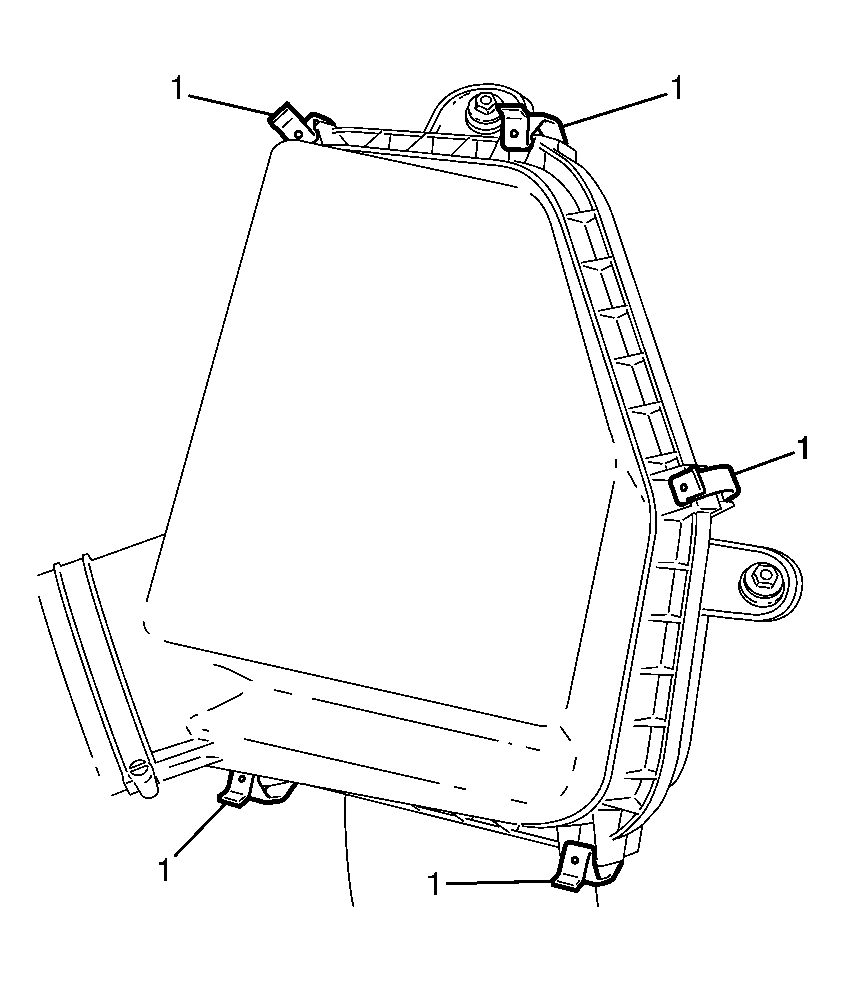

    2. Fig 2: Locating Retaining Clips
    GM1949742Courtesy of GENERAL MOTORS CORP.
  2. Install the air cleaner cover retaining clips (1).
  3. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
