Powertrain Component Views

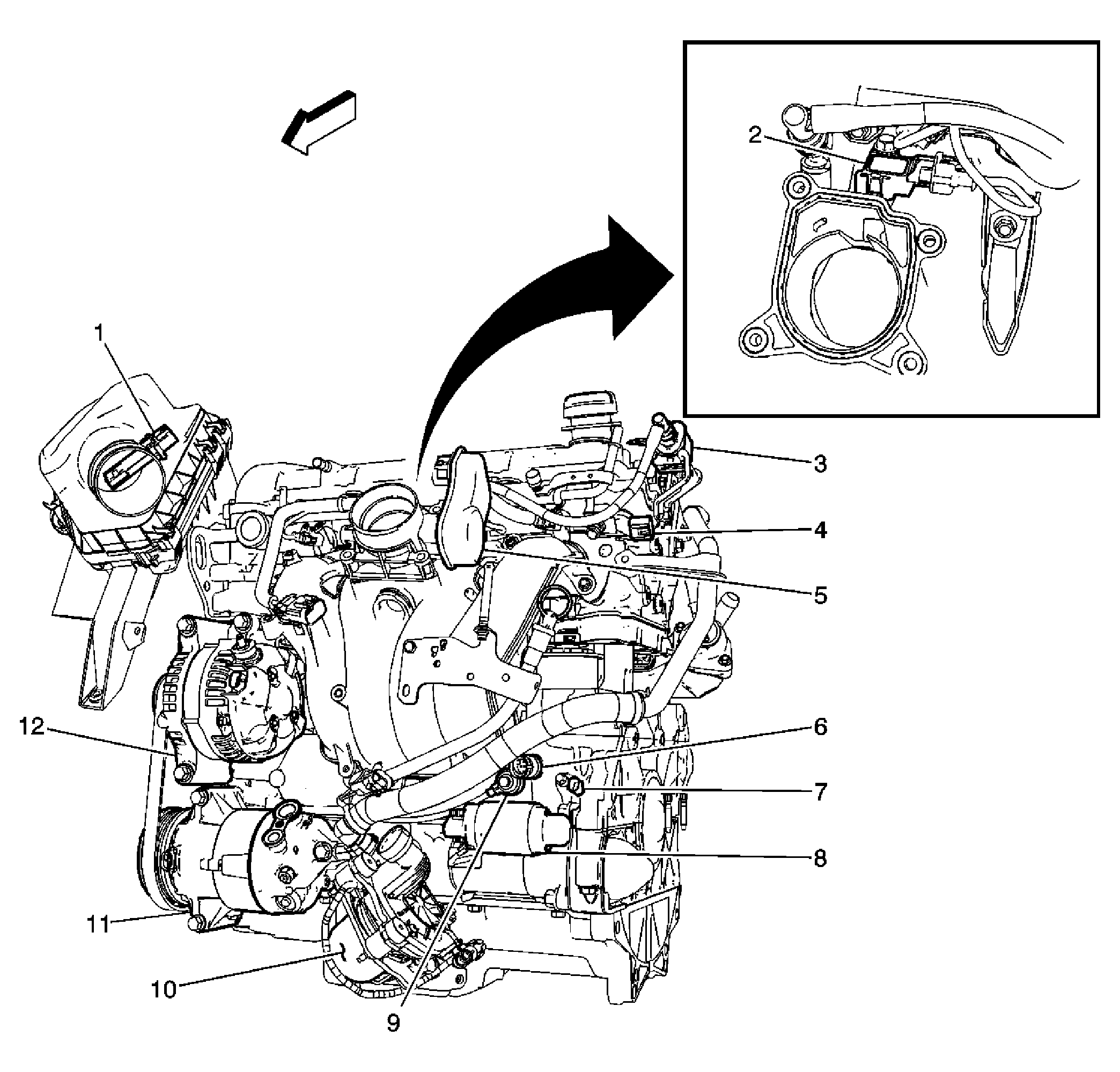

Fig 1: Engine, Front View (LAP)
GM2034663Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 Manifold Absolute Pressure (MAP) Sensor
3 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 Camshaft Position (CMP) Sensor - Intake
5 Throttle Body
6 Engine Oil Pressure (EOP) Switch
7 Crankshaft Position (CKP) Sensor
8 Starter Motor
9 Knock Sensor (KS)
10 Secondary Air Injection (AIR) Pump (NU6)
11 A/C Compressor Clutch (C67)
12 Generator

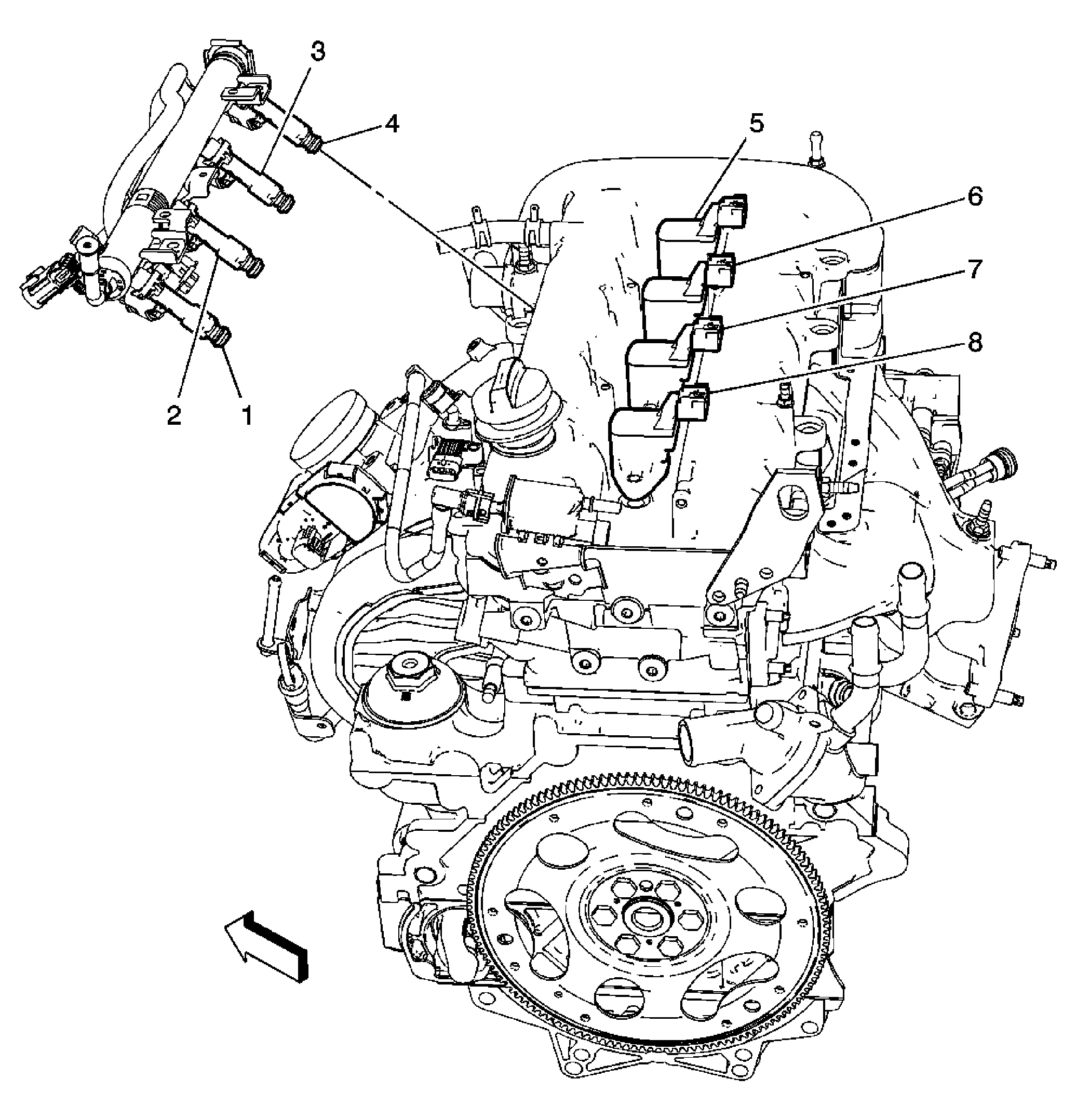

Fig 2: Engine, Top View (LAP or LNF)
GM2034623Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 4
2 Fuel Injector 3
3 Fuel Injector 2
4 Fuel Injector 1
5 Ignition Coil 1
6 Ignition Coil 2
7 Ignition Coil 3
8 Ignition Coil 4

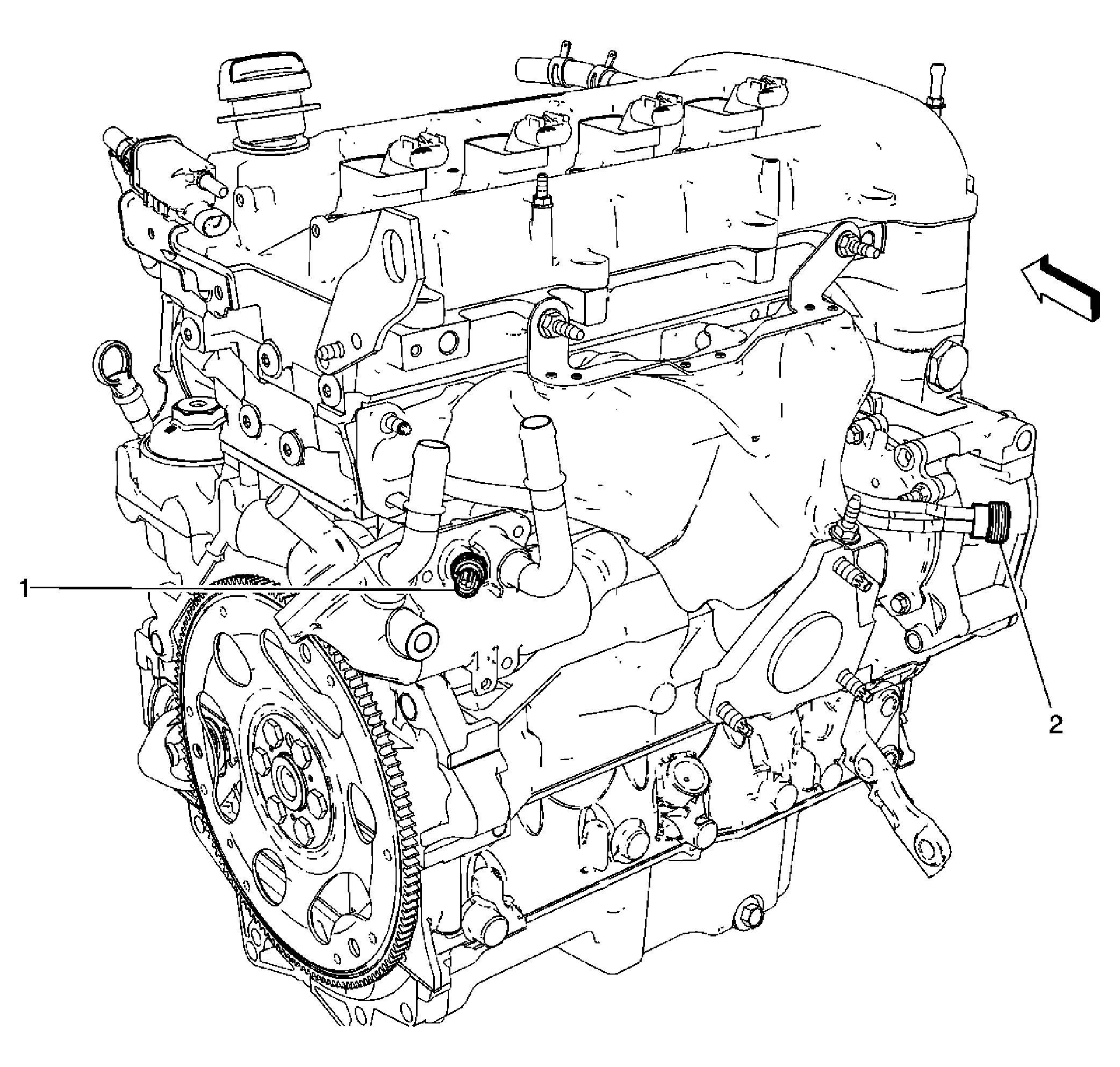

Fig 3: Engine, Rear View
GM2034629Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Engine Block Heater Connector

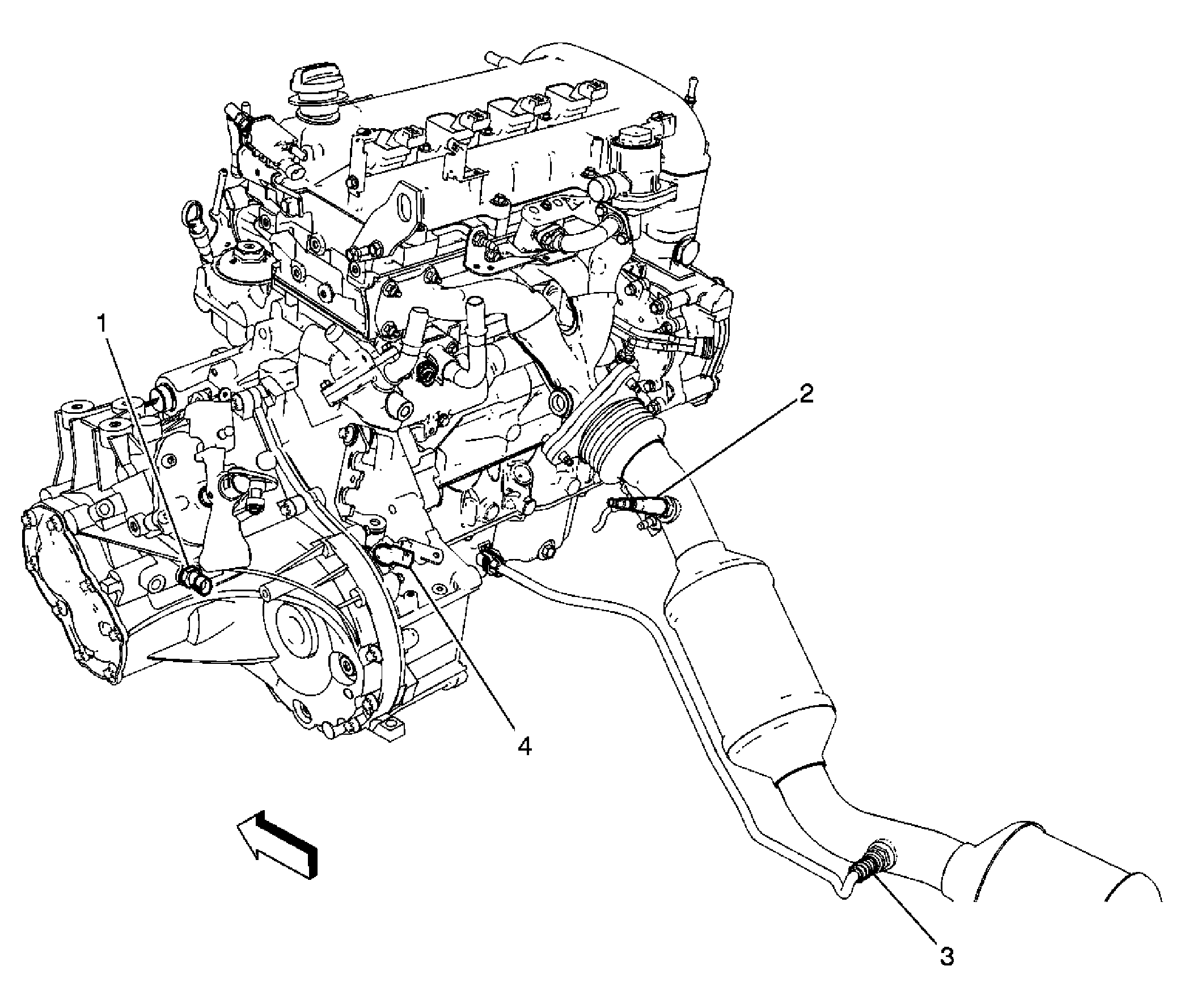

Fig 4: Engine (LAP) and Manual Transmission (M86)
GM2034615Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Backup Lamp Switch
2 Heated Oxygen Sensor (HO2S) 1
3 Heated Oxygen Sensor (HO2S) 2
4 Vehicle Speed Sensor (VSS)

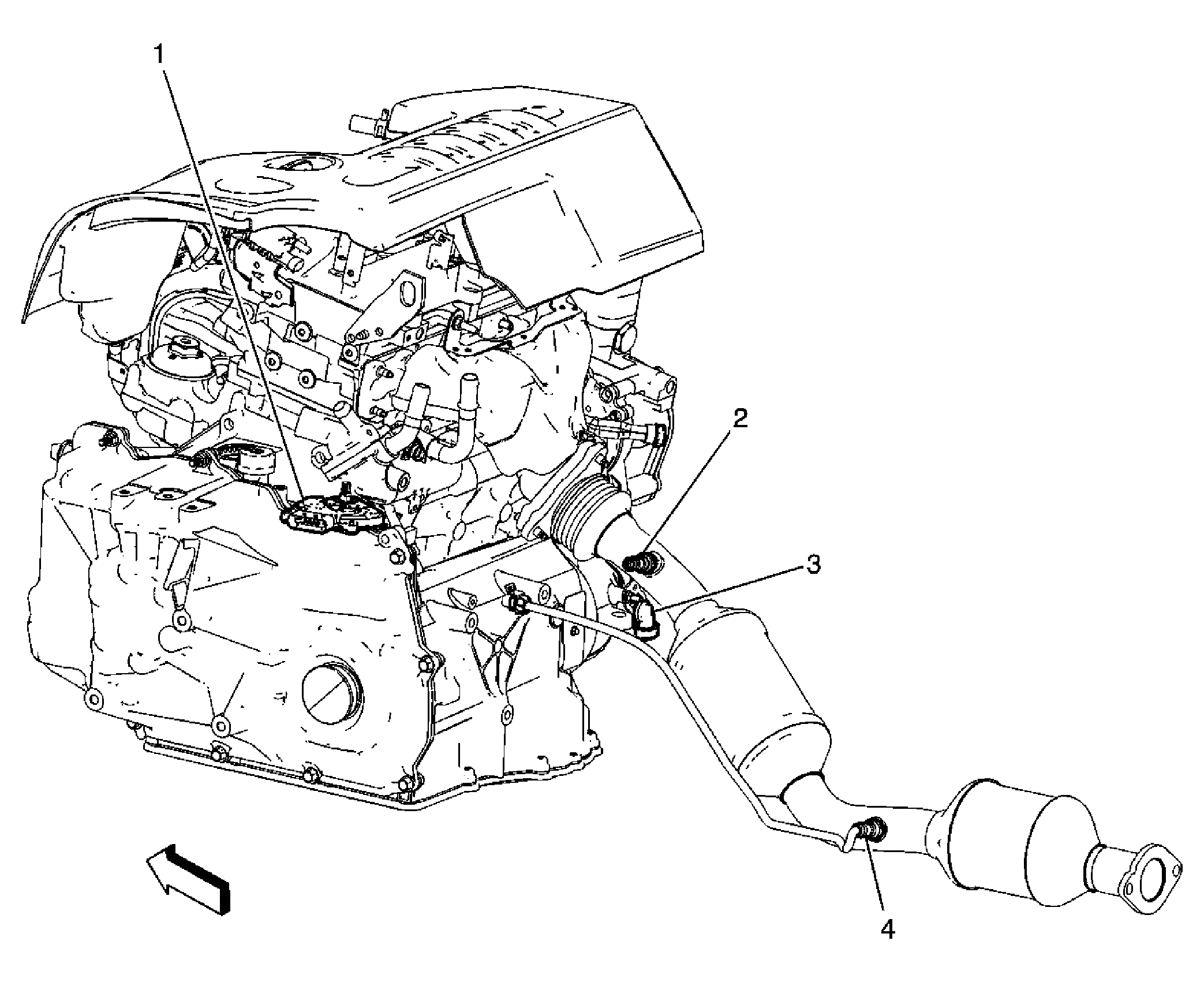

Fig 5: Engine (LAP) and Automatic Transmission (MN5)
GM2034617Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Neutral Position (PNP) Switch
2 Heated Oxygen Sensor (HO2S) 1
3 Vehicle Speed Sensor (VSS)
4 Heated Oxygen Sensor (HO2S) 2

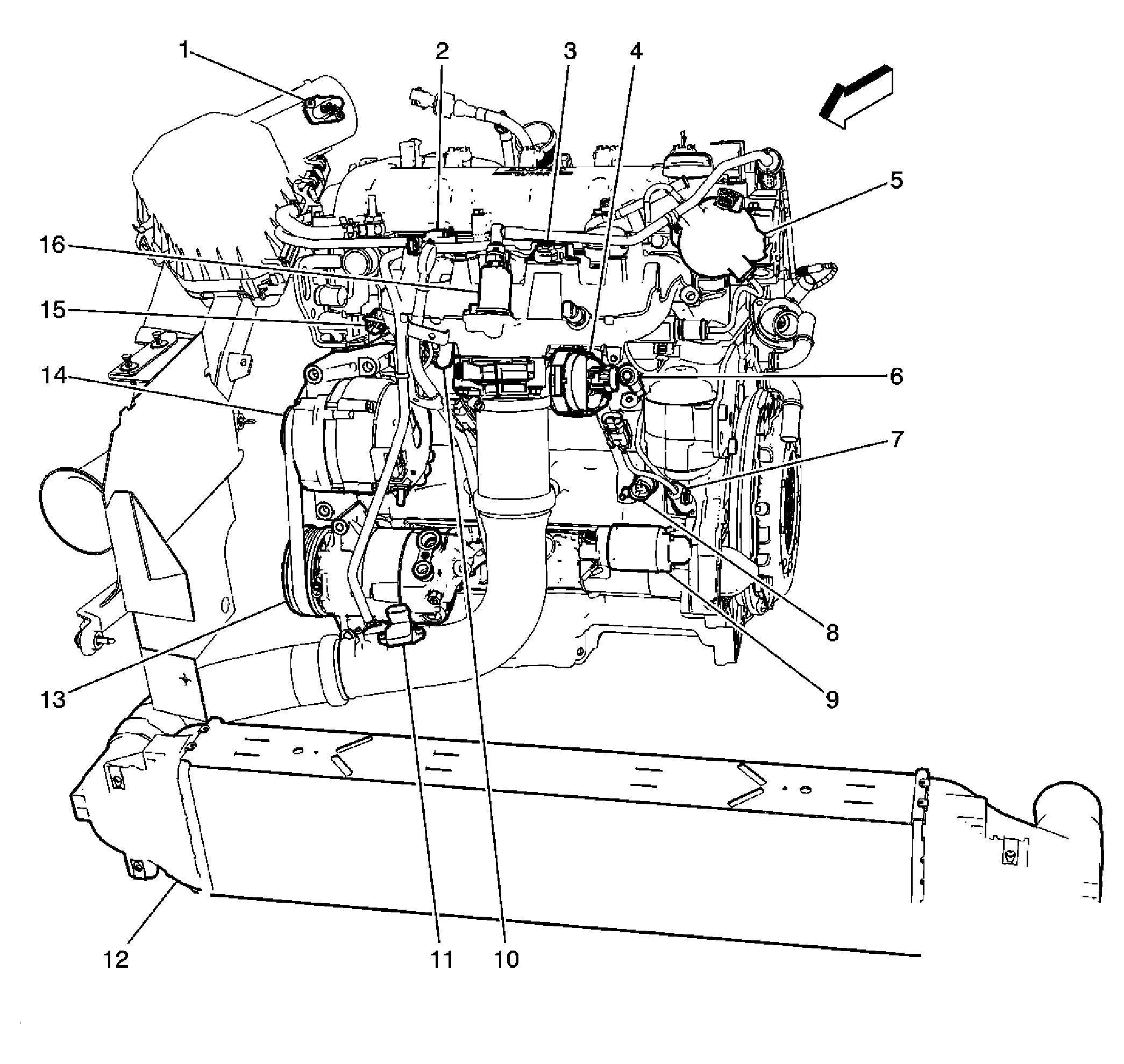

Fig 6: Engine - Front View (LNF)
GM2034766Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 Turbocharger Bypass Valve Solenoid
3 Manifold Absolute Pressure (MAP) Sensor
4 Throttle Body
5 High Pressure Fuel Pump
6 Knock Sensor (KS) 2
7 Crankshaft Position (CKP) Sensor
8 Engine Oil Pressure (EOP) Switch
9 Starter Motor
10 Knock Sensor (KS) 1
11 Intake Air Pressure and Temperature Sensor
12 Charge Air Cooler
13 A/C Compressor Clutch (C67)
14 Generator
15 Fuel Rail Pressure (FRP) Sensor
16 Evaporative Emission (EVAP) Canister Purge Solenoid Valve

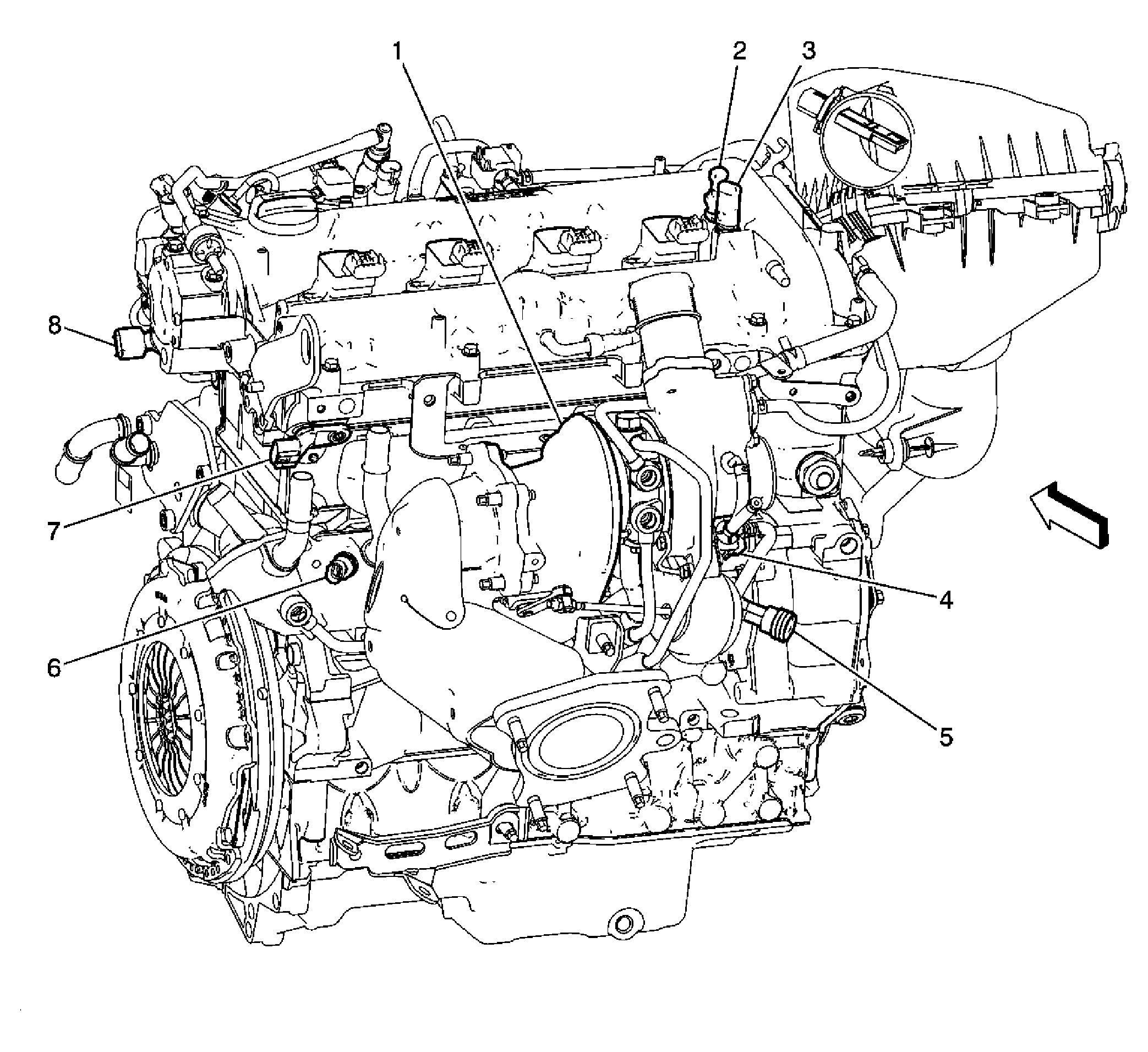

Fig 7: Engine - Rear View (LNF)
GM2034750Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turbocharger
2 Camshaft Position (CMP) Actuator Solenoid Valve - Intake
3 Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust
4 Turbocharger Wastegate Solenoid
5 Heater Block Connector
6 Engine Coolant Temperature (ECT) Sensor
7 Camshaft Position (CMP) Sensor - Exhaust
8 Camshaft Position (CMP) Sensor - Intake

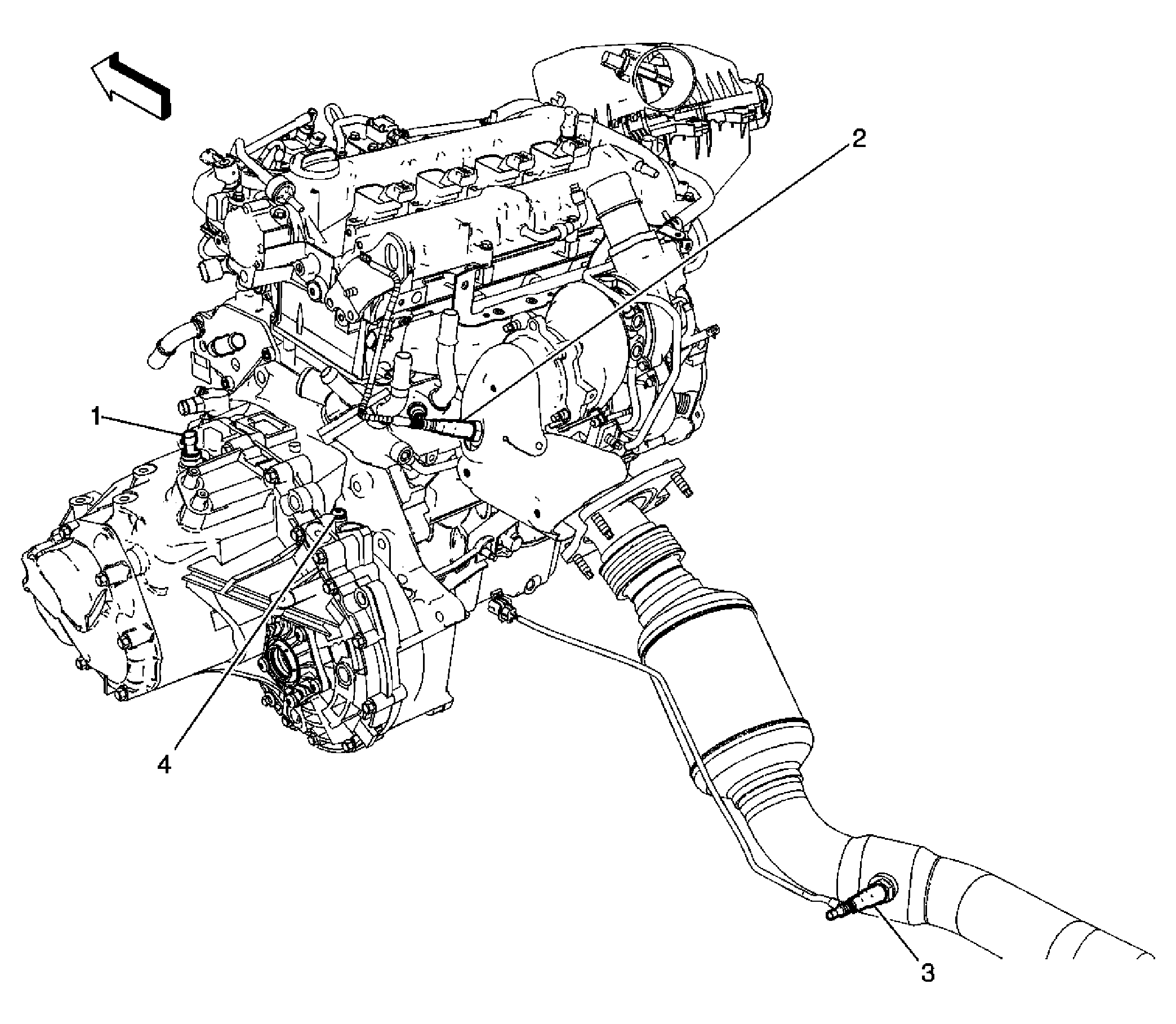

Fig 8: Engine (LNF) and Manual Transmission (MU3)
GM2034724Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Backup Lamp Switch
2 Heated Oxygen Sensor (HO2S) 1
3 Heated Oxygen Sensor (HO2S) 2
4 Vehicle Speed Sensor (VSS)

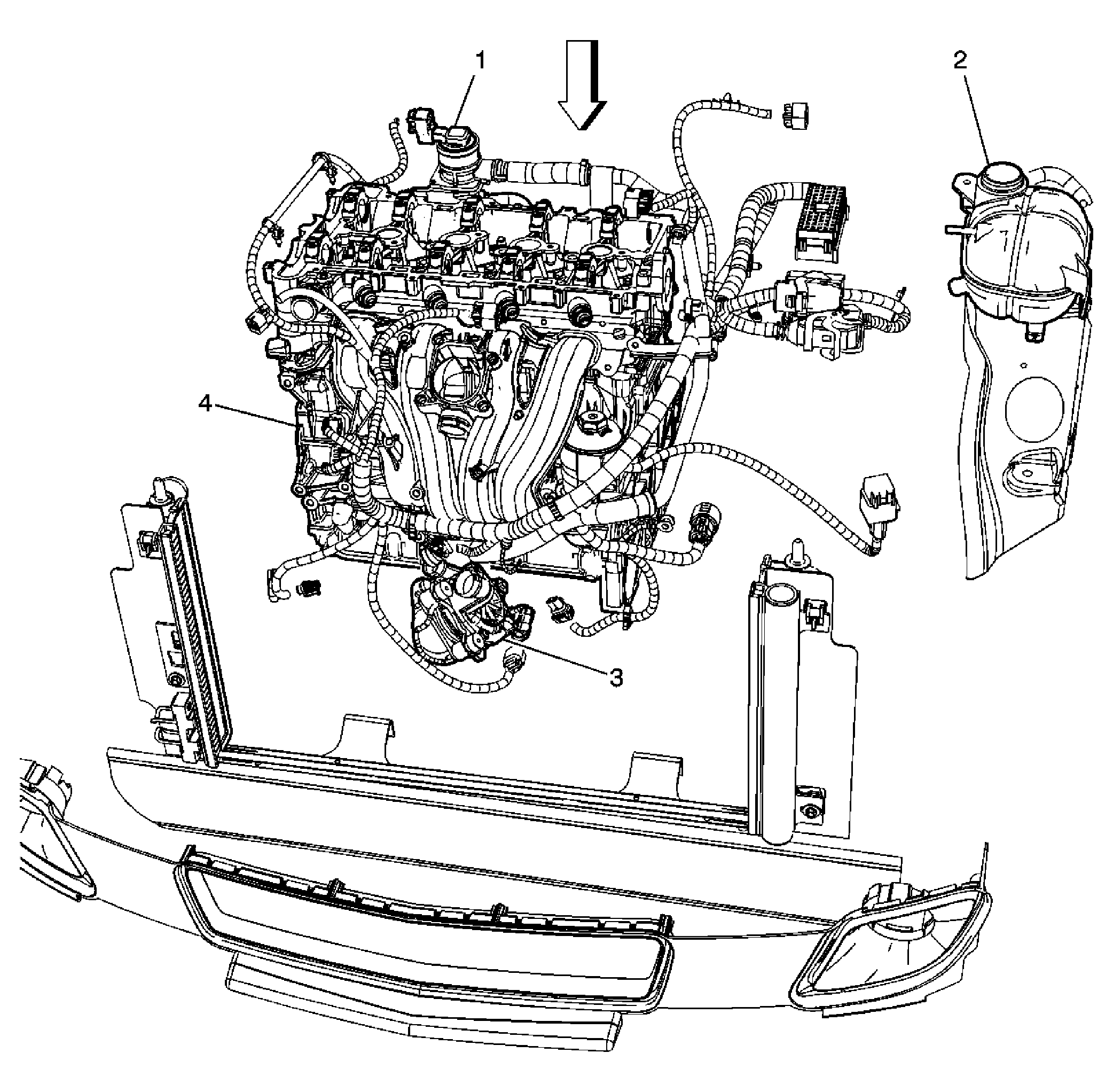

Fig 9: Secondary Air Injection (AIR) Components (NU6)
GM2214234Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Secondary Air Injection (AIR) Pump Solenoid
2 Engine Coolant Overflow Container
3 Secondary Air Injection (AIR) Pump
4 Engine Block

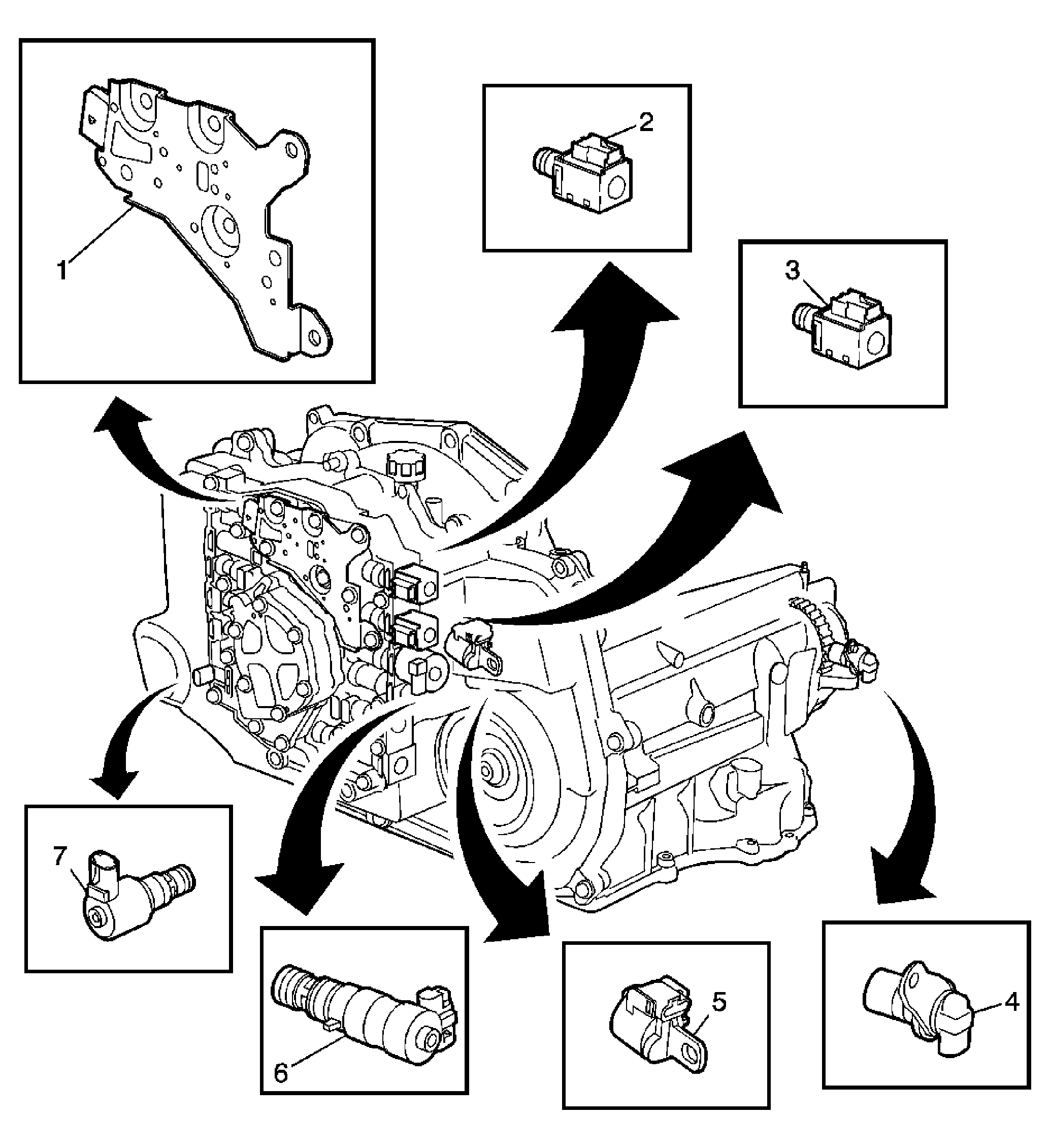

Fig 10: Transmission Electronic Components (MN5)
GM1982293Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
2 1-2 Shift Solenoid (SS) Valve
3 2-3 Shift Solenoid (SS) Valve
4 Vehicle Speed Sensor (VSS)
5 Automatic Transmission Input Shaft Speed (ISS) Sensor
6 Pressure Control (PC) Solenoid Valve
7 Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
