Installation Procedure

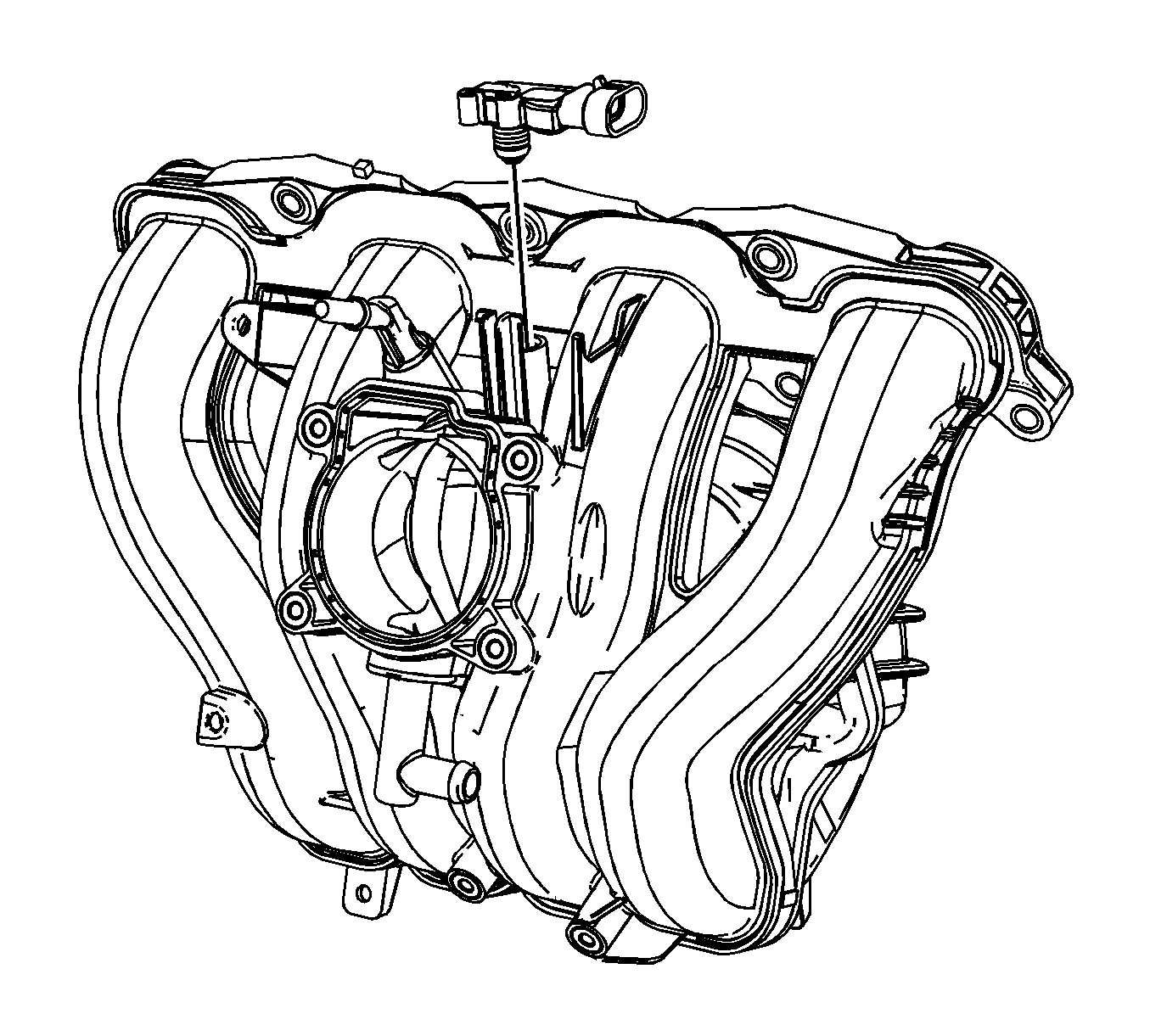

    Fig 1: Identifying MAP Sensor
    GM1581050Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the NEW MAP sensor seal with clean engine oil.
  2. Install the MAP sensor into the intake manifold.
  3. Connect the engine harness electrical connector to the MAP sensor.
  4. Install the throttle body. Refer to Throttle Body Assembly Replacement .
