Body Control System Schematics

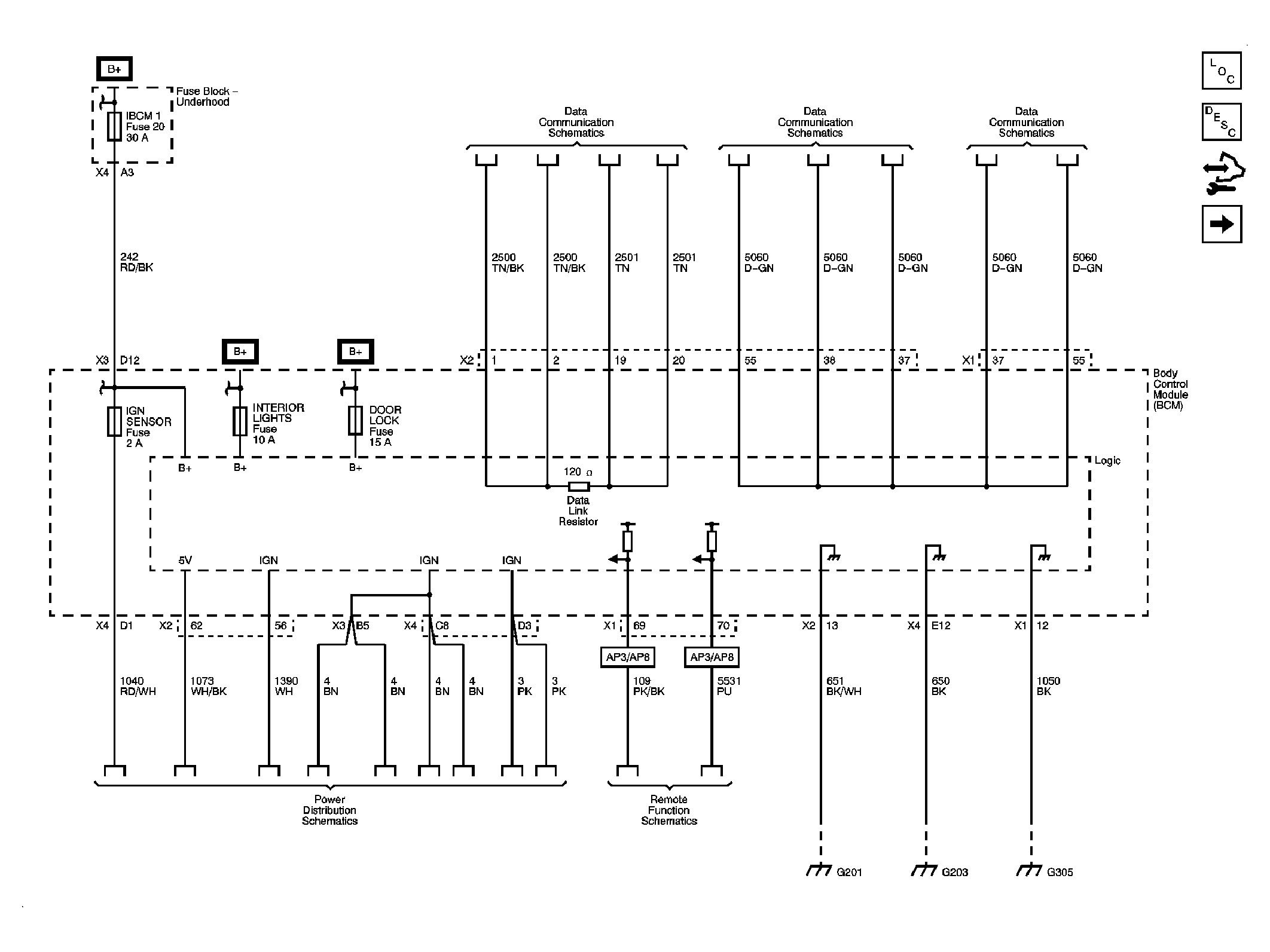

Fig 1: Power, Ground & DLC Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

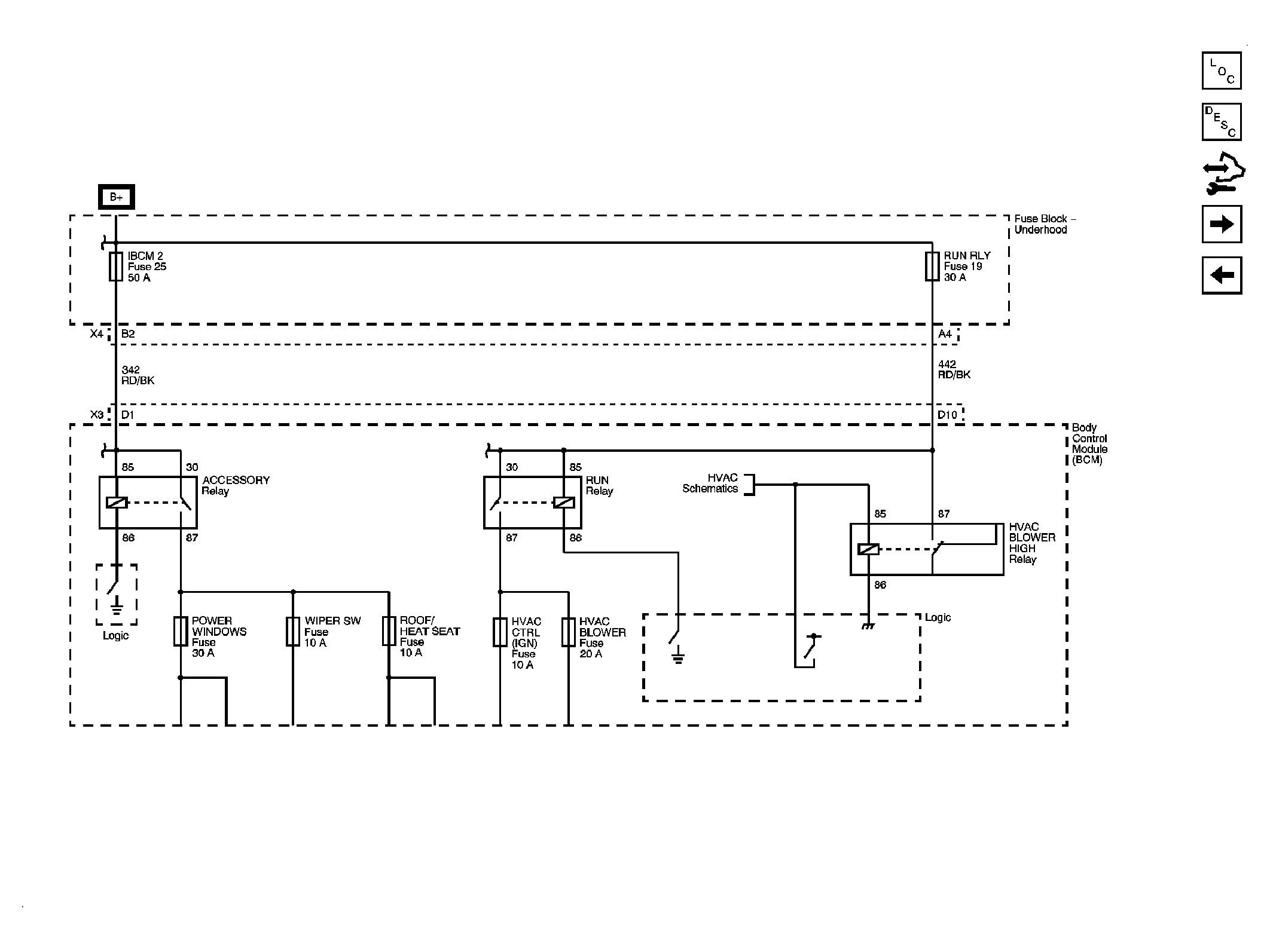

Fig 2: Accessory, HVAC Blower High & Run Relays Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

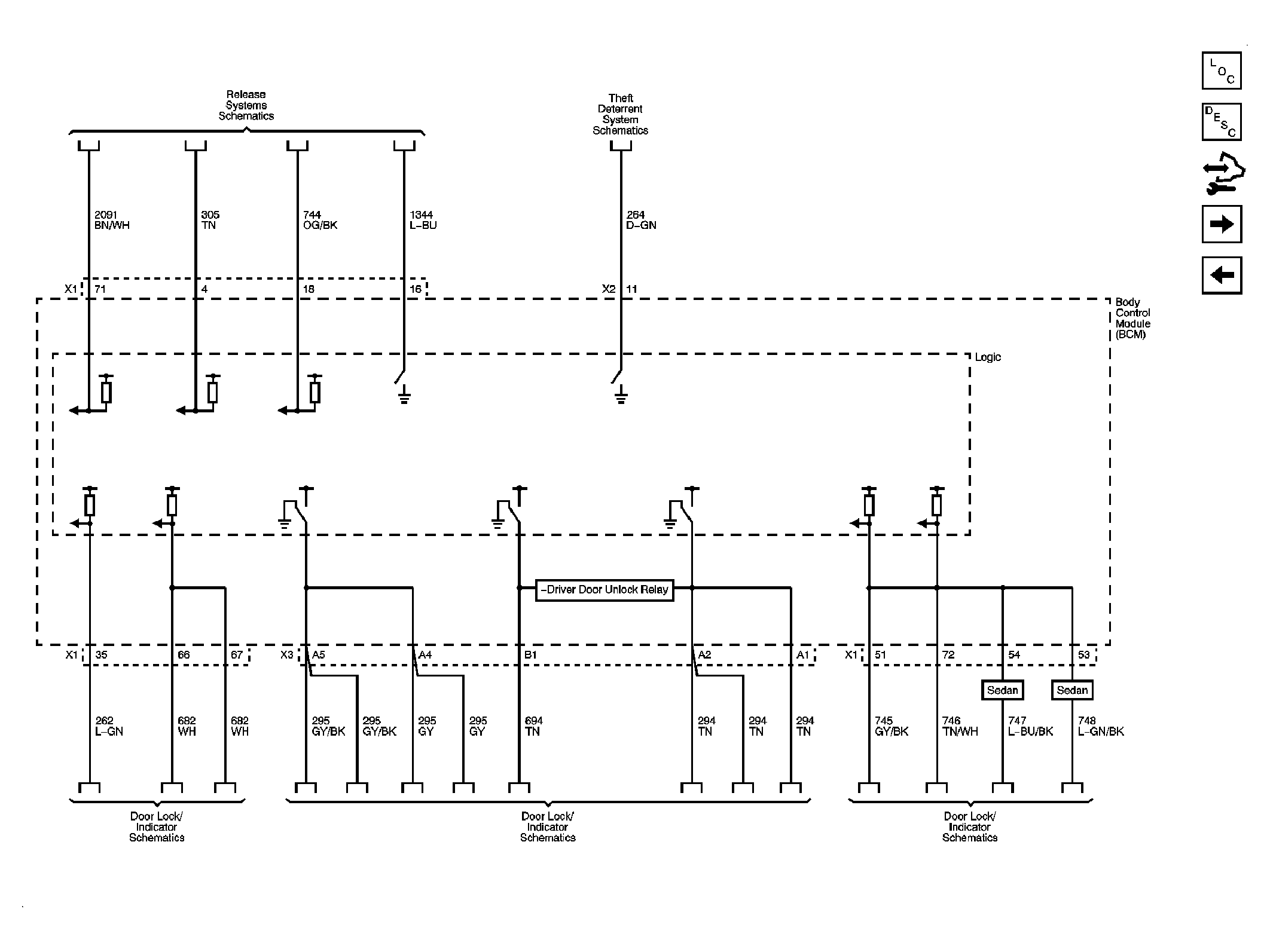

Fig 3: Controlled/Monitored Subsystem References Circuit Schematic (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

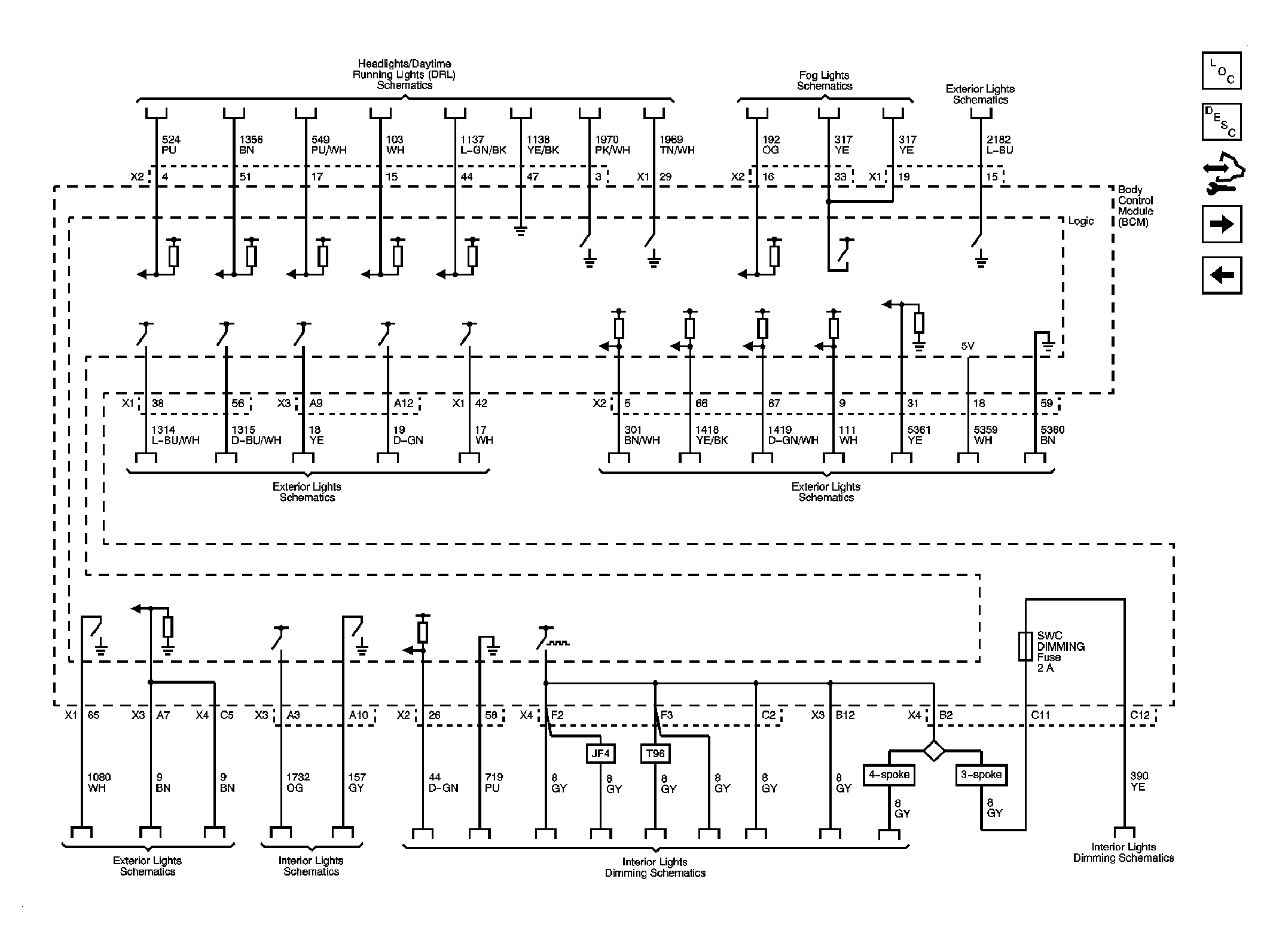

Fig 4: Controlled/Monitored Subsystem References Circuit Schematic (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

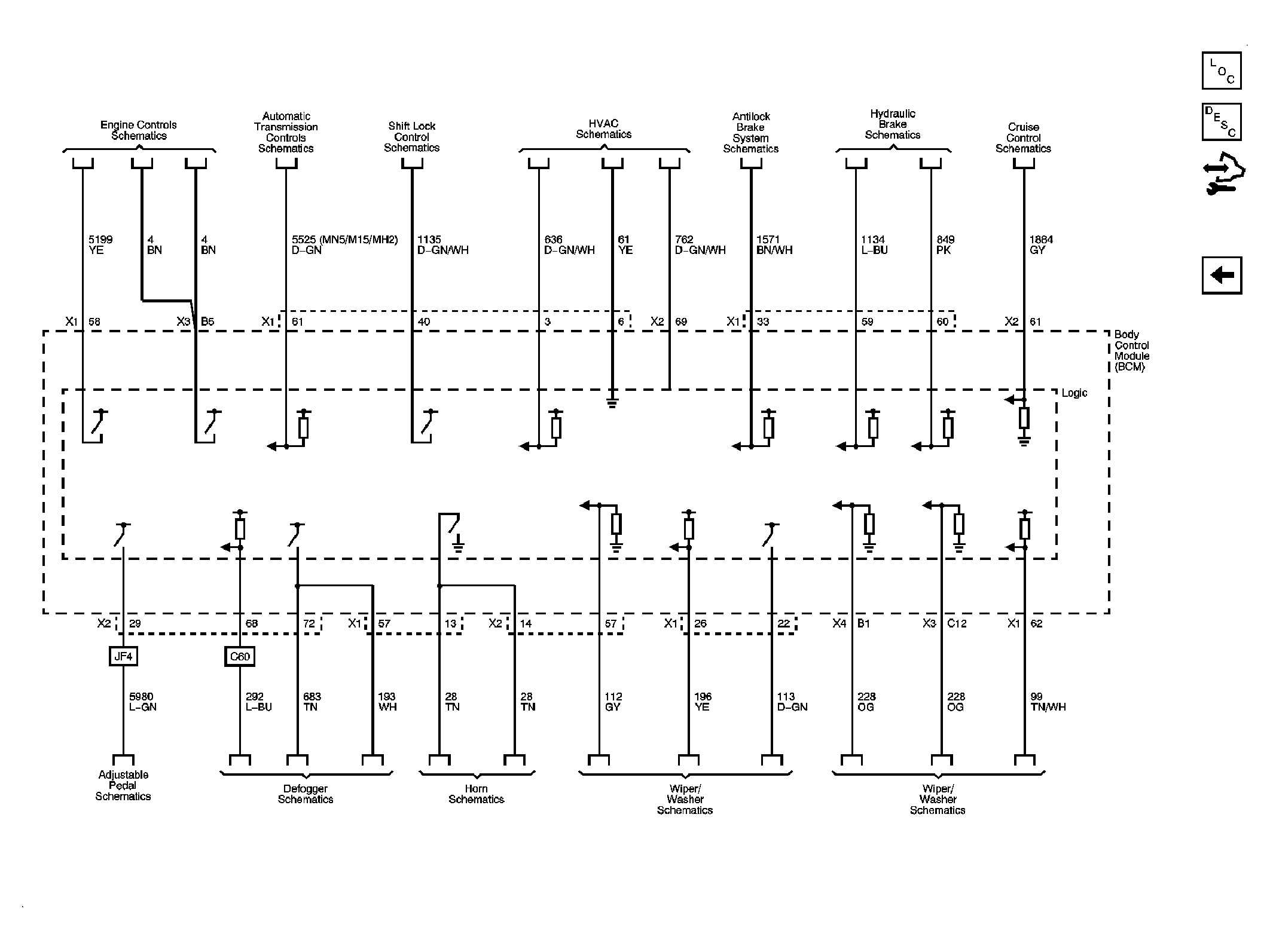

Fig 5: Controlled/Monitored Subsystem References Circuit Schematic (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
