Normal Operation

Fuel flows through main jets and as throttle valves are opened, intake vacuum acts on the jets and draws fuel to mixture tubes and then to the Venturis. At this point air from the main air intake is mixed with the fuel and the fuel/air mixture is supplied to the engine.

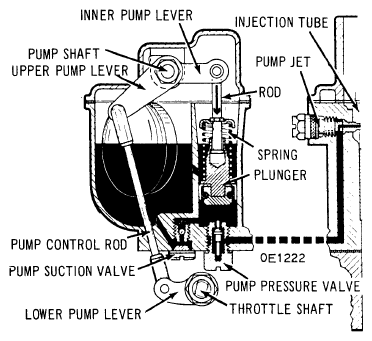

Fig 1: Accelerator Pump Operation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
