Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

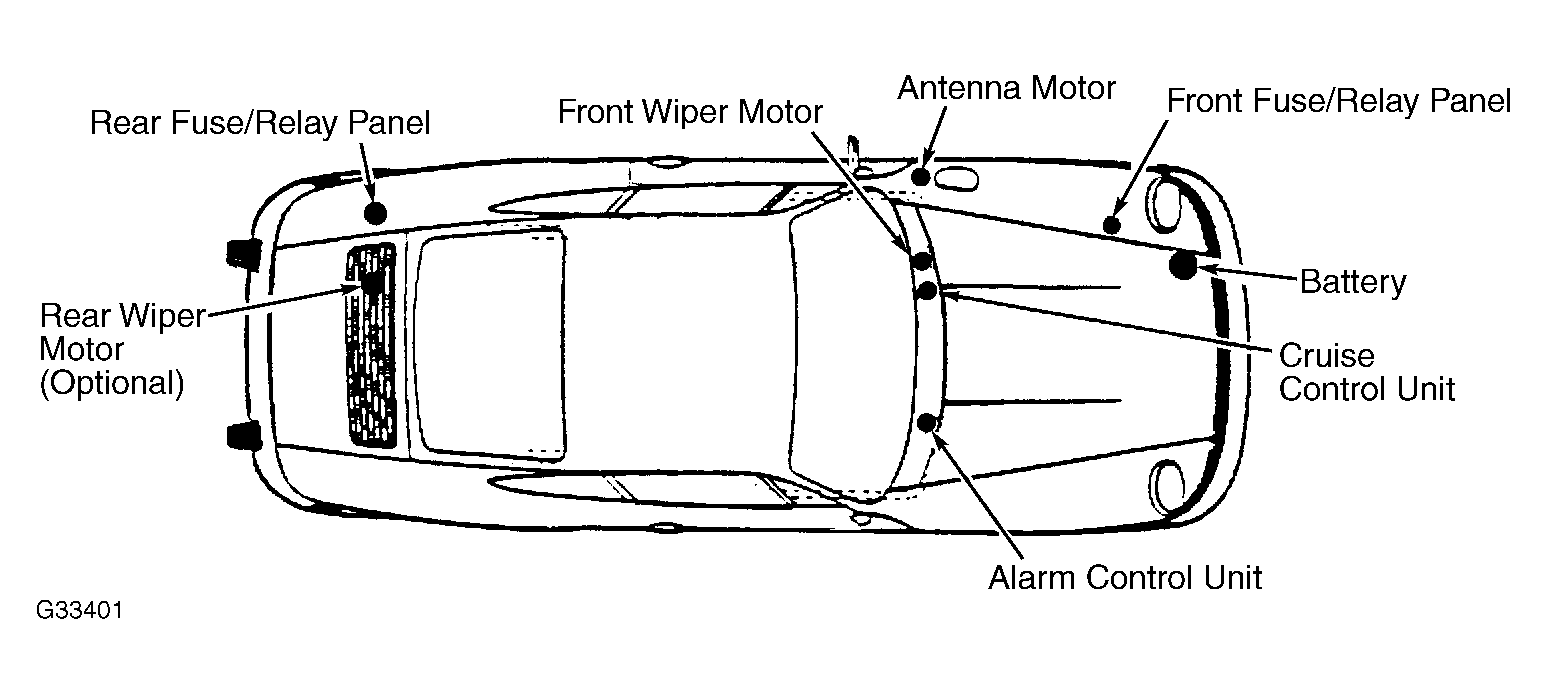

| Alarm Control Unit | Behind panel on right rear side of luggage compartment. See Figure . |
| Automatic Heater Control Unit | In center console between front seats. |

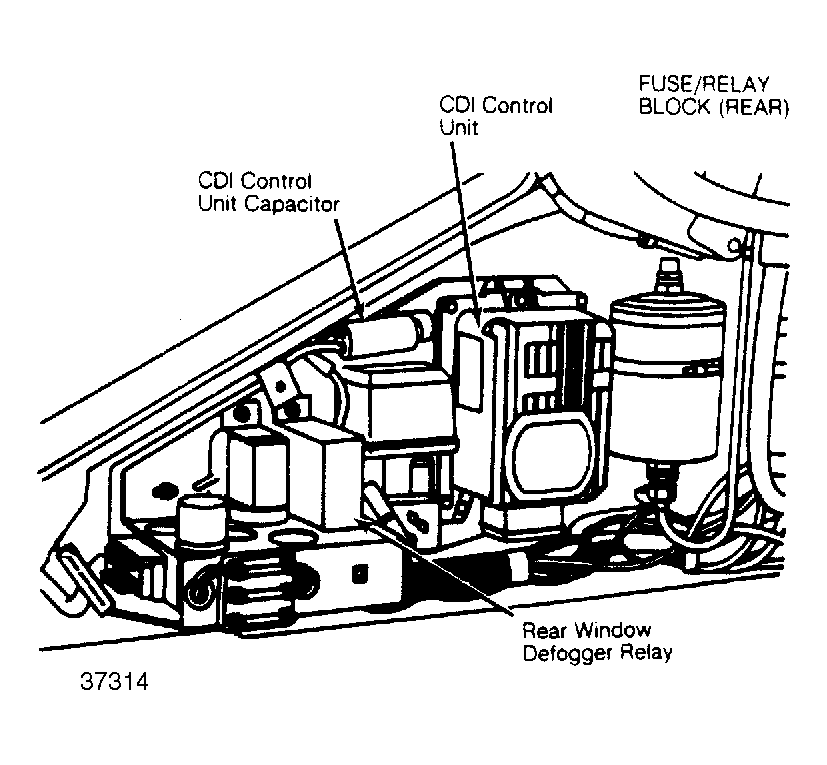

| CDI Control Unit | On left side of engine compartment. See Figure . |
| Cruise Control Unit | Behind panel on left side of luggage compartment. See Figure . |
| Oxygen Sensor Control Unit | Under front passenger seat. |
| Wiper Control Unit | On electrical bracket under left side of dash. |
