Control Units

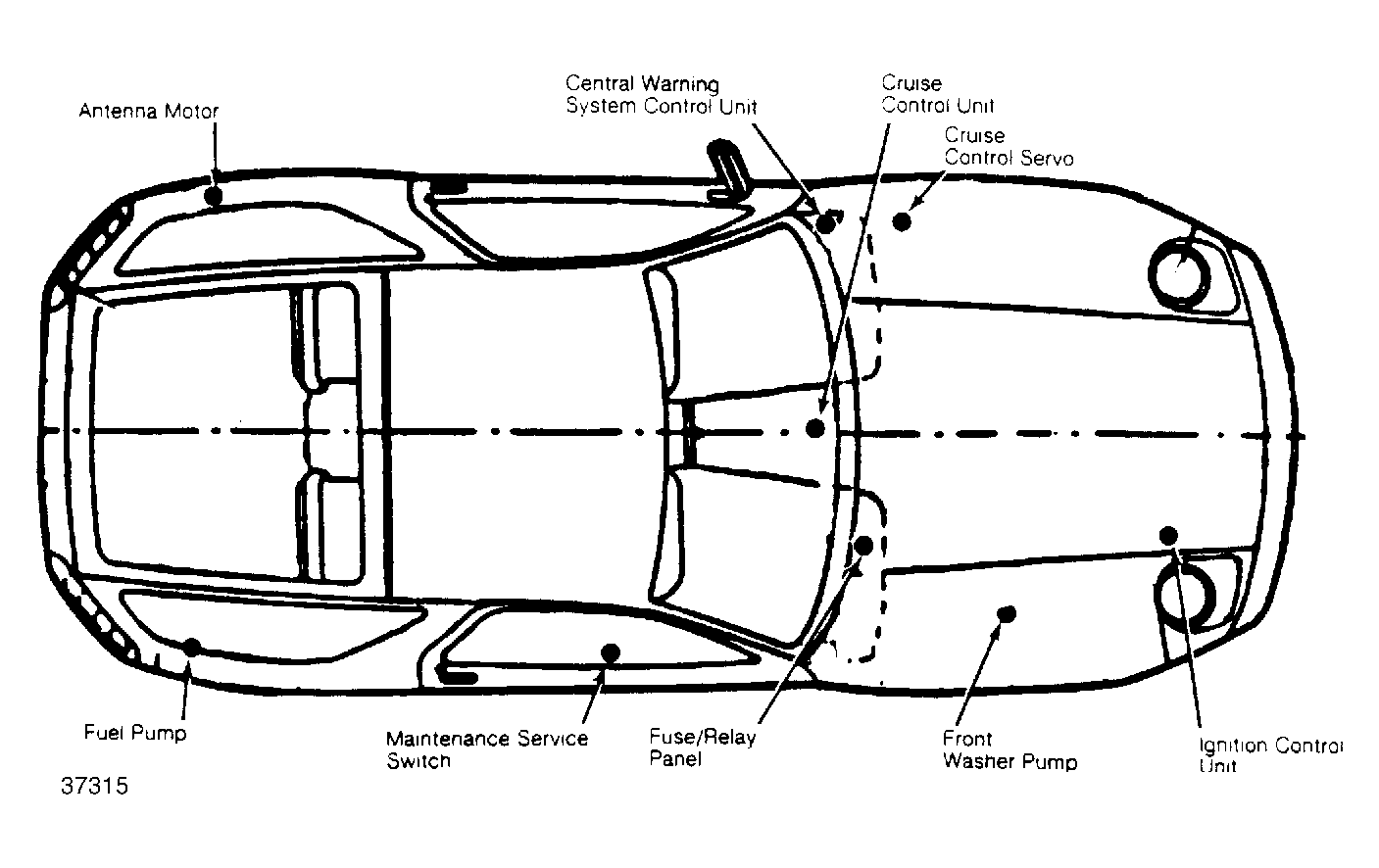

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Unit | On left side of A/C box. |
| Central Warning System Control Unit | Underneath foot rest in driver's foot well. See Figure . |
| Cruise Control Unit | Behind center console. See Figure . |
| EFI Control Unit | On right wheel housing, in passenger's footwell. |
| Ignition Control Unit | On right front side of engine compartment. See Figure . |
| Wiper Control Unit | Under dash on left electrical bracket. |
