Control Units

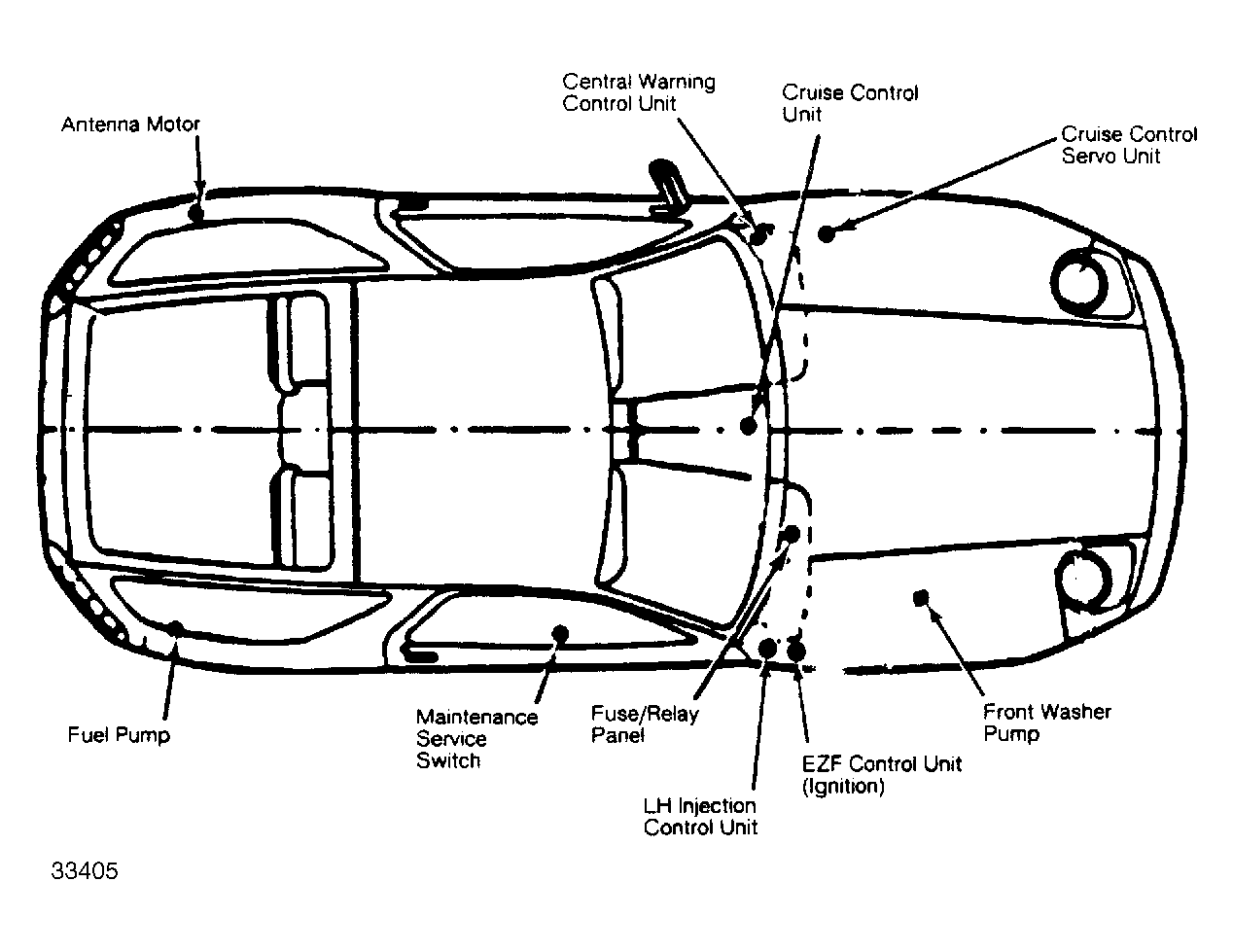

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Unit | On left side of A/C box. |
| Central Warning System Control Unit | Underneath foot rest in drivers footwell. See Figure . |
| Cruise Control Unit | Behind center console. See Figure . |
| LH Injection Control Unit | On right wheel housing, in passengers footwell. See Figure . |
| EZF Control Unit (Ignition) | In passengers footwell next to EFI control unit. See Figure . |
| Wiper Control Unit | Under dash on left electrical bracket. |
