Home >> Porsche >> 1986 >> 911 Turbo >> Repair and Diagnosis >> Engine Performance >> System >> DME System >> Wiring Diagrams

Wiring Diagrams

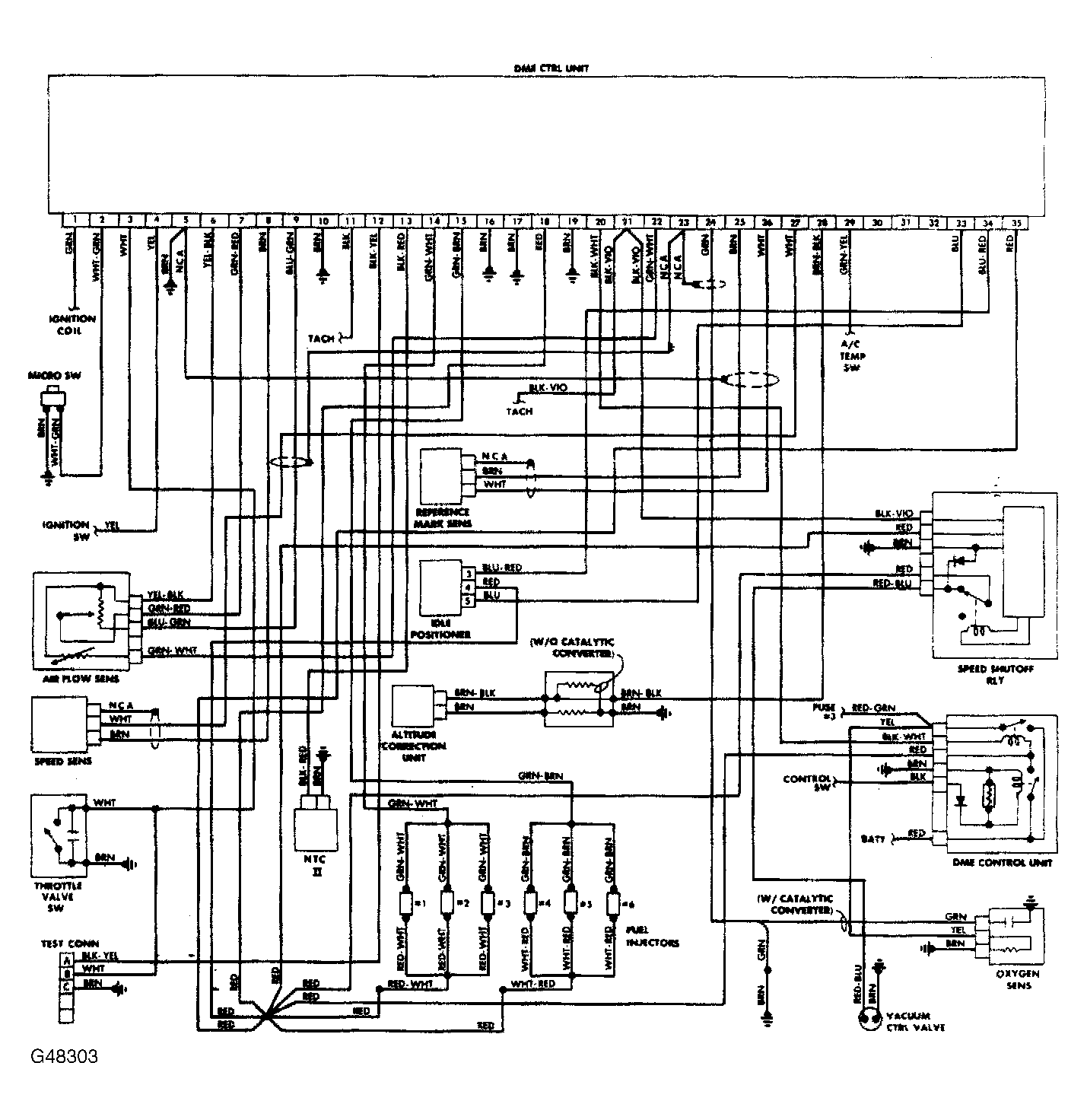

Fig 1: Wiring Diagrams for Porsche 911 Carrera

G48303
