Adjusting Toe-In

Center out steering gear using Lock Bolt (Special Tool 9116). If steering wheel is offset, center it to the best possible position. Remove Special Tool and clamp steering wheel to adjust toe-in.

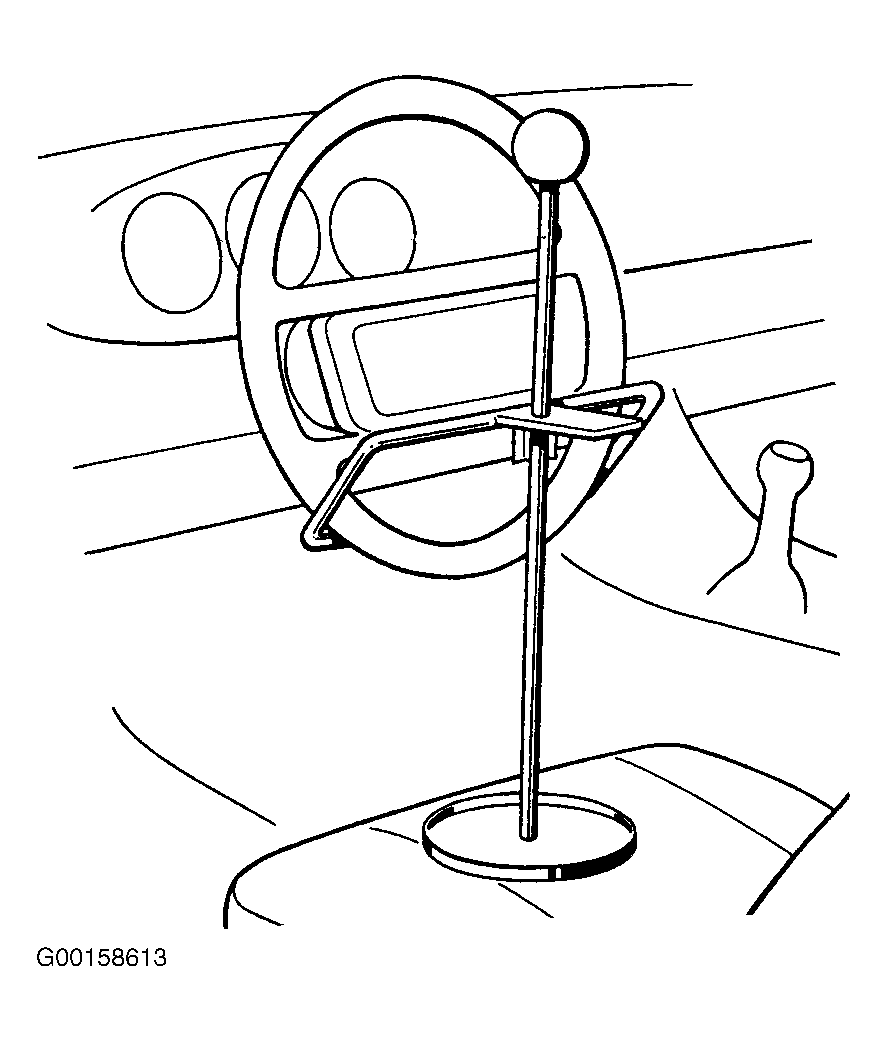

Fig 1: Holding Steering Wheel To Adjust Toe-In
G00158613Courtesy of PORSCHE OF NORTH AMERICA, INC.
