Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

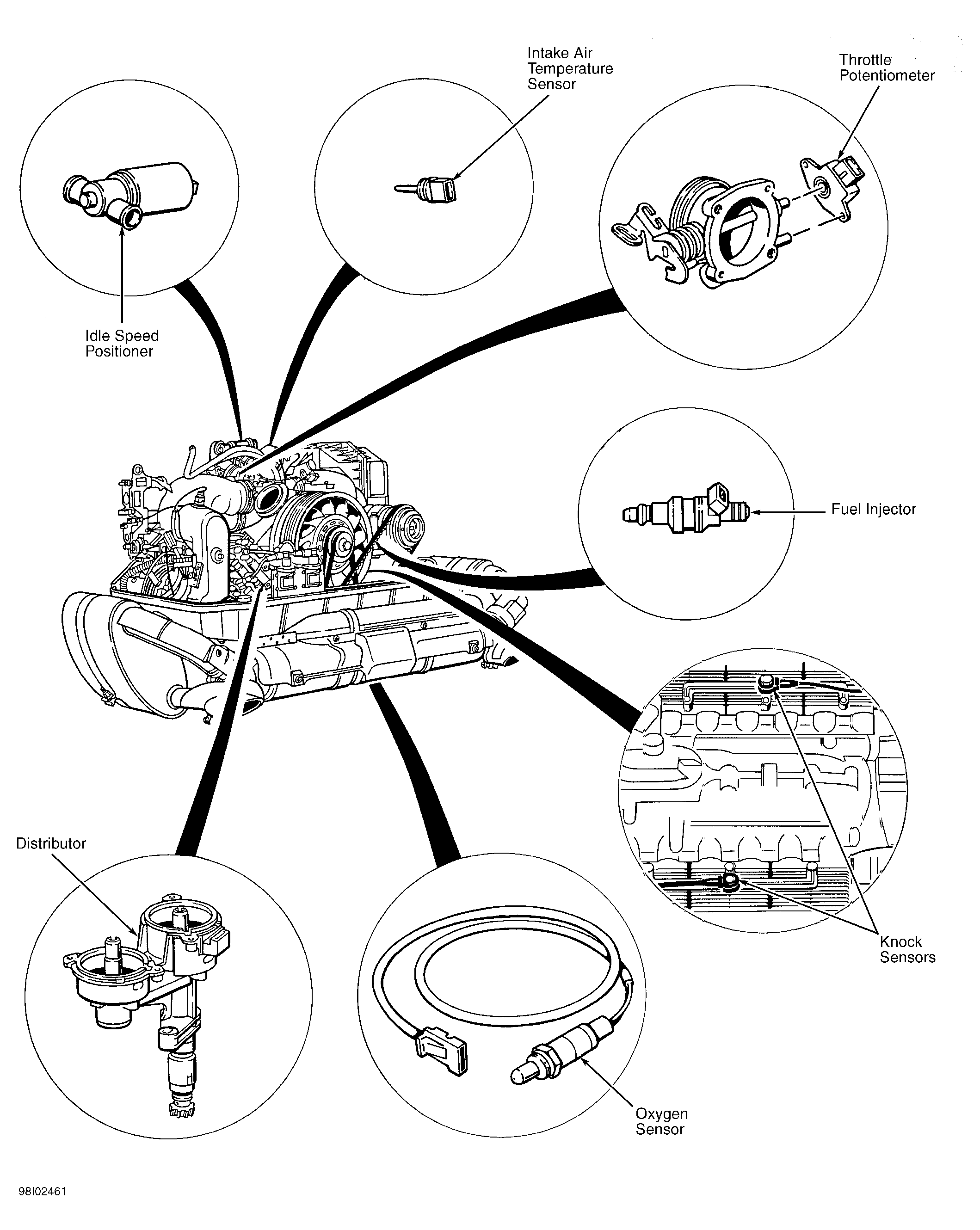

Fig 1: Engine Overview
G98I02461

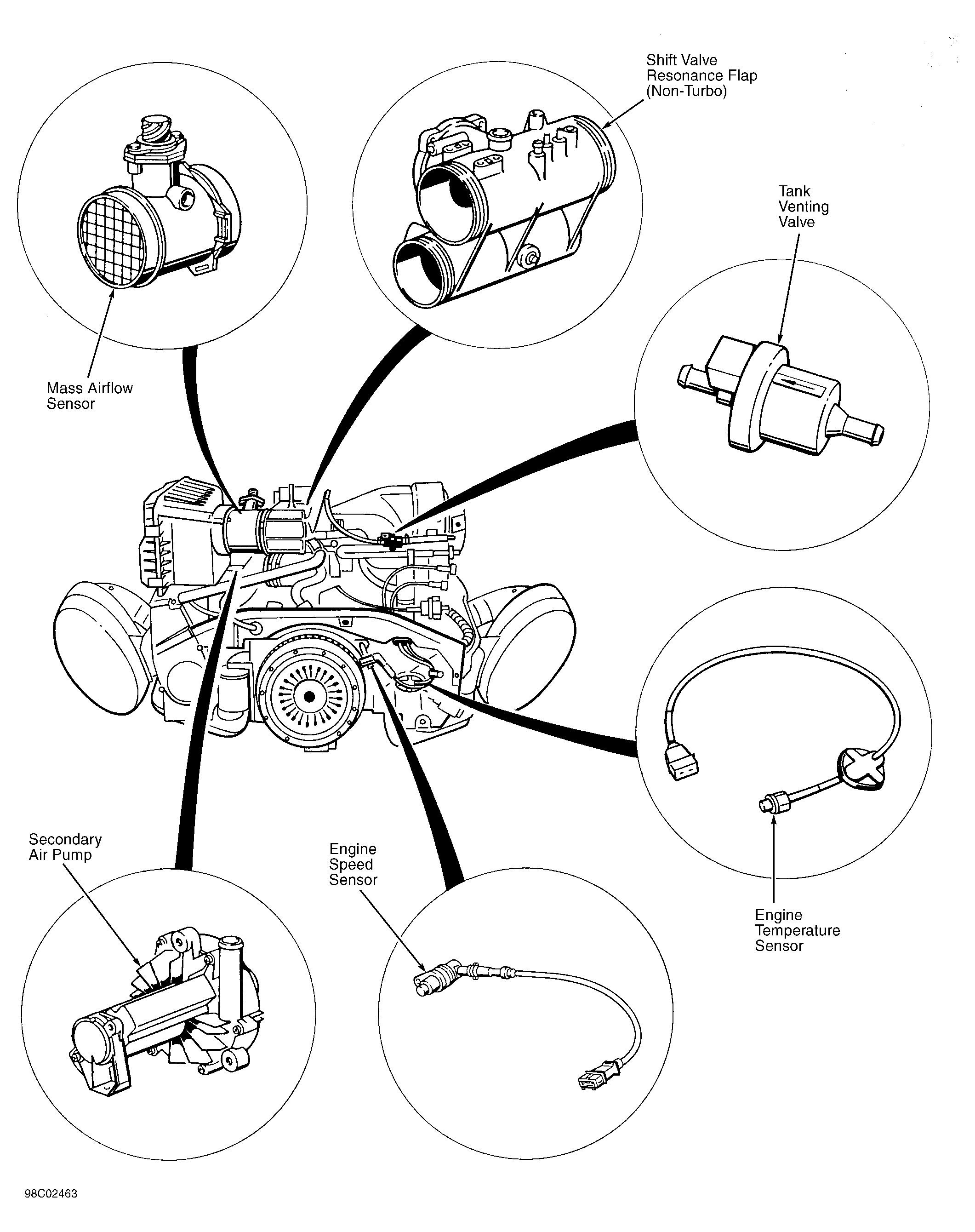

Fig 2: Engine Overview
G98C02463
Fig 3: Vehicle Overview
G00074645
