Disassembling sun visor
DISASSEMBLING SUN VISOR INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|

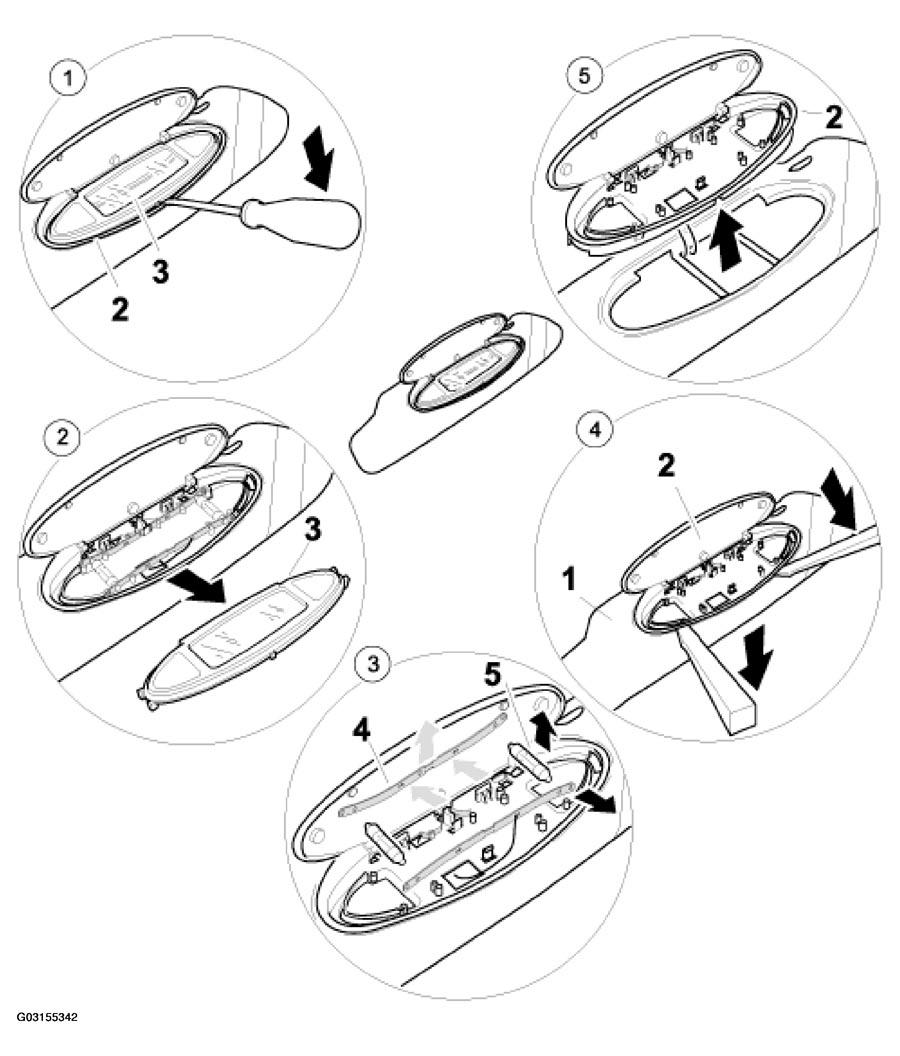

| 1 | Unclip mirror insert -3- . See Fig 1 . | Insert a narrow screwdriver between the mirror insert -3-2- . See Fig 1 . |
| 2 | Remove mirror insert -3- . See Fig 1 . | Pull the mirror insert -3-2- . See Fig 1 . |
| 3 | Remove bulb -5-4- . See Fig 1 . | Remove the Sofitte 12V/3W bulb -5-4- . See Fig 1 . |
| 4 | Unclip mirror housing -2- . See Fig 1 . | Insert a narrow plastic spatula between the mirror housing -2-1- . See Fig 1 . |
| 5 | Remove mirror housing -2- . See Fig 1 . | Take the electric lead out of the mirror housing -2- . See Fig 1 . |
