Removing and installing steering angle sensor: Notes

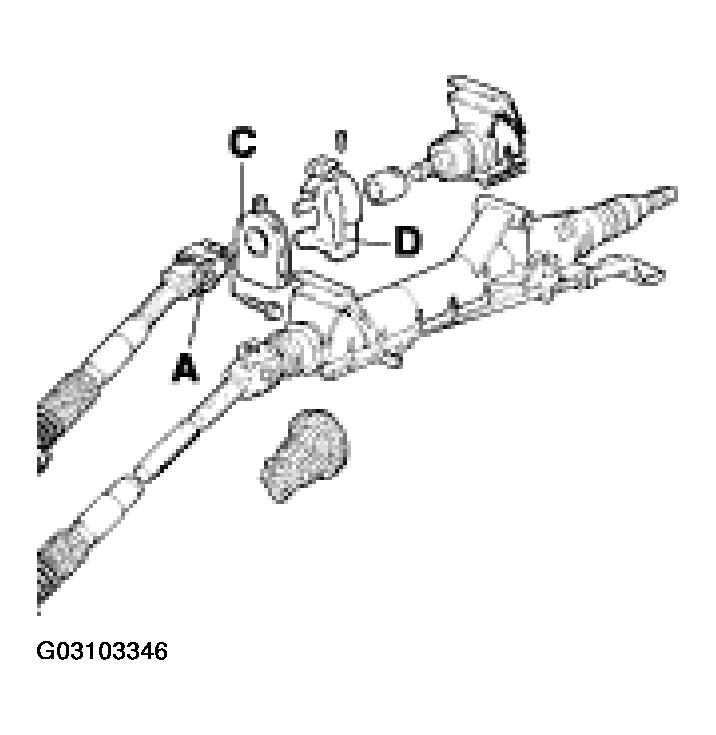

- A steering angle sensor -C- is attached to the steering column/steering shaft in the Boxster and Boxster S with PSM (Porsche Stability Management).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- The cover -D- remains fitted during removal and installation of the steering angle sensor. In general, removal of cover -D- is not permissible.
- A: Universal joint of steering shaft
- C: Steering-angle sensor. As of model 2003 modified versions, see INSTRUCTIONS ON REPLACING STEERING ANGLE SENSOR - VEHICLES BEFORE MOD. '03'
.
- E: Cover
