Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

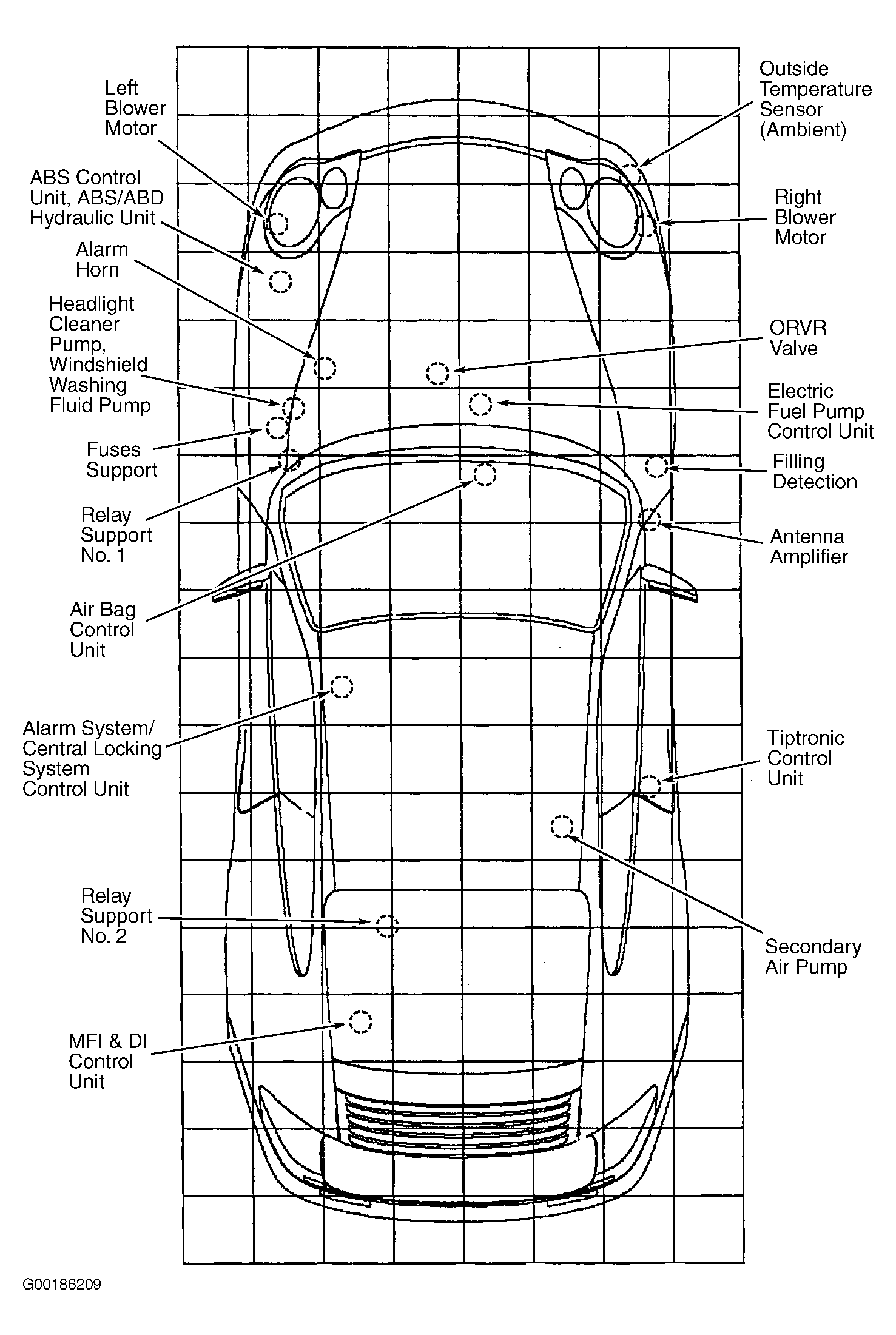

Fig 1: Vehicle Overview
G00186209Courtesy of PORSCHE OF NORTH AMERICA, INC.

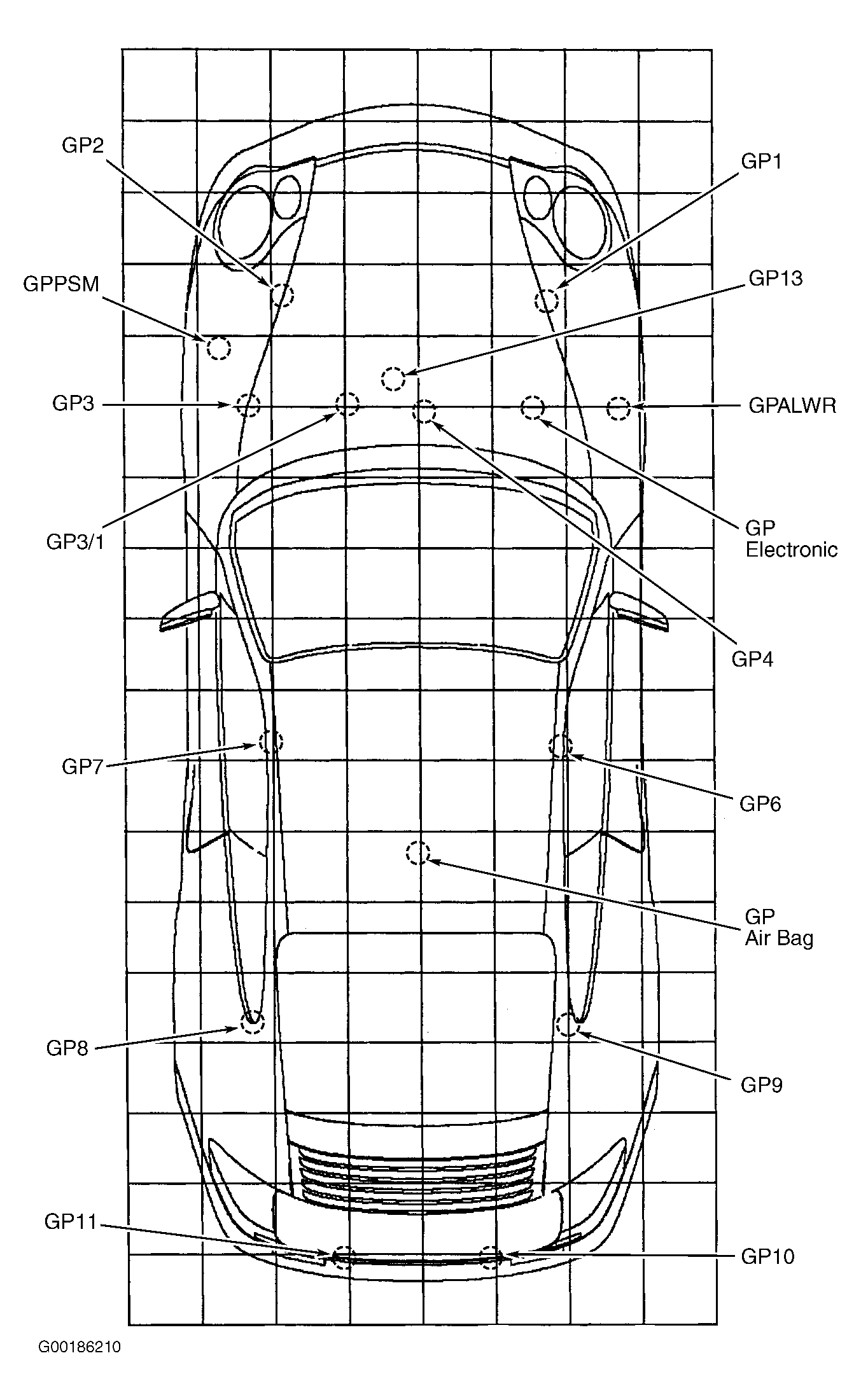

Fig 2: Vehicle Overview
G00186210Courtesy of PORSCHE OF NORTH AMERICA, INC.
