Fast Idle Deceleration System: Operation: Federal

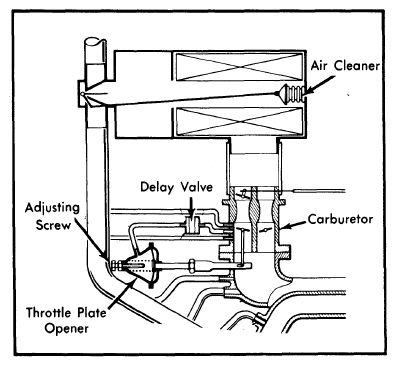

When deceleration starts, the high vacuum present at throttle opener port passes through delay valve and holds throttle plate opener so additional air passes through carburetor. The delay valve ensures an automatic, slow return to idle as it vents the vacuum to atmosphere through an orifice.
