Washer Motor

If motor does not operate, connect a jumper wire from battery to the motor hot wire (ground wire will be Black). If motor still does not work, check pump motor ground connection.
If ground is good, replace motor. If motor operates in step 1), but not with switch, check wiring or replace switch.

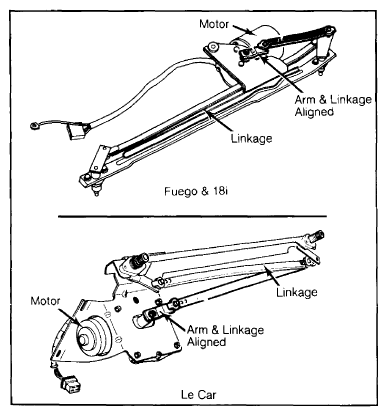

Fig 1: Wiper Motor Crank Arm Position
Courtesy of AMERICAN MOTORS/RENAULT CORP.

Motor must be in park position when nut is tightened.
