Ground Circuit Check

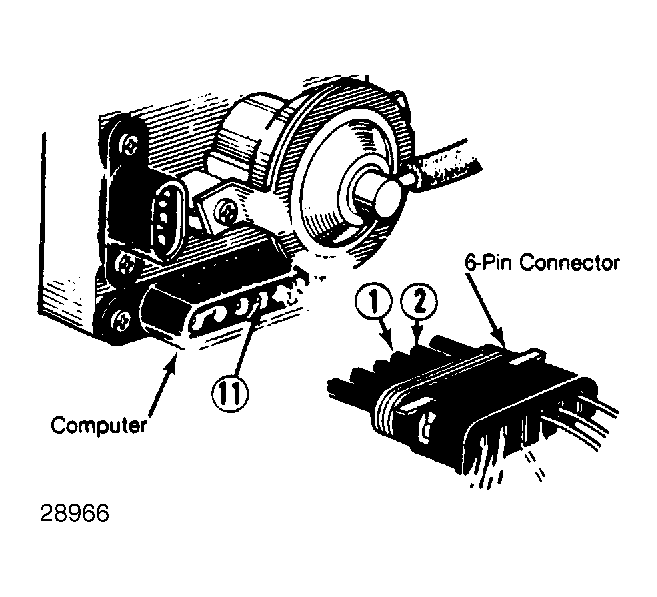

  1. Disconnect 6-pin connector from computer. Turn ignition "OFF". Connect ohmmeter leads to pin 2 of harness connector and to vehicle ground. See Figure.
  2. Reading should be 0 (zero) ohms. If so, proceed to next check. If not, check computer ground wire for breaks, cuts or corrosion.
