Position Sensor Check

  1. Disconnect 3-pin connector from computer. See Fig 1. Turn ignition switch "OFF". Attach ohmmeter leads to terminals 4 and 5 of 3-pin harness connector.

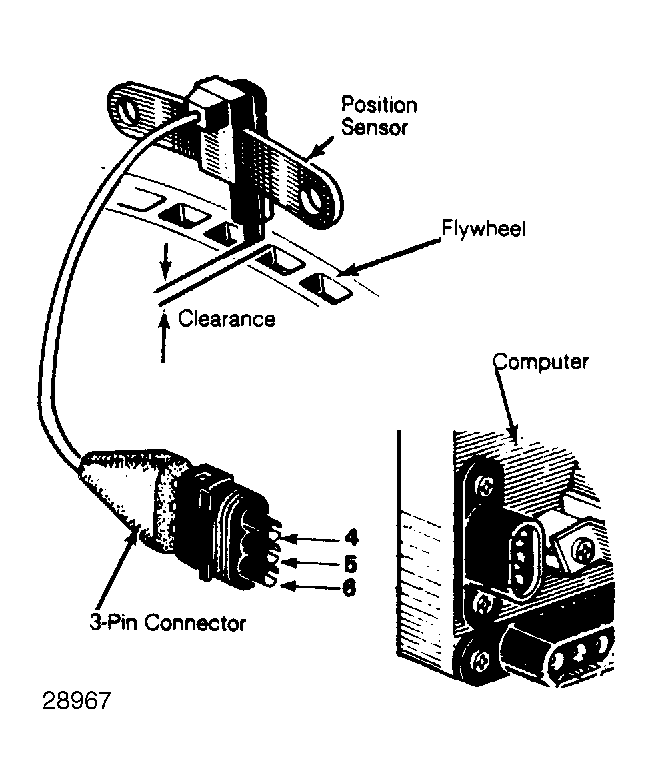

    Fig 1: Connector Terminals for Magnetic Position Sensor Use this illustration for position sensor, sensor insulation, and position sensor clearance checks
    G28967
  2. Resistance should read 100-200 ohms. If so, proceed to next check. If not, replace magnetic position sensor.
