All Models
With wheels in straight-ahead position, loosen steering link (tie rod) lock nut and turn adjustable sleeve until correct toe-in is obtained. Tighten lock nuts and recheck toe-in.
NOTE:

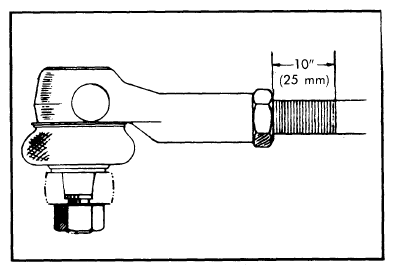

After adjustment of toe-in, measurement "A" (Fig. 1) of tie rod must not exceed 1.0" (25 mm) or 1.02" (26 mm) for power steering models. For tie rods opposite each other, the difference between measurements "A" must not exceed 0.08" (2 mm).
