Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Burglar Alarm Fuse (Conv.) | Under back seat. |

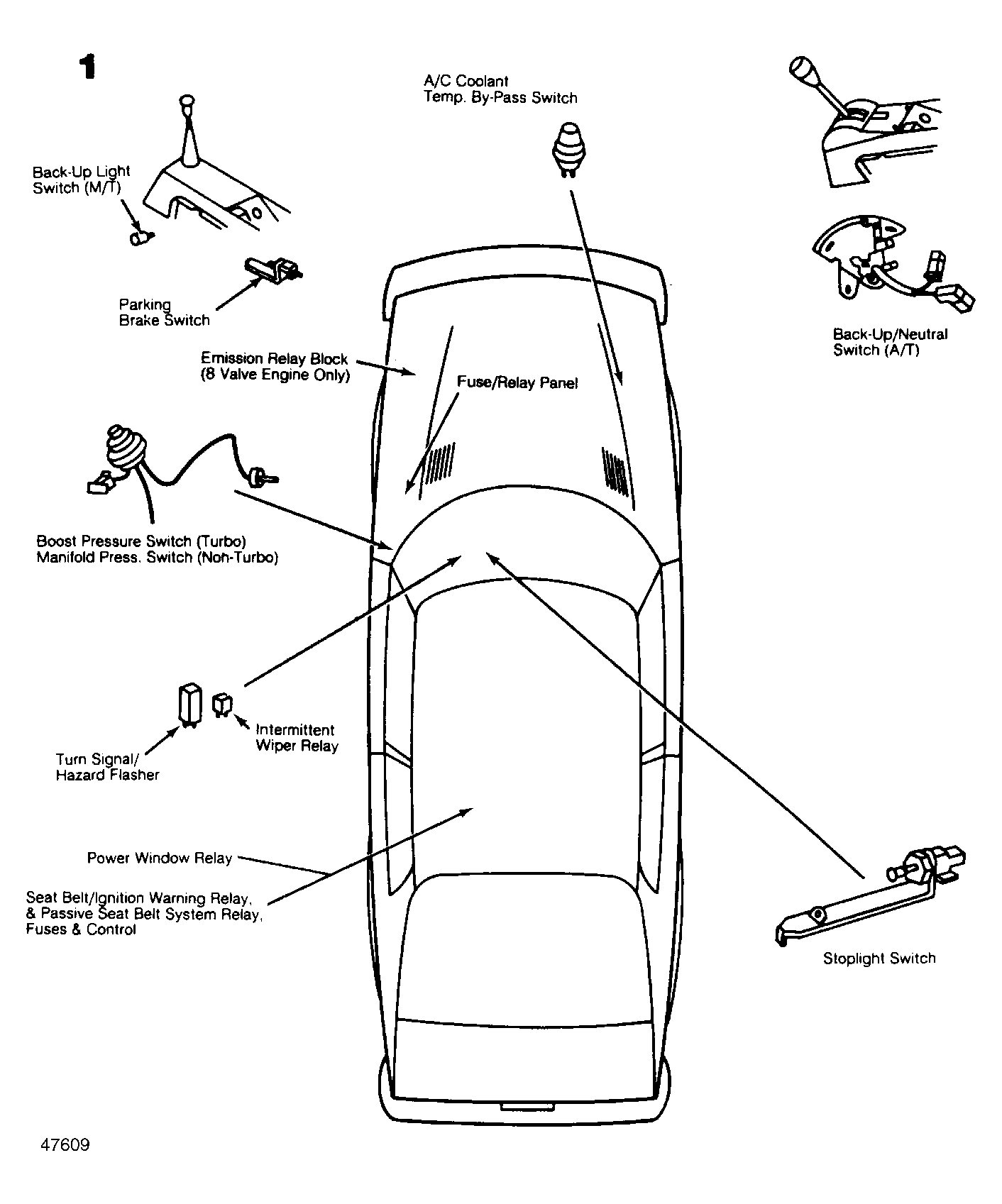

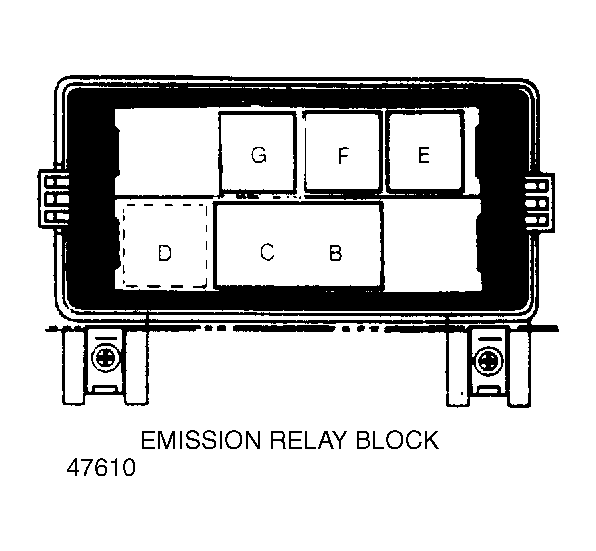

| Emission Relay Block | On front of left fender, in engine compartment. See Figure & Figure . |
| Fuse/Relay Panel | On rear of left fender, in engine compartment. See Figure & Figure . |
| Headlight Wiper Overload Circuit Breaker | Part of headlight wiper motor. |
| Passive Seat Belt Control Fuses | Under rear seat. |
| Power Top Fuse (Convertible) | In front of right wheelwell. |
