Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | On center of firewall, behind bulkhead. |
| Automatic Climate Control (ACC) Control Unit | Part of ACC control panel, in instrument panel. |
| ACC Fan Speed Control | On evaporator housing. |
| Auto. Performance Control (APC) Control Unit | Under left side of dash, near steering column. |
| Central Locking Control Unit | Under left side of dash, behind knee bolster. |

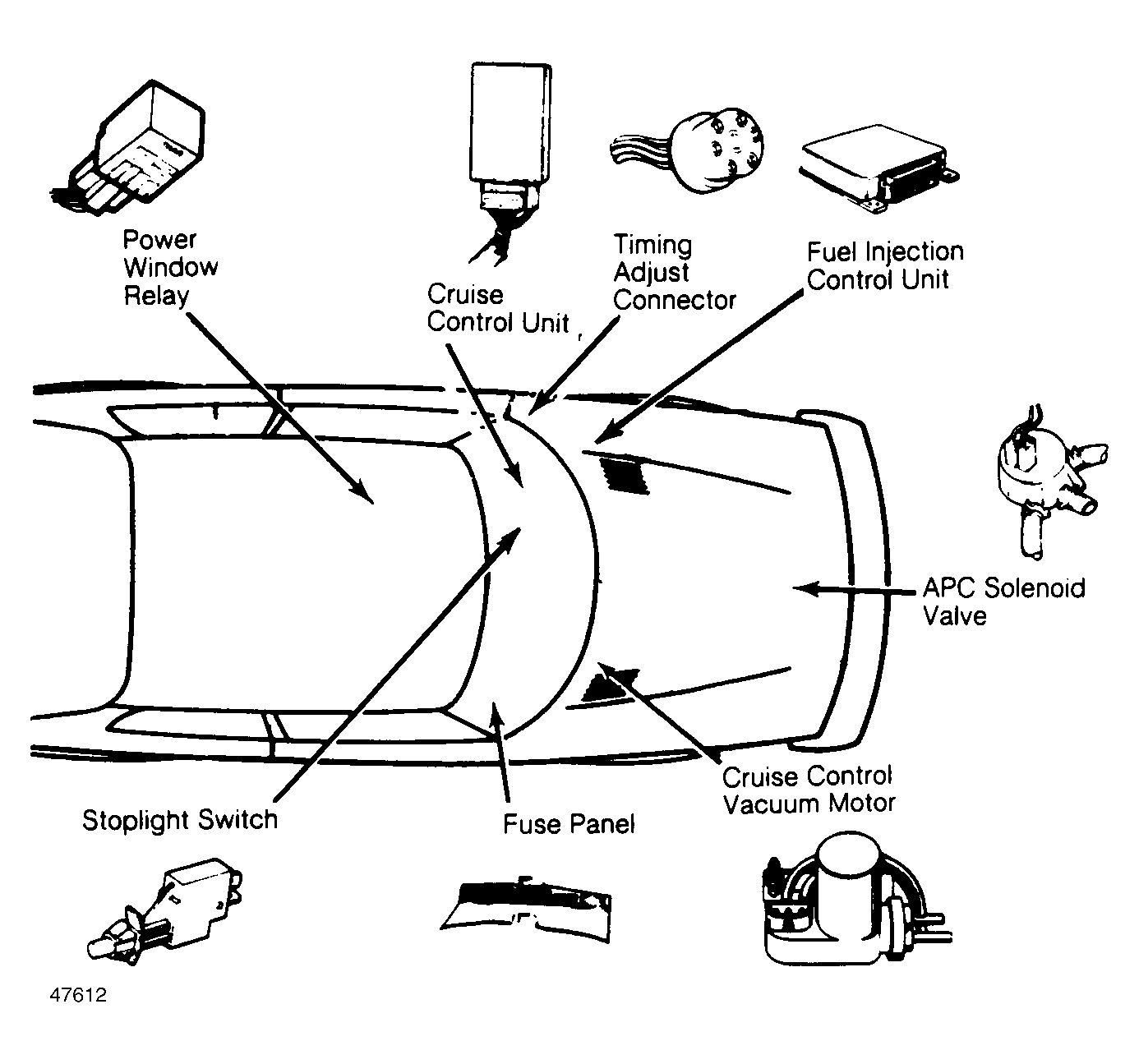

| Cruise Control Unit | Under left side of dash, near steering column. See Figure . |
| Electronic Ignition Control Unit | Next to battery. |
| EZK Ignition Control Unit | Behind left side of dash. |
| Fuel Injection Control Unit | On left rear corner of engine compartment. See Figure . |
| Seat Belt Tensioner Control Unit | In front part of center console. |
