Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under rear seat, on right side. |
| Air Bag Control Unit | Behind dash, under left speaker grille. |
| Auto. Performance Control (APC) Control Unit | In engine compartment, forward of left wheelwell. |
| Burglar Alarm Control Unit (Convertible) | Under rear seat. |
| Central Locking System (Door Lock) Control Unit | Behing right side of dash. |
| Cruise Control Unit | Under left side of dash, behind knee bolster. |
| EZK Ignition Control Unit | In engine compartment, forward of left wheelwell. |
| Fuel Injection Control Unit | Behind right kick panel. |
| Ignition Amplifier | In engine compartment, on left wheelwell. |
| Passive Seat Belt Control Unit | Under rear seat. |
| Power Door Lock Controller | Under right side of dash, behind knee bolster. |

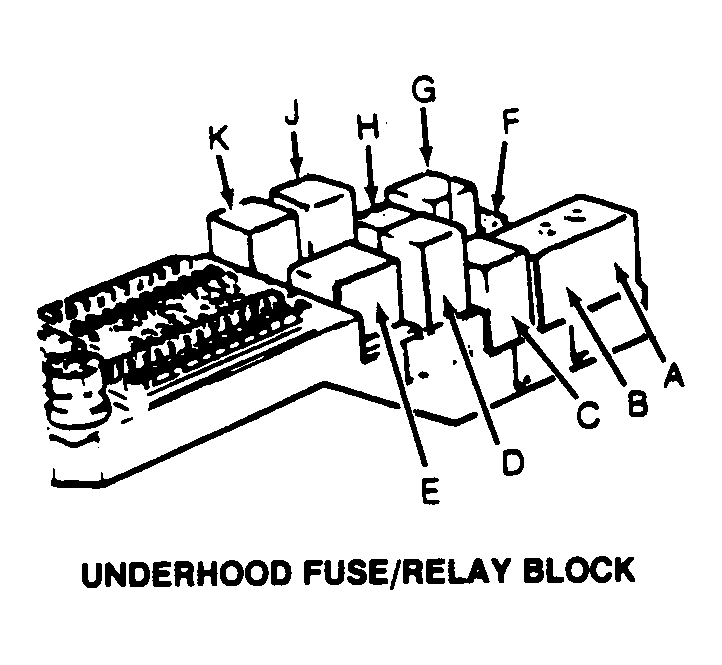

| Upshift Relay/Controller | In underhood fuse/relay block, position "F". See Figure . |
