Control Units

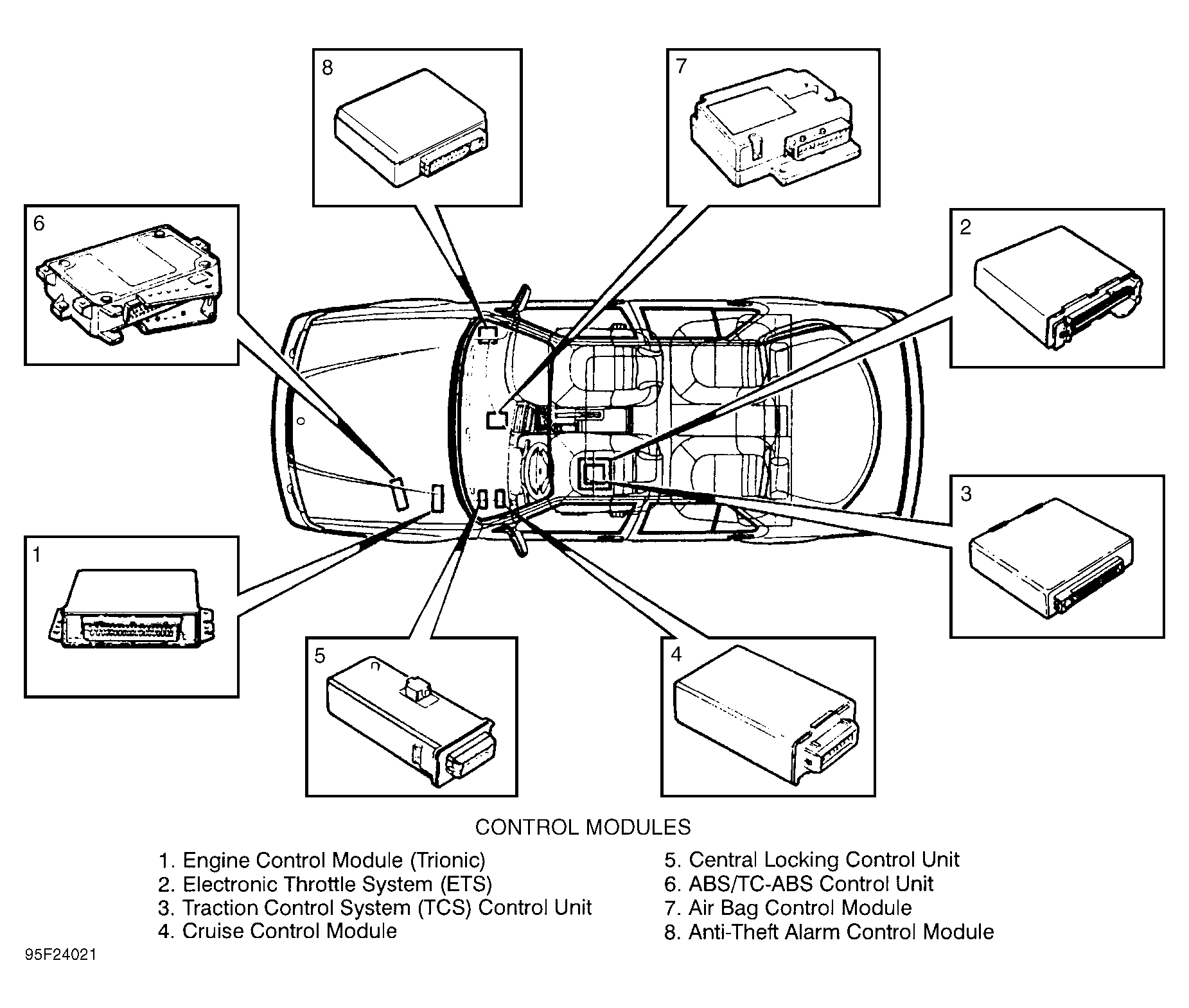

CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS/TC-ABS Control Unit | On left side of engine compartment, on battery tray. See Figure . |
| Air Bag Control Module | Behind front of center console. See Figure . |
| Anti-Theft Alarm Control Module | Behind right side of dash. See Figure . |
| Automatic Climate Control (ACC) Fan Speed Control Unit | On evaporator housing. |
| Automatic Climate Control (ACC) Unit | Part of ACC control panel, on center of dash. |
| Central Locking Control Unit | Behind left side of dash. See Figure . |
| Cruise Control Module | Behind left side of dash, near steering column. See Figure . |
| Electronic Throttle System (ETS) Control Unit | Under driver's seat. See Figure . |
| Engine Control Module (Trionic) | On left side of firewall. See Figure . |
| Seat Adjustment Control Unit (With Memory Function) | Under each front seat. |
| Seat Belt Tensioner Control Unit | Behind front of center console. See Figure . |
| Speed Warning Control Unit | Rear side of console compartment. |
| Traction Control System (TCS) Control Unit | Under driver's seat. See Figure . |
