Abs Main Fuse Box

Relays and fuses for ABS system are housed in a special fuse box fitted behind false bulkhead panel. Fuse box contains system relay, with a fuse for ABS ECU, a relay and fuse for hydraulic pump, and an additional fuse for ABS ECU. See Fig 1 .

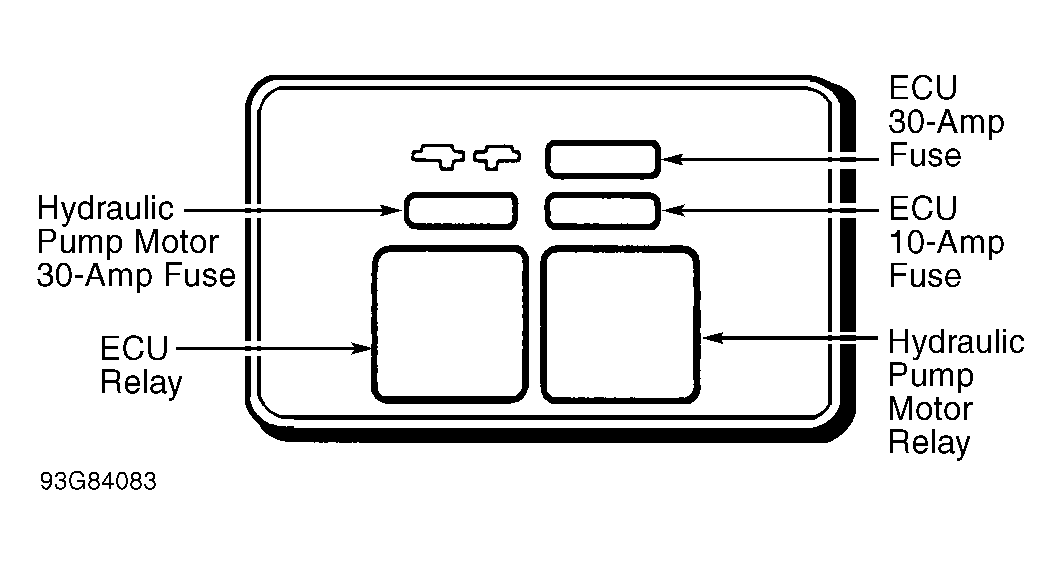

Fig 1: Identifying Fuse Box Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.
