Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

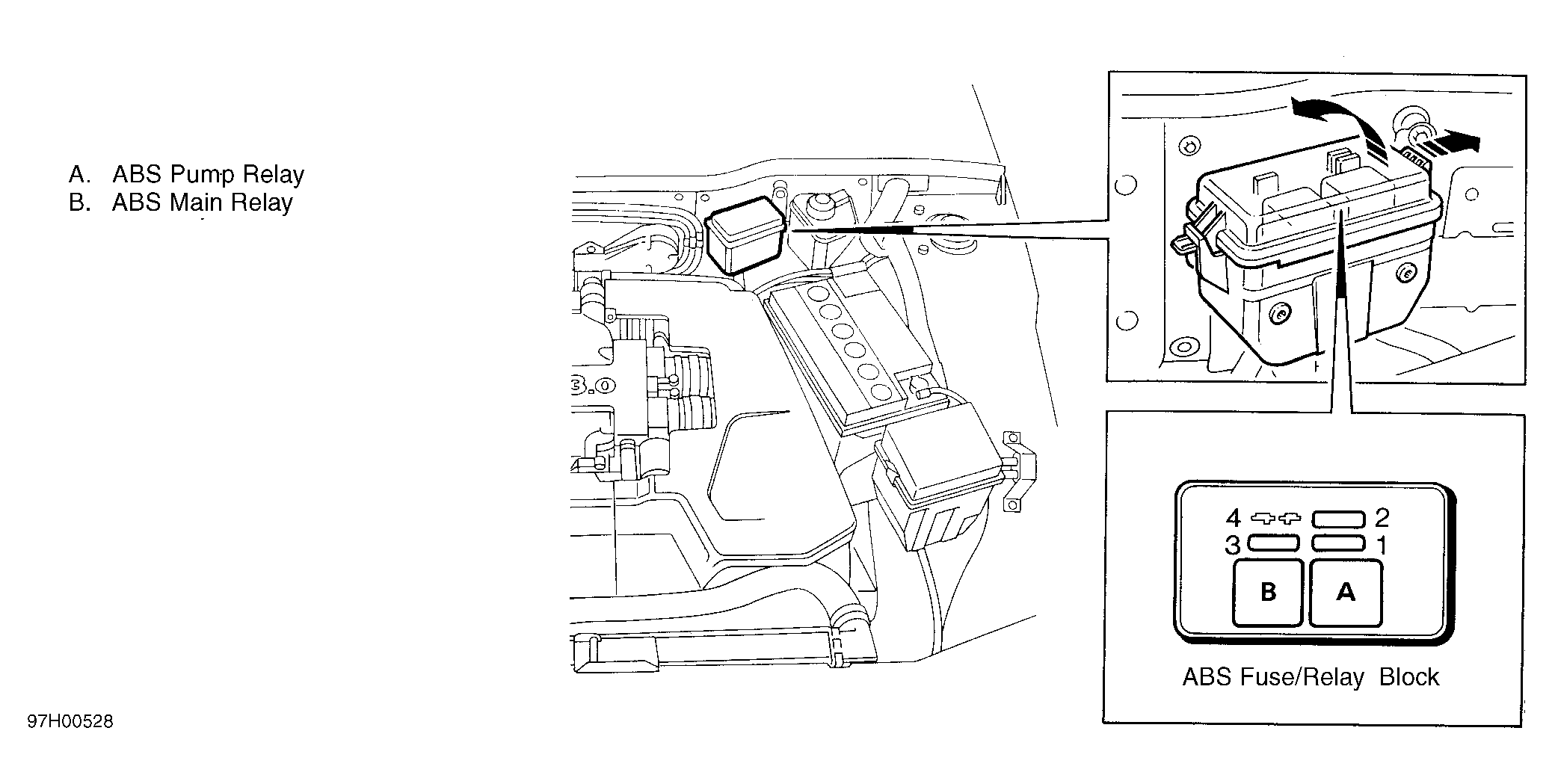

| ABS Fuse/Relay Block |
Left rear corner of engine compartment. See Figure
. |

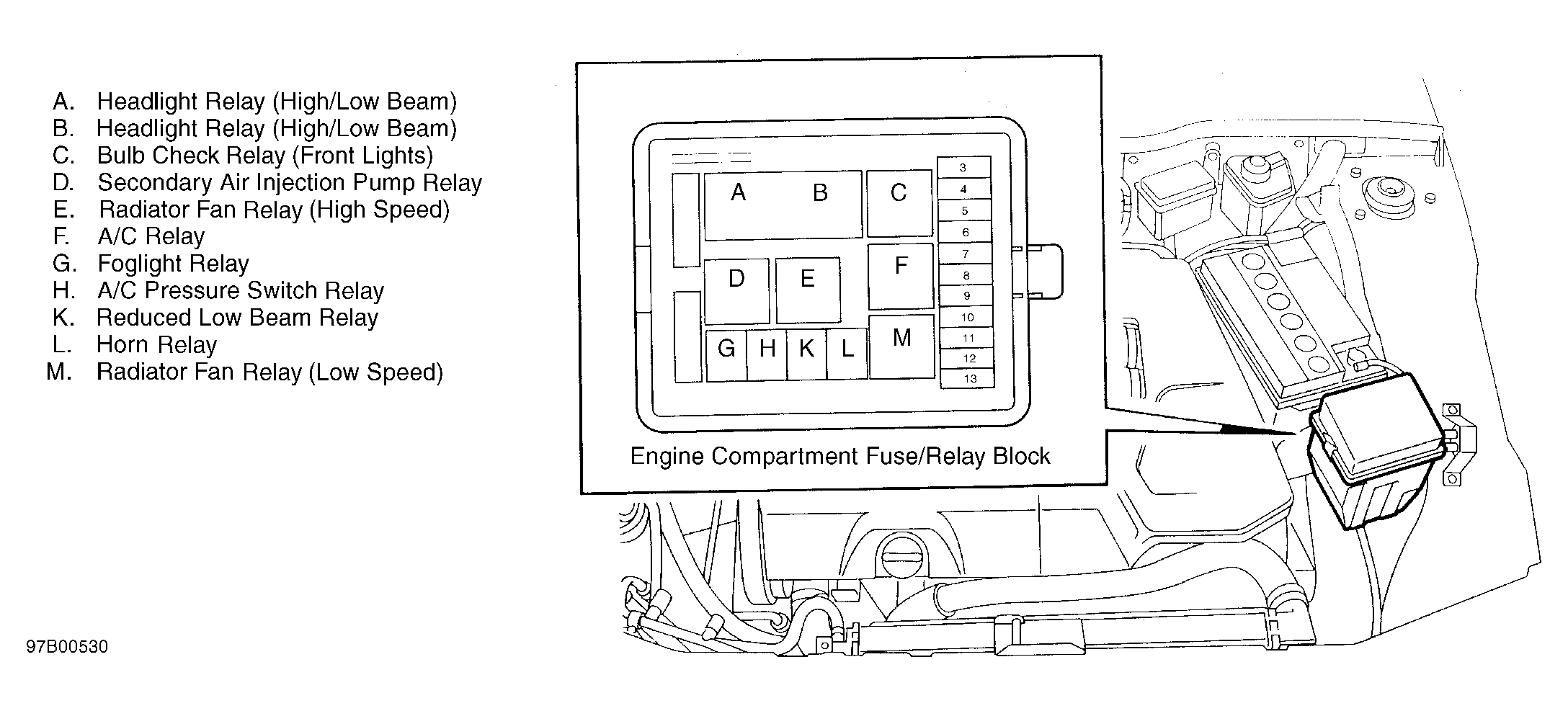

| Engine Compartment Fuse/Relay Block |
On left front inner fender panel. See Figure
. |

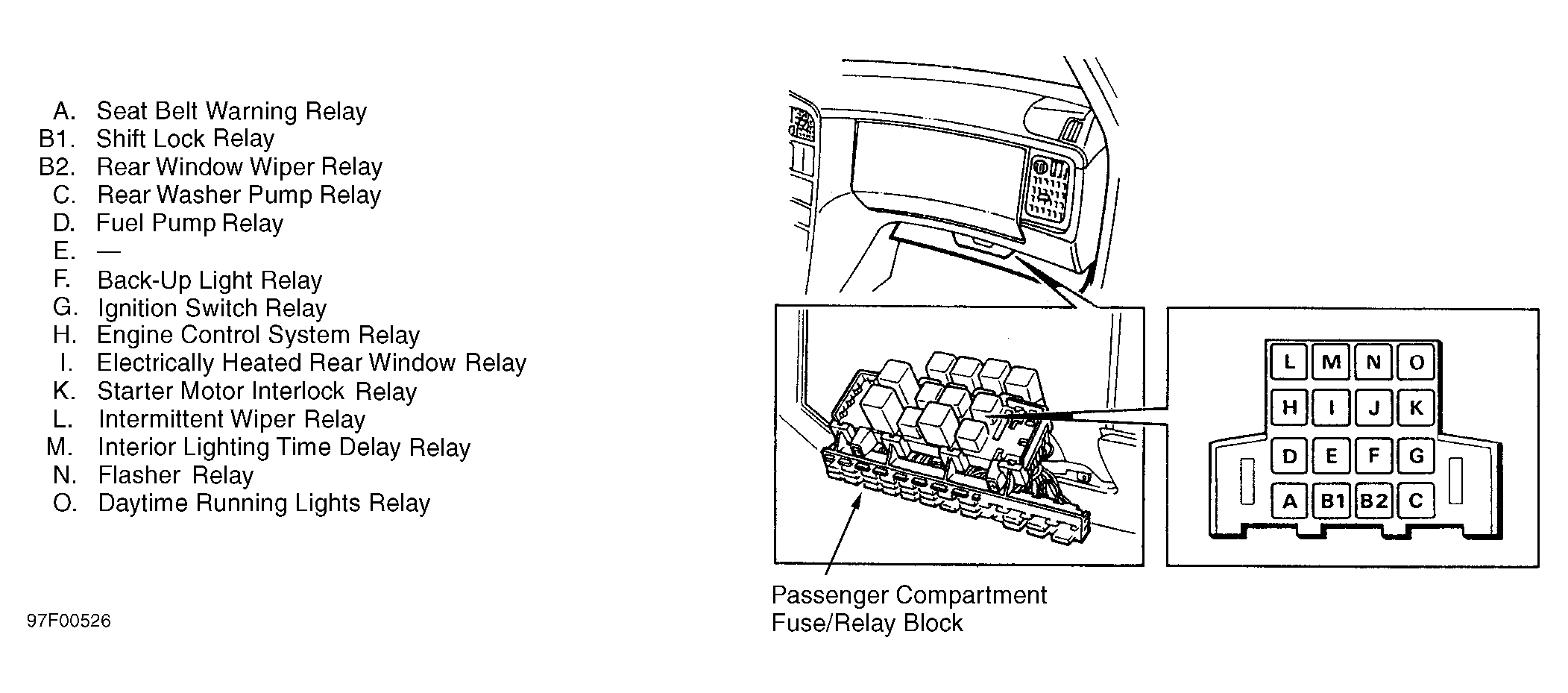

| Passenger Compartment Fuse/Relay Block |
In glove box. See Figure
. |
