Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: Refer to illustration for starter overhaul. See Fig 1 .

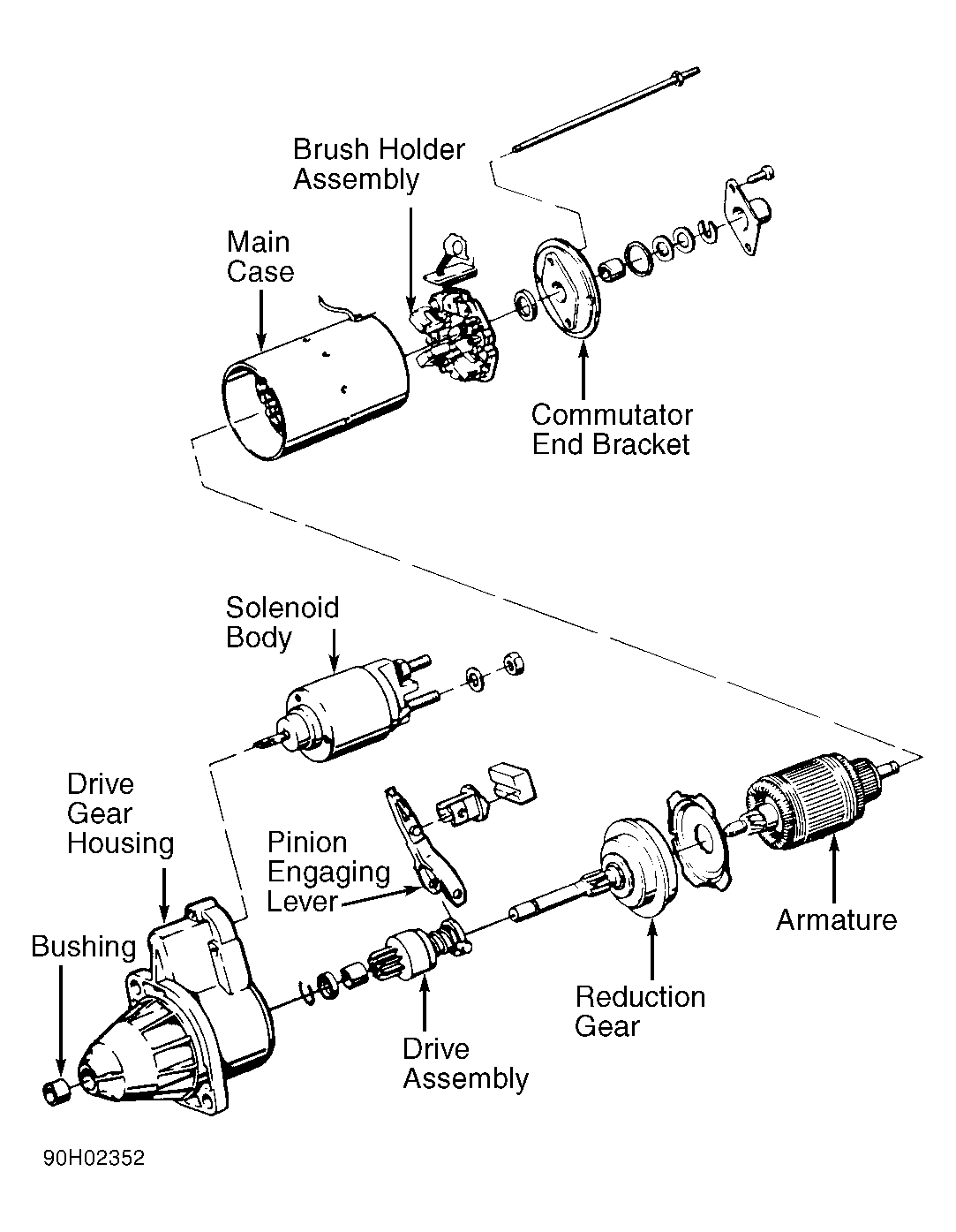

Fig 1: Exploded View Of Reduction Gear Starter

Courtesy of SAAB-SCANIA OF AMERICA, INC.
