Angle sensor

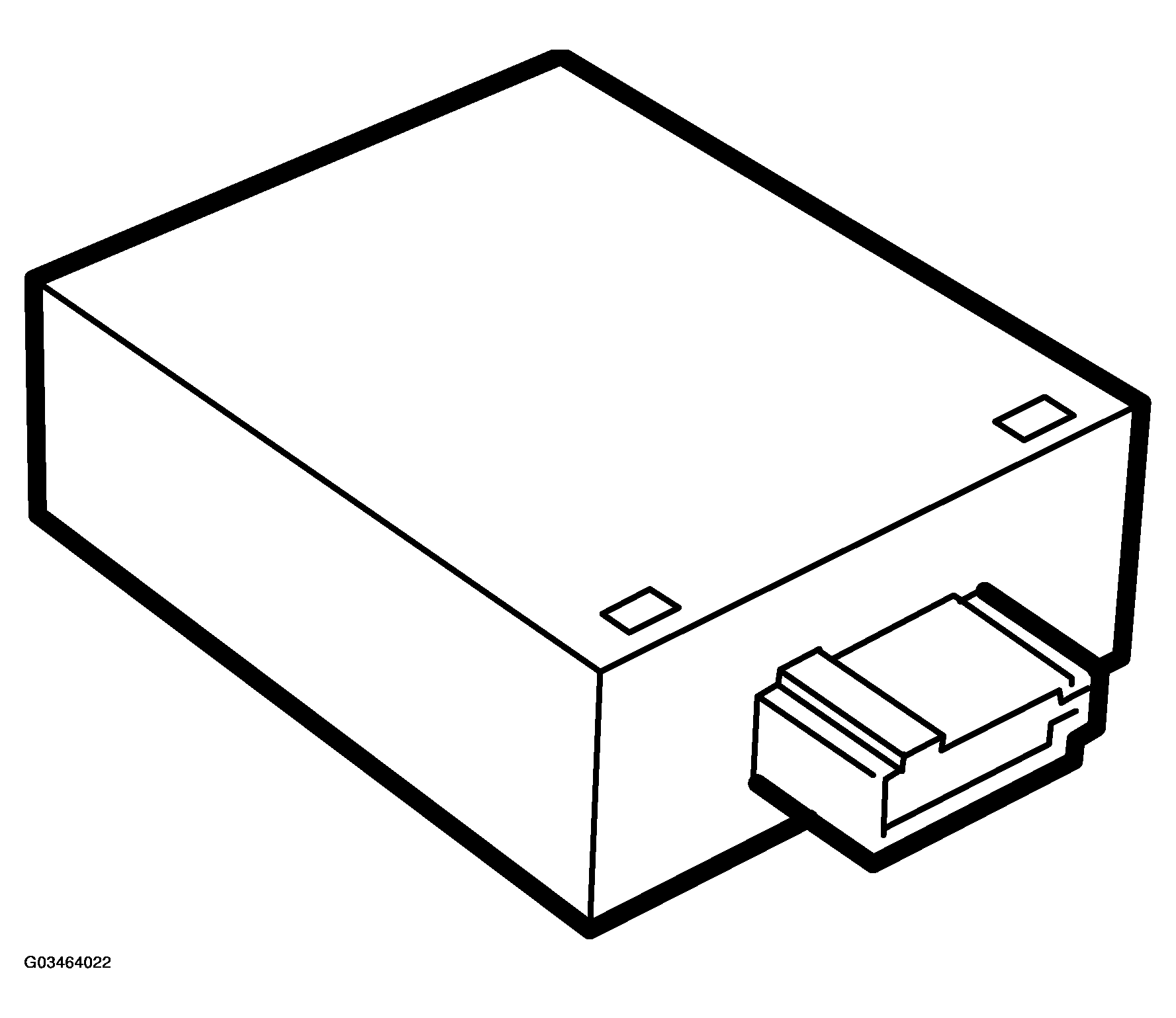

Fig 1: View Of Angle Sensor
G03464022Courtesy of SAAB-SCANIA OF AMERICA, INC.
ANGLE SENSOR LOCATION AND TYPE

Location Centre console, rear section
Type Fluid-filled
Power supply B+ Pin No. 1
Communication Pin No. 3
Ground Pin No. 4
