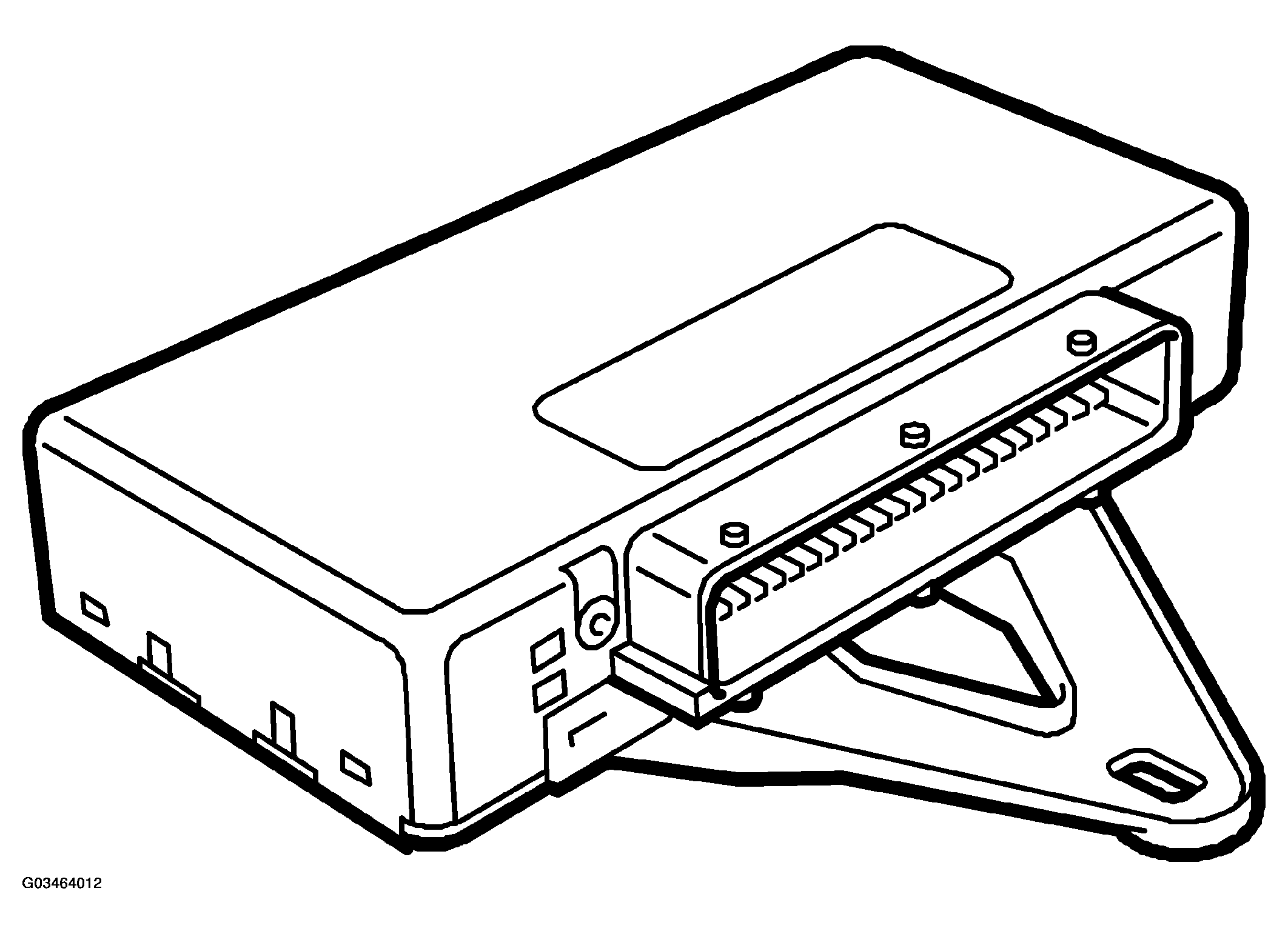

Control module, TWICE
CONTROL MODULE, TWICE LOCATION AND PIN
| Location | Under left -hand front seat, screwed to the floor | |
| Number of pins | 70 | |
| Power supply (+30 circuit): | Pin No. | 43 |
| Power supply +15, logic/key position | Pin No. | 16 |
| Power supply +B, logic/key position | Pin No. | 17 |
| Power ground | Pin No. | 70 |
| Signal ground | Pin No. | 37 |
| Instrument bus, I-BUS (+) | Pin No. | 38 |
| Instrument bus, I-BUS (-): | Pin No. | 15 |
