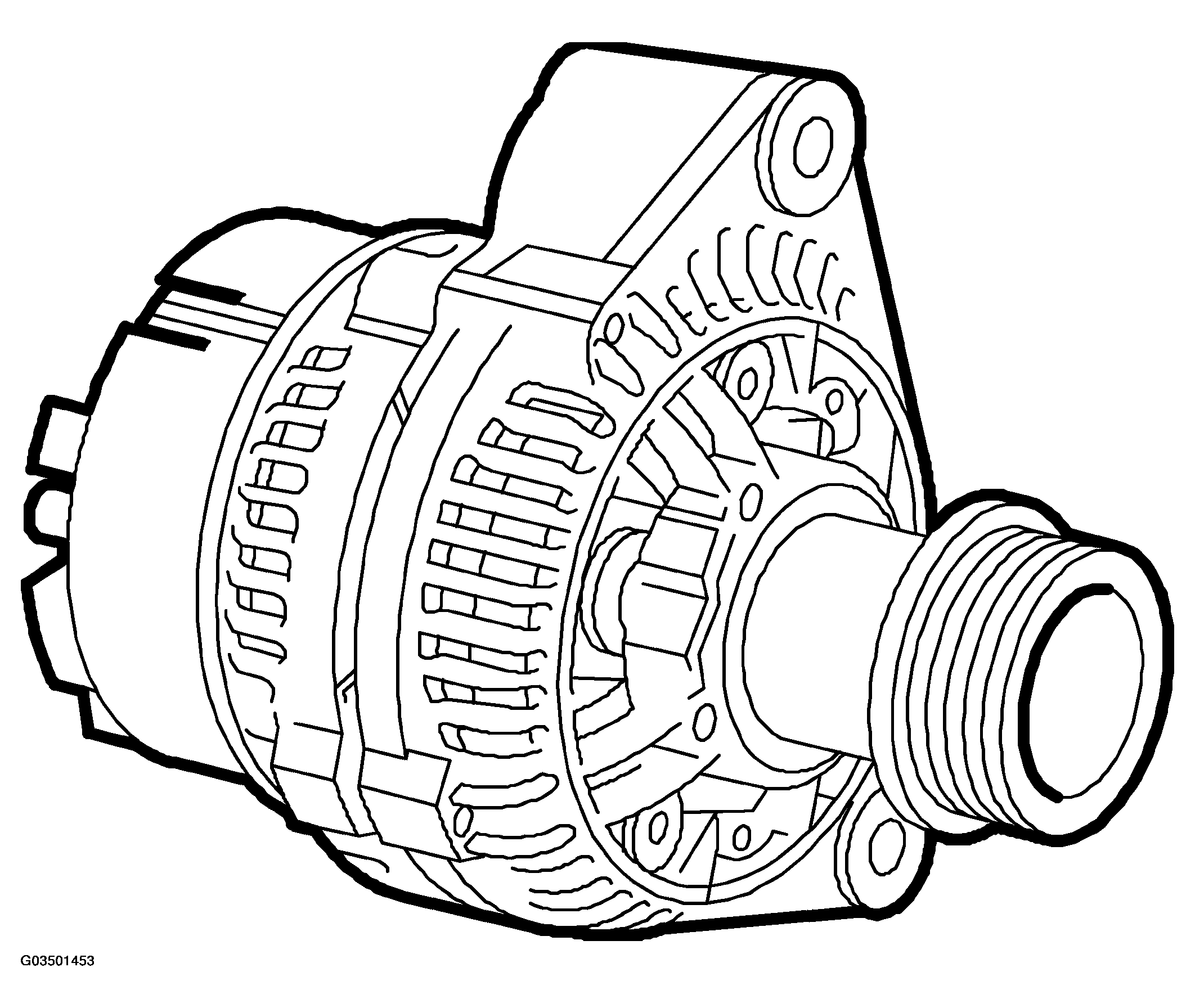

Generator 130A
GENERATOR TECHNICAL DATA (130A)
| Type designation | Bosch NC 14V 65-130A |
|---|---|
| Rated voltage | 14 V |
| Stator connection | Delta |
| Diameter of slip rings | |
| new | 15.4 mm |
| min | 14.4 mm |
| Max. permissible radial runout: | |
| belt pulley | 0.2 mm |
| slip rings | 0.02 mm |
| rotor | 0.087 mm |
| Min. length of brushes, from lip of brush-holder | 7.5 mm |
| Pulley ratio, engine/generator | 1:2.8 |
GENERATOR TEST READING SPECIFICATIONS (130A)
| Resistance, rotor winding | 2.6 Ohm |
| Resistance, stator between phases | 0.038 Ohm |
| Generator speed/stated current at: | |
| 1800 RPM | 65 A |
| 6000 RPM | 130 A |
