Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | In brake unit, behind battery. See Figure . |
| ACC Control Module | Under radio. See Figure . |
| Convertible Folding Top Control Module | Under left rear seat speaker. See Figure . |
| Cruise Control Module | At right side of engine compartment, below windshield. See Figure . |
| DICE Control Module | Behind left side of dash, above interior relay block. See Figure . |
| Driver's Memory Seat Control Module | Under driver's seat cushion. See Figure . |

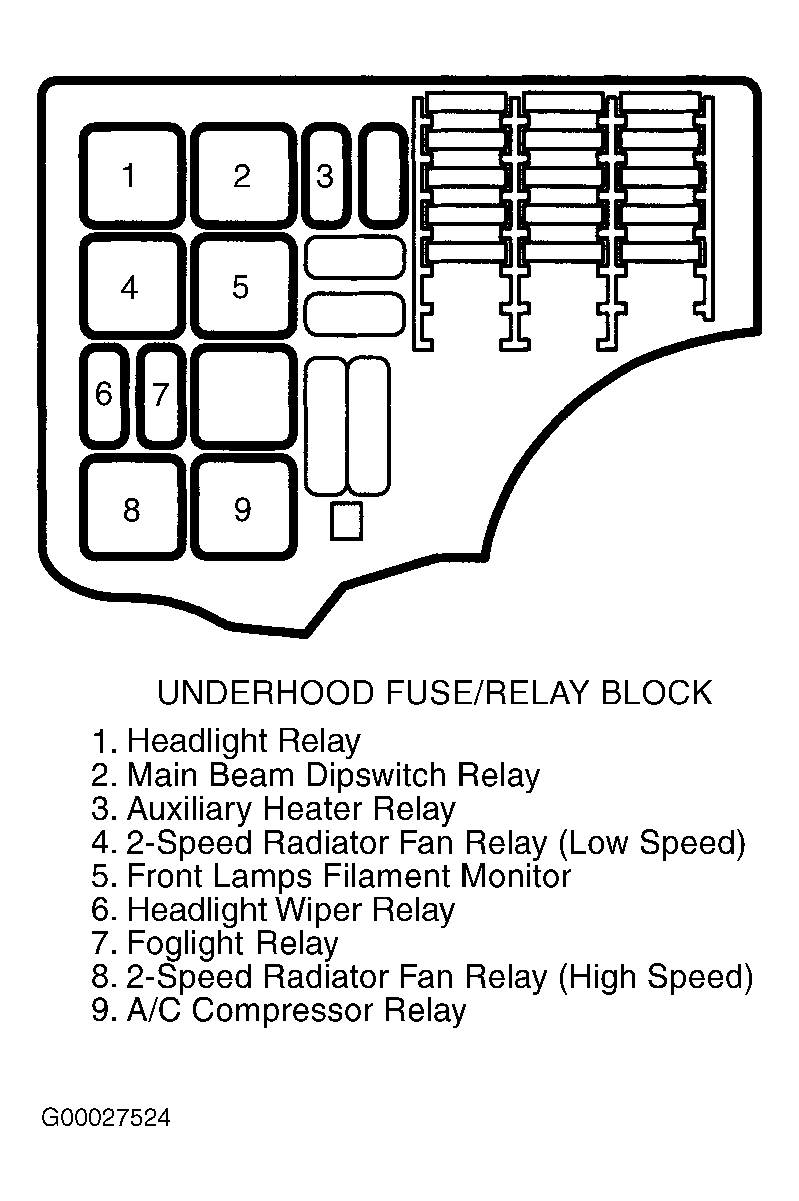

| Front Lamps Filament Monitor | In underhood fuse/relay block. See Figure . |
| Ignition Discharge Module | On valve cover. |
| SRS/Air Bag Control Module | Under floor console, behind handbrake. See Figure . |
| Transmission Control Module (TCM) | Behind right kick panel. See Figure . |
| Trionic T7 LEV/OBD II Control Module | Behind right kick panel. See Figure . |
| TWICE Control Module | Under driver's seat. See Figure . |
