To remove

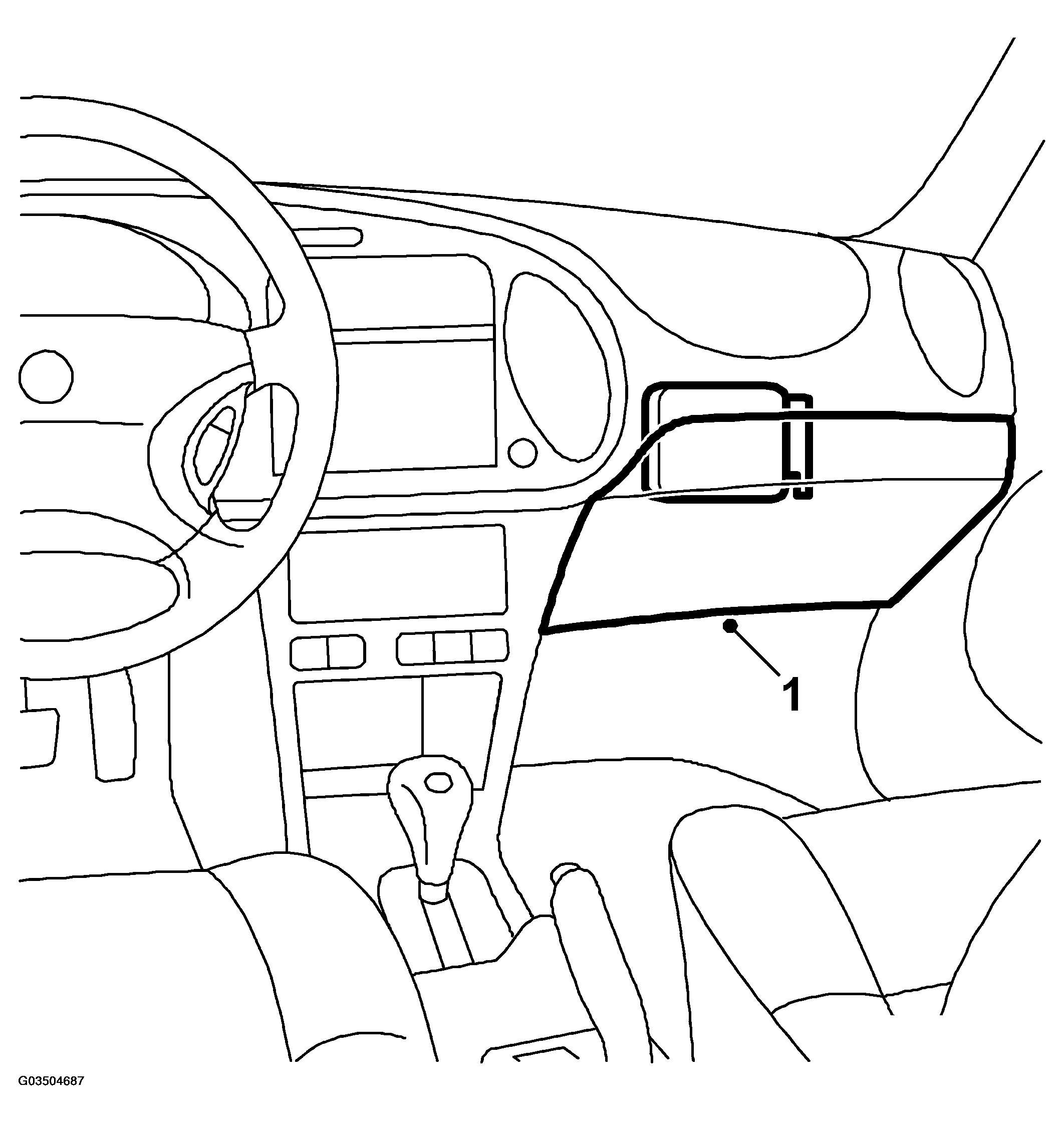

Fig 1: Illustration For Step 1

G03504687

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the glove box.
Remove the control module by releasing the catches and unplugging the connector.

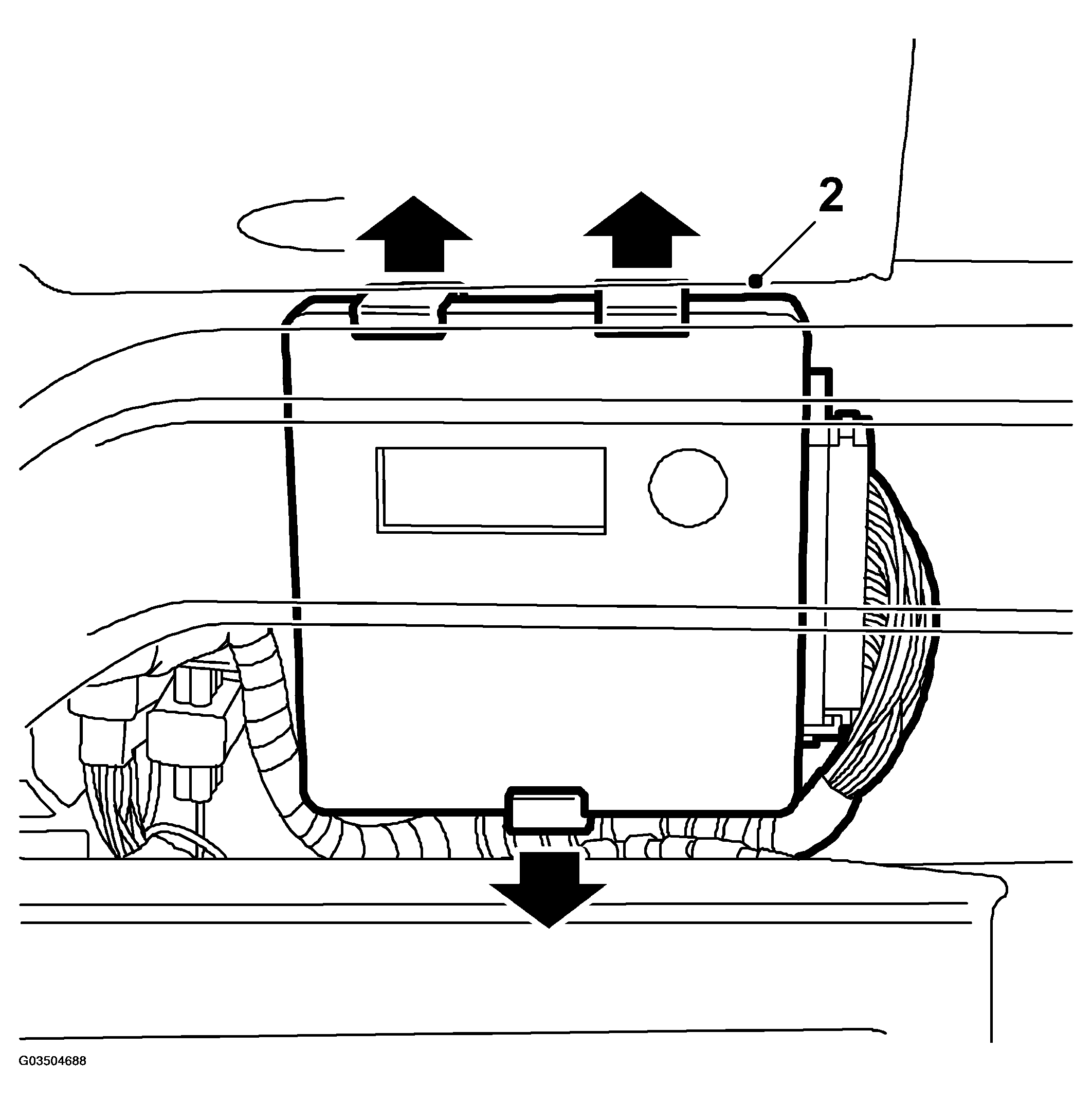

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: ESD-SENSITIVE COMPONENT
Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins. Prior to changing a control module refer to BEFORE CHANGING A CONTROL MODULE
