Control module inputs

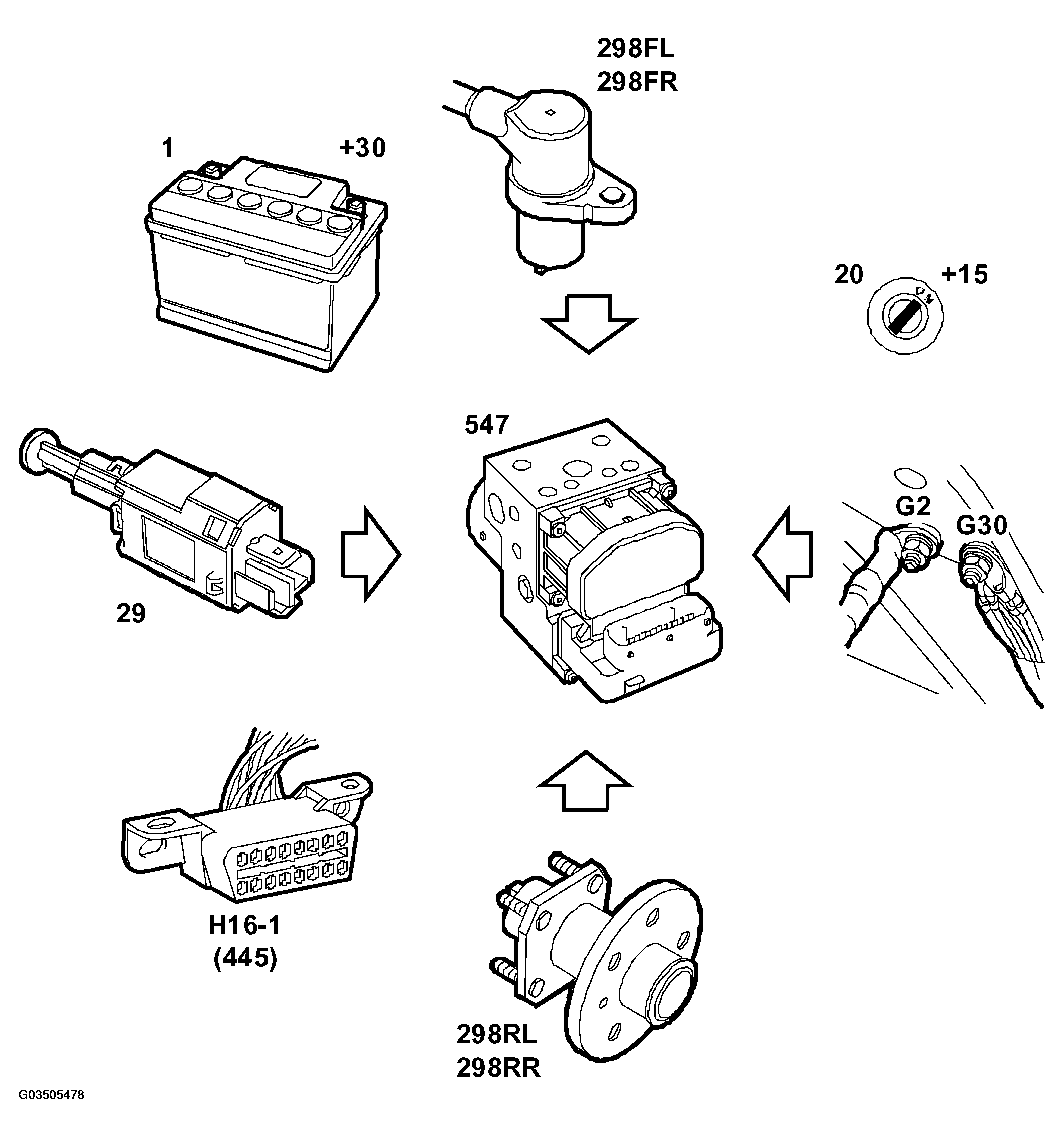

Fig 1: Identifying Control Module Inputs Components

G03505478

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage (+30 circuit) (1). See POWER SUPPLY .
Voltage (+15 circuit) (20), see POWER SUPPLY .
Ground (G30, G2), see CONTROL MODULE GROUND .
Wheel sensors, front (298RL, 298FR), see FRONT-WHEEL SENSORS .
Wheel sensors, rear (298RL, 298RR), see REAR-WHEEL SENSORS .
Brake-light switch (29), see BRAKE-LIGHT SWITCH .
Data link (445), see DIAGNOSTIC DATA LINK .
