General data

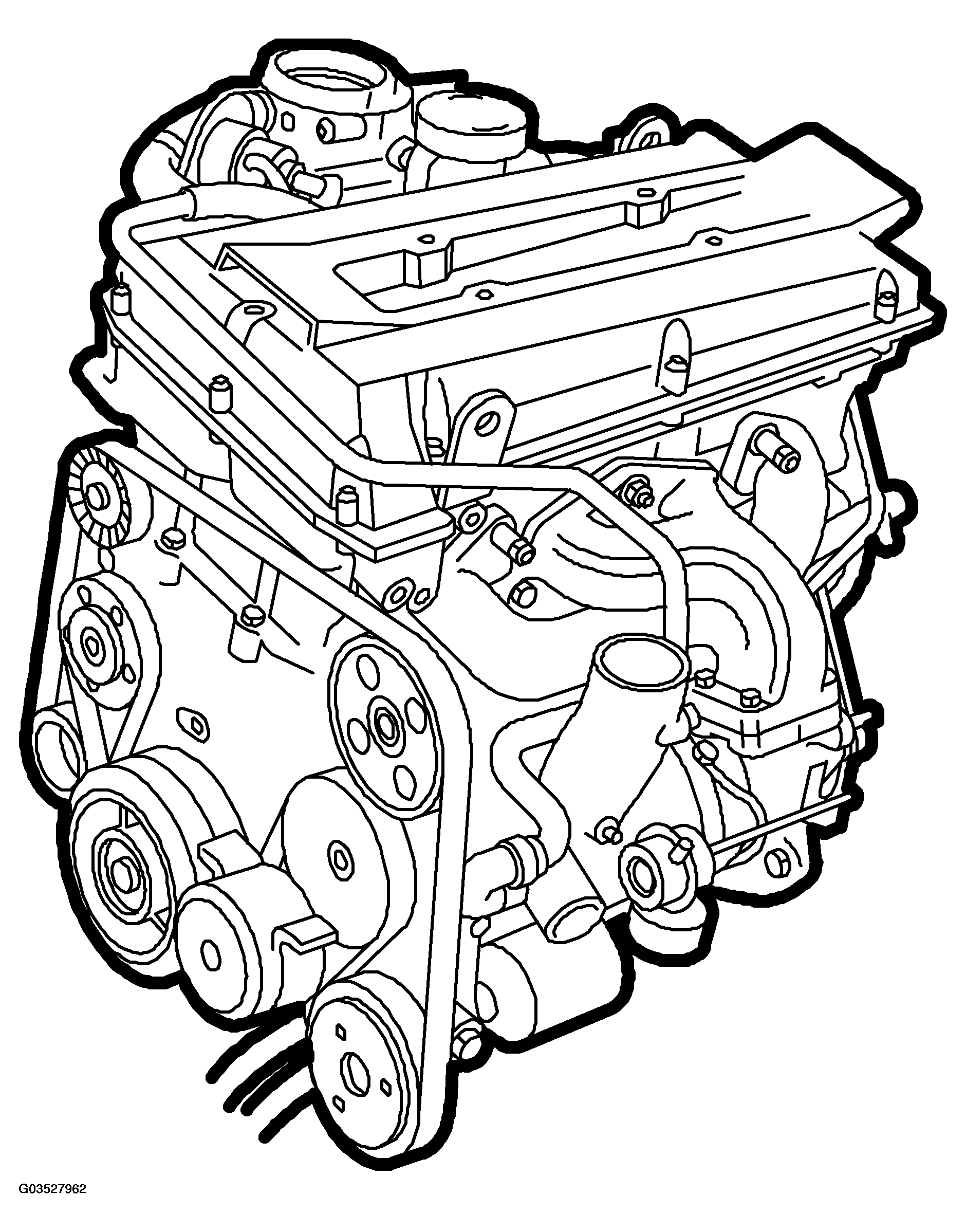

Fig 1: View Of Engine Assembly
G03527962Courtesy of SAAB-SCANIA OF AMERICA, INC.
GENERAL DATA

Engine   B205E/L/R B235R
Type   4-cylinder, 4-stroke engine with 4 valves per cylinder, twin overhead camshafts and 2 balancer shafts. Transversely mounted. 4-cylinder, 4-stroke engine with 4 valves per cylinder, twin overhead camshafts and 2 balancer shafts. Transversely mounted.
Cylinder bore mm 90 90
Stroke mm 78 90
Compression ratios   8,8:1 9,3:1
Cylinder capacity cm3 1985 2290
Firing order   1-3-4-2 1-3-4-2
Weight kg (lb) 157 (346) 158 (348)
