Fuel pump

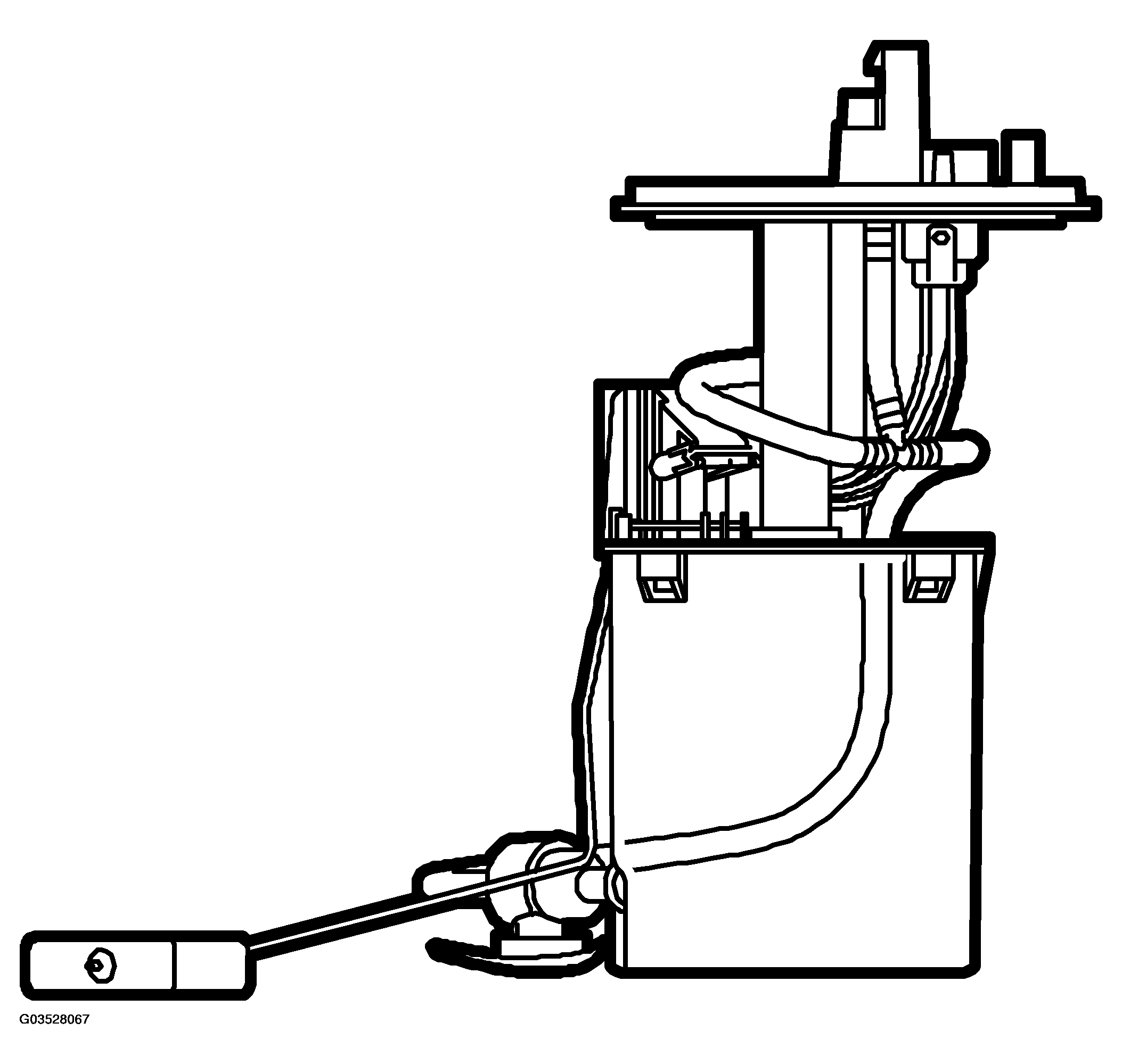

Fig 1: Identifying Fuel Pump
G03528067Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PUMP SPECIFICATIONS

Capacity at 3.0 bar (43 psi) back pressure l/30 s min. 0.7
Fuel level sensor resistance with full tank Ohms 390 +/- 6
Fuel level sensor resistance with empty tank Ohms 60 +/- 2.6
