Injectors, V6

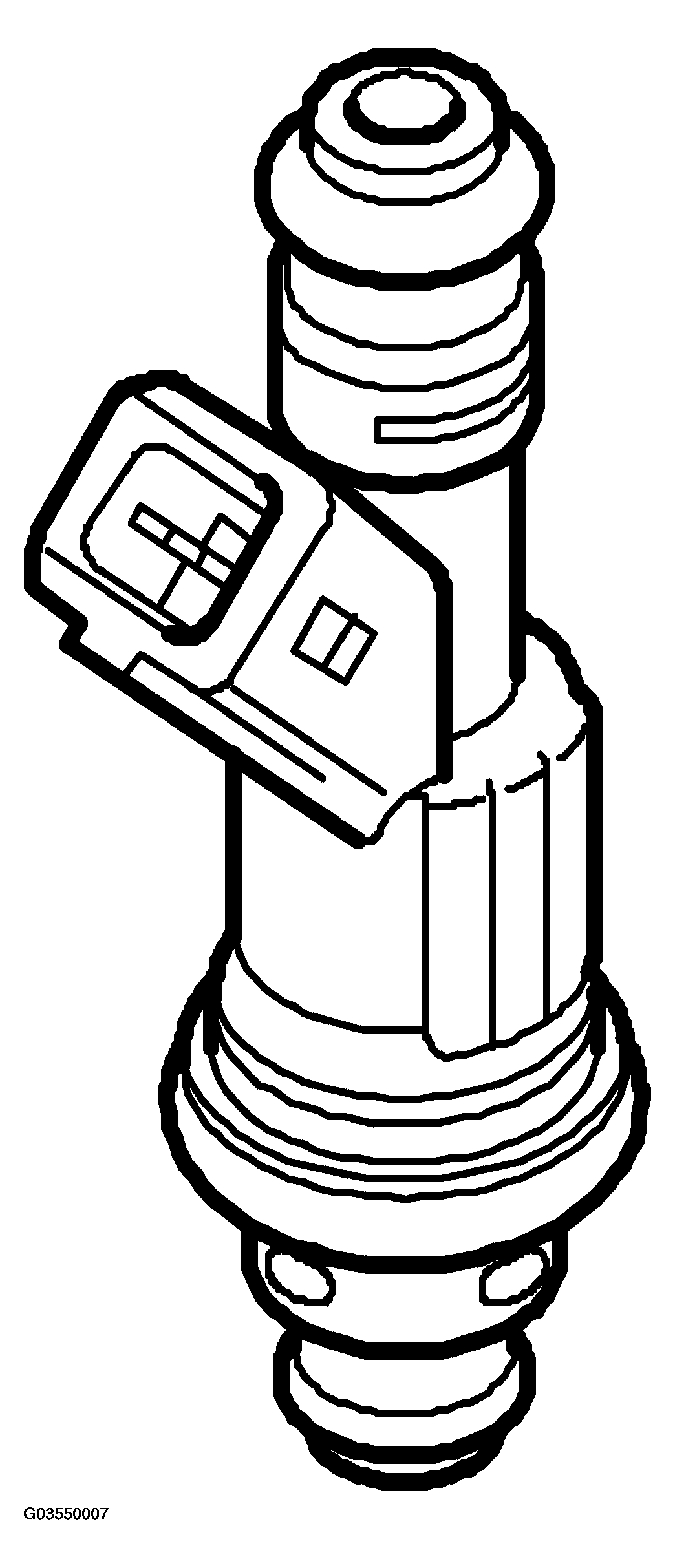

Fig 1: Identifying Injectors (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The injectors are connected directly to the fuel rail. They are located in the intake ports in front of the inlet valves.

The injectors consist of a valve body and spray nozzle with electromagnetic armature. The valve body contains a solenoid winding and actuator for the spray nozzle. The injectors are controlled electromagnetically, opening and closing by means of electric pulses from the control module.

For more information on injectors, see SELF-DIAGNOSTICS .
