System overview, V6: Notes

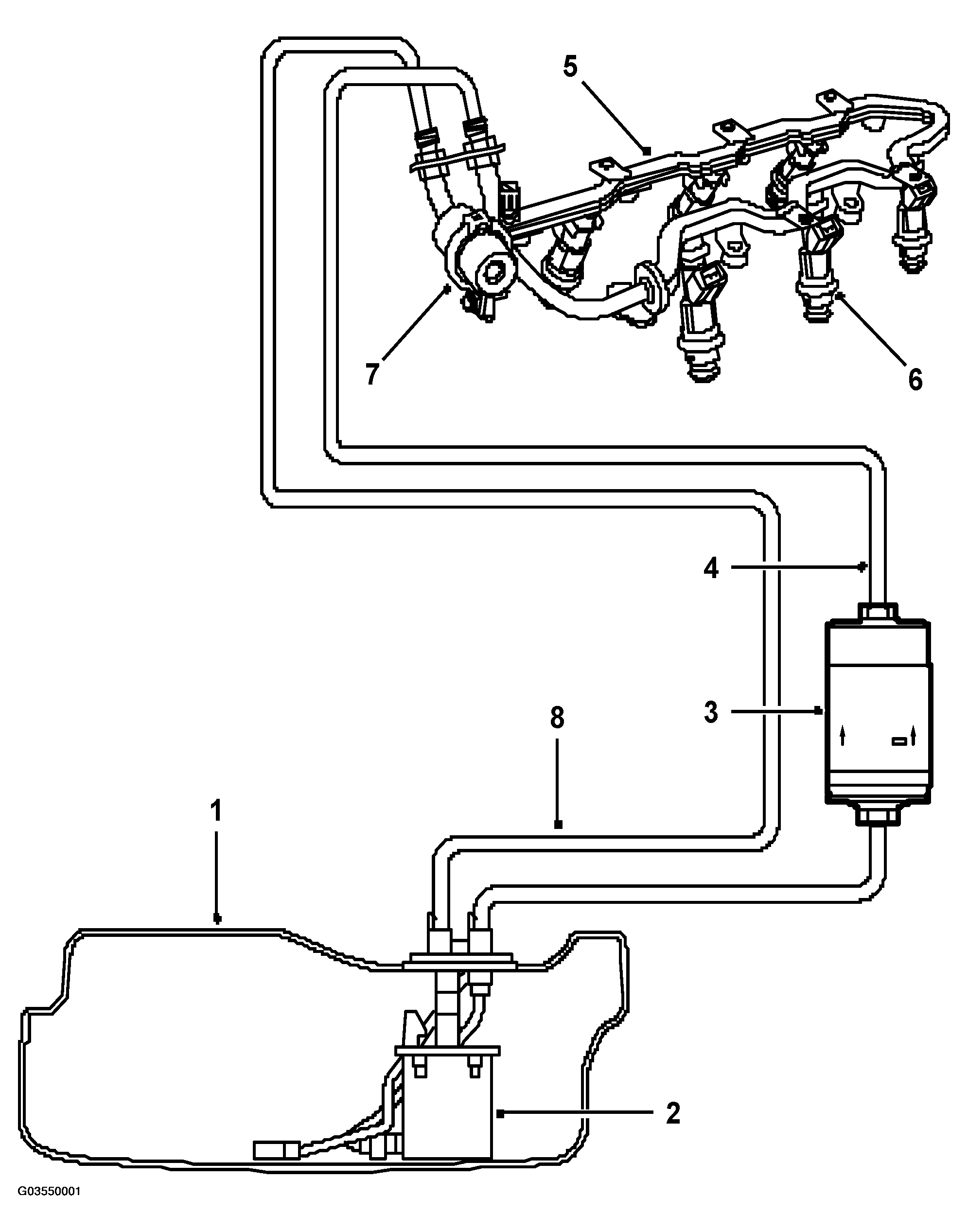

Fig 1: System Overview (V6)
G03550001Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel tank
  2. Fuel pump
  3. Fuel filter
  4. Fuel line, delivery
  5. Fuel rail
  6. Injector
  7. Pressure regulator
  8. Fuel line, return
