Charge Regulator: Removal

Remove the protective housing from the generator. Remove the voltage regulator. See Fig 1 .

NOTE: The generator brushes are fixed to the voltage regulator. The whole unit must be replaced with a new one.

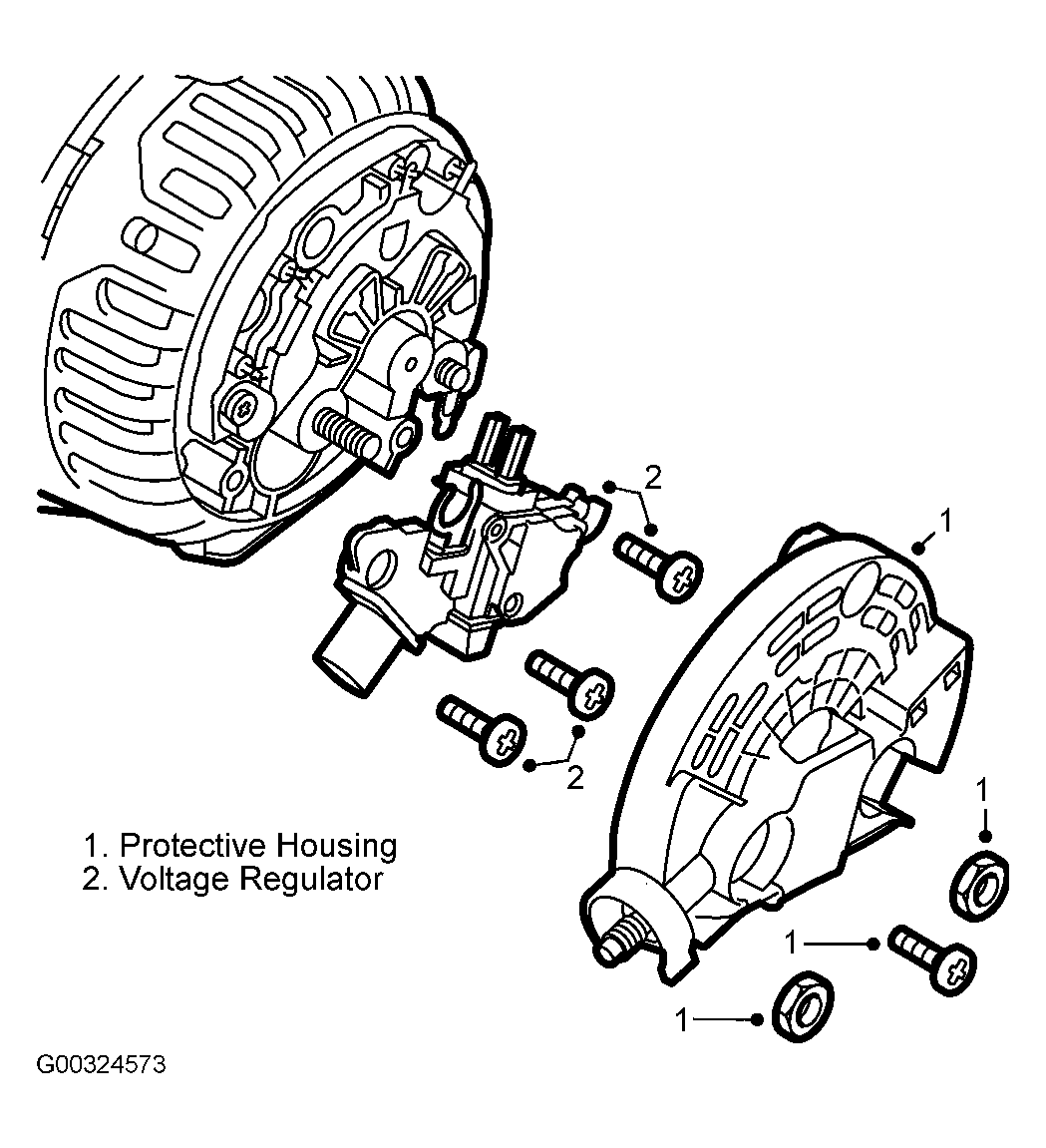

Fig 1: Removing Voltage Regulator
G00324573Courtesy of SAAB-SCANIA OF AMERICA, INC.
