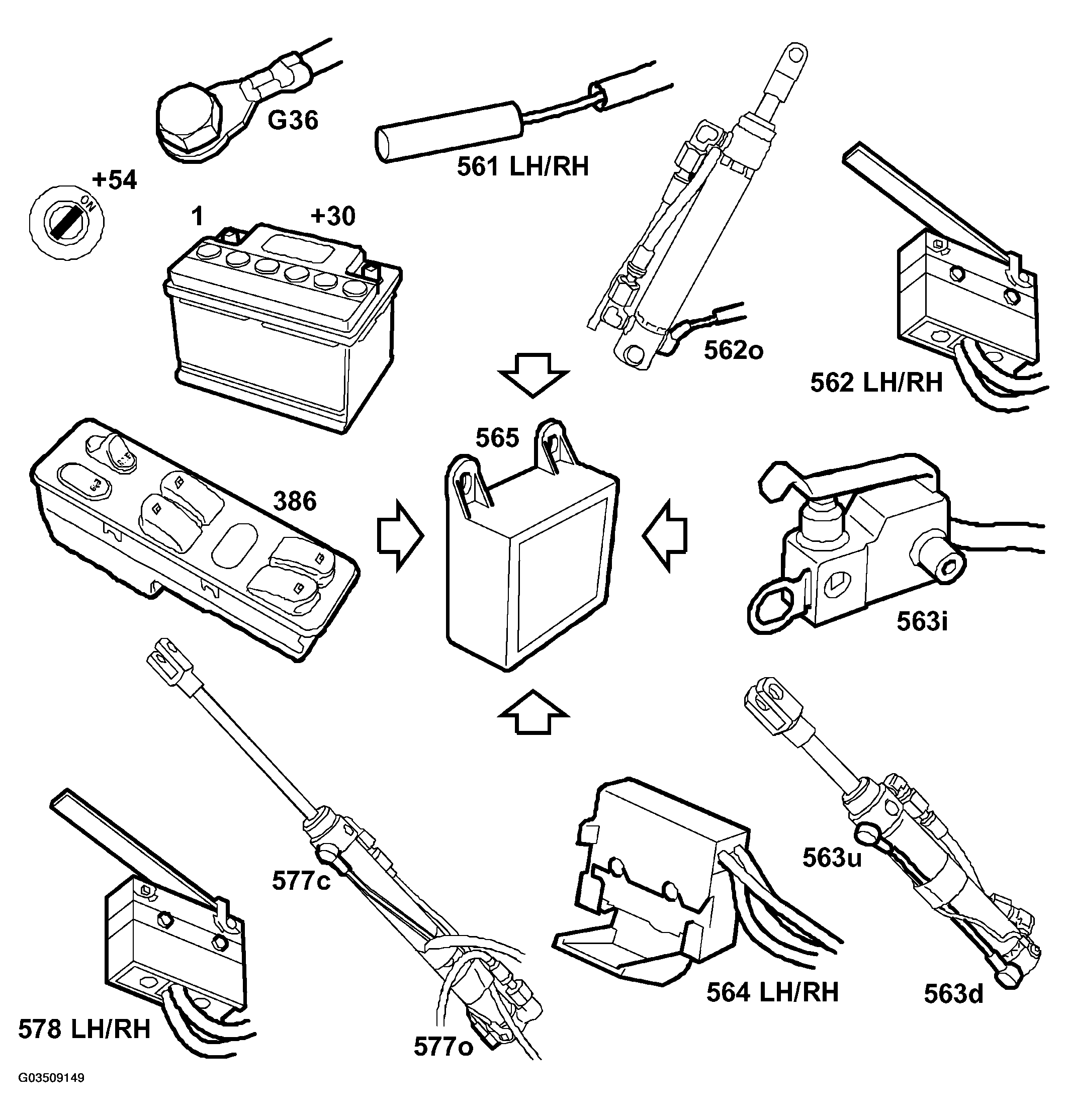

Control module inputs
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Power supply +54 (20). See FUSES & CIRCUIT BREAKERS
- Power supply +30 (1). See FUSES & CIRCUIT BREAKERS
- Control module ground (G36). See FUSES & CIRCUIT BREAKERS
- Switch in main sequence hydraulic cylinder (577c, 577o). See FUSES & CIRCUIT BREAKERS
- Switch in fifth bow hydraulic cylinder (563i, 563u). See FUSES & CIRCUIT BREAKERS
- Switch in soft top cover hydraulic cylinder (562o). See FUSES & CIRCUIT BREAKERS
- Switch in windscreen frame (561LH, 561RH). See FUSES & CIRCUIT BREAKERS
- Microswitch, fifth bow intermediate position (563d). See FUSES & CIRCUIT BREAKERS
- Microswitch, soft top cover latch (562LH, 562RH). See FUSES & CIRCUIT BREAKERS
- Microswitch, fifth bow latch (578LH, 578RH). See FUSES & CIRCUIT BREAKERS
- Microswitch in soft top storage (564LH, 564RH). See FUSES & CIRCUIT BREAKERS
- ROOF switch (317). See FUSES & CIRCUIT BREAKERS
- Switch, all windows up/down (514b). See FUSES & CIRCUIT BREAKERS
- Switch, front right window lift (386). See FUSES & CIRCUIT BREAKERS
- Switch, front left window lift (386). See FUSES & CIRCUIT BREAKERS
- Switch, rear left window lift (386). See FUSES & CIRCUIT BREAKERS
- Switch, rear right window lift (386). See FUSES & CIRCUIT BREAKERS
