To Remove

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

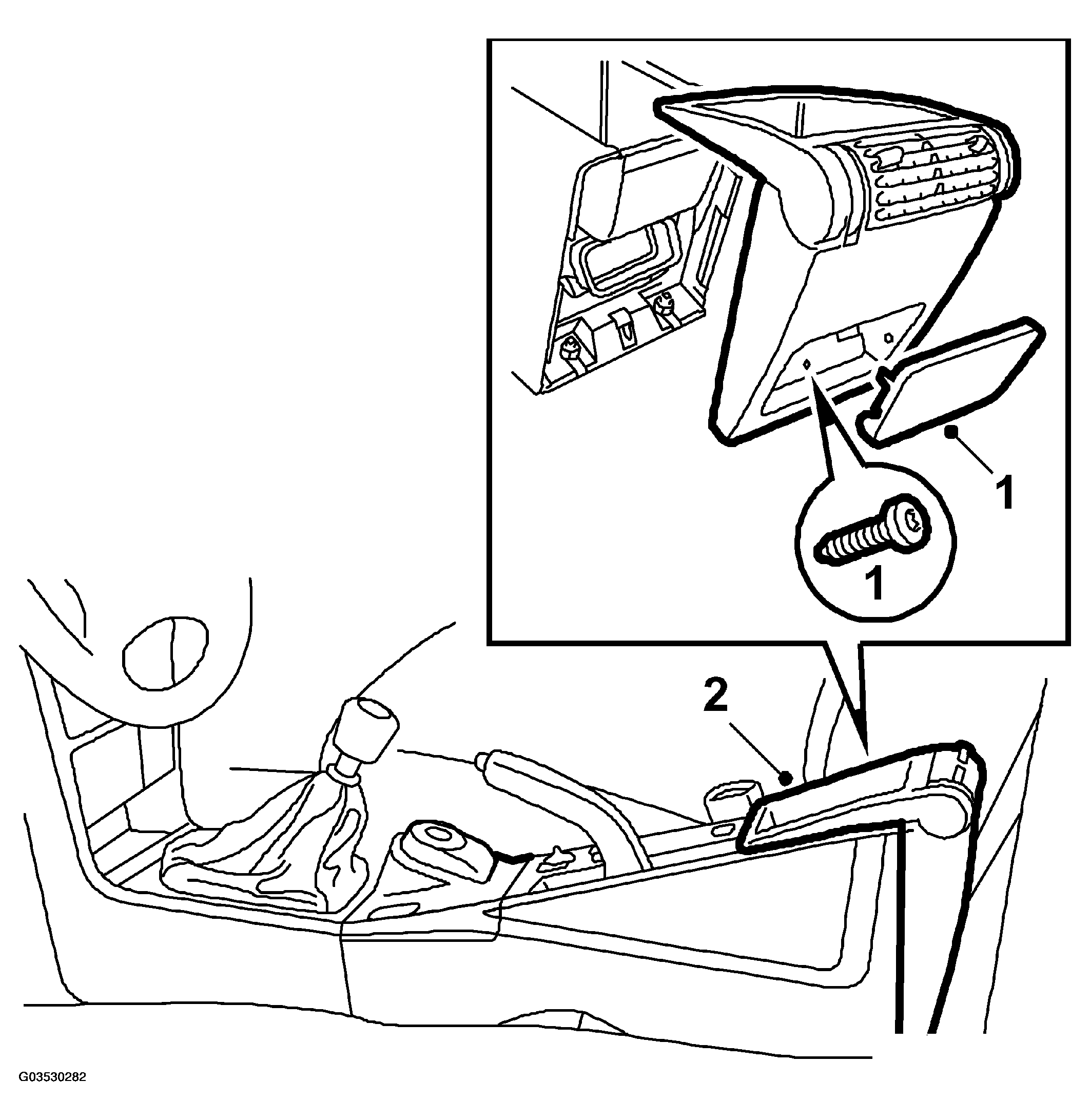

Fig 1: Illustration For Steps 1-2
G03530282Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the cover and unscrew the screw holding the rear section of the floor console.
  2. Lift off the rear section.
  3. Undo the receiver unit from the side wall of the floor console.

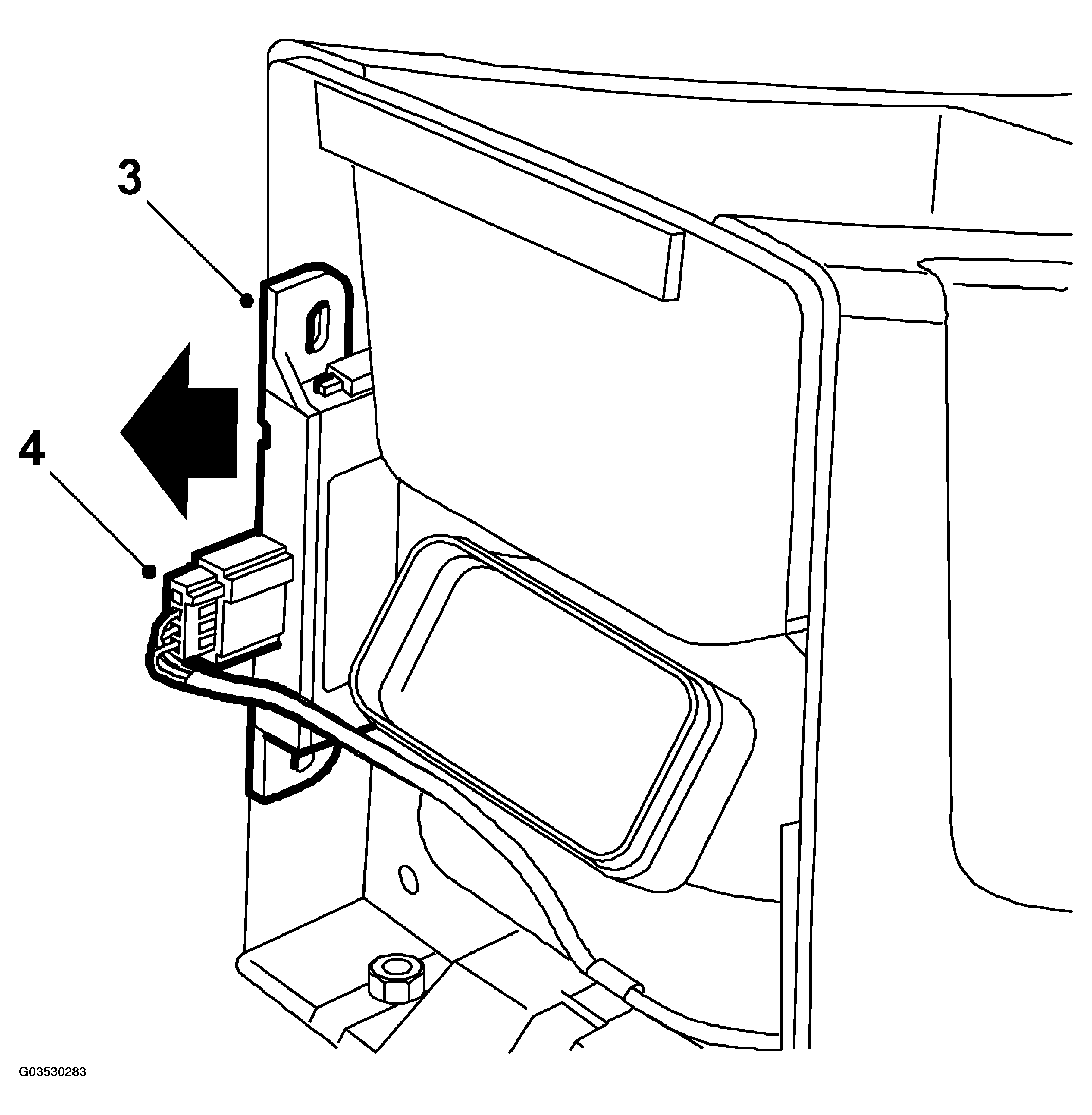

    Fig 2: Illustration For Steps 3-4
    G03530283Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector and remove the receiver unit.
