To remove

  1. Open the data link connector cover.

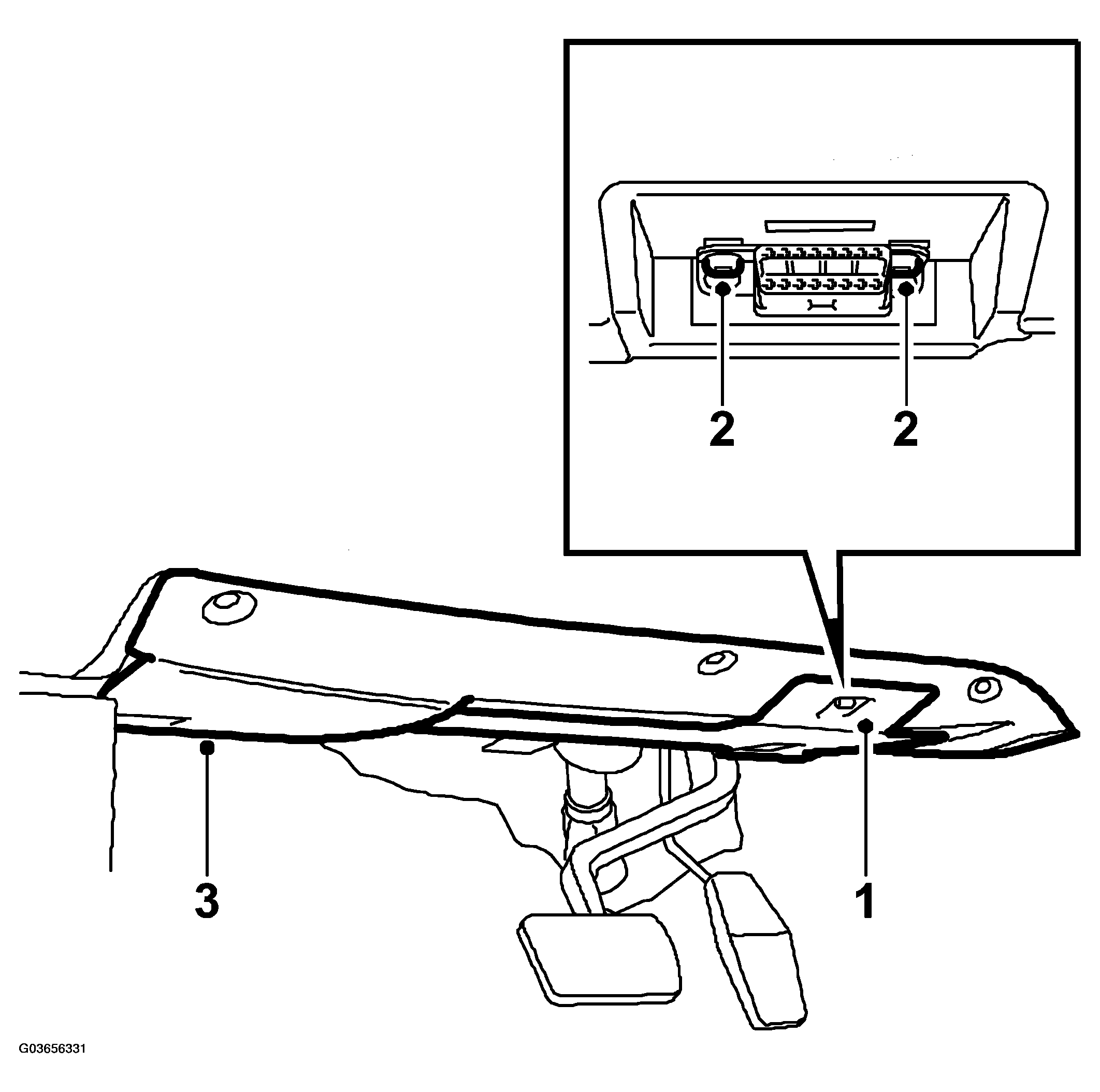

    Fig 1: Illustration For Step 1-3
    G03656331Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screws in the data link connector.
  3. Remove the screws and clip securing the lower panel with air duct.
  4. Unplug the connector for the floor lighting.
    Fig 2: Illustration For Step 4, 6, 7
    G03656332Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift out the lower panel.
  6. Disconnect the throttle cable from the throttle pedal by sliding back the bush and removing it and the cable.
  7. Remove the pedal.
