To remove

  1. Remove the fuel tank. See FUEL TANK, TO REMOVE  .
  2. To prevent dirt entering the fuel system, clean the outside of the tank if necessary before removing the fuel pump.
  3. Unplug the fuel pump connector.

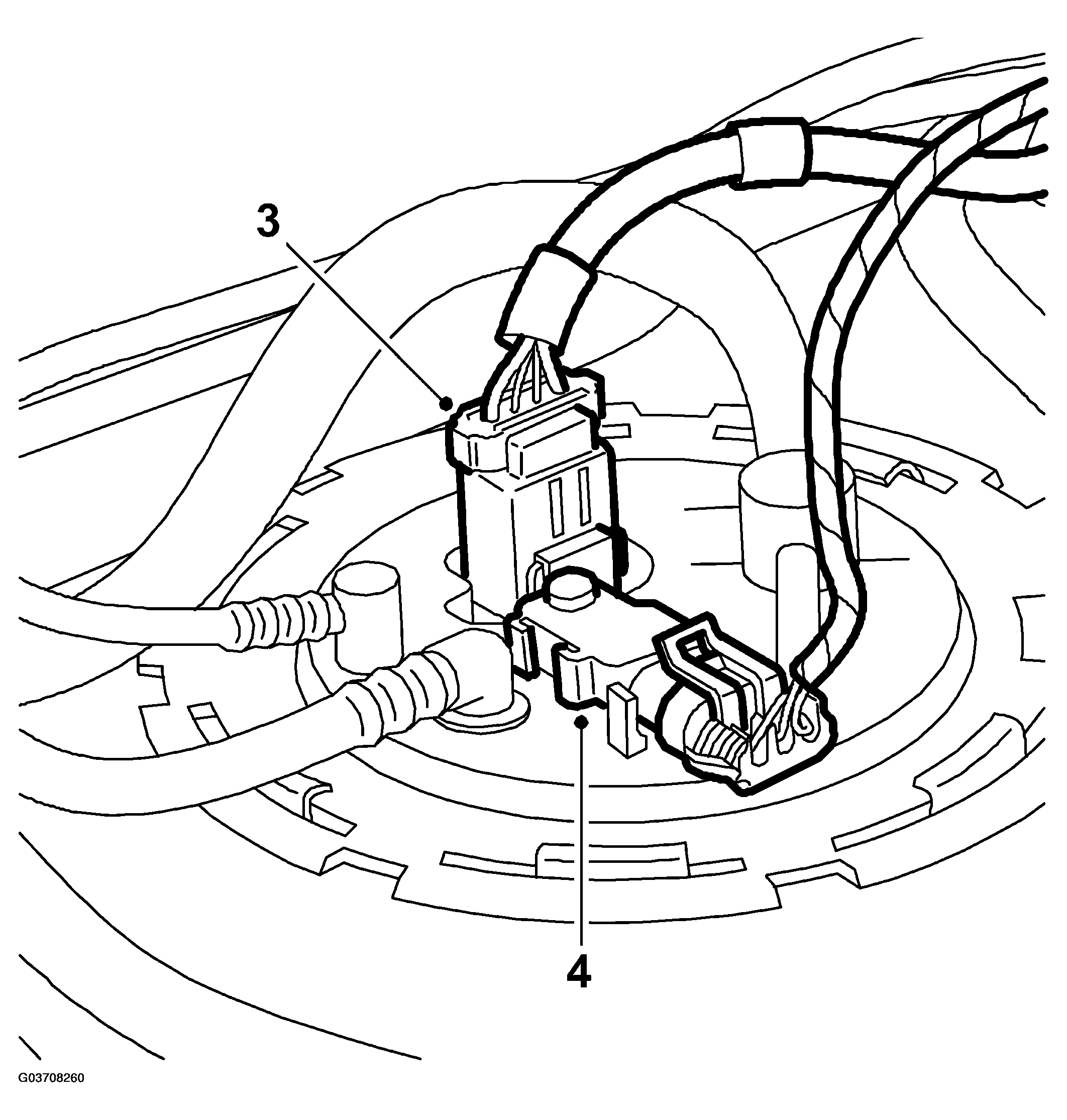

    Fig 1: Illustration For Step 3-4
    G03708260Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. On cars with ORVR, unplug the connector for the pressure sensor.
  5. Remove the fuel pump. Use tool 83 96 194 FITTING TOOL, FUEL ARMATURE  to undo the fuel pump lock ring.

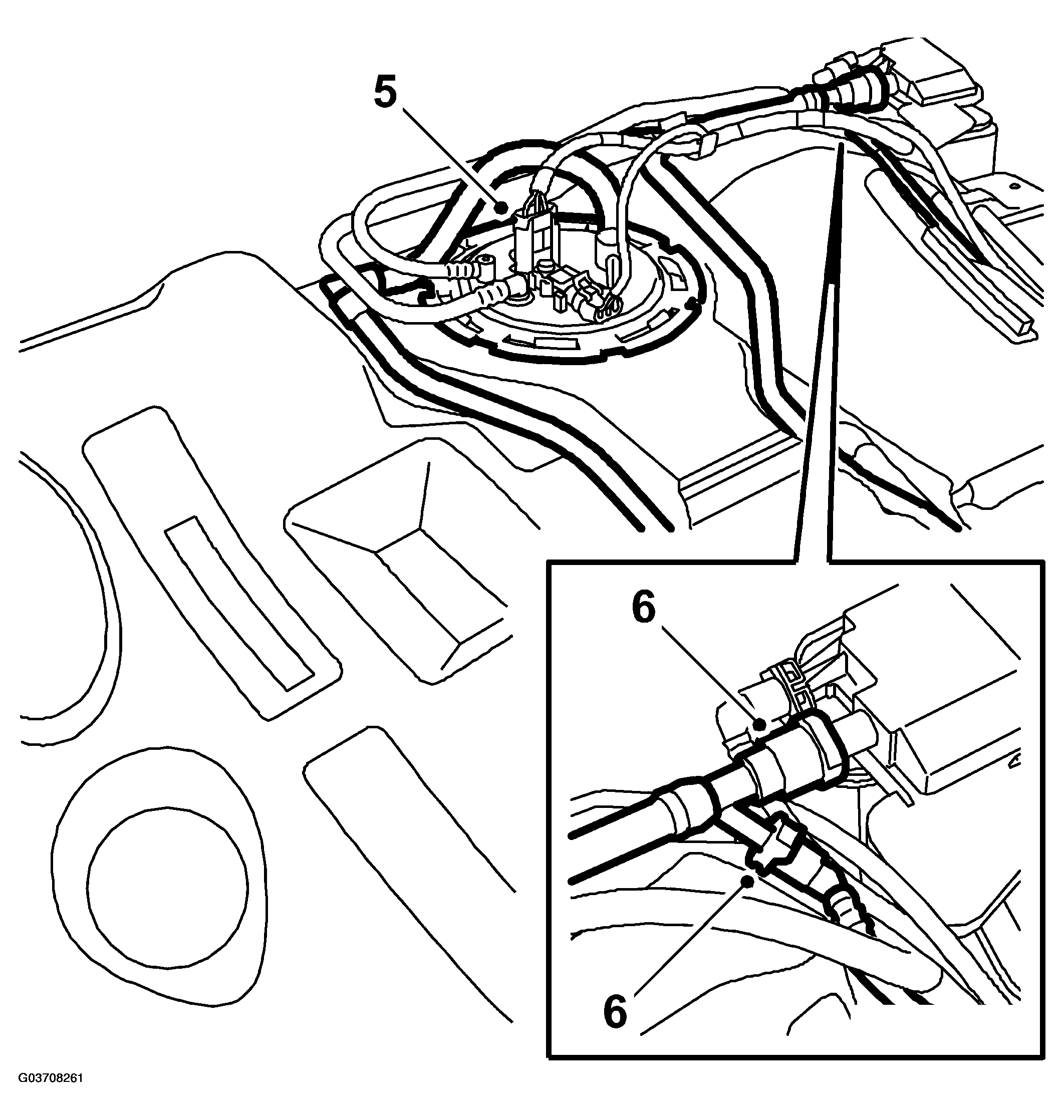

    Fig 2: Illustration For Step 5-6
    G03708261Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Disconnect the quick-release couplings on the EVAP emission canister.
  7. Lift up the fuel pump slightly and disconnect the quick-release coupling for the tank ventilation from the fuel pump.
  8. Carefully lift up the fuel pump and place it in a receptacle.
    IMPORTANT: Take care not to damage the fuel level sensor.

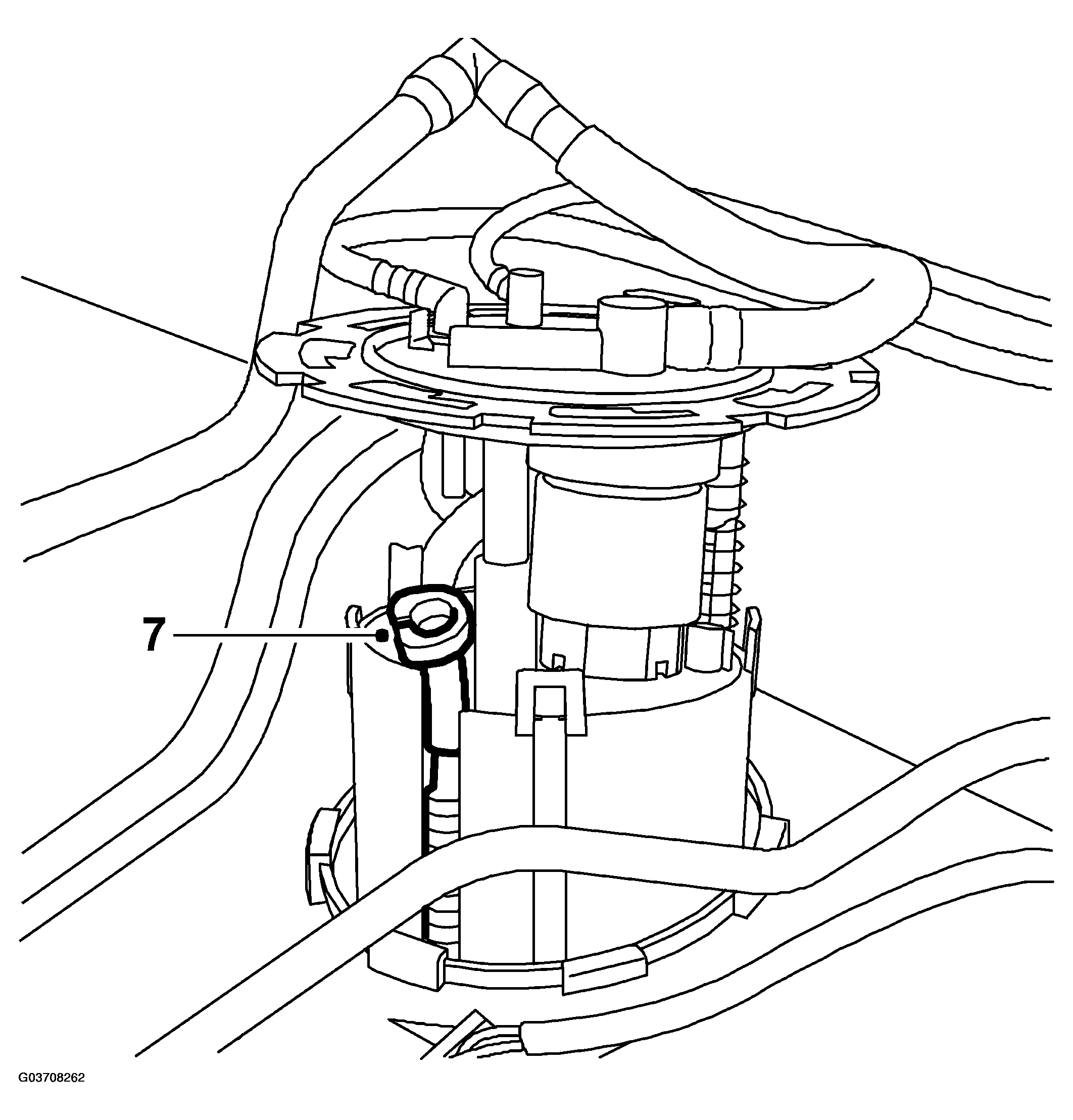

    Fig 3: Illustration For Step 7
    G03708262Courtesy of SAAB-SCANIA OF AMERICA, INC.
