System overview

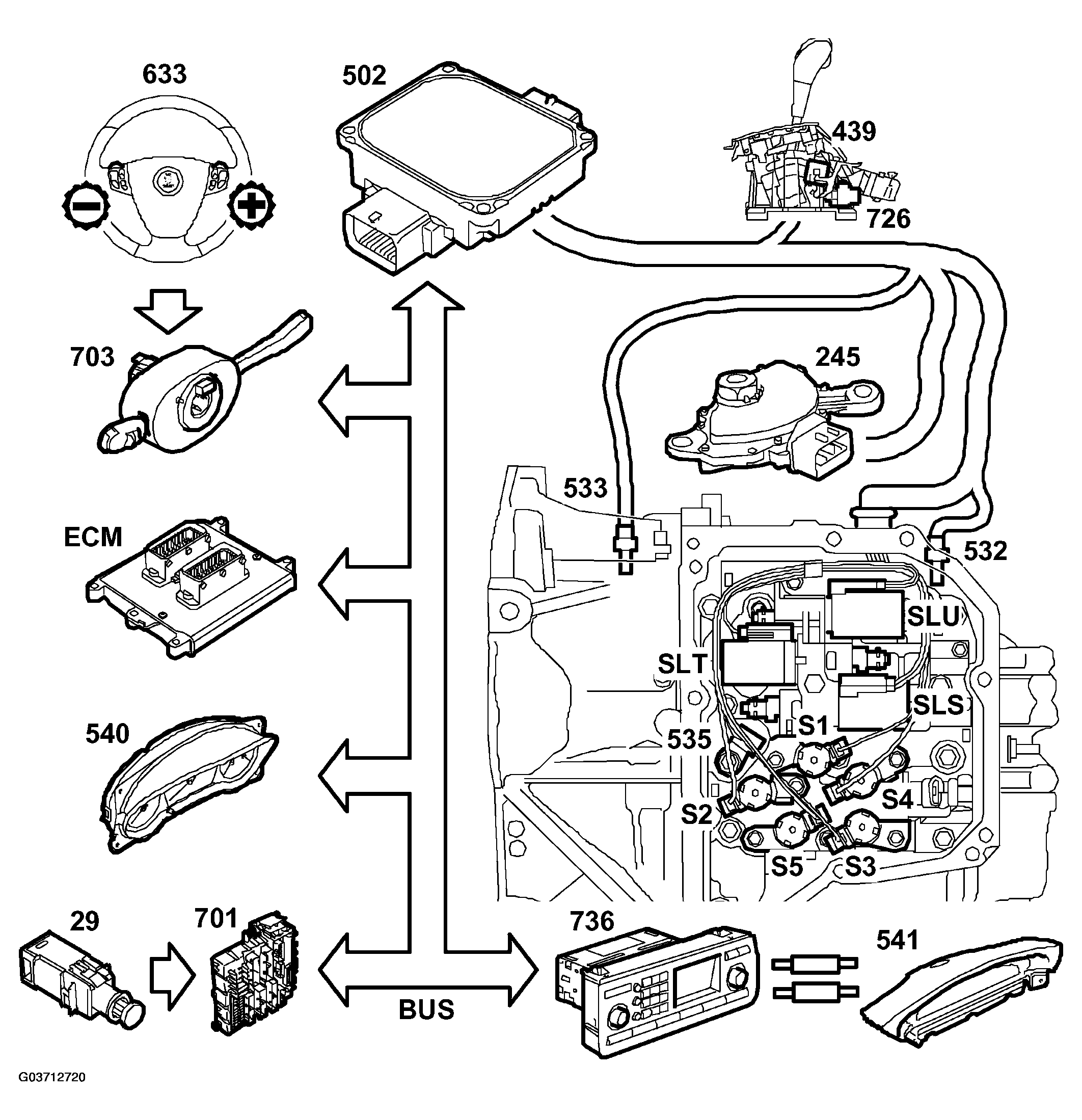

Fig 1: Identifying System Components
G03712720Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Gear selector position sensor (245)
  2. Main instrument unit (540)
  3. Trionic T8 control module (589)
  4. SID (541)
  5. TCM control module (502)
  6. OUTPUT SHAFT SPEED SENSOR (533)
  7. INPUT SHAFT SPEED SENSOR (532)
  8. TRANSMISSION FLUID TEMPERATURE SENSOR (535)
  9. Main fuse box 701
  10. Brake light switch (29)
  11. Oil pressure solenoid, SLU 531
  12. Shift solenoid S1 531
  13. Shift solenoid S2 531
  14. Shift solenoid S3 531
  15. Shift solenoid S4 531
  16. Shift solenoid S5 531
  17. SYSTEM PRESSURE SOLENOID, SLT
  18. OIL PRESSURE SOLENOID, SLS
  19. SHIFT LEVER MODULE SLM (726)
  20. SWITCH UNIT, STEERING WHEEL (633)
  21. COLUMN INTEGRATION MODULE (703)
