Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Adjustment - Replacement >> PSM Control module >> To remove

To remove

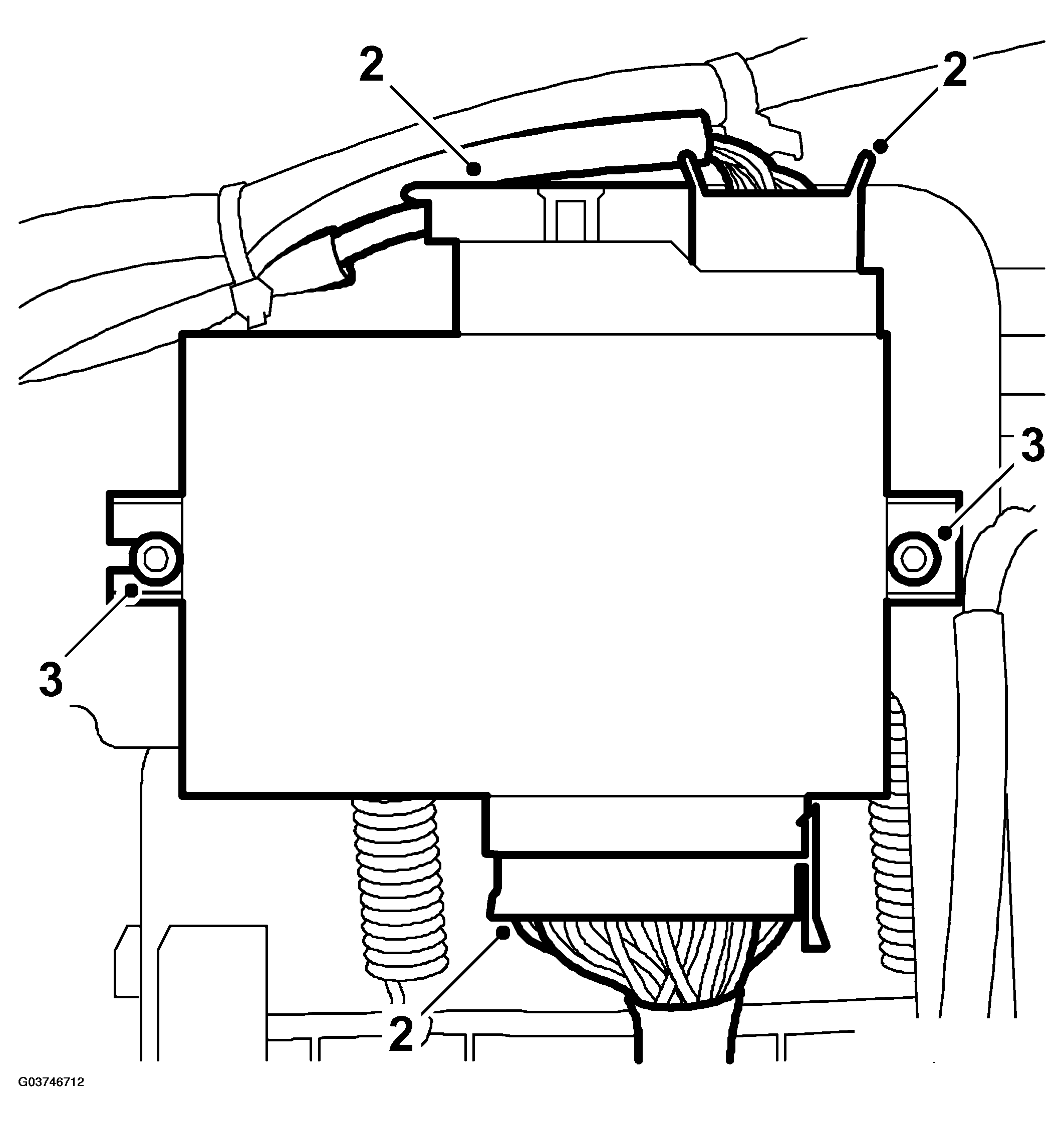

Fig 1: Illustration For Step 2 And 3
G03746712Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the front seat and tilt it back, see FRONT SEAT  .
  2. Unplug 3 connectors on the control module.
  3. Unscrew the control module from the bracket, 2 screws.
